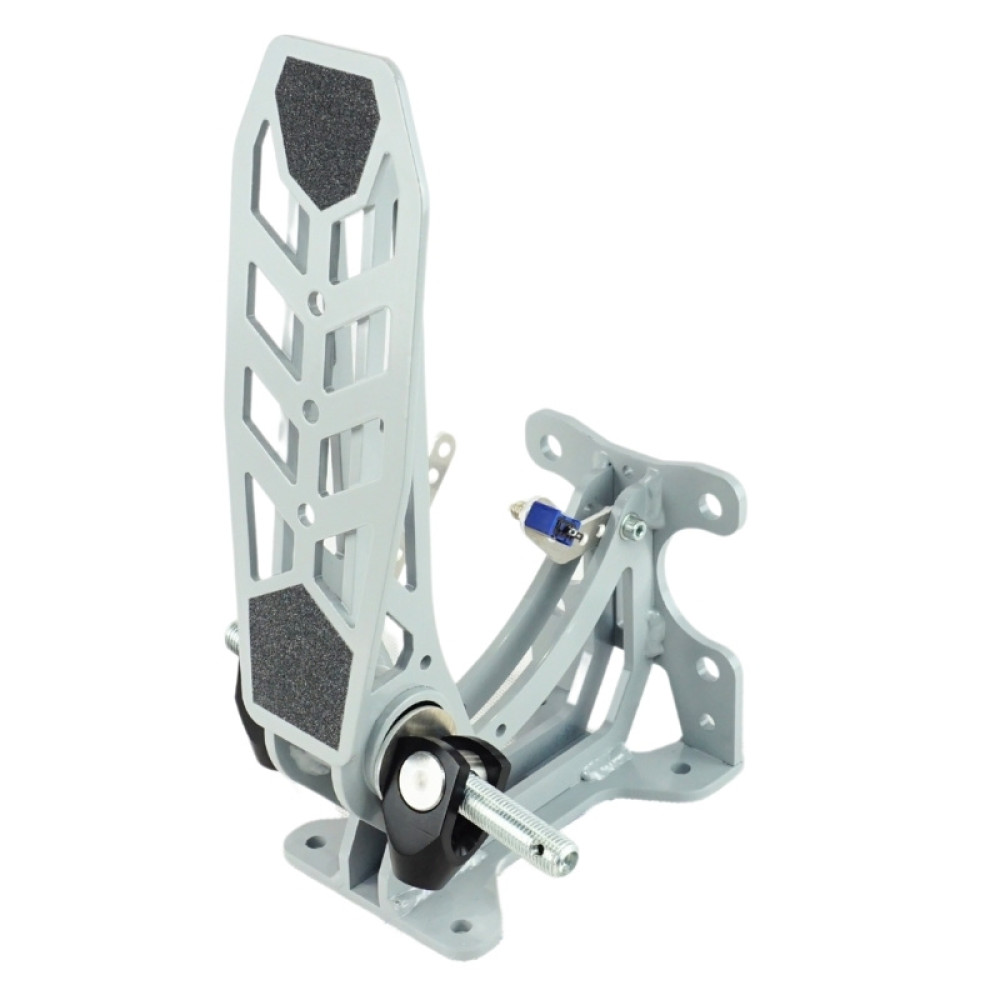

RacingPedalBoxes RPBB001 Brake Pedal – Formula Student

The RacingPedalBoxes RPBB001 Brake Pedal is engineered for Formula Student (FSAE) cars, adhering to competition regulations. Crafted from welded steel with a lightweight design, it offers safety, durability, and an optimal stiffness-to-weight ratio.

Key Features:

• Designed for Formula Student (FSAE) cars

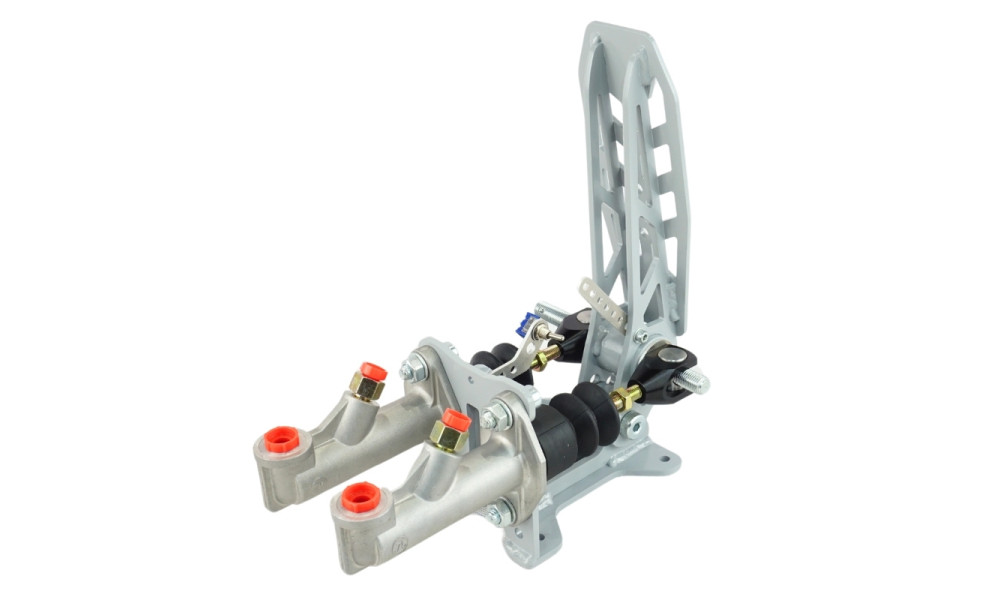

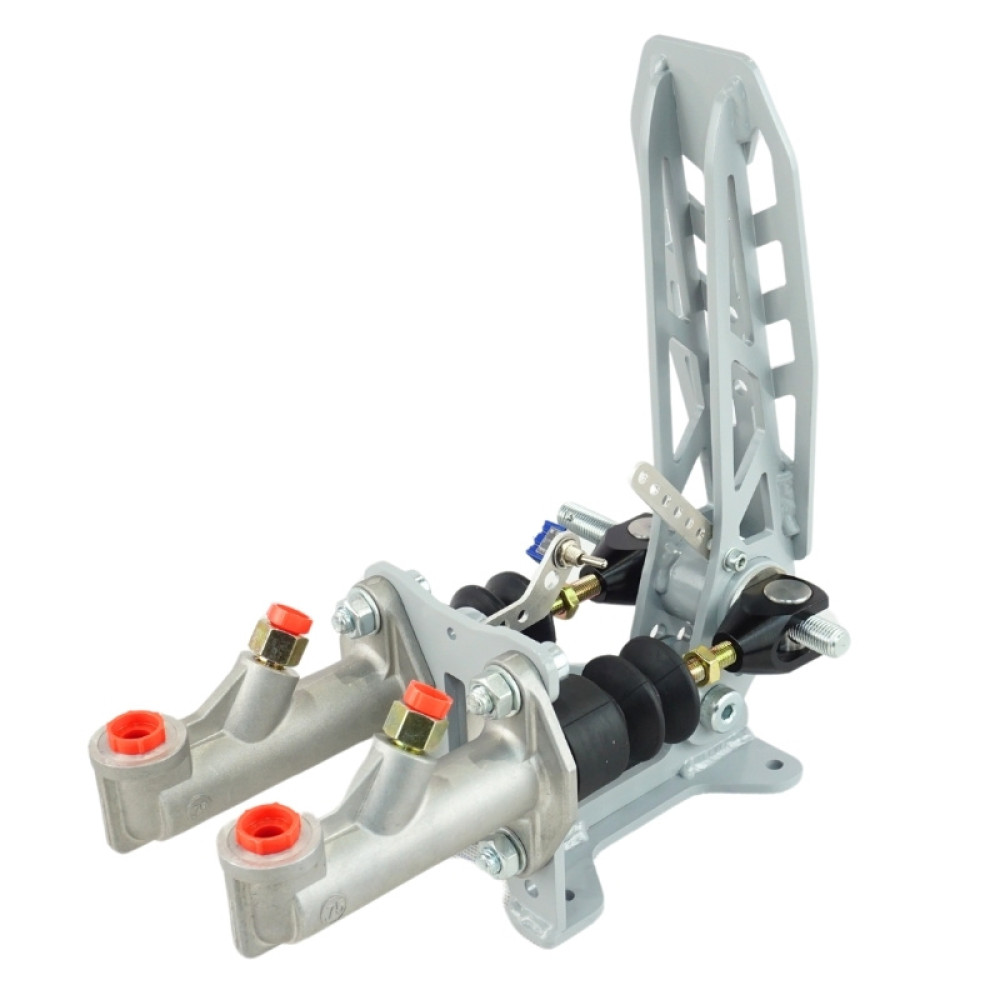

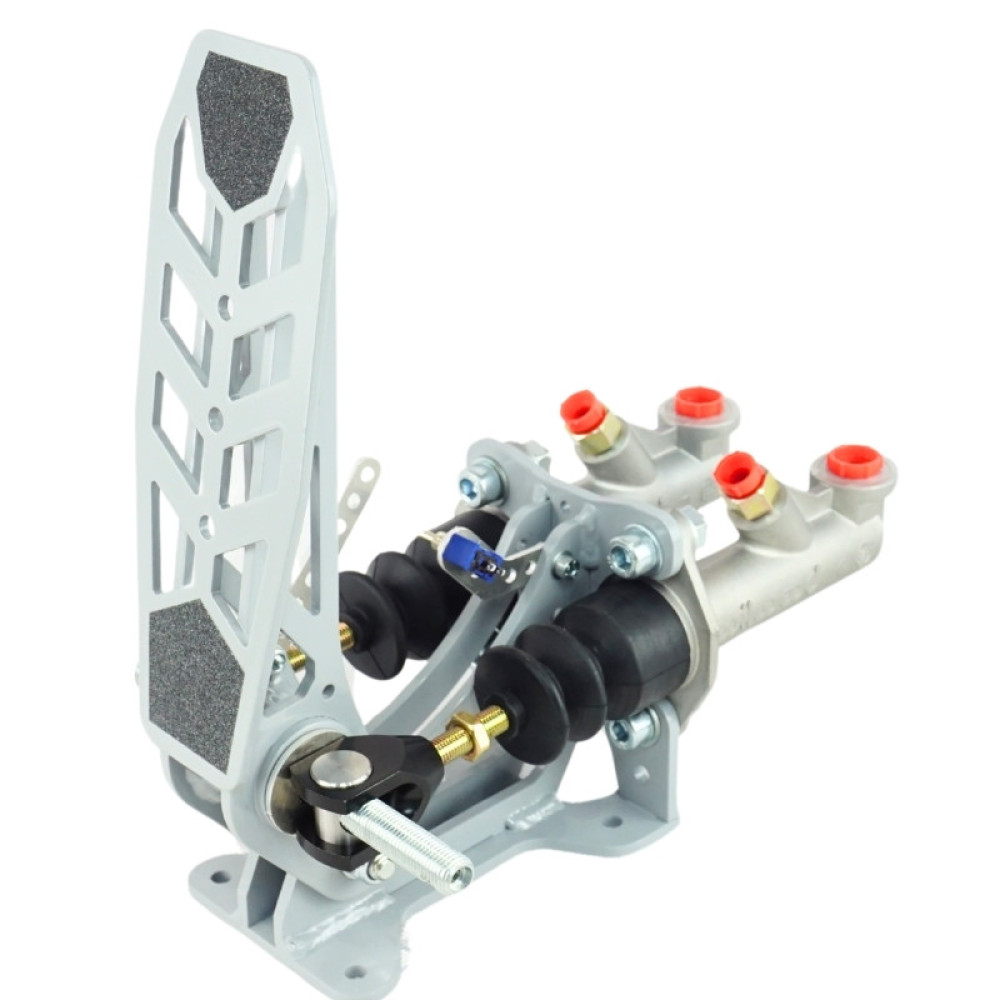

• Equipped with 2 independent master cylinders and a balance bar for front/rear brake regulation (Rule T 6.1.2)
• Each master cylinder can have its own fluid reservoir (Rule T 6.1.2)
• Pedal designed to resist a force of 2 kN without failure (Rule T 6.1.9)
• Lightweight welded steel construction (Rule T 6.1.10)

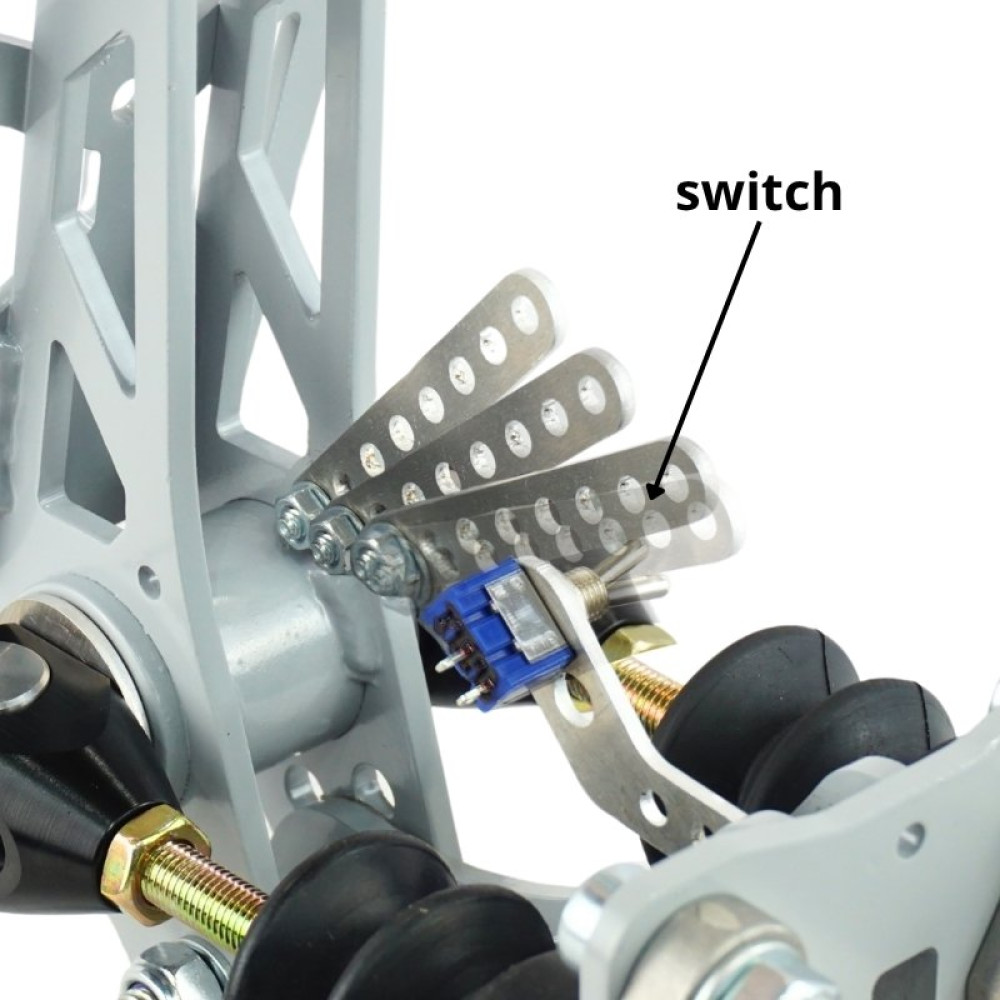

• Brake overtravel switch included (Rule T 6.2: Brake Over-Travel Switch / BOTS)
• Wide anti-slip pedal surface for control and comfort
• Balance bar 7/16”-20 UNF thread for maximum stiffness
• Master cylinder connections: 5/16”-24 UNF (Wilwood/Girling)
• Pedal ratio: 5:1
• Optional brake remote adjuster (7/16 UNF, ref. RPBAB03) for cockpit balance control
• Compatible with brake light switch banjo 3/8 UNF (ref. RPBAB12) (Rule T 6.3)
• Compatible with fluid reservoirs (ref. RPBAD02), directly or independently mounted
• Weight: 1.4 kg (without master cylinders) / 2.2 kg (with master cylinders)
• Floor-mounted with four M6 screws
• Anticorrosion coating for maximum durability
• Master cylinders sold separately
