Forged Connecting Rods for BMW N54B30 with ARP Bolts

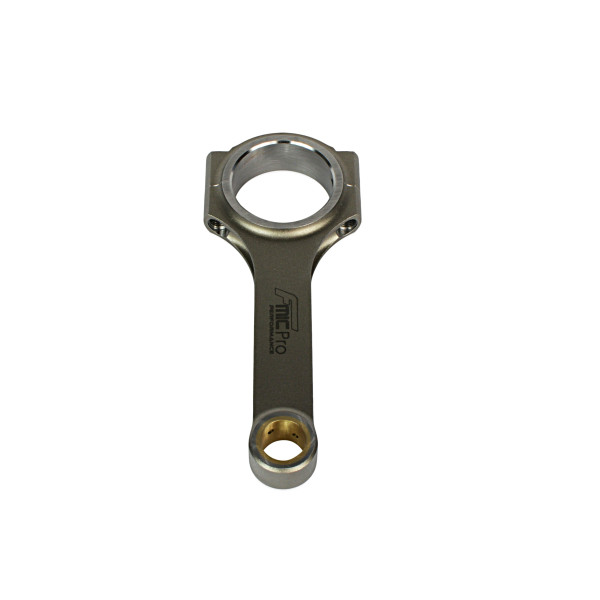

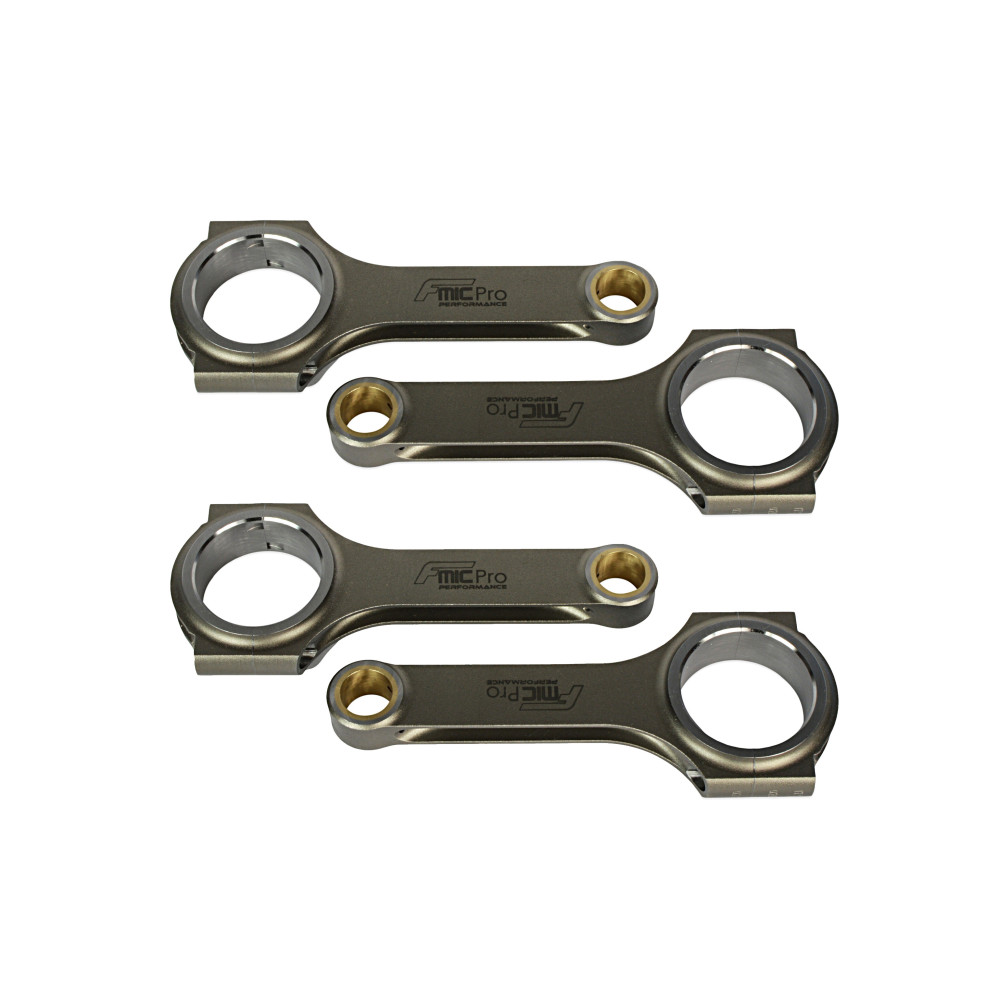

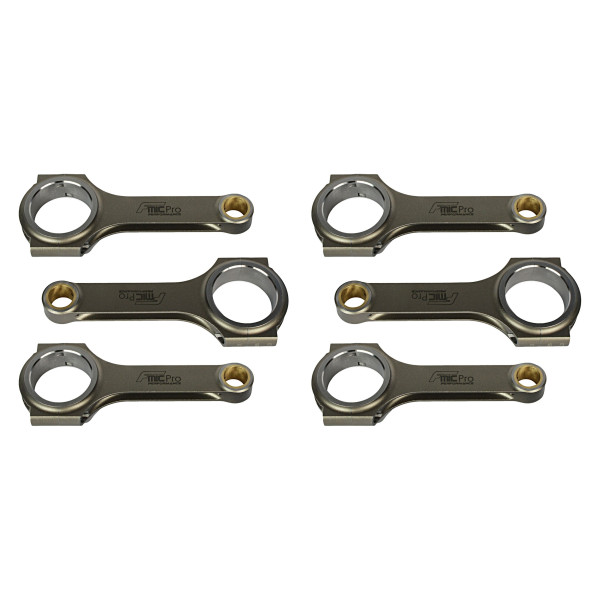

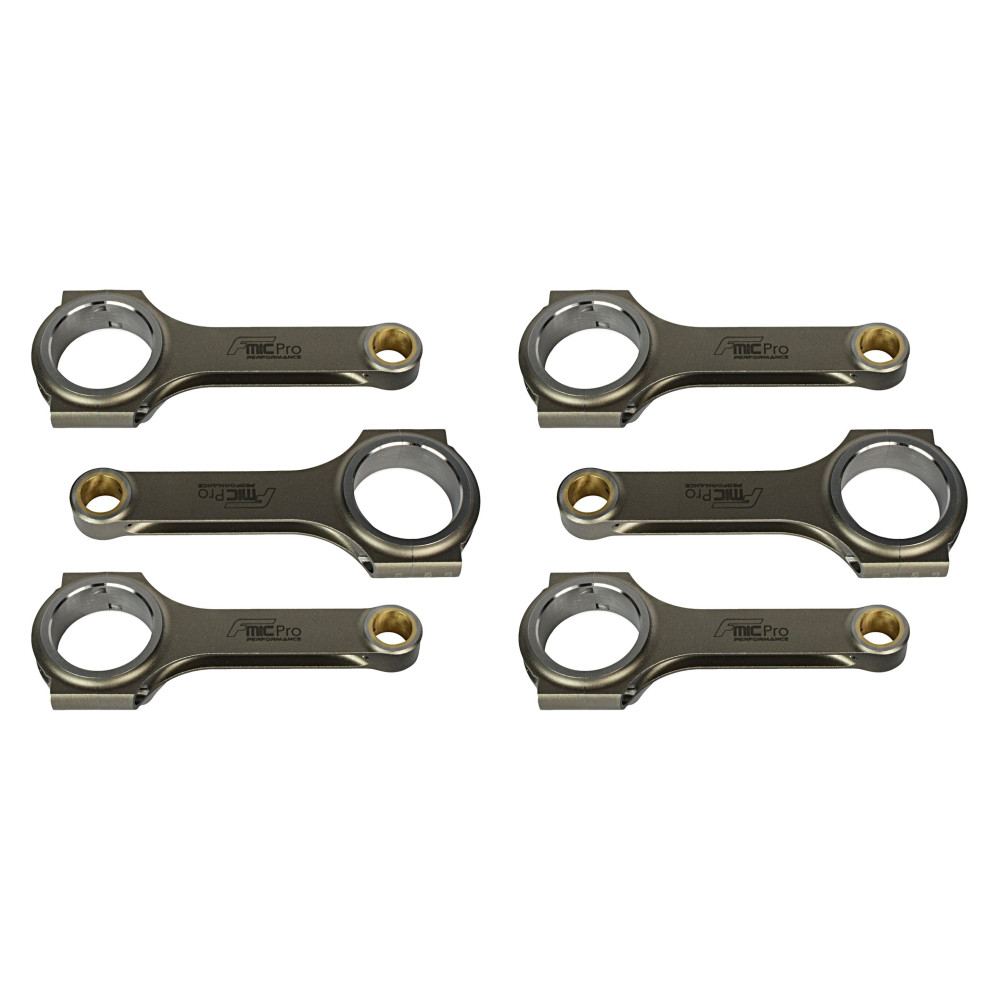

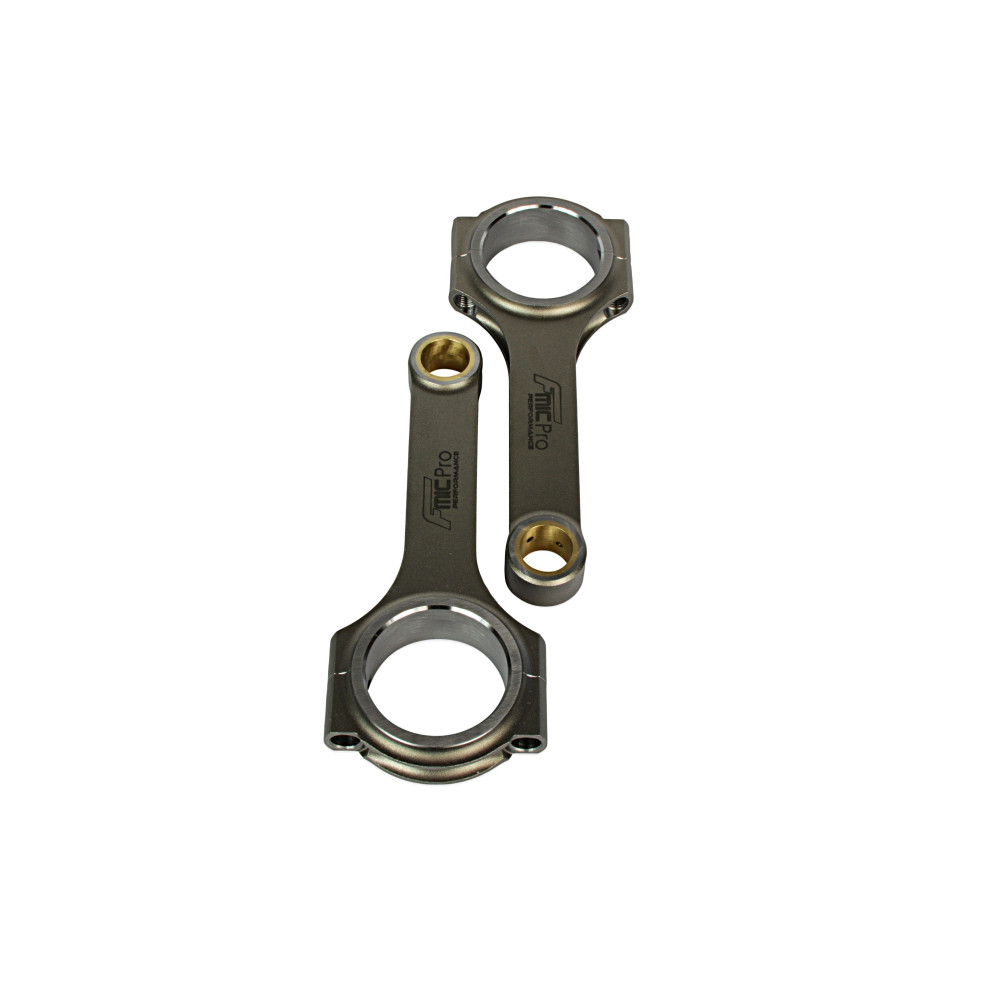

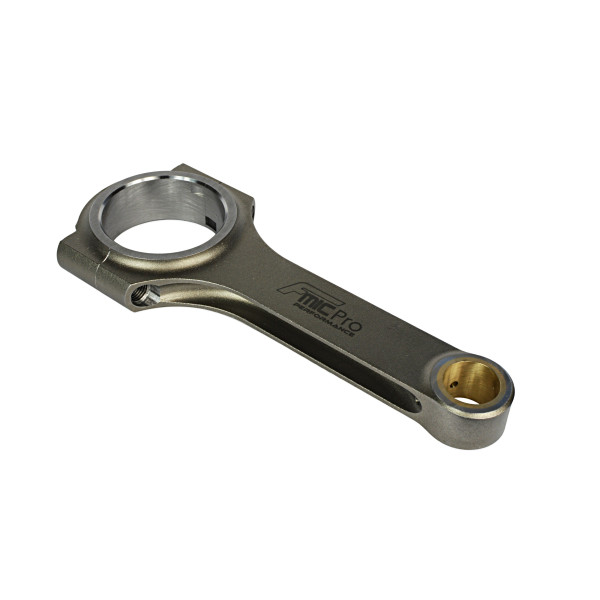

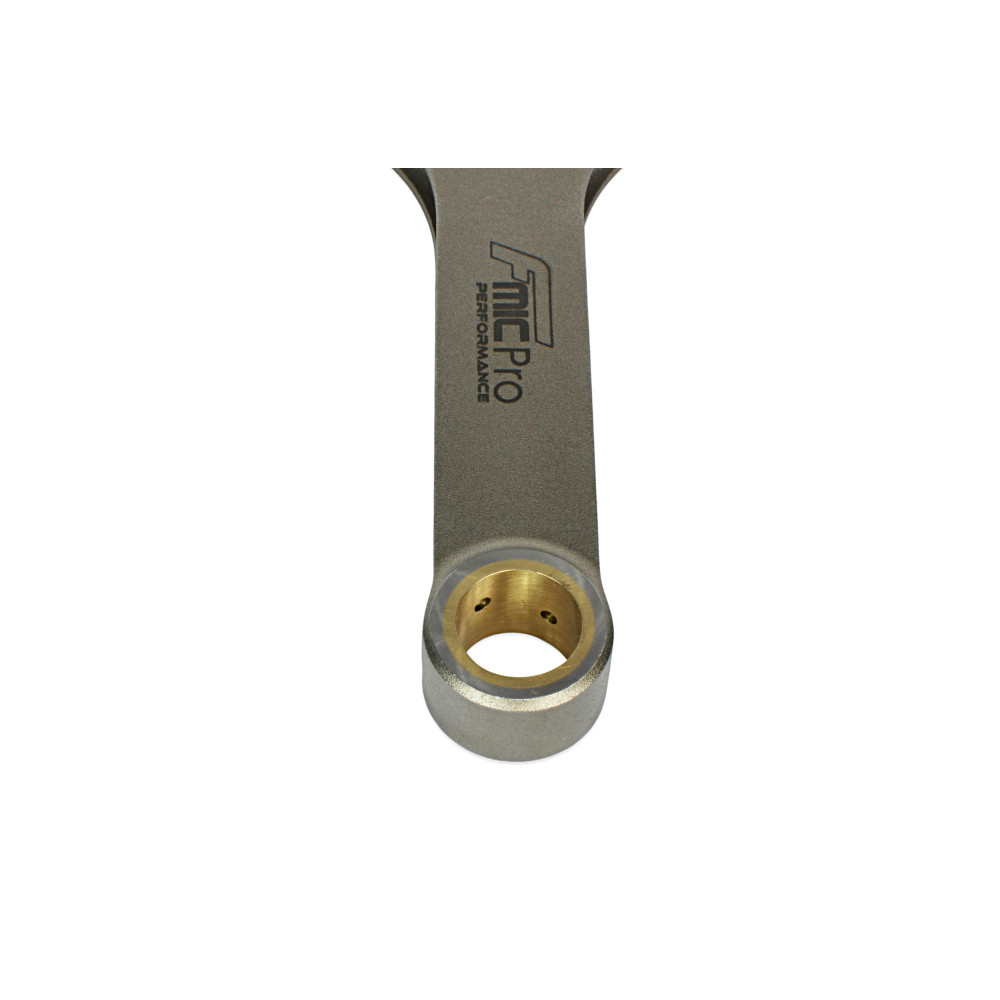

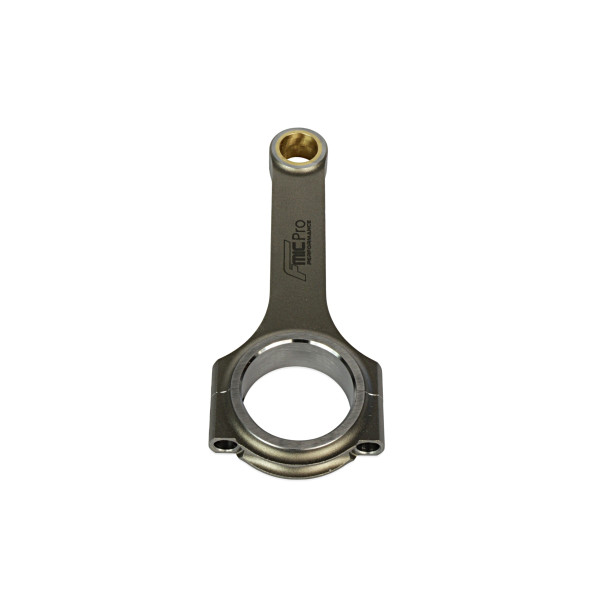

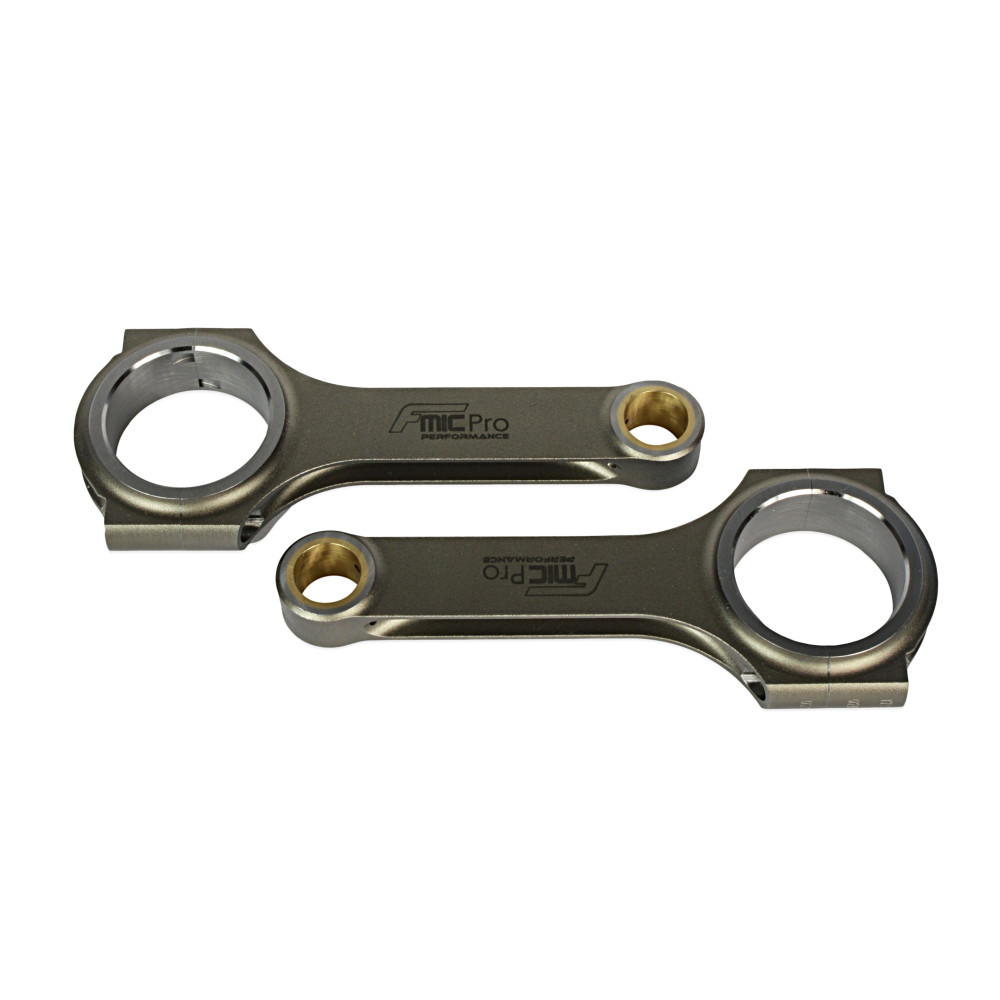

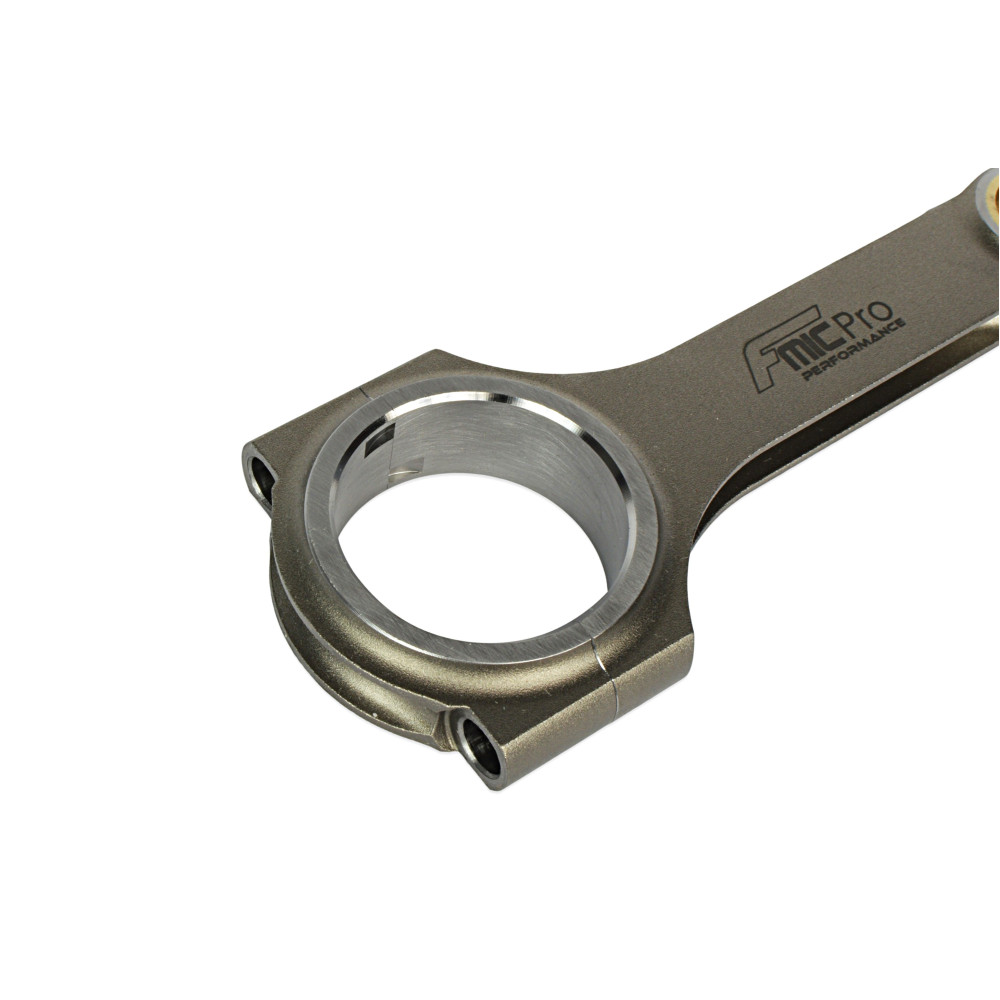

Set of forged connecting rods designed for the BMW N54B30 engine, utilizing H-beam technology. These rods are crafted from AISI 4340 forged steel and are vacuum degassed for enhanced durability. The H-beam design allows for strength up to 200KM per cylinder. The reinforced head features a high-quality cup for a floating pin, ensuring precision and reliability in high-performance engines.

These rods are compatible with ARP bolts and can be purchased with or without the bolt set. The surface is shoot blasted for stress relief after treatment.

Dimensions:

• Length C-C: 145 mm
• Pin: 22 mm
• Bearing seat diameter: 53.635 mm
• Bolts: 3/8''
