Forged Connecting Rods for BMW Engines

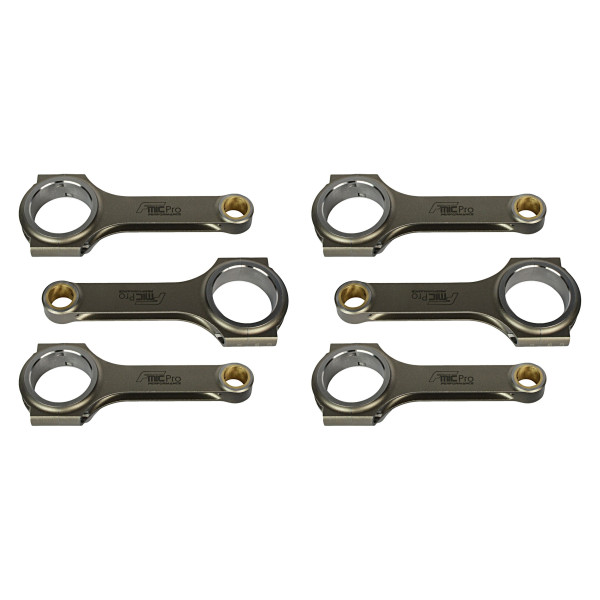

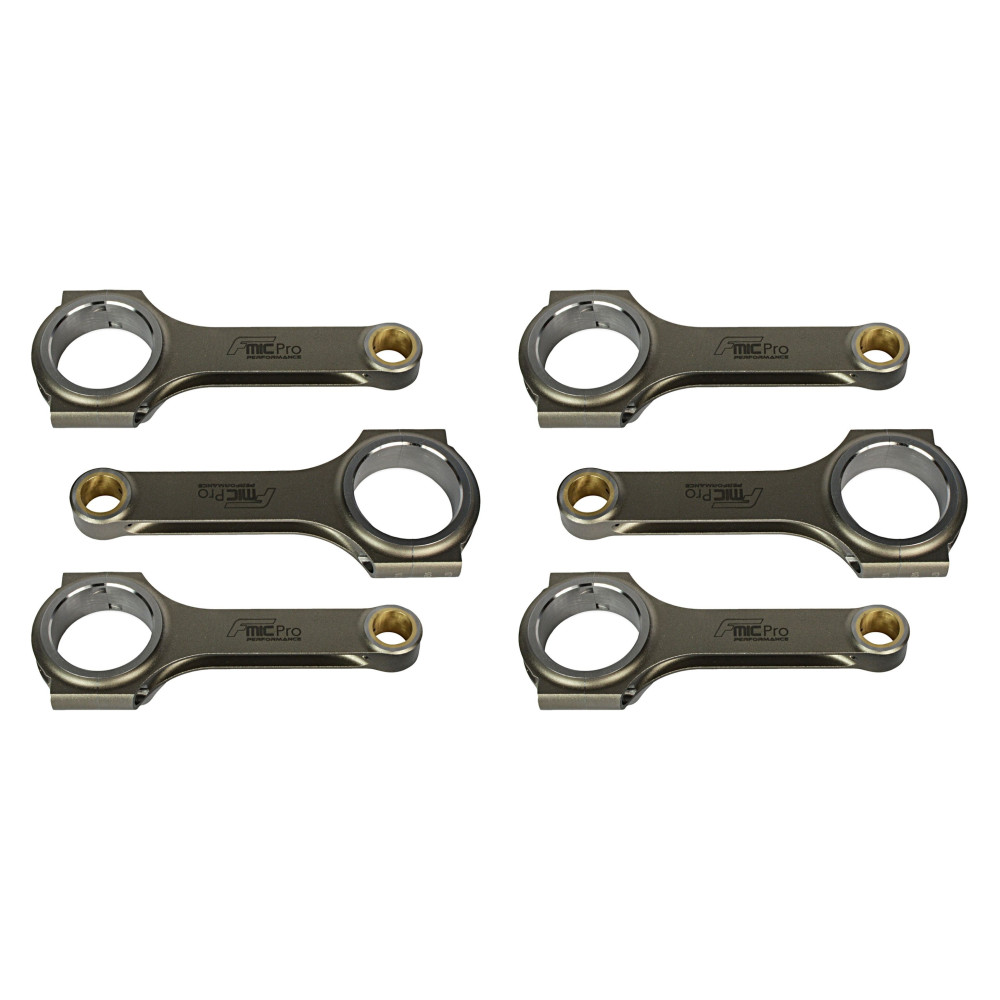

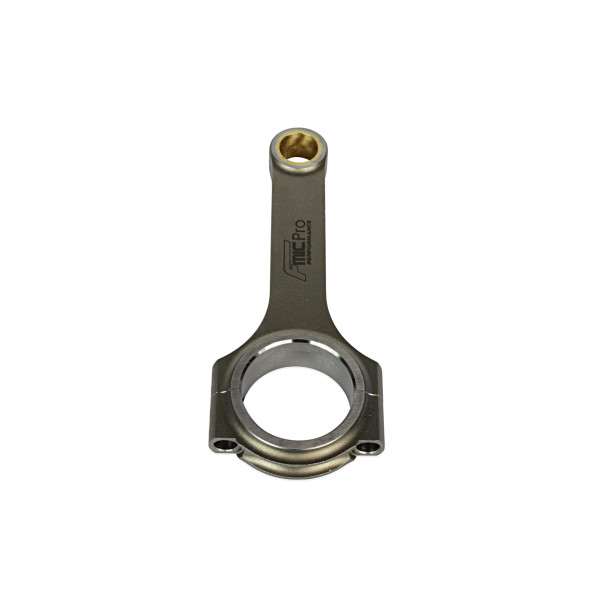

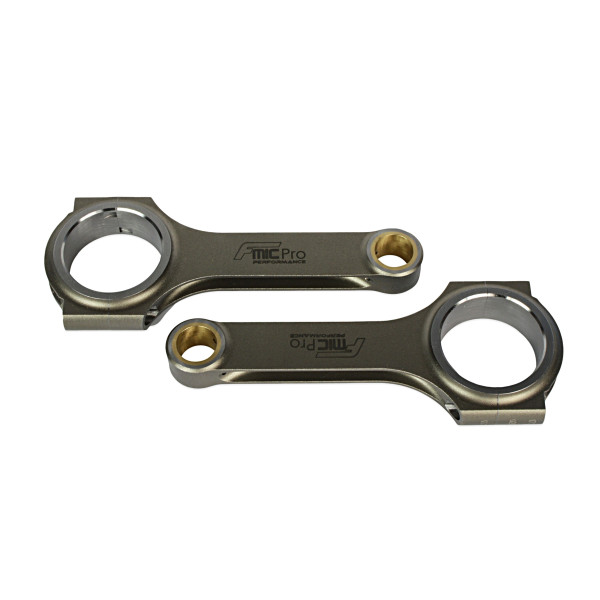

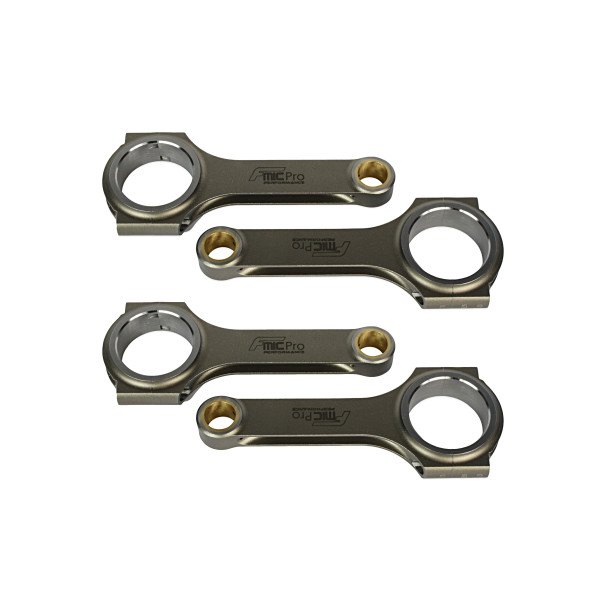

Set of forged connecting rods compatible with BMW M20B25, M50B25, M52B25, M50B28, M52B28, M54B30, and M52B32 engines, crafted using H-beam technology.

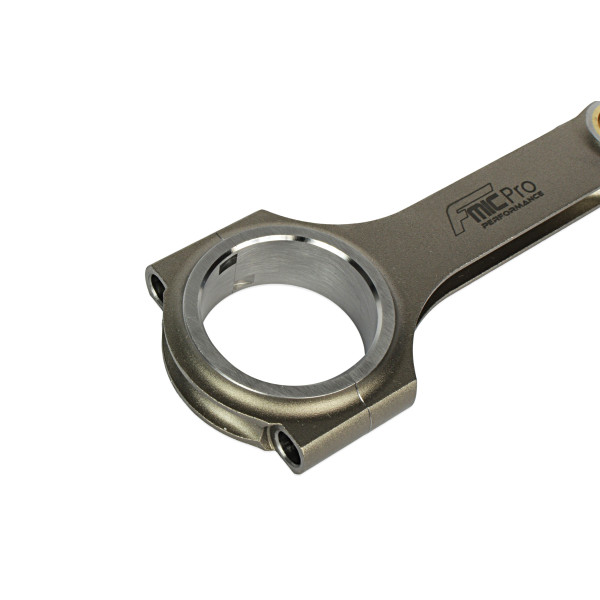

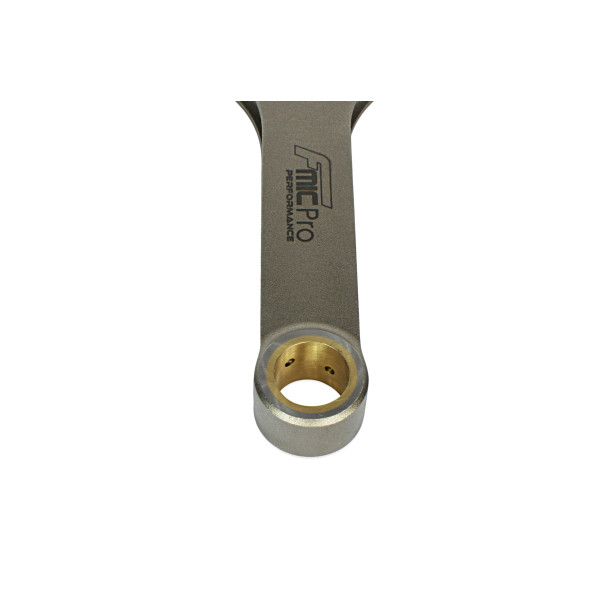

These top-quality connecting rods are constructed from forged steel AISI 4340 and are vacuum degassed. The H-beam design allows for strength up to 200KM per cylinder. The reinforced head is equipped with a high-quality cup for floating pin use, ensuring precision and durability for high-performance engines.

Designed for use with ARP bolts, these rods can be purchased with or without the bolt set. The surface is shoot blasted for stress relief after treatment.

Dimensions:

• Length C-C: 135mm
• Pin: 22mm
• Bolts: 3/8''
• Bearing seat diameter: 48mm
• Rods + ARP 2000 bolts
