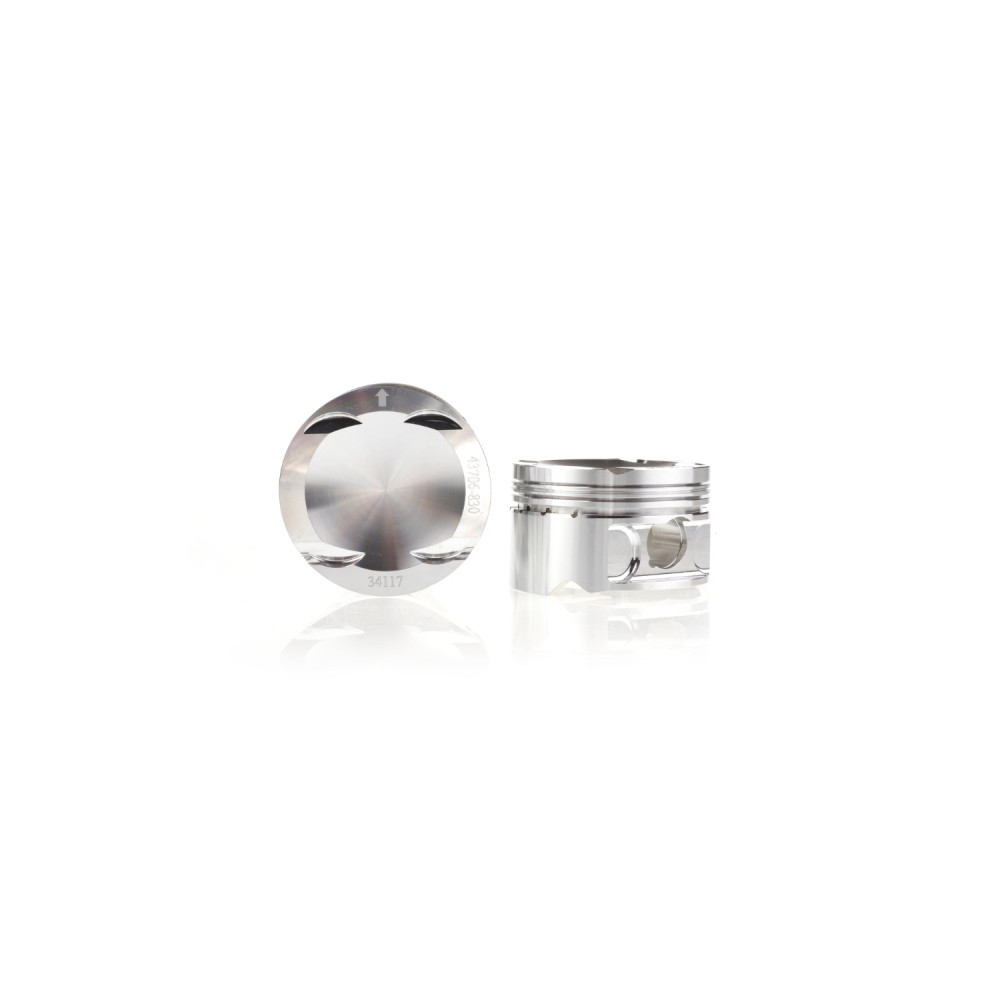

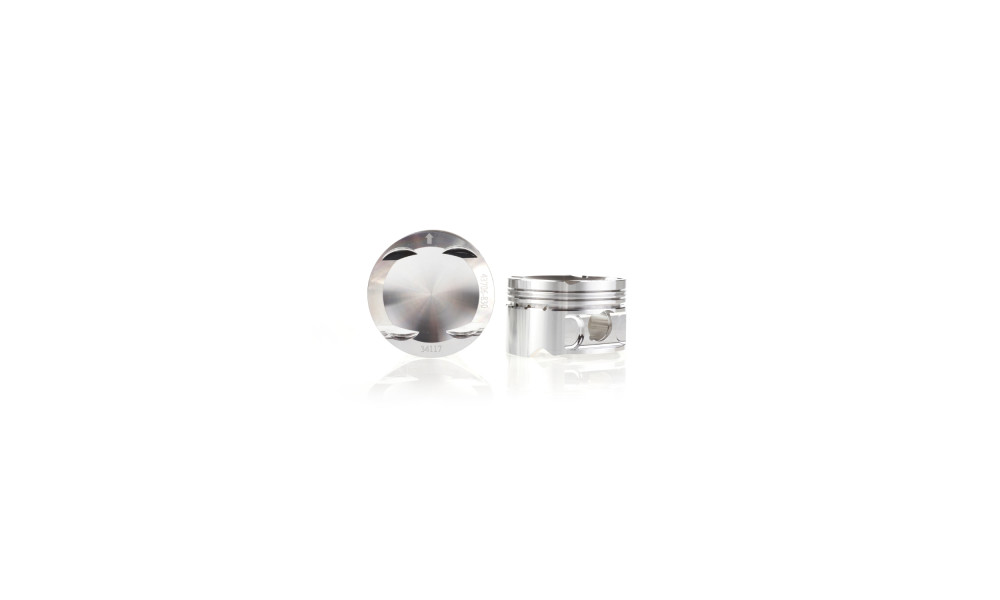

The Audi / VW 2.0L TFSI pistons are engineered for mild to high tuning, suitable for road or club race cars aiming for enhanced engine performance and longevity. Crafted by ZRP engineers in Germany from 4032 (T6) high-silicon, low-expansion alloy, these pistons allow for closer piston-to-bore clearance, resulting in improved sealing. This design minimizes cold start slapping noise, common in engines with forged pistons, ensuring quieter operation and reduced oil consumption.

Featuring a full round skirt design with a bottom reinforcing band, these pistons include oversized and deeper valve pockets to accommodate high lift camshaft profiles. Offset pins contribute to quiet operation, while the wrist pins are constructed from 9310 alloy. Additional features include anti-detonation grooves to protect the first rings, a gas pressure accumulator groove for enhanced ring seal, and vibration relief. A premium Japanese quality ring package (1.00mm x 1.20mm x 2.80mm) is included.

Product Features and Design

• Anti-detonation grooves for long wear life and performance
• Gas pressure accumulator groove in the second ring land for extended wear life
• Horizontal slots in the pin bore to allow oil entry between the wrist pin and pin bore area
• Precision CNC machined ring grooves
• 4032-T6 high-silicon / low-expansion alloy
• Honed pin bores
• Clip cuts on the edge of the intake side
• Full round skirt design with bottom reinforcing band for high horsepower/boost applications
• Valve pockets designed for oversized valves and high lift camshafts
• Pistons optimized for squish to enhance engine life and increase horsepower potential

Optional coatings offered per request

• Thermal barrier coating “Blast Off Bronze”
• Moly side-skirt and under-crown coating “Stealth Black”

Note: Pistons are designed for use in all engine configurations with a 21.00mm pin.
