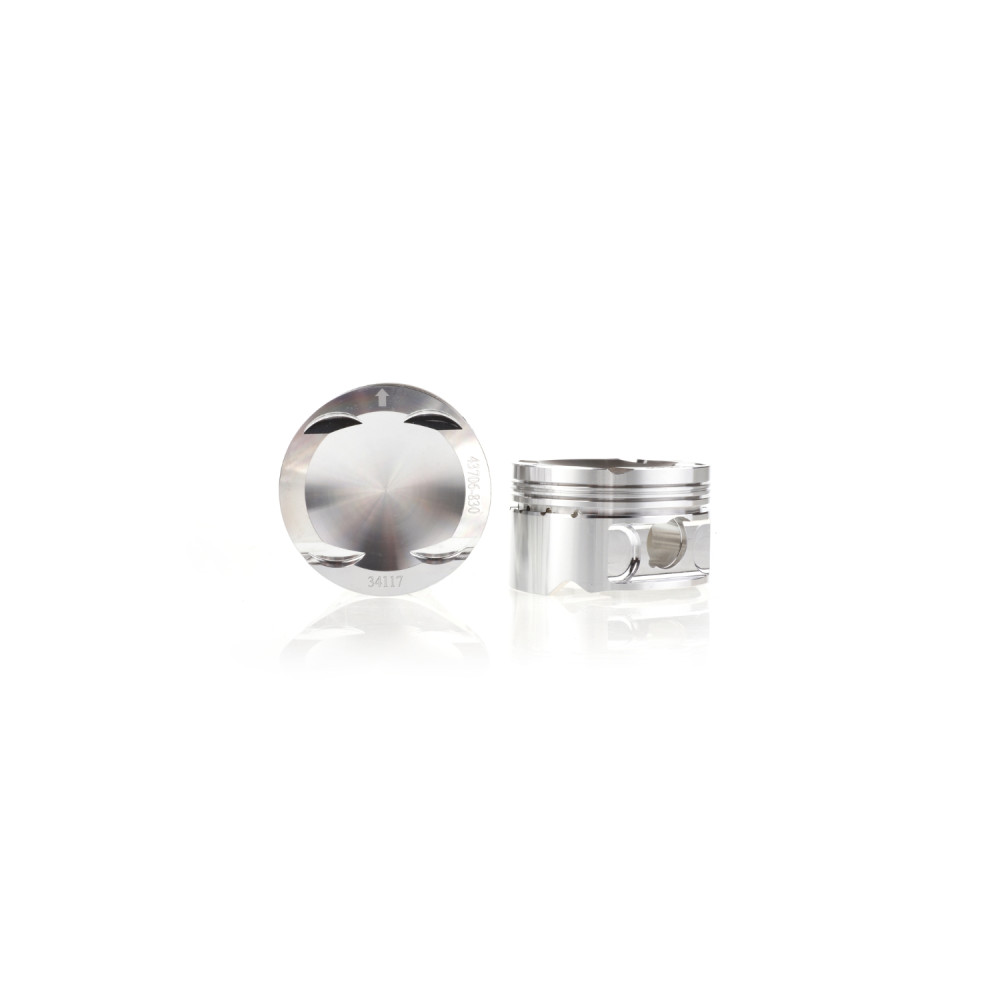

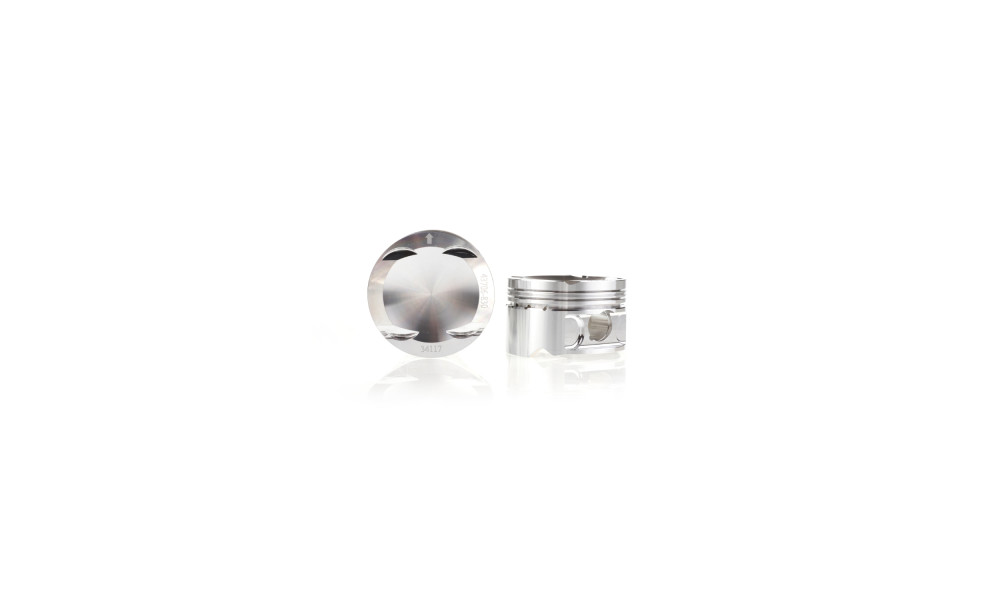

Audi / VW 2.0L TFSI Pistons

The Audi / VW 2.0L TFSI pistons are engineered for mild to high tuning, ideal for road or club race cars aiming for high mileage and street use. Designed by ZRP engineers and manufactured in Germany from 4032 (T6) high-silicon, low-expansion alloy, these pistons allow for closer piston to bore clearance, enhancing the seal and minimizing slapping noise during cold starts. This results in quieter operation and reduced oil consumption.

Product Features and Design

• Anti-detonation grooves for extended wear life and performance.
• Gas pressure accumulator groove in the 2nd ring land for longer wear life.
• Horizontal slots in the pin bore to facilitate oil entry between the wrist-pin and pin-bore area.
• Precision CNC machined ring grooves.
• 4032-T6 high-silicon / low-expansion alloy construction.
• Honed pin bores.
• Clip cuts on the edge of the intake side.
• Full round skirt design with bottom reinforcing band for high HP/boost applications.
• Valve pockets designed to accommodate oversize valves and high lift camshafts.
• Pistons designed to optimize squish for longer engine life and increased horsepower potential.

Optional Coatings Offered Per Request

• Thermal barrier coating “Blast Off Bronze”.
• Moly side-skirt and under-crown coating “Stealth Black”.
