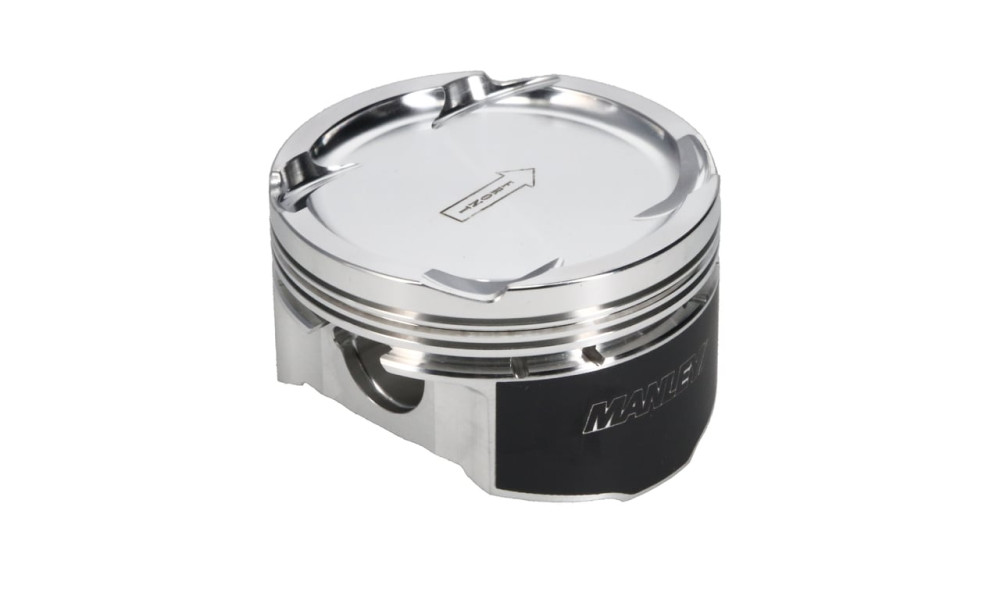

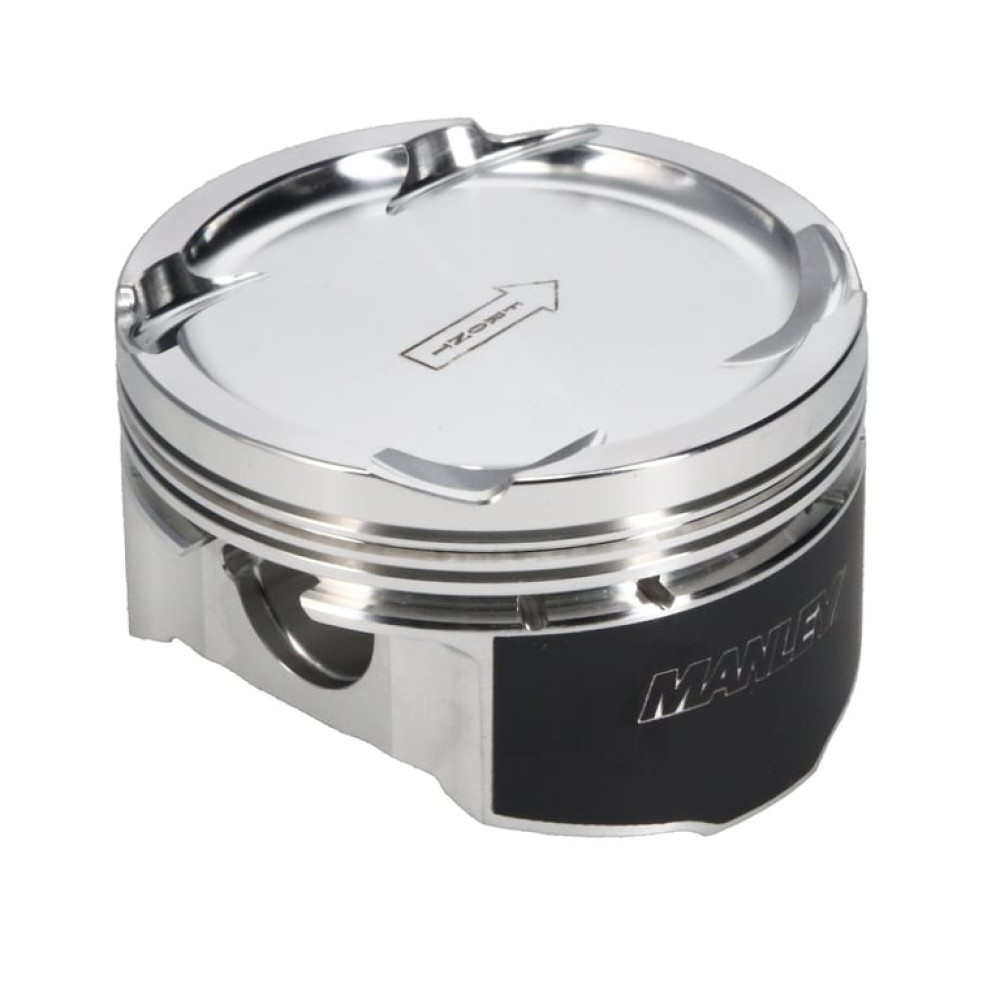

Manley Platinum Series Piston Set – 3.0L 2JZ-GTE
Engineered for the serious builder, the Manley Platinum Series piston set is designed for the 3.0L 2JZ-GTE platform. Forged from domestic 2618 alloy for superior strength and durability, these pistons feature proven cam and barrel skirt profiles for optimal power delivery and minimal cylinder wall wear. Each set includes premium tool steel wrist pins and exacting ring lands and grooves for enhanced ring seal. Select part numbers are equipped with moly skirt coatings for added protection.
- Bore Diameter: 86.50 mm (+0.50 mm oversize)
- Compression Height: 1.180 in
- Piston Volume: -16.00 cc
- Weight: 322 g per piston
- Piston Head Type: Dish
- Compression Ratio: 10.0:1
- Piston Series: Platinum Series
- Piston Sub-Series: Standard
- Engine Stroke: 94.00 mm
- Piston Quantity: 6
- Application: Sport Compact
- Product Type: Engine Piston Kit
- Engine: 3.0L 2JZ-GTE
Key Features
- Forged from 2618 alloy for maximum strength
- Premium Chrome Moly wrist pins included
- Precisely machined ring lands and grooves for optimal sealing
- Cam and barrel skirt profiles reduce friction and wear
- Unique fixturing for ultimate ring groove to skirt squareness
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Mitsubishi | LANCER EVO X | - | 2JZ-GTE |
| Mitsubishi | LANCER EVO X | - | 2JZ-GTE |
Forged pistons Manley (Updated gudgeon pin), Mitsubishi Lancer EVO X 4B11T / +0.5mm 86,50mm bore, CR 9.0, Dish -5cc, 86,50mm STD stroke
1,257.01€
1,244.44€
Excl. VAT: 1,028.46€
EU Shipping — No Import Taxes
Tags: Default Category|Engine and turbo|Forged pistons,
| Brand | Model | Generation | Engine |
|---|---|---|---|
| Mitsubishi | LANCER EVO X | - | 2JZ-GTE |
| Mitsubishi | LANCER EVO X | - | 2JZ-GTE |
Manley Performance
