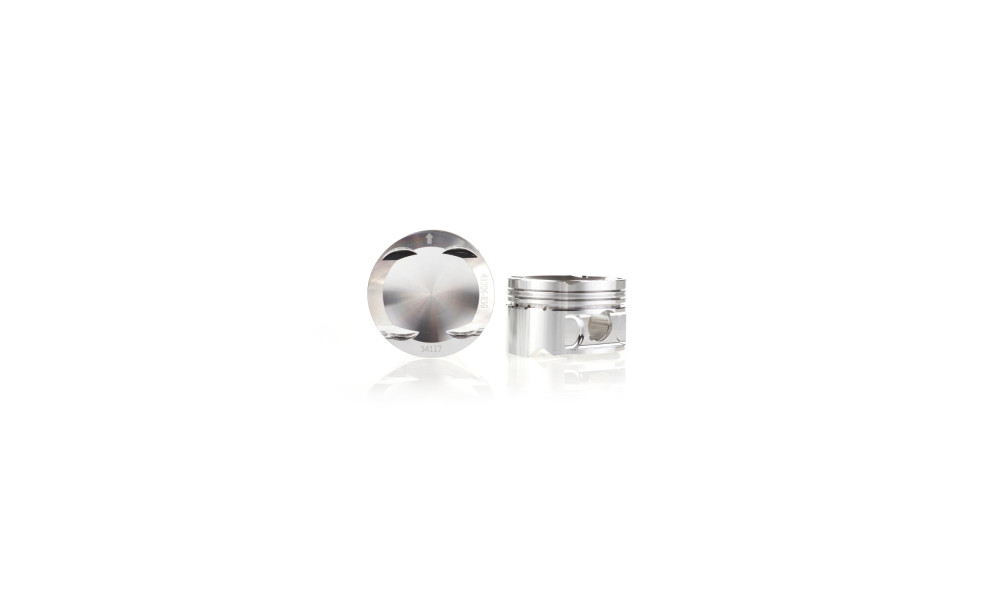

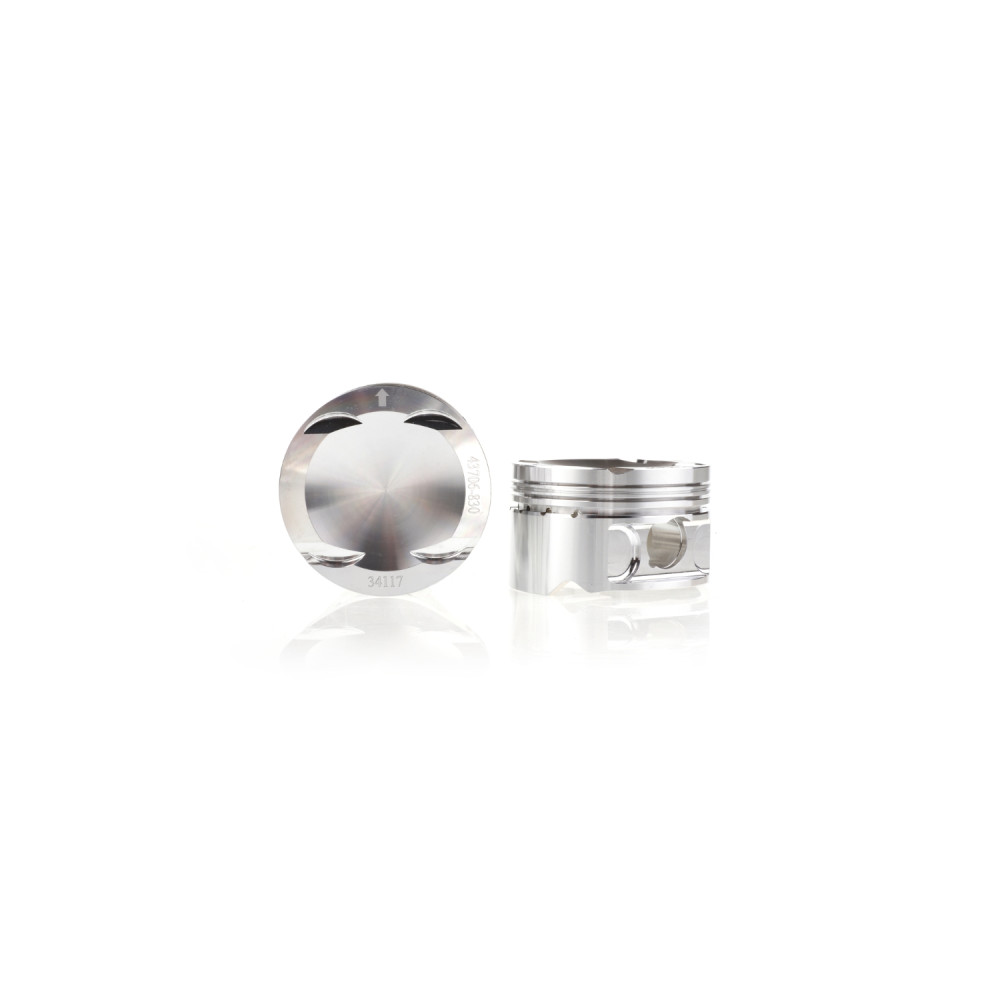

Audi / VW 2.0L TFSI Pistons

The Audi / VW 2.0L TFSI pistons are engineered for mild to high tuning, ideal for road or club race cars aiming for high mileage and street use. Designed by ZRP engineers and manufactured in Germany from 4032 (T6) high-silicon, low-expansion alloy, these pistons allow for a closer piston to bore clearance, enhancing seal quality. This design minimizes slapping noise during cold starts, common in engines with forged pistons, ensuring quiet operation and low oil consumption.

The pistons feature a full round skirt design with a bottom reinforcing band and oversized, deeper valve pockets to accommodate high lift camshaft profiles. Offset pins contribute to quiet operation, and the wrist pins are crafted from 9310 alloy. Additional features include anti-detonation grooves to protect the first rings, a gas pressure accumulator groove for improved ring seal, and vibration relief. A premium Japanese quality ring package (1.00mm x 1.20mm x 2.80mm) is included.

Product Features and Design

• Anti-detonation grooves for long wear life and performance
• Gas pressure accumulator groove in the 2nd ring land for longer wear life
• Horizontal slots in the pin bore to allow oil entry between the wrist-pin and pin-bore area
• Precision CNC machined ring grooves
• 4032-T6 high-silicon / low-expansion alloy
• Honed pin bores
• Clip cuts on the edge of the intake side
• Full round skirt design with bottom reinforcing band for high HP/boost applications
• Valve pockets designed to allow oversized valves and high lift camshafts
• Pistons designed to optimize squish for longer engine life and increased horsepower potential

Optional Coatings Offered Per Request

• Thermal barrier coating “Blast Off Bronze”
• Moly side-skirt and under-crown coating “Stealth Black”

Note: Pistons are designed to be used in all engine configurations with a 21.00mm pin.
