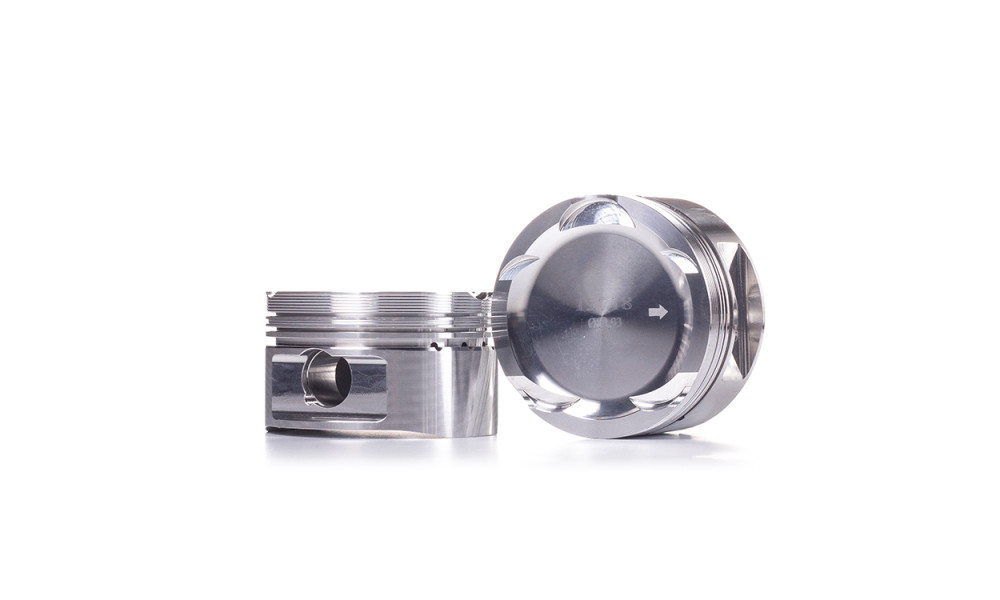

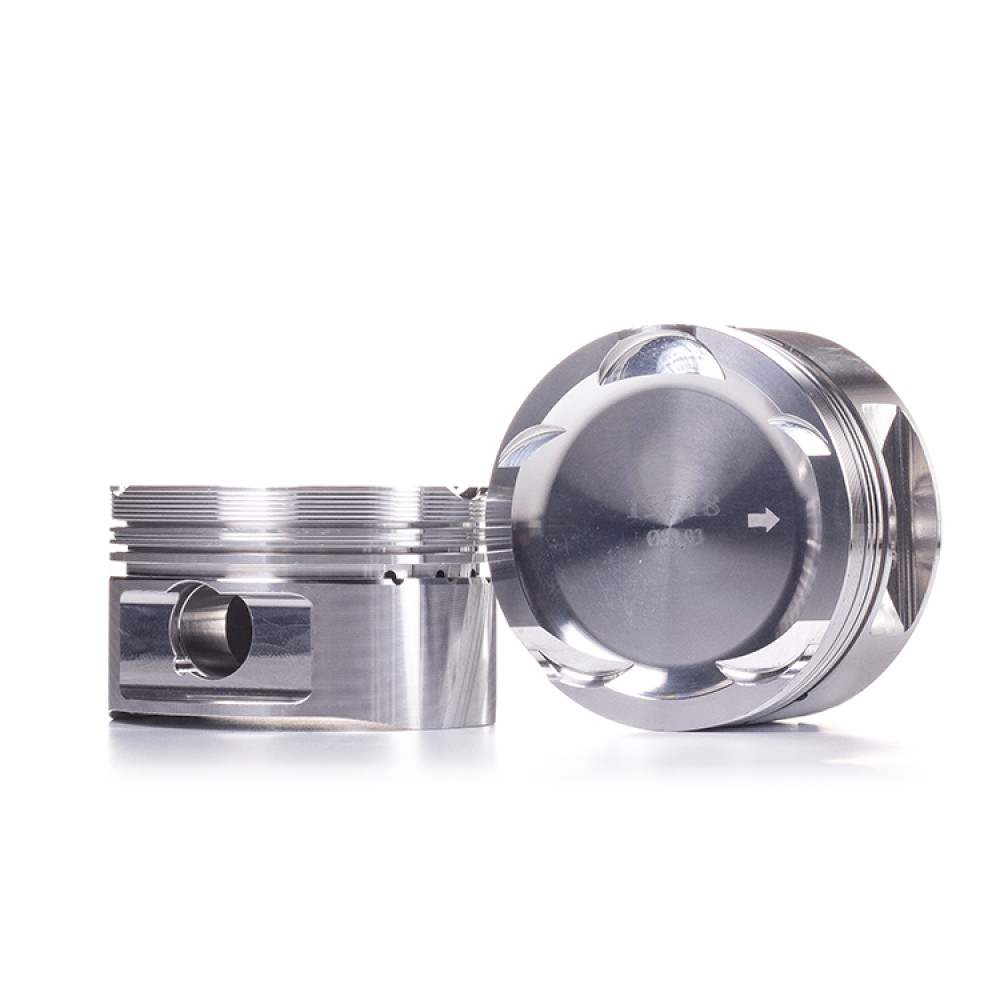

Audi / VW 1.8L Turbo 20v Pistons

The Audi / VW 1.8L Turbo 20v pistons are engineered for mild to high tuning, ideal for road or club race cars aiming for high mileage and street use. Designed by ZRP engineers and manufactured in Germany from 4032 (T6) high-silicon, low-expansion alloy, these pistons allow for closer piston to bore clearance, enhancing seal quality. This design minimizes slapping noise during cold starts, common in engines with forged pistons, ensuring quiet operation and low oil consumption.

The pistons feature a full round skirt design with a bottom reinforcing band, oversized and deeper valve pockets for high lift camshaft profiles, and offset pins for quiet operation. The wrist pins are crafted from 9310 alloy. Additional features include anti-detonation grooves to protect the first rings, a gas pressure accumulator groove for improved ring seal, and vibration relief. A premium Japanese quality 1.00mm x 1.20mm x 2.80mm ring package is included.

Product Features and Design

• Anti-detonation grooves for long wear life and performance
• Gas pressure accumulator groove in the 2nd ring land for longer wear life
• Horizontal slots in the pin bore for oil entry between the wrist-pin and pin-bore area
• Precision CNC machined ring grooves
• 4032-T6 high-silicon / low-expansion alloy
• Honed pin bores
• Clip cuts on the edge of the intake side
• Full round skirt design with bottom reinforcing band for high HP/boost applications
• Valve pockets designed for oversized valves and high lift camshafts
• Pistons designed to optimize squish for longer engine life and increased horsepower potential

Optional Coatings Offered Per Request

• Thermal barrier coating “Blast Off Bronze”
• Moly side-skirt and under-crown coating “Stealth Black”

Note: This piston kit is compatible with 92.80mm stroker crankshaft C-AUD-001L.
