Forged Dynapro 6A Lug Mount

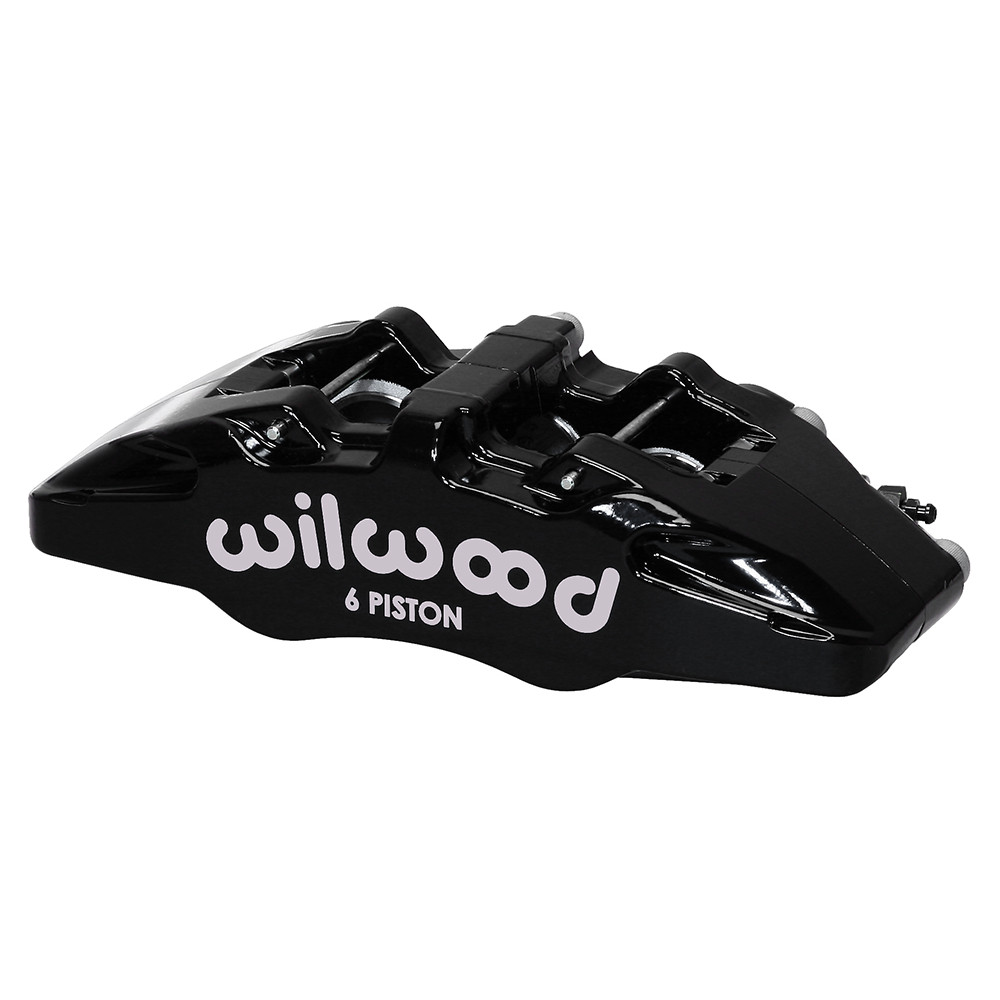

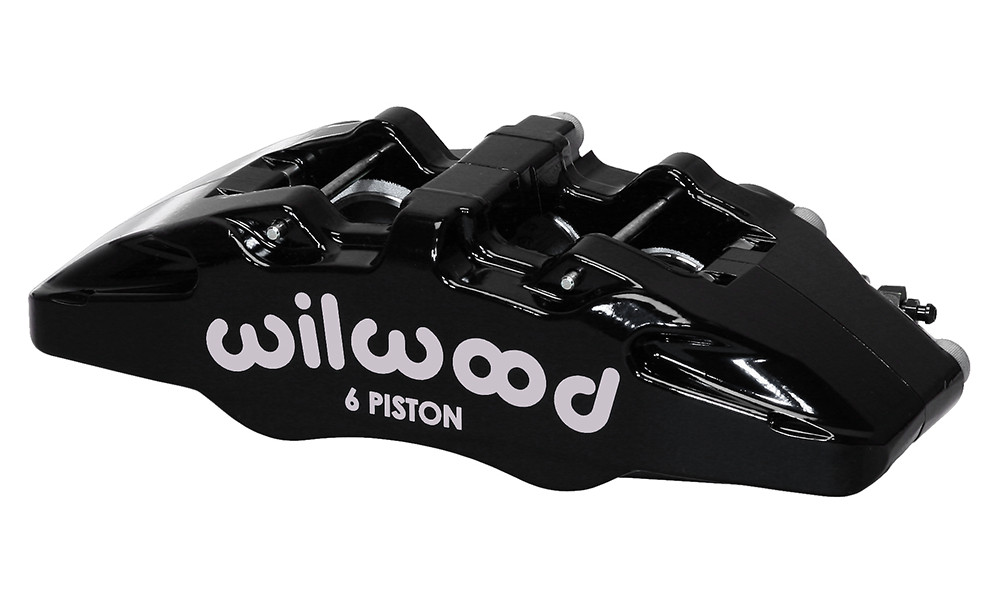

The DynaPro DP6A Calipers combine advanced racing technology with modern design, providing exceptional braking performance for a variety of custom, show, and competition vehicles. This model features a reinforced triple bridge construction with five high-strength steel bridge bolts, making it the strongest and stiffest DP6 caliper ever produced. It offers direct interchangeability with all 5.25” pattern lug mount DynaPro and Dynalite calipers. Constructed from forged aluminum, the six-piston differential bore body includes stainless steel pistons with high-temperature seals. The DP6A calipers accommodate rotors up to 13 inches in diameter and widths ranging from 0.38 to 1.10 inches. Available finishes include gloss black, red powder coat, or Type III anodize.
Pistons
| Piston Count | 6 |
| Piston Area (in²) | 5.06 |
| Piston Type | Stainless |
| Dust Boot | No |
Rotor Dimensions
| Rotor Width (in) | 0.38 |
| Rotor Diameter (in) | 13.00 |
Pad Dimensions
| Pad Area (in²) | 7.3 |
| Pad Volume (in³) | 2.4 |
Duty Rating & Material
| Material | Forged Aluminium |
| Weight (lbs) | 4.9 |
Colors & Finish
| Color | Black |
| Finish | Black Powder Coat |
Mounting
| Mount Center (in) | 5.25 |
| Mount Side | Right Hand |
| Mount Type | Lug |
Specifications
Rotor Compatibility
| Rotor Width (in) | 0.38 |
| Maximum Rotor Width (in) | 0.38 |
| Minimum Rotor Width (in) | 0.25 |
| Maximum Rotor Diameter (in) | 13.00 |
| Minimum Rotor Diameter (in) | 10.00 |
Brake Pad Specifications
| Brake Pad Type 1 | 6712 |
| Total Pad Area (in²) | 7.3 |
| Total Pad Volume (in³) | 2.4 |
Piston Specifications
| Piston 1 Bore (in) | 1.62 |
| Piston 2 Bore (in) | 1.38 |
| Piston 3 Bore (in) | 1.38 |
| Total Piston Area (in²) | 5.06 |

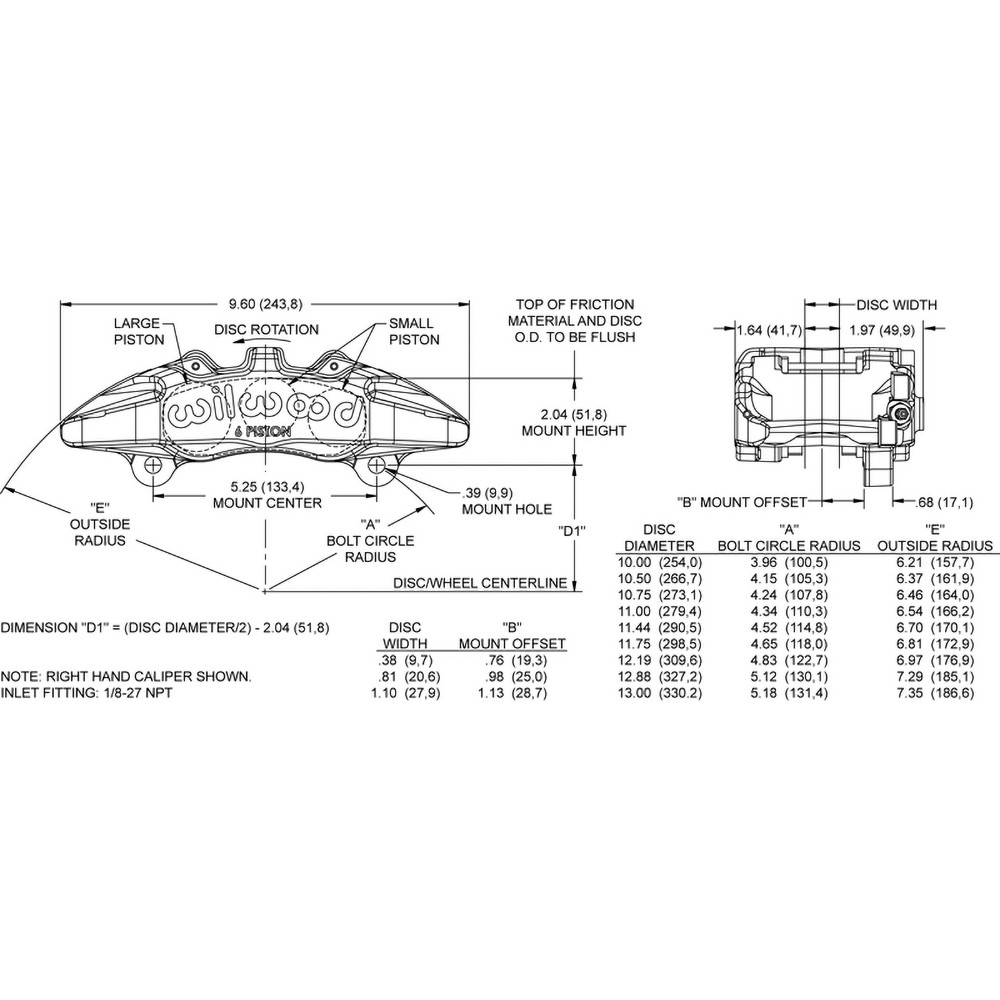

Mounting Specifications
| Mount Type | Lug |
| Mount Side | Right Hand |
| Mount Center (in) | 5.25 |
| Mount Hole Size (in) | 0.39 |
| Mount Height (in) | 2.03 |
