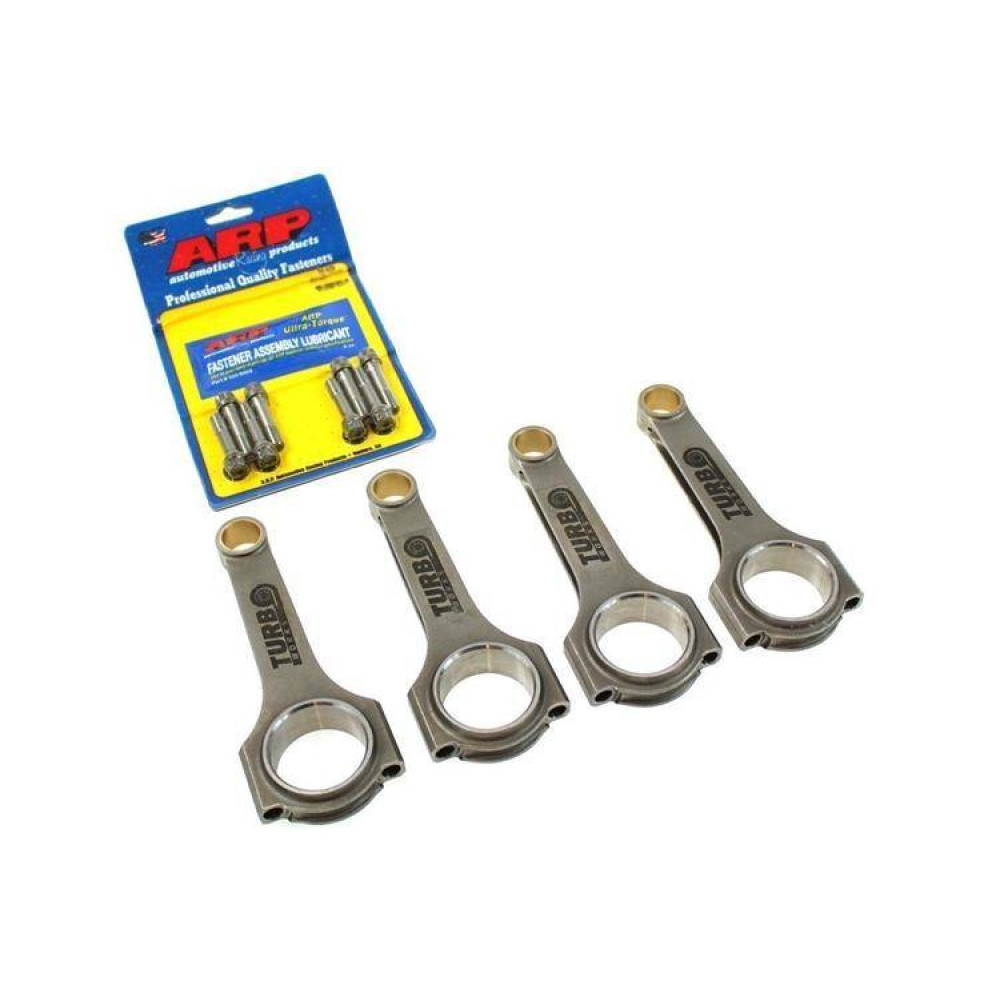

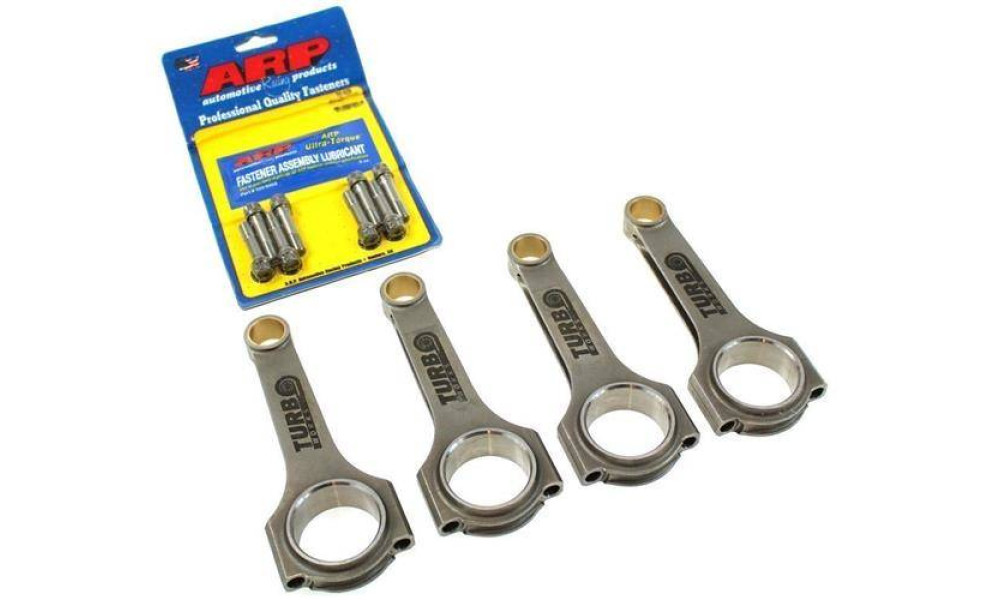

TurboWorks Forged H-Beam Connecting Rods for 1.9TDI

For enthusiasts building serious power with their 1.9TDI, these TurboWorks forged H-beam connecting rods deliver the strength and precision needed for high-performance applications. Engineered to handle over 200 HP per cylinder, they're a critical upgrade for anyone pushing the limits of their diesel platform.

Fitment

• AUDI, VW, SEAT, SKODA 1.9TDI engines (130 and 150KM versions)

Material & Construction

• Forged AISI 4340 steel (En24)
• H-Beam design
• Hardness: HRC 35-38
• Forgings are degassed and X-rayed for defect detection
• Heat treated, slid, and honed for strength and accuracy

Technical Specifications

• Center to Center Length: 143.99mm
• Big End Bore: 53.69mm
• Big End Width: 24.84mm
• Small End Bore: 26mm

What’s Included

• Set of TurboWorks forged connecting rods

Installation Notes

• Bolts and assembly grease are not included; these must be purchased separately
• Professional installation recommended for best results and reliability

FAQ

• Are assembly screws and grease included?
  No, you need to purchase bolts and assembly grease separately.
• Can these rods handle high power output?
  Yes, they are designed for power exceeding 200 HP per cylinder.
• How do I order bolts for installation?
  Bolt options are available separately above the product price in the drop-down menu.
