Valve springs data
Installed seat pressure - 38kg
Load - 100kg@12.5mm
Max. lift - up to 13mm
Made from chrome-silicon steel SAE9254-V
Outer spring outer diameter: 30.50mm
Outer spring inner diameter: 23.20mm
Inner spring outer diameter: 21.20mm
Inner spring inner diameter: 16.20mm

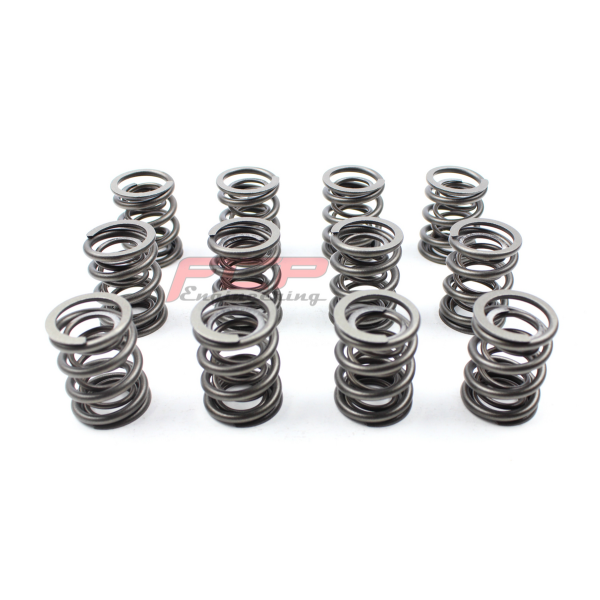

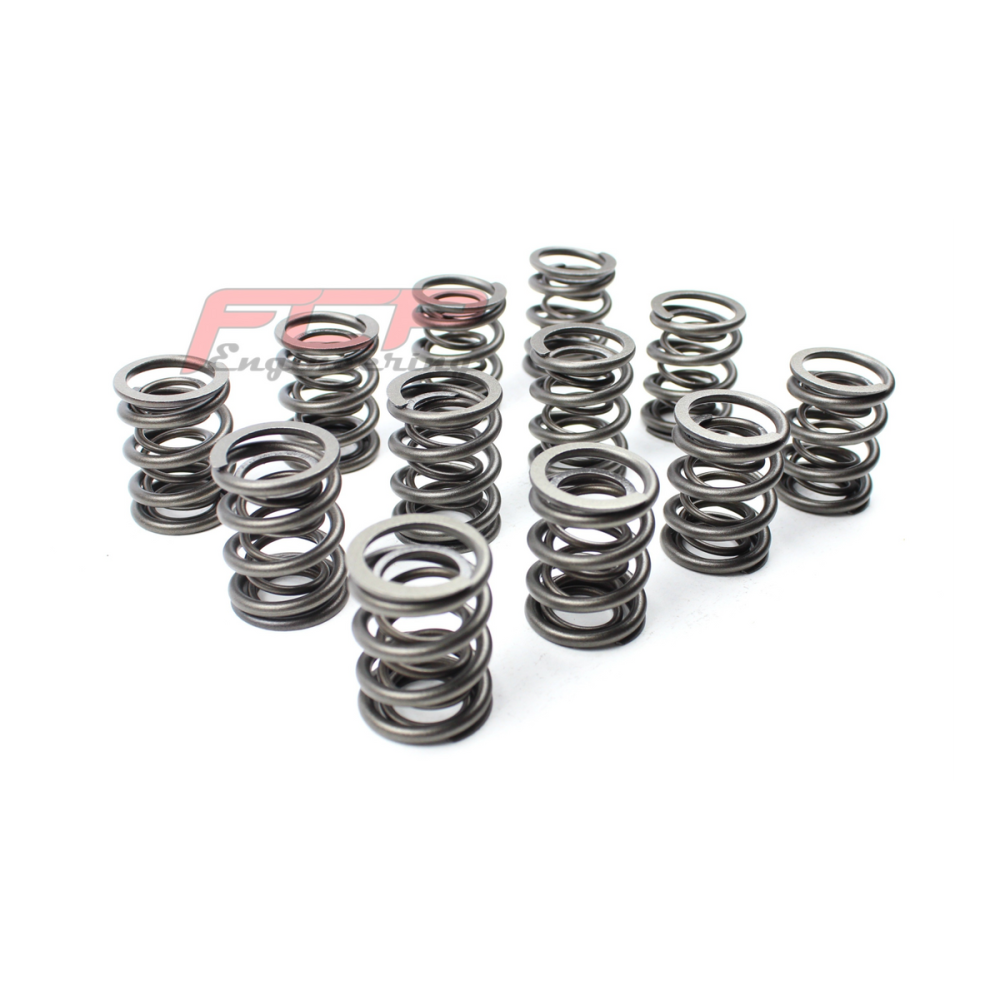

12 pcs. outer springs
12 pcs. inner springs
With this set the risk of valve flutter and a possible engine failure is minimized.
Installed seat pressure - 38kg
Load - 100kg@12.5mm
Max. lift - up to 13mm
Made from chrome-silicon steel SAE9254-V
Outer spring outer diameter: 30.50mm
Outer spring inner diameter: 23.20mm
Inner spring outer diameter: 21.20mm
Inner spring inner diameter: 16.20mm
12 pcs. outer springs
12 pcs. inner springs
With this set the risk of valve flutter and a possible engine failure is minimized.
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Volkswagen | - | - | 2.8 12V VR6 |
FCP ENGINEERING
FCP Engineering is a specialist manufacturer of precision timing gears and camshaft components for VAG turbocharged engines. Their adjustable timing gears for the 1.8T 20V and related platforms are designed to optimise valve timing for maximum performance in modified and race engine applications across the Volkswagen Group engine family.
Official page: fmic.eu
Official page: fmic.eu
VW 2.8 12V VR6 Valve Springs - Performance Upgrade
160.71€
Excl. VAT: 132.82€
