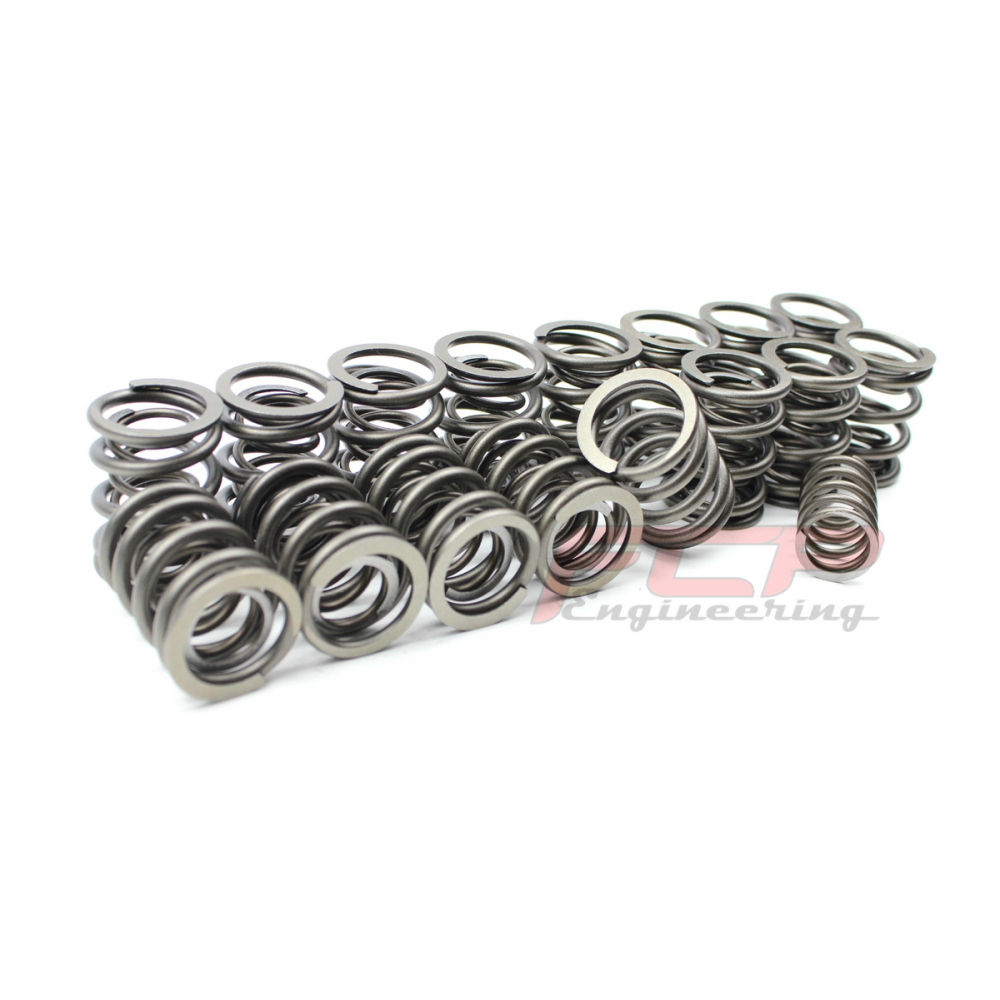

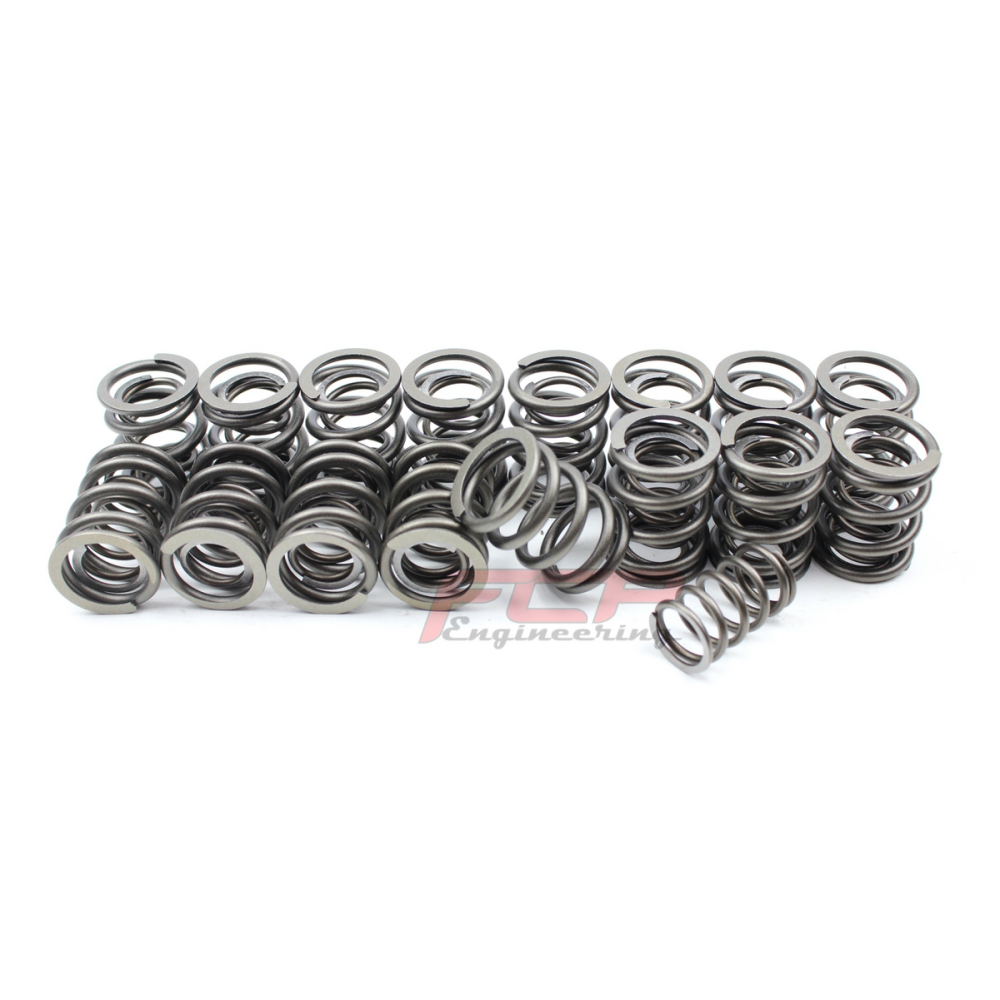

Valve springs data
Installed seat pressure - 38kg
Load - 100kg@12.5mm
Max. lift - up to 13mm
Made from chrome silicone steel SAE9254-V
Outer spring outer diameter: 30.50mm
Outer spring inner diameter: 23.20mm
Inner spring outer diameter: 21.20mm
Inner spring inner diameter: 16.20mm
16 pcs. outer springs
16 pcs. inner springs
Fits all 4 cylinder 1.8 2.0 16V VW / Audi engines KR, PL, 9A, ABF, ACE.
With this set the risk of valve flutter and a possible engine failure is minimized.
Recommended for engines with series and racing camshafts and over 7600 RPM.
Can also be used together with standard or FCP titanium retainers.
Installed seat pressure - 38kg
Load - 100kg@12.5mm
Max. lift - up to 13mm
Made from chrome silicone steel SAE9254-V
Outer spring outer diameter: 30.50mm
Outer spring inner diameter: 23.20mm
Inner spring outer diameter: 21.20mm
Inner spring inner diameter: 16.20mm
16 pcs. outer springs
16 pcs. inner springs
Fits all 4 cylinder 1.8 2.0 16V VW / Audi engines KR, PL, 9A, ABF, ACE.
With this set the risk of valve flutter and a possible engine failure is minimized.
Recommended for engines with series and racing camshafts and over 7600 RPM.
Can also be used together with standard or FCP titanium retainers.
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Audi | - | - | KR, PL, 9A, ABF, ACE |
| Volkswagen | - | - | KR, PL, 9A, ABF, ACE |
FCP ENGINEERING
FCP Engineering is a specialist manufacturer of precision timing gears and camshaft components for VAG turbocharged engines. Their adjustable timing gears for the 1.8T 20V and related platforms are designed to optimise valve timing for maximum performance in modified and race engine applications across the Volkswagen Group engine family.
Official page: fmic.eu
Official page: fmic.eu
High-Performance Valve Springs for VW/Audi 1.8 2.0 16V
208.34€
206.25€
Excl. VAT: 170.46€
