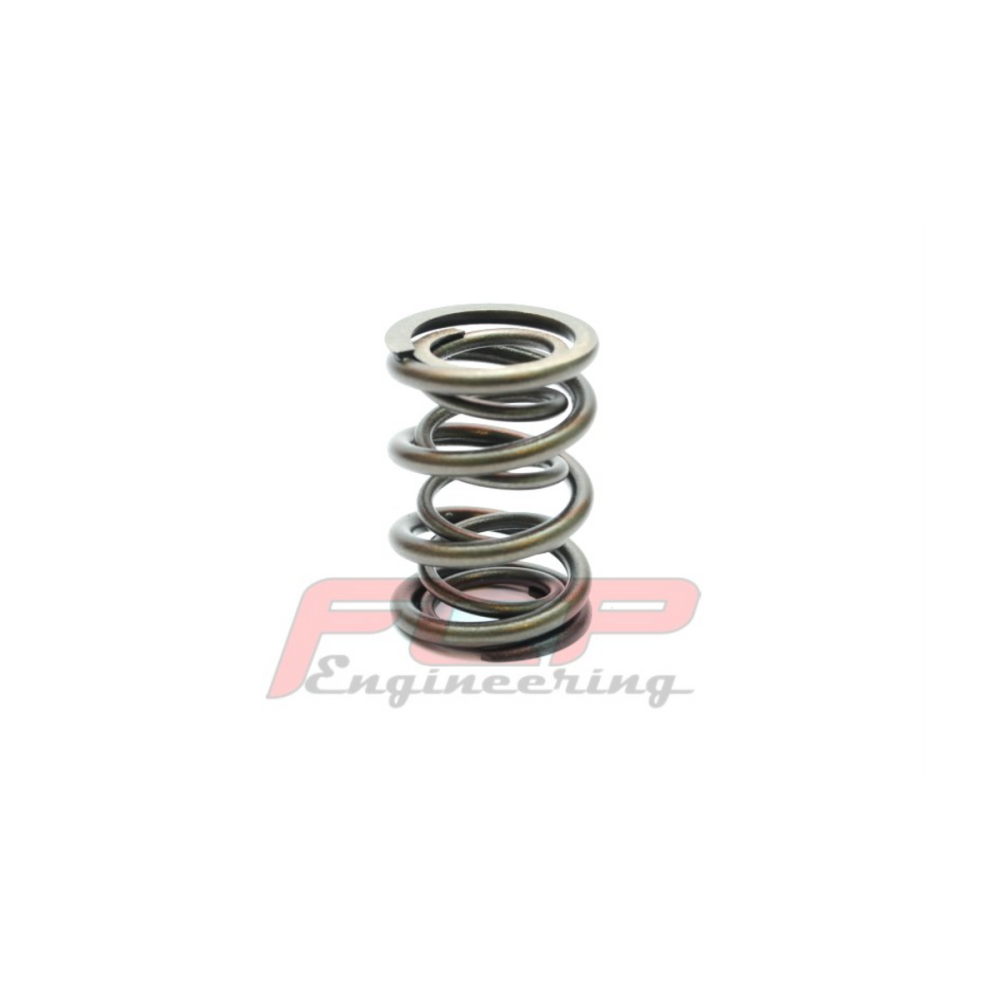

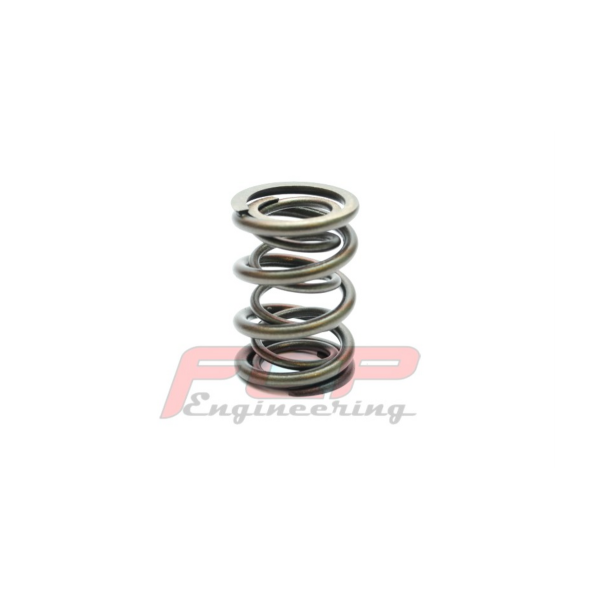

Valve springs data
Installed seat pressure - 38kg
Load - 100kg@12.5mm
Max. lift - up to 13mm
Made from chrome-silicon steel SAE9254-V

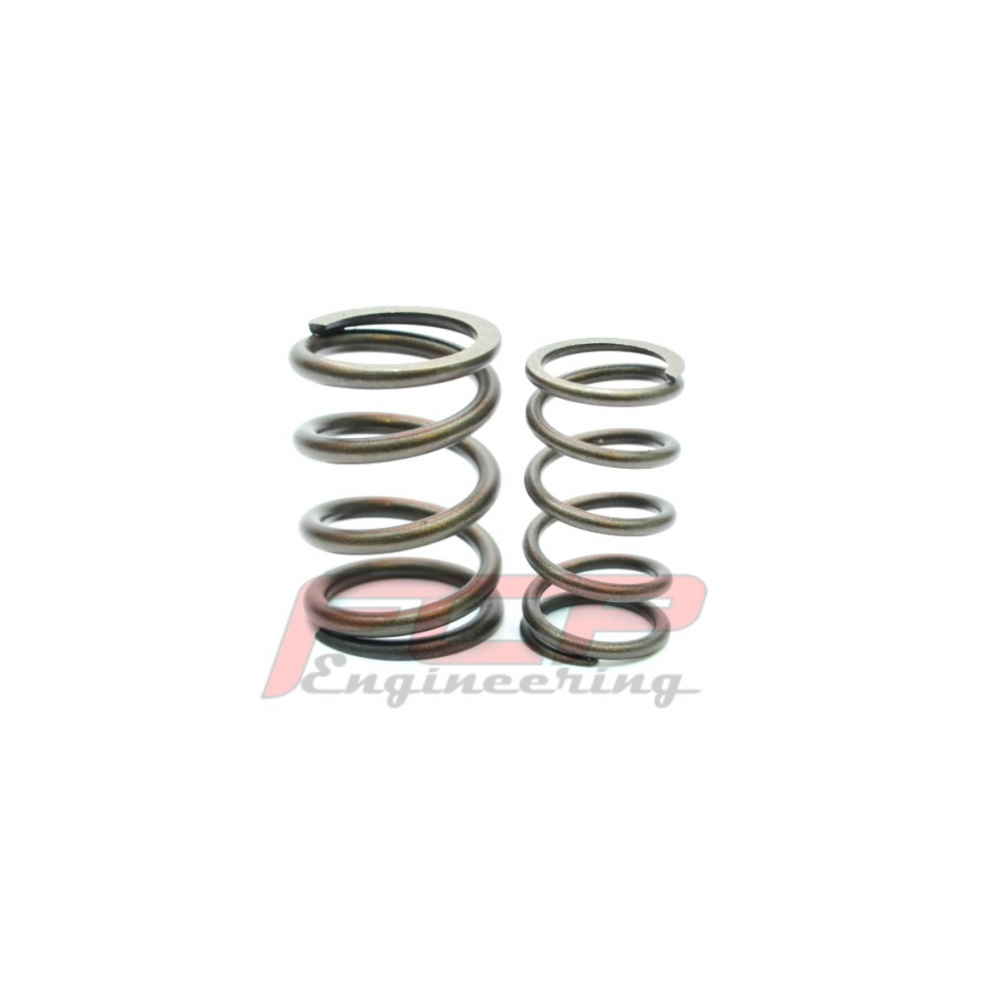

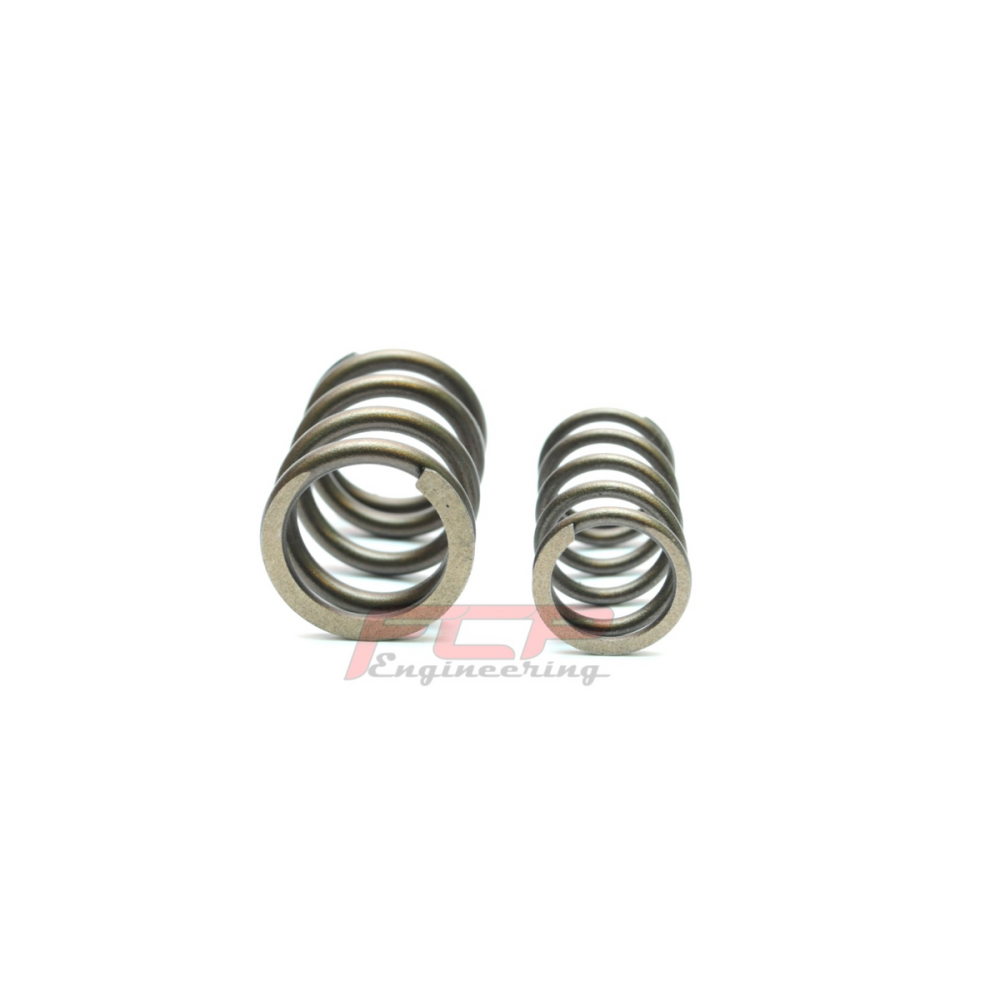

Outer spring outer diameter: 30.50mm
Outer spring inner diameter: 23.20mm
Inner spring outer diameter: 21.20mm
Inner spring inner diameter: 16.20mm

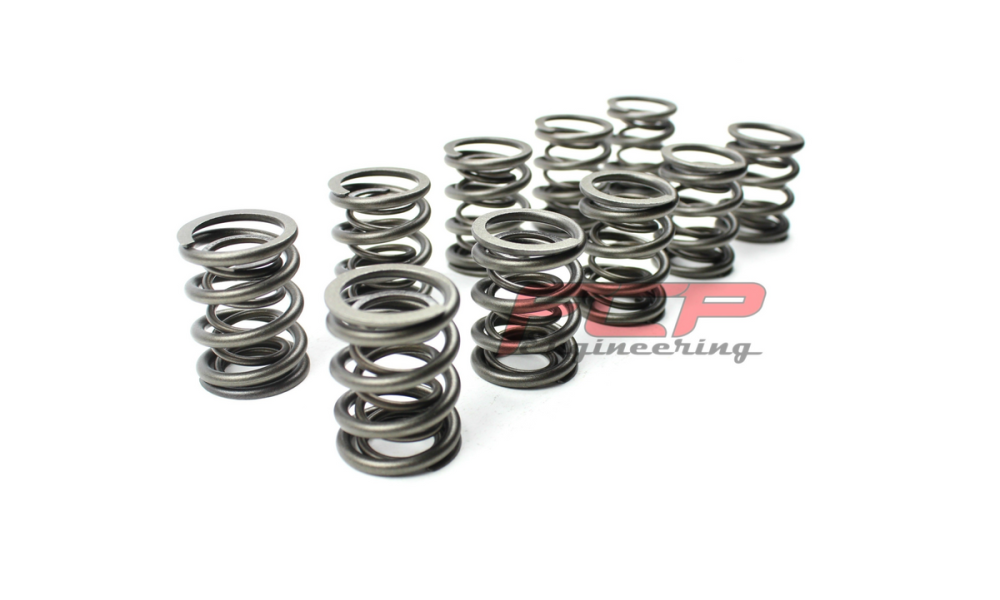

10 pcs. outer springs
10 pcs. inner springs
Fits 5 cylinder 10V Audi / VW 2.5TDi engines.
With this set the risk of valve flutter and a possible engine failure is minimized.
Recommended for engines with series and racing camshafts and over 7500 RPM.
Installed seat pressure - 38kg
Load - 100kg@12.5mm
Max. lift - up to 13mm
Made from chrome-silicon steel SAE9254-V
Outer spring outer diameter: 30.50mm
Outer spring inner diameter: 23.20mm
Inner spring outer diameter: 21.20mm
Inner spring inner diameter: 16.20mm
10 pcs. outer springs
10 pcs. inner springs
Fits 5 cylinder 10V Audi / VW 2.5TDi engines.
With this set the risk of valve flutter and a possible engine failure is minimized.
Recommended for engines with series and racing camshafts and over 7500 RPM.
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Audi | - | - | 2.5TDI |
| Volkswagen | - | - | 2.5TDI |
FCP ENGINEERING
FCP Engineering is a specialist manufacturer of precision timing gears and camshaft components for VAG turbocharged engines. Their adjustable timing gears for the 1.8T 20V and related platforms are designed to optimise valve timing for maximum performance in modified and race engine applications across the Volkswagen Group engine family.
Official page: fmic.eu
Official page: fmic.eu
Audi VW 2.5 TDi Valve Springs - High Performance Upgrade
156.96€
155.39€
Excl. VAT: 128.42€
