Valve springs data
Installed seat pressure:
Intake valve spring - 25kg, exhaust double valve spring - 36kg
Load:
Intake - 56kg@10.5mm, exhaust - 84kg@10.5mm
Max lift:
intake - up to 11mm, exhaust - up to 12.7mm
Made from chrome-silicon steel SAE9254-V

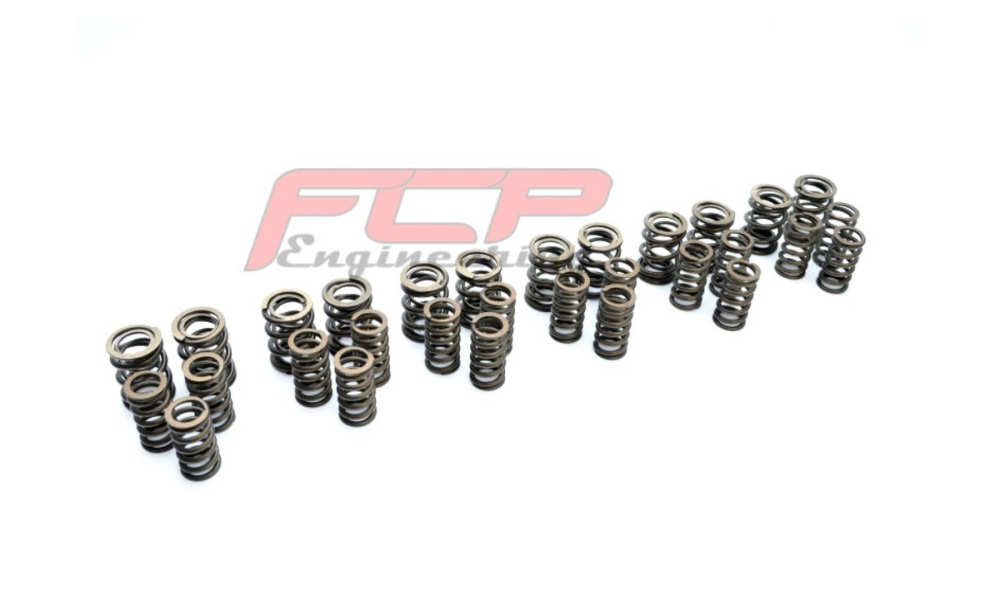

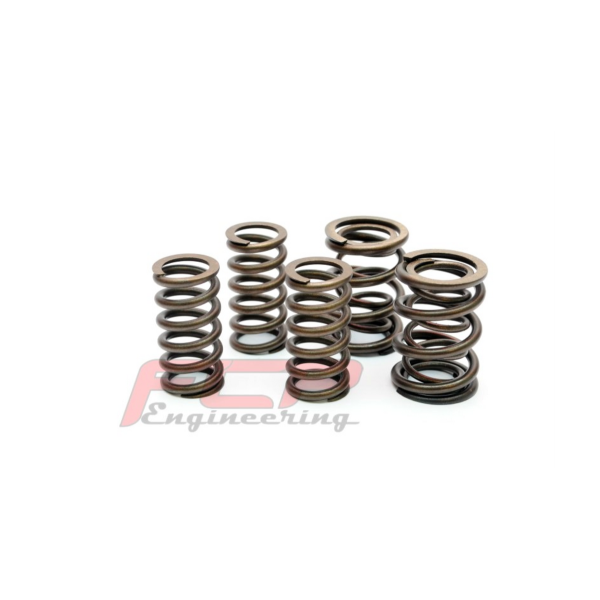

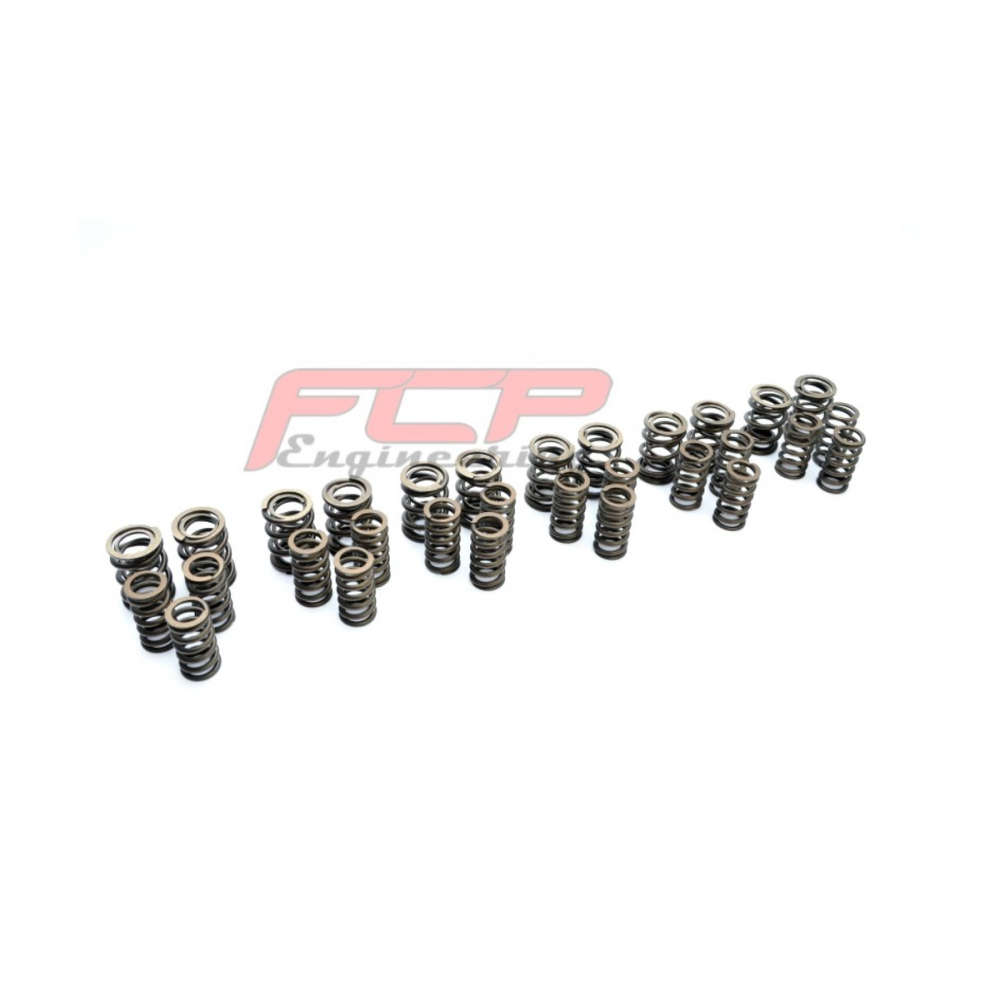

18 pcs. intake valve single springs
12 pcs. exhaust valve double springs
Fits all V6 2.7 2.8 3.0 30V Turbo/NA Audi / VW engines.
With this set the risk of valve flutter and a possible engine failure is minimized.
Recommended for engines with series and racing camshafts and over 7600 RPM.
Can be used together with standard or with FCP titanium retainers.
Installed seat pressure:
Intake valve spring - 25kg, exhaust double valve spring - 36kg
Load:
Intake - 56kg@10.5mm, exhaust - 84kg@10.5mm
Max lift:
intake - up to 11mm, exhaust - up to 12.7mm
Made from chrome-silicon steel SAE9254-V
18 pcs. intake valve single springs
12 pcs. exhaust valve double springs
Fits all V6 2.7 2.8 3.0 30V Turbo/NA Audi / VW engines.
With this set the risk of valve flutter and a possible engine failure is minimized.
Recommended for engines with series and racing camshafts and over 7600 RPM.
Can be used together with standard or with FCP titanium retainers.
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Audi | RS4 | - | V6 2.7 2.8 3.0 30V TURBO/NA |
| Audi | S4 | - | V6 2.7 2.8 3.0 30V TURBO/NA |
| Audi | S6 | - | V6 2.7 2.8 3.0 30V TURBO/NA |
| Volkswagen | RS4 | - | V6 2.7 2.8 3.0 30V TURBO/NA |
| Volkswagen | S4 | - | V6 2.7 2.8 3.0 30V TURBO/NA |
| Volkswagen | S6 | - | V6 2.7 2.8 3.0 30V TURBO/NA |
