Led daytime running lights in direction indicators

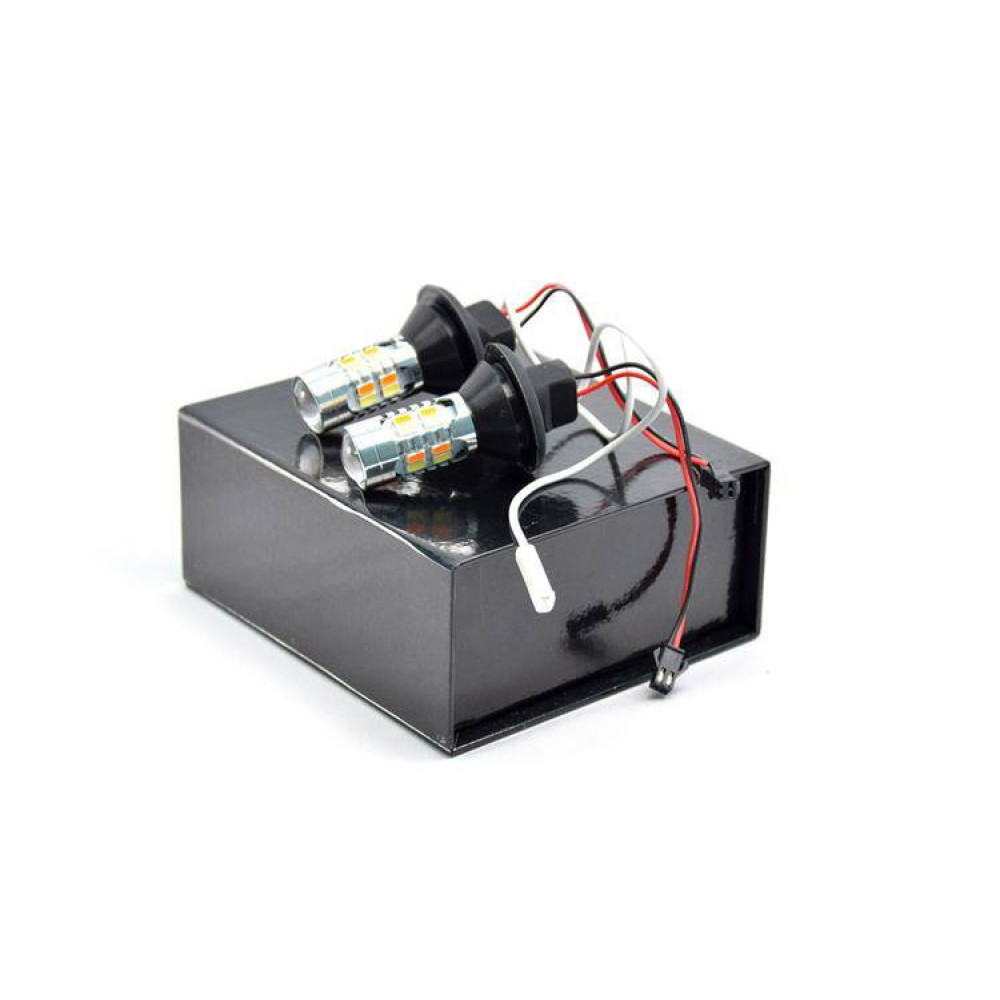

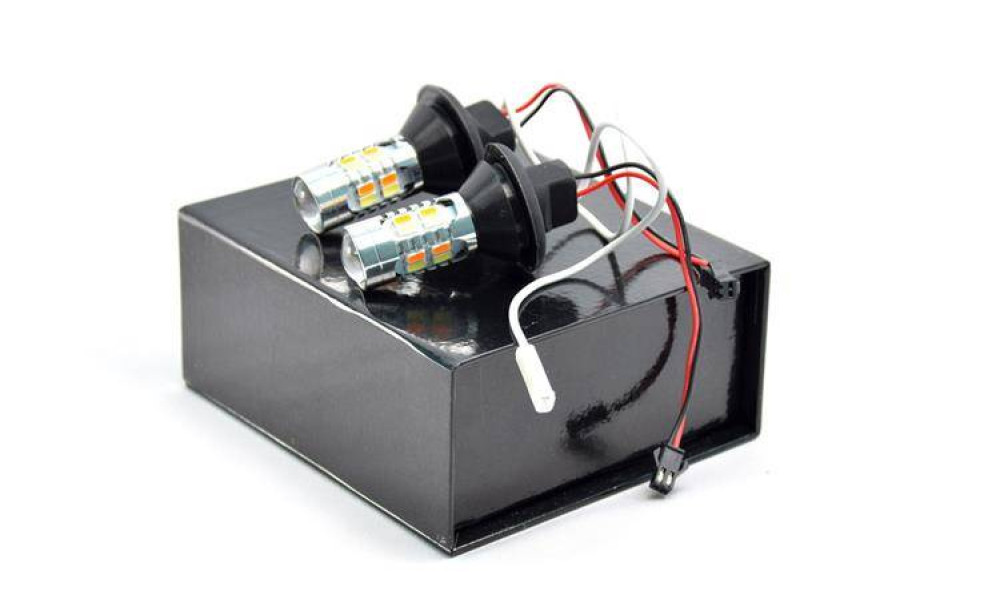

SET CONTAINS :

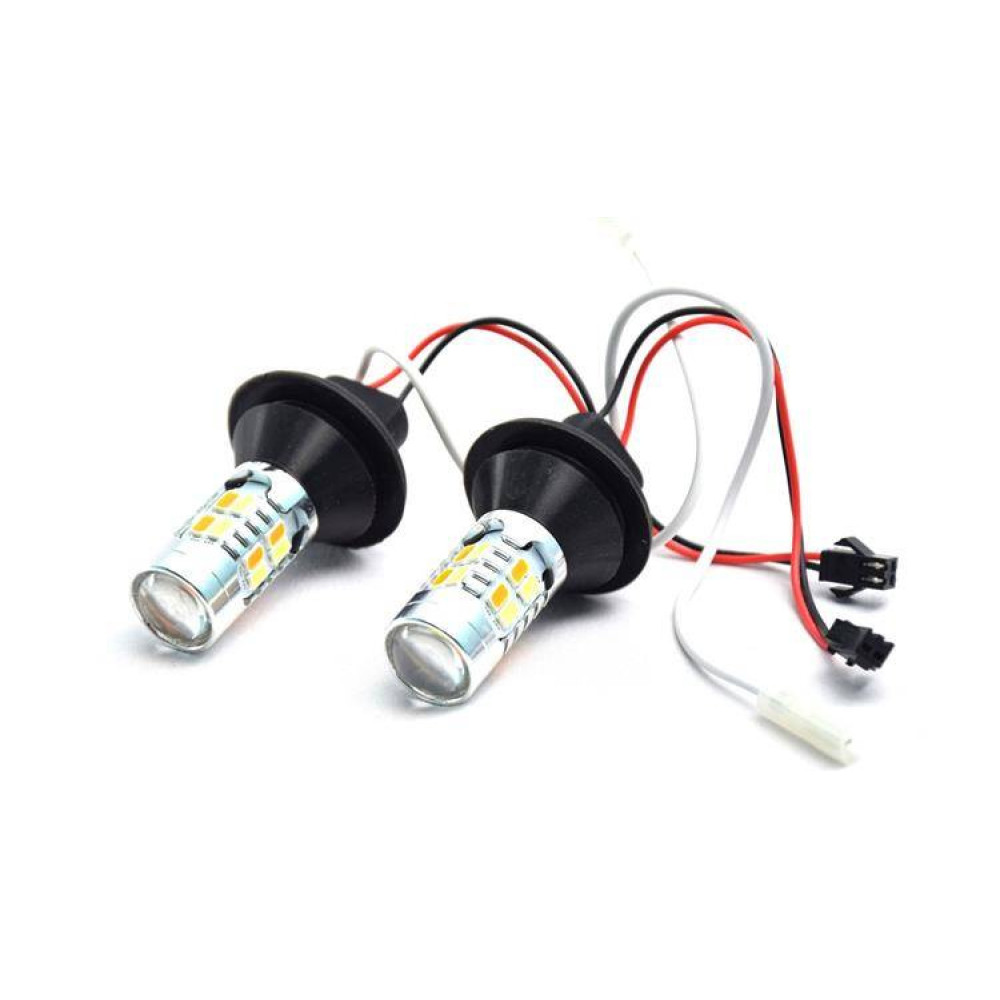

• Two LED bulbs with indicator function and DRL
• 4x terminals (2x under PY21W, 2x under P21W)
• 2x resistors for deceiving the CAN-BUS system

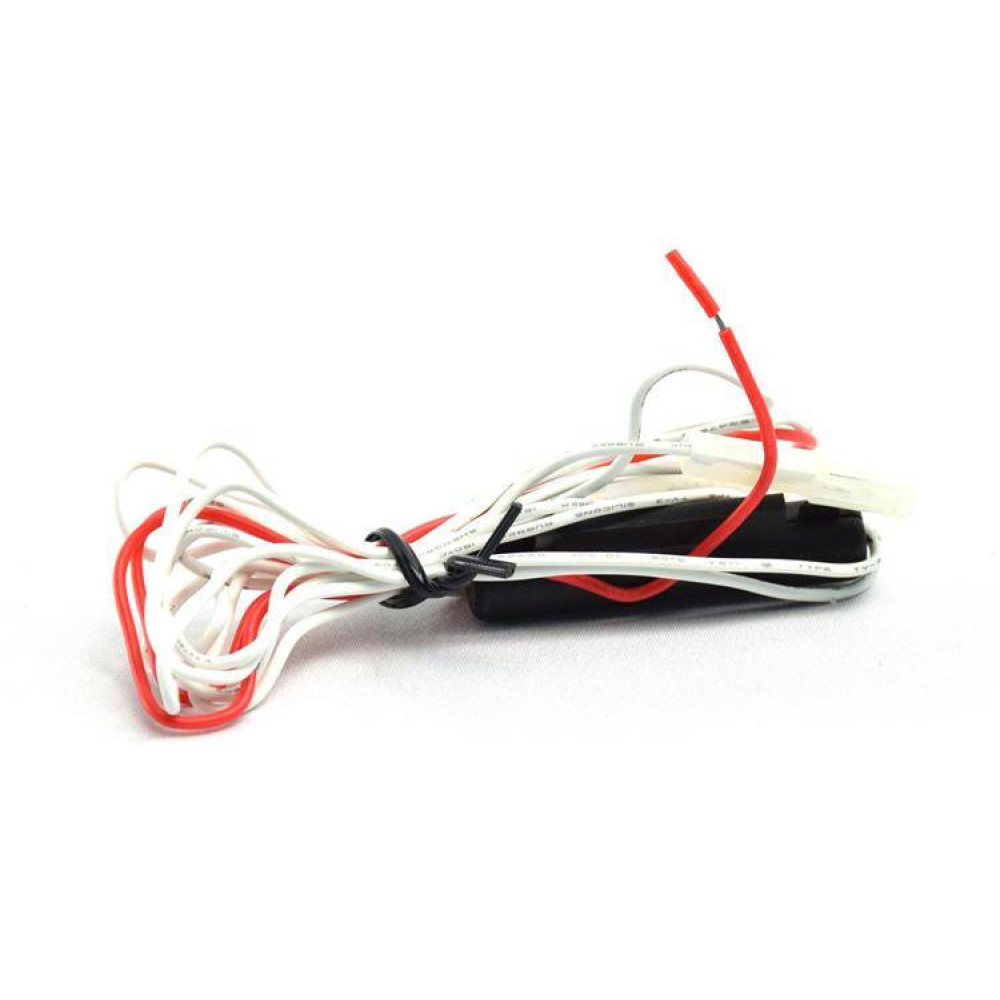

• The set includes the AUTOMATIC module for free!

PRODUCT DESCRIPTION :

These leds are mounted in the socket of the direction indicator bulb. Thanks to the use of two colors of diodes on one bulb, the effect simulating daylight DRL (white diode) or indicator light (orange diode) was obtained.

• Daytime running lights turn on automatically when you turn the key in the ignition
• Daytime running lights turn off when the dipped beam is activated

APPLICATION:

• Mounting: BAU15S (PY21W)
• Type of LED: 5730 chip
• Number of LEDs: 20x
• Light power: 20W (2x10W)
• Power consumption: 0.17A
• Light power: 271 lm / 271 lm
• Input voltage: 12V
• Resistor: 50W 6ΩJ
• CANBUS: Yes

In some cars there are lamps with voltage supply for the direction indicator bulb integrated with the lamp (eg BMW, PEUGEOT 407, OPEL VECTRA, AUDI A4 B6 ....).

The holder of the direction indicator bulbs in these cars has no power cables released. In such cars, connect the cube or wires supplying the lamp.

Note, this type of lighting is not compatible with ECE. Only for off-road use. Traffic usage on public roads may be the reason for granting a ticket, retaining the registration certificate.

Thanks to built-in CAN-BUS filters bulbs should work properly in cars equipped with this installation. UNLESS THE HIGH EFFICIENCY OF THE FILTER, THERE CAN EXCEPT EXCEPTIONS WHERE THIS FILTER DOES NOT HELP, IN THAT CASE, PLEASE CONTACT OUR COMPANY!
