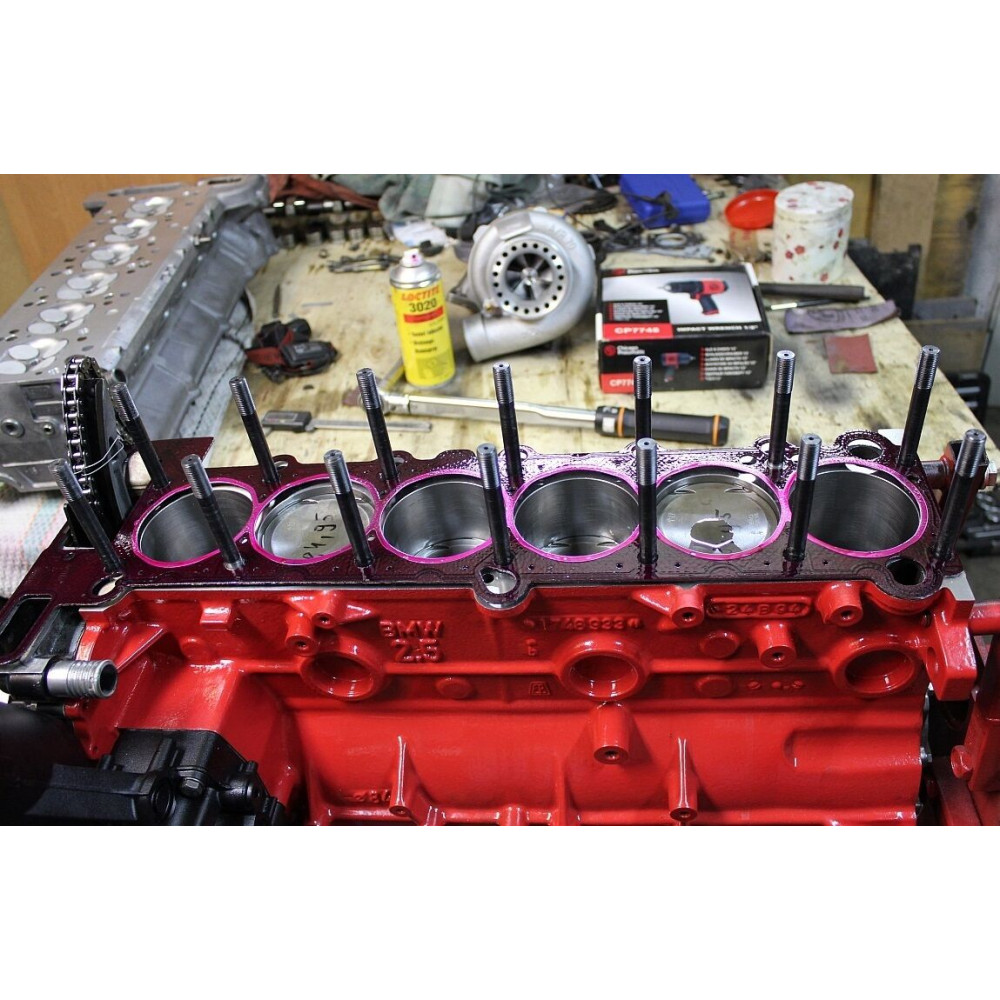

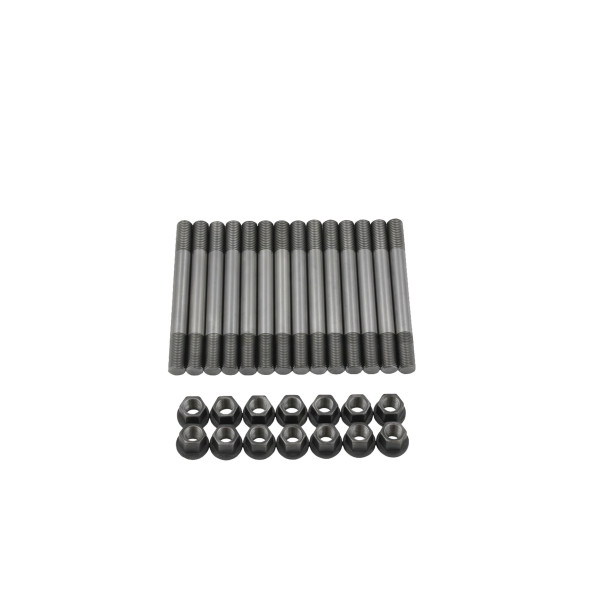

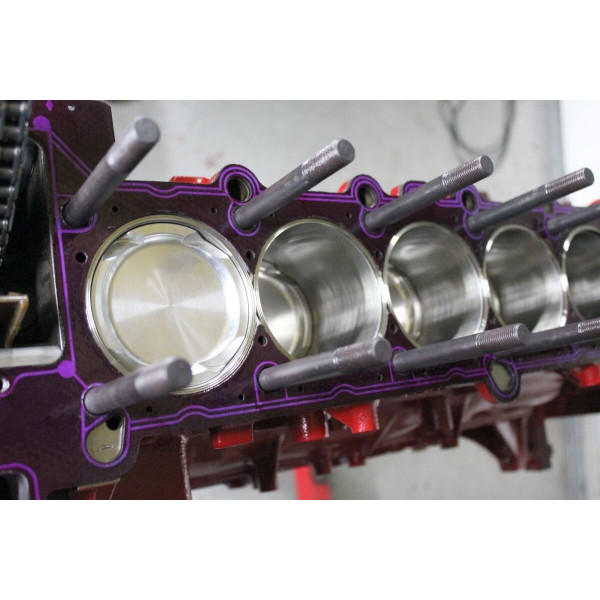

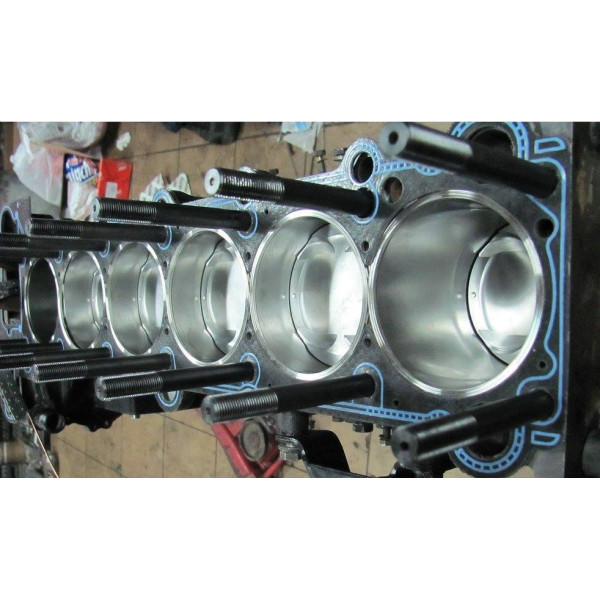

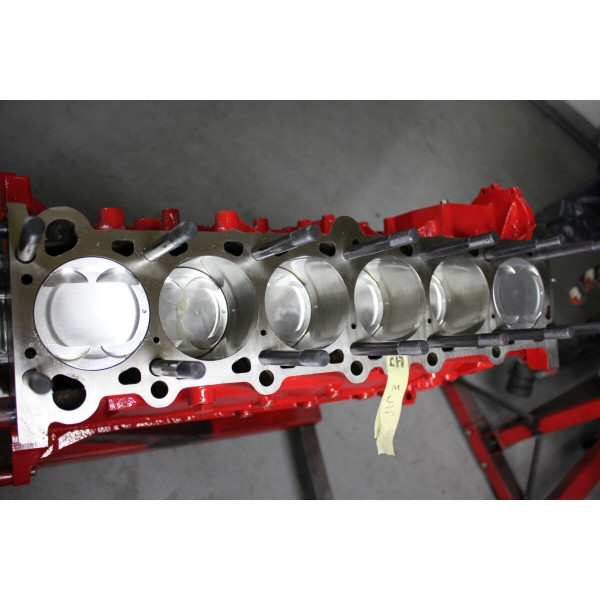

BMW M50, S50 High-Performance M12 Cylinder Head Studs Kit

Superior quality cylinder head studs kit for cast iron M50/S50 engine.

Allows for greater strength when tightening your cylinder head.

• 100% CNC machined parts - MADE IN UE
• Special steel developed by FTWL Motorsport Team
• Fits M50/S50 engine
• Improves engine reliability
• "MUST HAVE" for all turbocharged BMW engines - drift, drag, racing spec.
• Forged turbobmw engines can generate over 700-800 hp+ without issues.

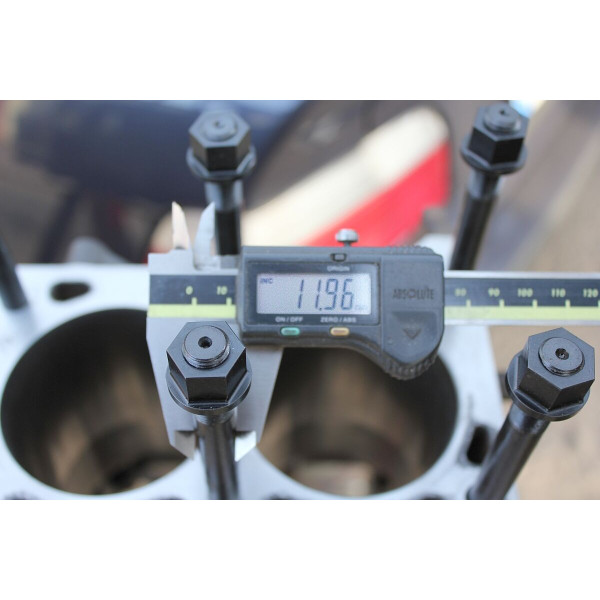

• Compact 16 mm nuts for easy tightening.
• M12x1.5 threads need to be made in your engine block. Use a 12.5 mm drill bit to drill head gasket, head washers (all 14 pcs.), and engine head to 12.5 mm diameter.
• Recommended to use Loctite 3020 for assembly of head gasket.
• Use grease, torque wrench, and tighten all nuts (clockwise) in the following steps: 1st step - 40 Nm, 2nd step - 80 Nm, 3rd step - 110 Nm.
• NOTE: DO NOT OVER TIGHTEN THE NUTS. Product can handle up to ~150 Nm, but your engine head won't.
• Each product has been quality tested to handle the highest overload and force.
