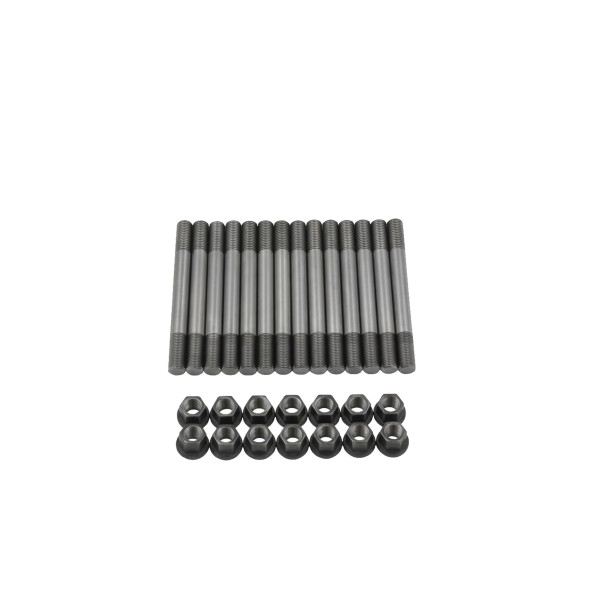

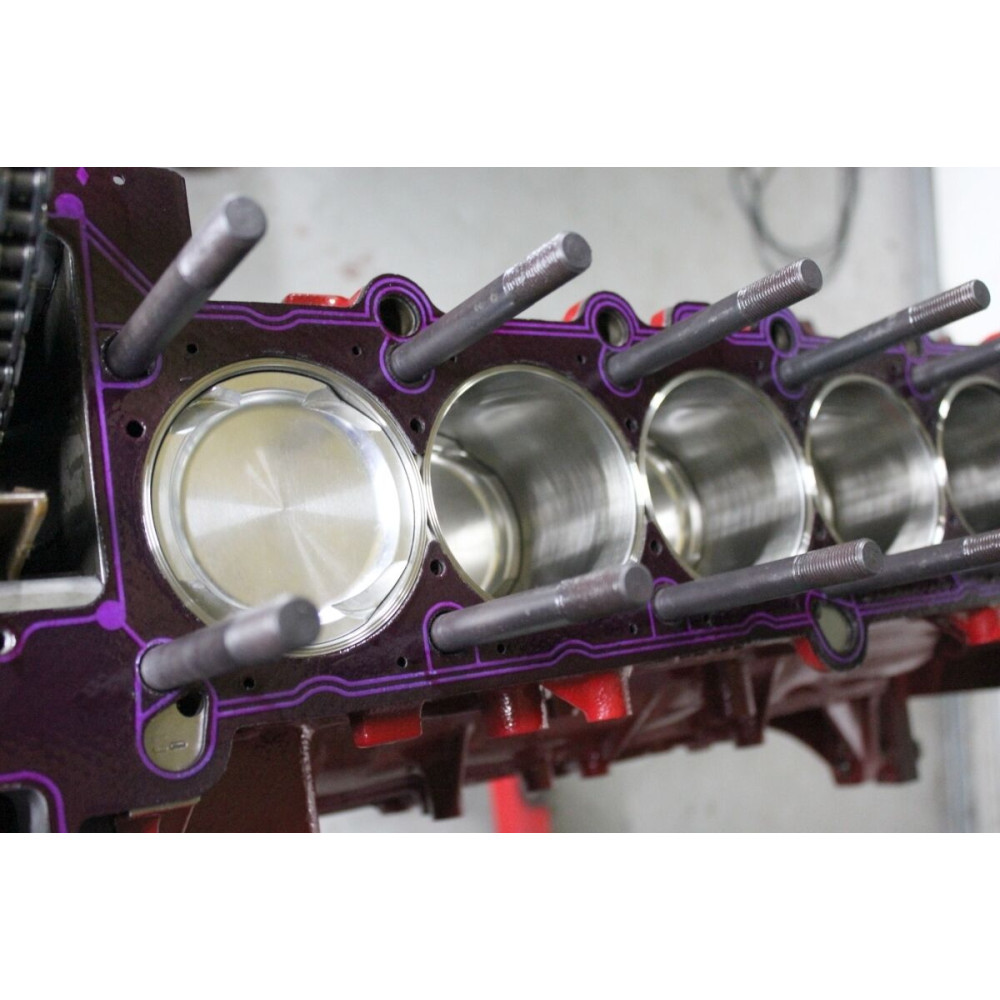

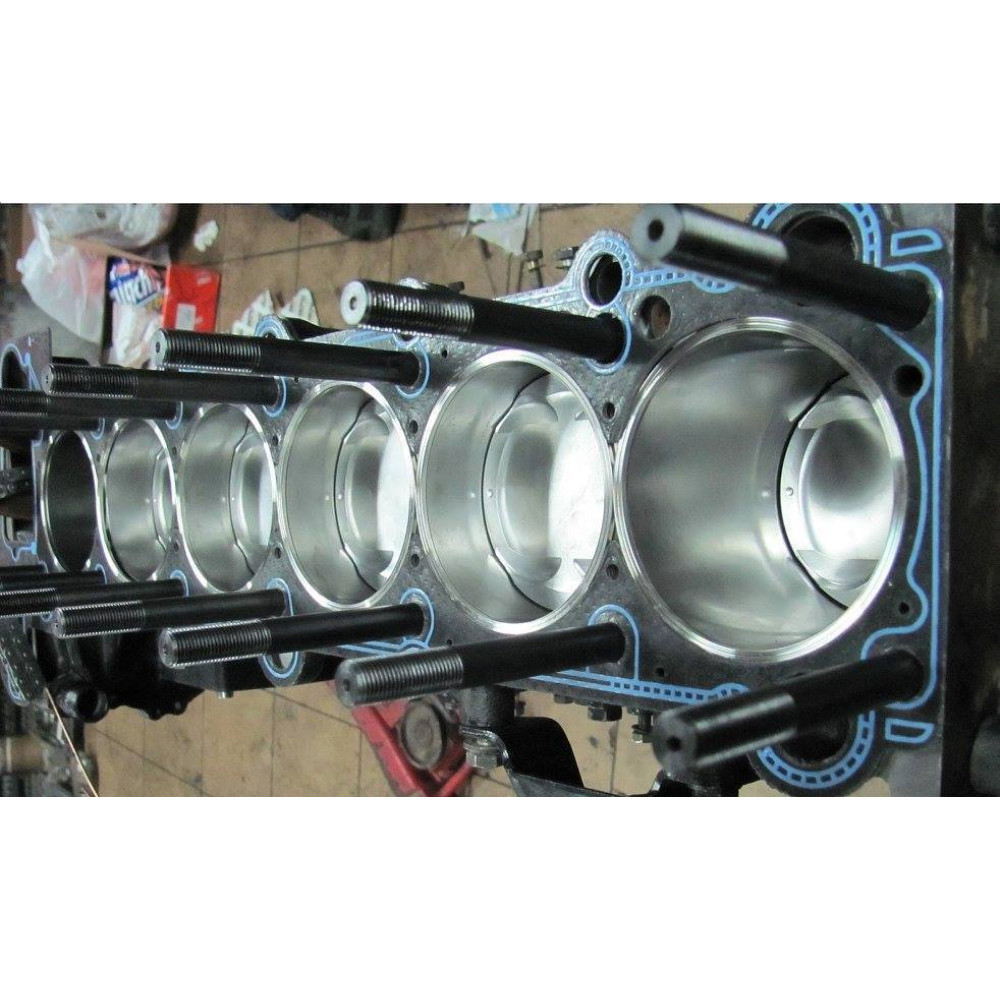

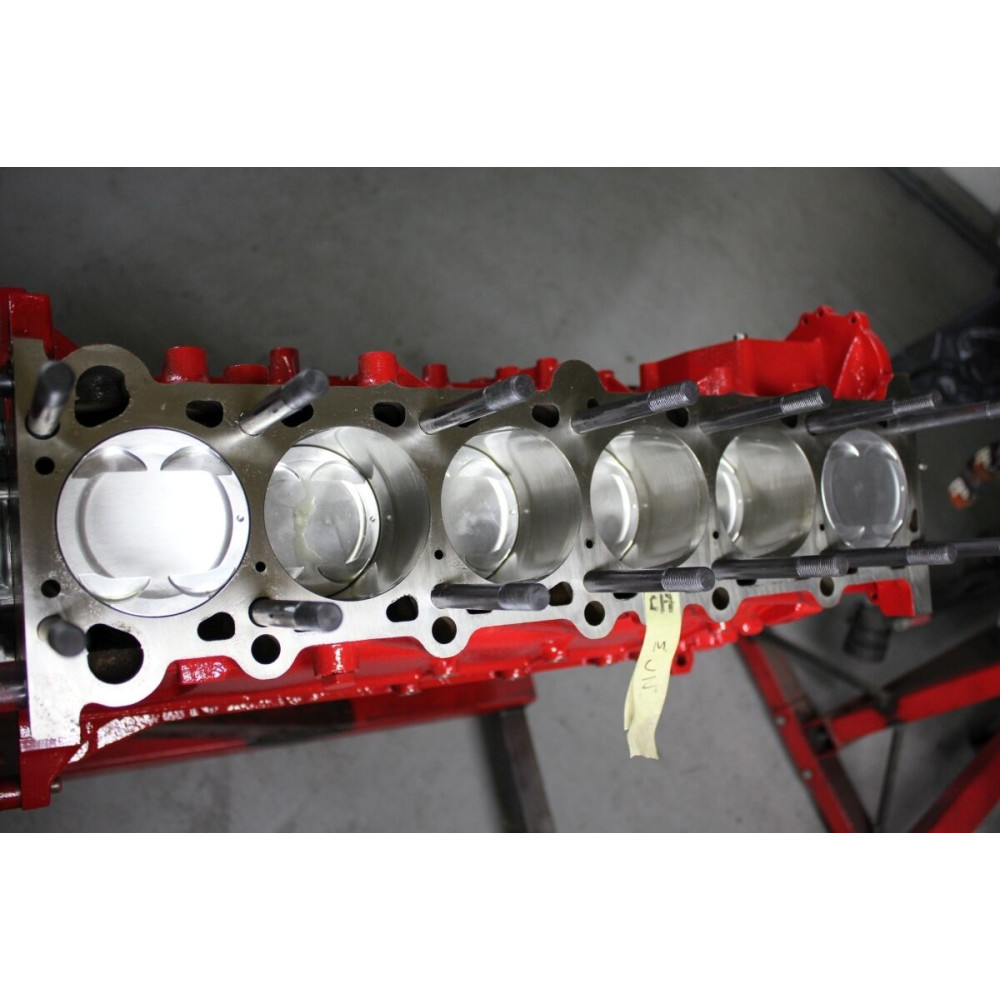

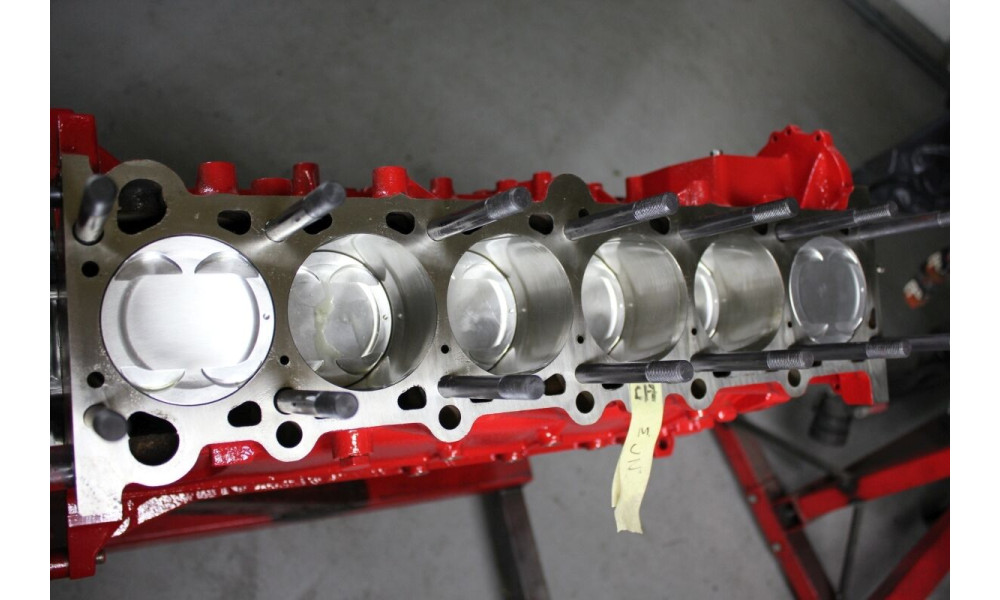

BMW M52/M54 High-Performance M12 Cylinder Head Studs Kit

High-quality cylinder head studs kit for aluminium BMW M52 and M54 engine blocks, designed to allow higher clamping strength when tightening the cylinder head and improve overall engine reliability.

Key Features

• Fits BMW M52/M54

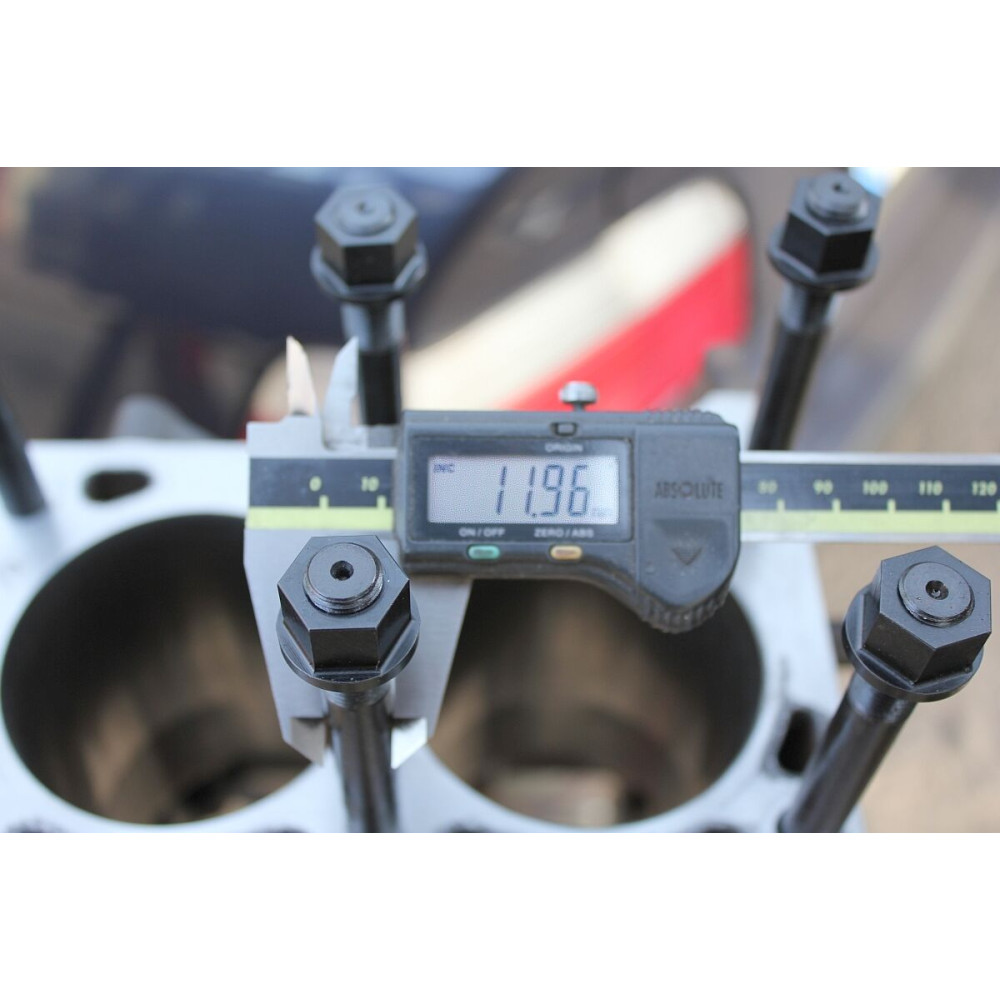

• M12 stud conversion for increased clamping strength
• 100% CNC-machined components (Made in EU)
• Special steel developed by the FTWL Motorsport Team
• Compact 16 mm nuts for easier access and tightening
• Often used as a repair solution for damaged/broken M10 threads
• Quality tested to withstand high load and force
• Commonly used on turbocharged BMW builds (drift/drag/race applications); reported to support forged turbo BMW engines producing 700–800 hp+

Installation Notes

• M12 threads must be made in the engine block.
• Use a 12.5 mm drill bit to drill the head gasket, head washers (all 14 pcs.), and the cylinder head to 12.5 mm diameter.

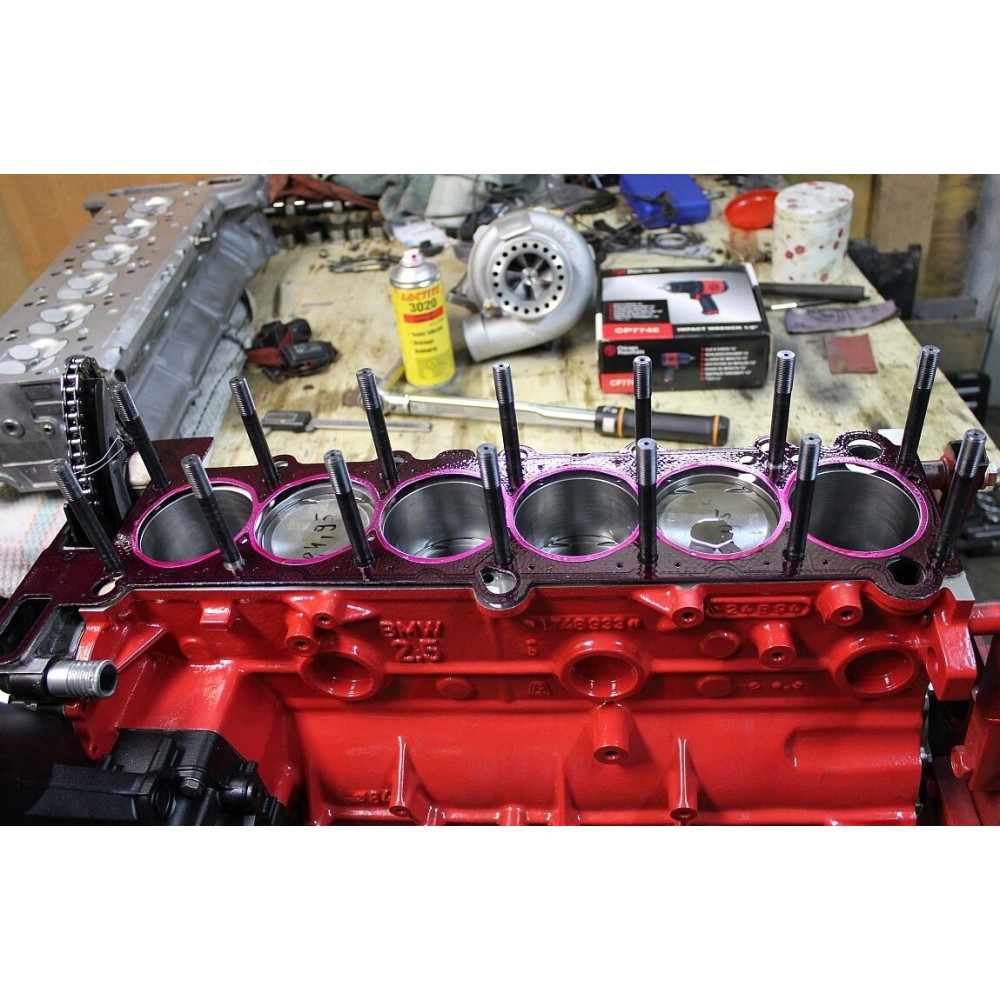

• Recommended: Loctite 3020 for head gasket assembly.

Torque Procedure

• Use grease and a torque wrench.
• Tighten all nuts clockwise in steps: 40 Nm, then 80 Nm, then 110 Nm.
• Do not over-tighten: the studs can handle up to ~150 Nm, but the cylinder head may not.
