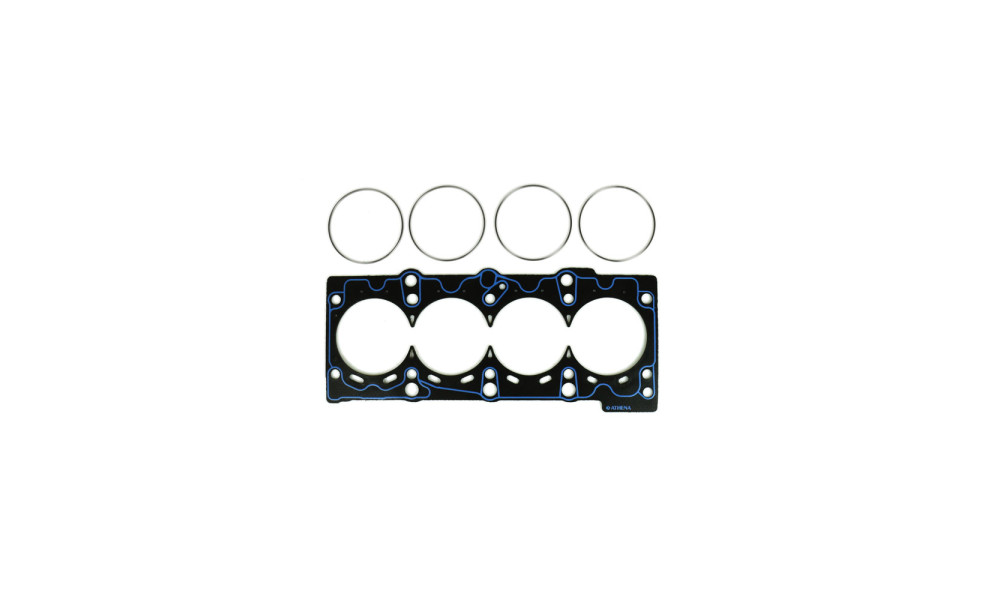

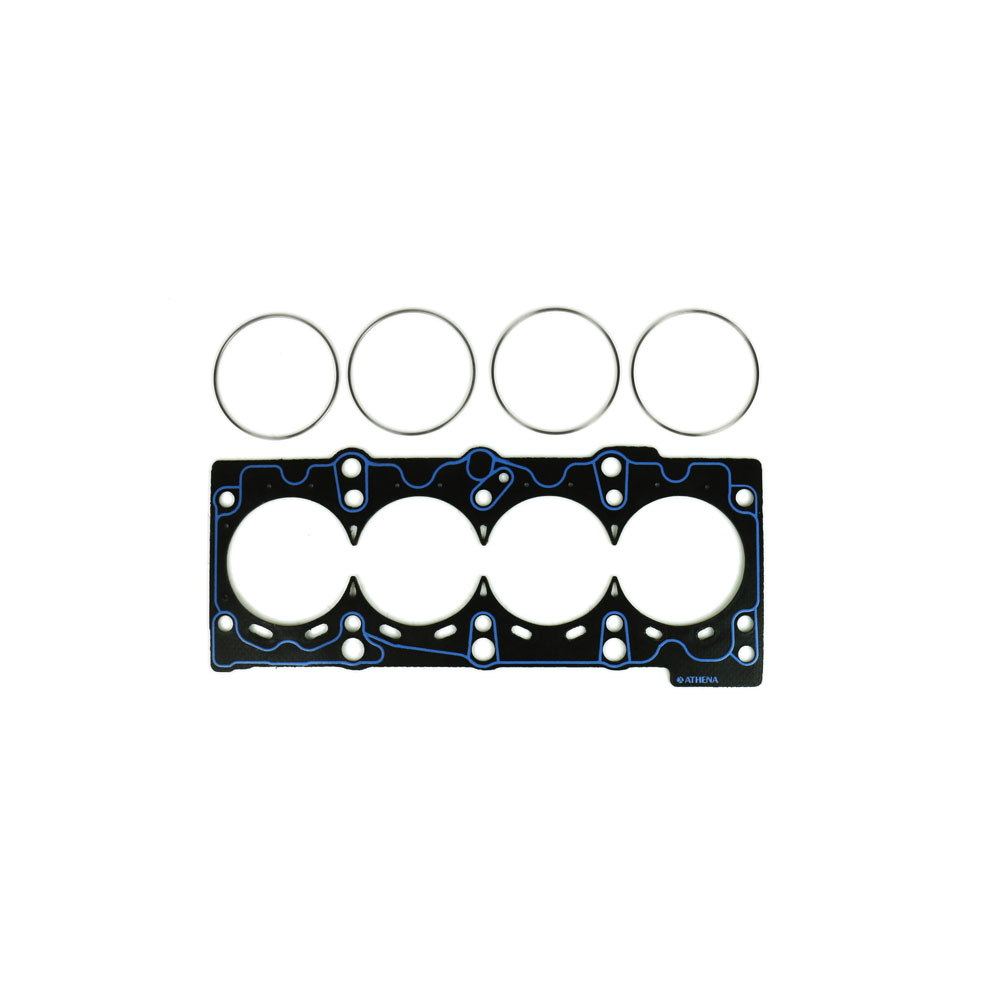

ATHENA (MLS) Multi Layer Gasket

Material

ATHENA MLS gaskets consist of 3 to 5 layers made from various raw materials. The combination of outer and inner layers is engineered to withstand higher compression levels than standard configurations, with the type of steel varying based on engine requirements. These gaskets ensure an even torque load across the sealing surface, compensating for any bore distortion. They are suitable for both aluminum heads paired with cast iron blocks and aluminum heads with aluminum blocks.

Manufacturing Process

Athena MLS Head Gaskets are crafted from high-grade 301 stainless steel in a full hard state. Each layer is precisely formed using advanced laser cutting technology and is embossed through an optimized formation process. Two of the head gasket layers undergo a stress-relieving process to minimize stress induced by embossment. A proprietary two-part polymer coating is applied post-stress relief, ensuring uniform coverage of the outer layers without breaks in the coating, which helps create a micro seal for engine coolant and oil fluids. These gaskets are rigorously tested on Engine Dynos for performance and endurance.

Gas Stopper Technology

This technology is a critical design element of racing MLS head gaskets. The stainless-steel stopper layer incorporates an innovative “active fold” that provides a high-pressure seal around the cylinder bore when the cylinder head is tightened. Positioned around the combustion chamber, the gas stopper allows for tighter clamping of the cylinder head and engine block, preventing gas leaks from the combustion chamber and reducing component distortion through quicker temperature equalization.

Benefits

• Superior sealing properties under high pressure conditions
• Higher elasticity and constant load resistance
• Optimized load balance
• Improved engine performance
• Longer durability

Proprietary Coating Technology

The two-part polymer coating applied after the stress-relieving process ensures uniform coverage of the outer layers, maintaining a micro seal for engine coolant and oil fluids while withstanding harsh environments. The first layer is a high-temperature compound that conforms to irregularities in the engine block deck and cylinder head surfaces, sealing surface finishes up to 60 Ra. The second layer releases easily, preventing sticking to mating surfaces during engine disassembly.

Fits:

• BMW 3 Cabriolet (E30) 318 i 1796 cc 1990/1992
• BMW 3 Compact (E36) 318 ti 1796 cc 1994/1995
• BMW 3 Coupé (E36) 318 is 1796 cc 1992/1995
• BMW 3 (E30) 318 is 1796 cc 1989/1991
• BMW 3 (E36) 318 i 1796 cc 1992/1995
• BMW 3 (E36) 318 is 1796 cc 1993/1995
• BMW M42 B18 (184S1) 1796 cc
