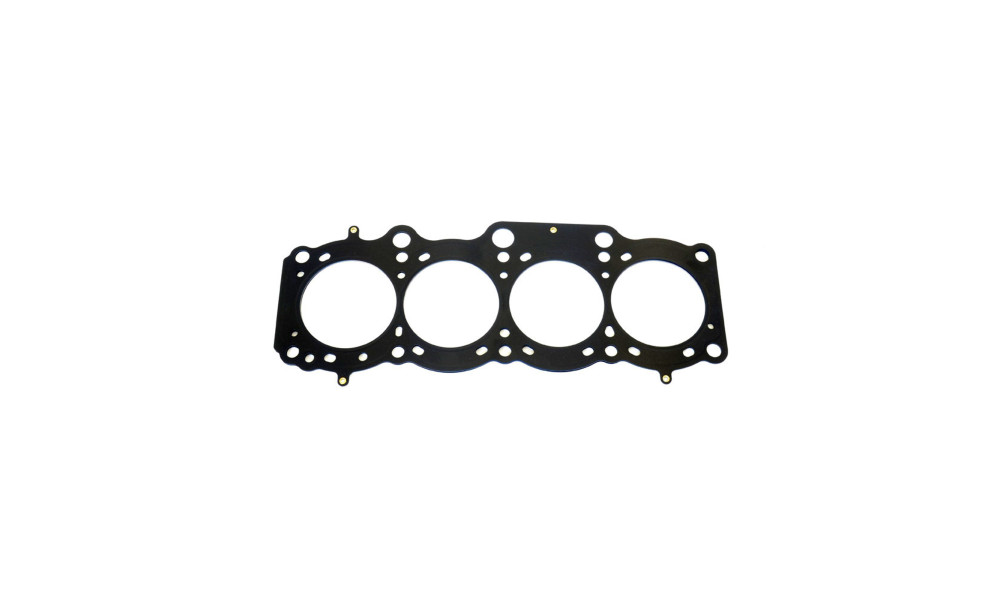

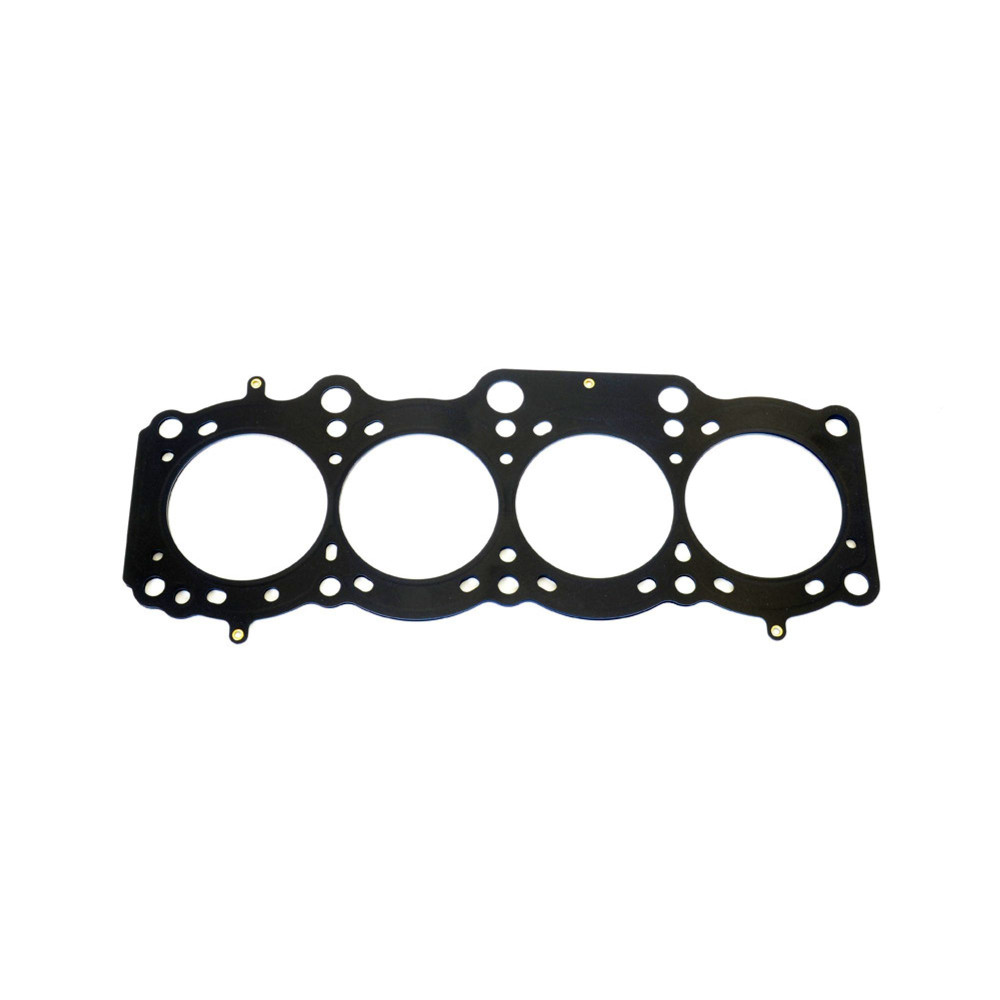

ATHENA (MLS) Multi Layer Gasket

Material

ATHENA MLS gaskets consist of 3 to 5 layers made from various raw materials. The combination of outer and inner layers is engineered to withstand higher compression levels than standard configurations, with the type of steel varying based on engine requirements. These gaskets ensure an even torque load across the sealing surface, compensating for any bore distortion. They are suitable for both aluminum heads paired with cast iron blocks and aluminum heads with aluminum blocks.

Manufacturing Process

Athena MLS Head Gaskets are crafted from high-grade 301 stainless steel in a full hard state. Each layer is precisely formed using advanced laser cutting technology and is embossed through an optimized formation process. Two of the head gasket layers undergo a stress-relieving process to minimize stress induced by embossment. A proprietary two-part polymer coating is applied post-stress relief, ensuring uniform coverage of the outer layers without breaks in the coating, which guarantees a micro seal for engine coolant and oil fluids. Athena MLS gaskets are rigorously tested on Engine Dynos and for endurance performance.

Gas Stopper Technology

This technology is a critical design feature of racing MLS head gaskets. The stainless-steel stopper layer incorporates an innovative “active fold” that provides a high-pressure seal around the cylinder bore when the cylinder head is tightened. Positioned around the combustion chamber, the gas stopper enhances the clamping of the cylinder head and engine block, preventing gas leaks from the combustion chamber and reducing component distortion through quicker temperature equalization.

Benefits

• Superior sealing properties under high pressure conditions
• Higher elasticity and constant load resistance
• Optimized load balance
• Improved engine performance
• Longer durability

Proprietary Coating Technology

The two-part polymer coating applied after the stress-relieving process ensures uniform coverage of the outer layers, maintaining a micro seal for engine coolant and oil fluids in harsh environments. The first layer is a high-temperature compound that conforms to irregularities in the engine block deck and cylinder head surfaces, sealing surface finishes up to 60 Ra. The second layer releases easily, preventing adhesion to mating surfaces during engine disassembly.

Fits:

• TOYOTA 3S-GE 1998cc 103kw
• TOYOTA 3S-GTE 1998cc 136kw
• TOYOTA CARINA E VI (_T19_) 2.0 GTi (ST191) 1998cc 116kw
• TOYOTA CARINA E VI Saloon (_T19_) 2.0 GTi (ST191, ST191R) 1998cc 116kw
• TOYOTA CELICA Convertible (_T18_) 2.0 GTi (ST182) 1998cc 115kw
• TOYOTA CELICA Coupe (_T16_) 2.0 Turbo 4WD (ST165) 1998cc 136kw

  Vehicle Compatibility

  Brand	Model	Generation / Chassis	Engine
  Toyota	Carina E	VI (_T19_)	2.0
  Toyota	Carina E	VI (_T19_)	2.0
  Toyota	Celica	Convertible (_T18_)	2.0
  Toyota	Celica	Coupe (_T16_)	2.0 Turbo
  Toyota	MR2	II	3S-GE
  Toyota	MR2	II	3S-GTE
