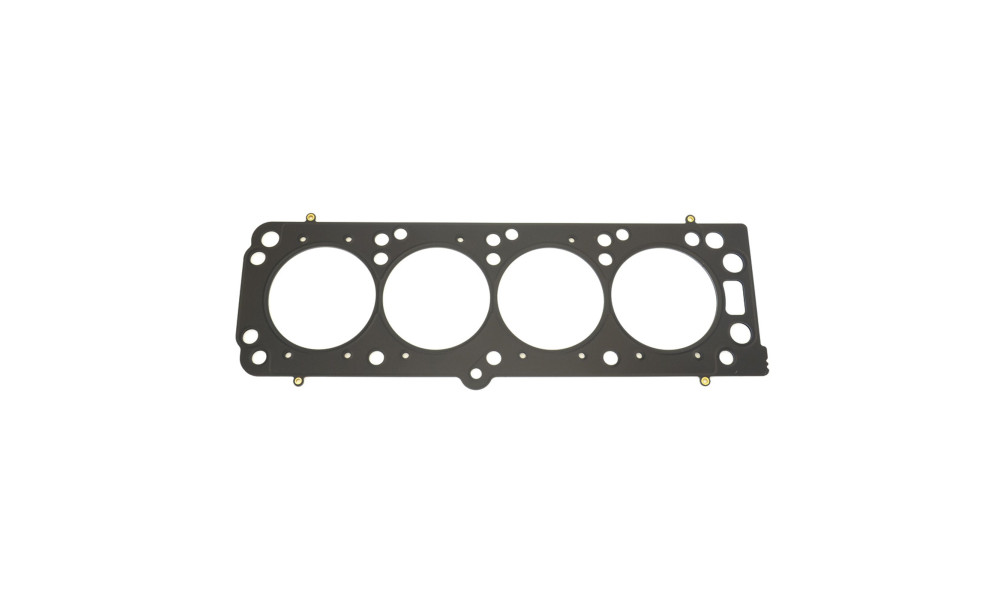

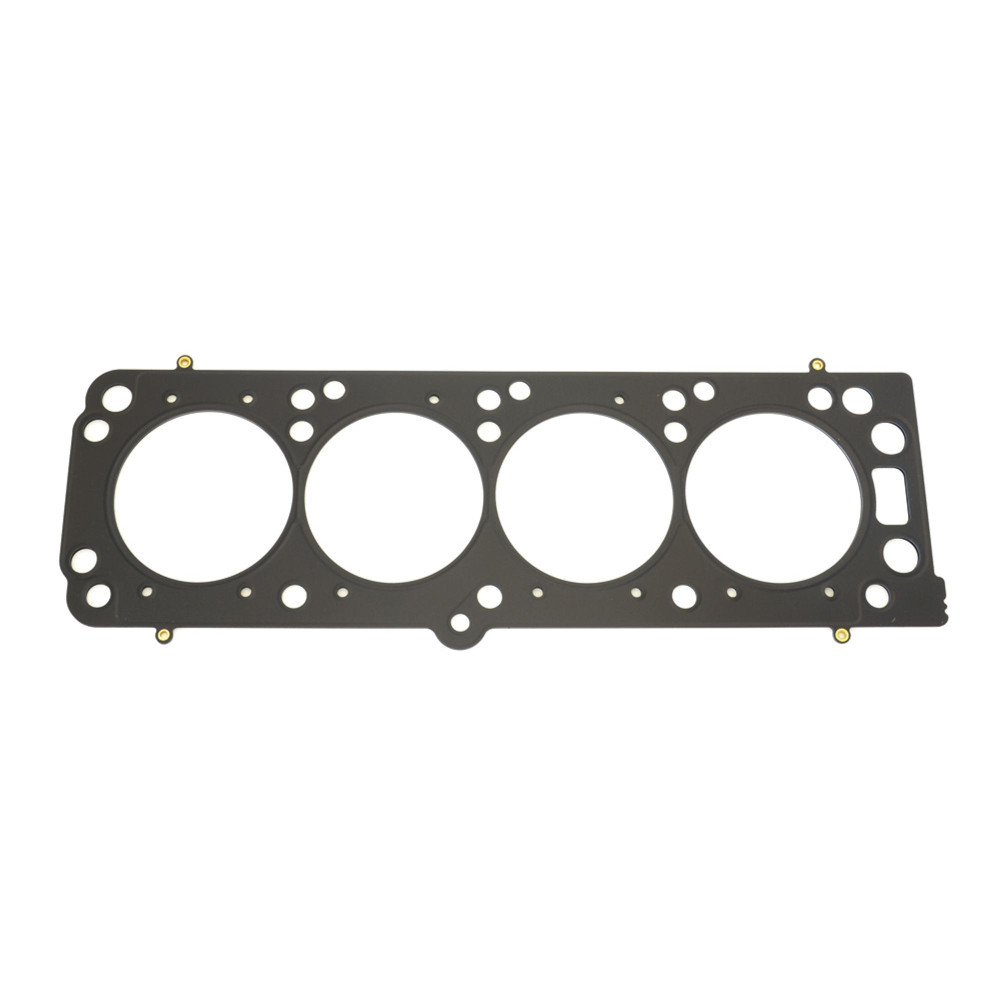

ATHENA (MLS) Multi Layer Gasket

Material

ATHENA MLS gaskets consist of 3 to 5 layers made from various raw materials. The combination of outer and inner layers is engineered to withstand higher compression levels than stock configurations, with steel types varying based on engine requirements. These gaskets ensure an even torque load across the sealing surface, compensating for any bore distortion. They are suitable for both aluminum heads to cast iron blocks and aluminum heads to aluminum blocks.

Manufacturing Process

Athena MLS Head Gaskets are crafted from high-grade 301 stainless steel, fully hardened. Each layer is precisely formed using advanced laser cutting technology and is embossed through an optimized formation process. Two head gasket layers undergo a stress-relieving process to minimize stress induced by embossment. A proprietary two-part polymer coating is applied post-stress relief, ensuring uniform coverage of the outer layers without breaks in the coating, which guarantees a micro seal for engine coolant and oil fluids. Athena MLS gaskets are rigorously tested on Engine Dynos and for endurance performance.

Gas Stopper Technology

This technology is a critical design feature of racing MLS head gaskets. The stainless-steel stopper layer incorporates an innovative “active fold” that provides a high-pressure seal around the cylinder bore during cylinder head tightening. Positioned around the combustion chamber, the gas stopper allows for tighter clamping of the cylinder head and engine block, preventing gas leaks from the combustion chamber and reducing component distortion through quicker temperature equalization.

Benefits

• Superior sealing properties under high pressure conditions
• Higher elasticity and constant load resistance
• Optimized load balance
• Improved engine performance
• Longer durability

Proprietary Coating Technology

The two-part polymer coating applied after the stress-relieving process ensures uniform coverage of the outer layers, maintaining a micro seal for engine coolant and oil fluids in harsh environments. The first layer is a high-temperature compound that conforms to irregularities in the engine block deck and cylinder head surfaces, sealing surface finishes up to 60 Ra. The second layer releases easily, preventing adhesion to mating surfaces during engine disassembly.

Fits:

• OPEL ASTRA H (A04) 2.0 Turbo (L48) 1998cc 177kw
• OPEL ASTRA H GTC (A04) 2.0 Turbo (L08) 1998cc 177kw
• OPEL Z 20 LEH 1998cc 177kw
• OPEL ZAFIRA / ZAFIRA FAMILY B (A05) 2.0 (M75) 1998cc 177kw
