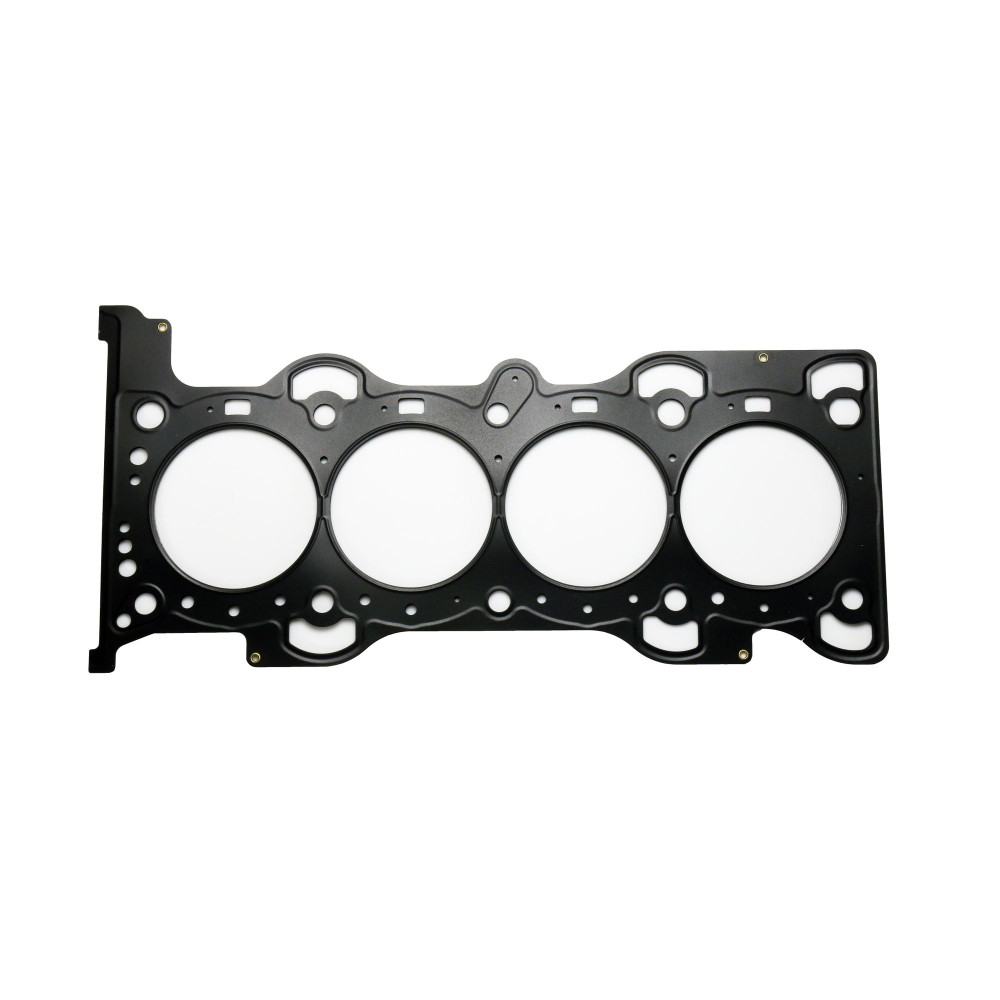

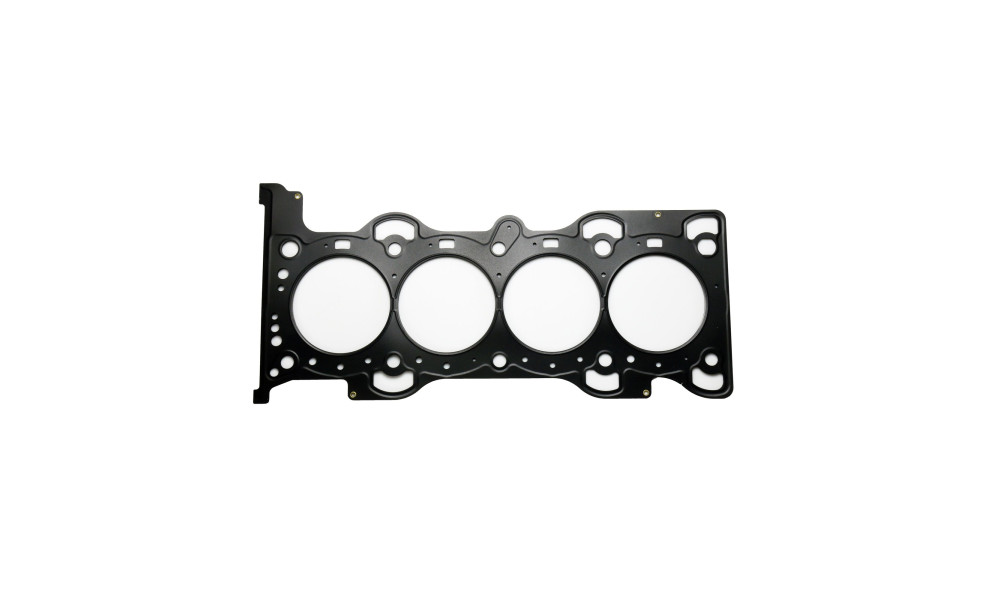

ATHENA (MLS) Multi Layer Gasket

Material

ATHENA MLS gaskets feature a combination of 3 to 5 layers made of different types of raw materials. The outer and inner layers are designed to perform at higher compression levels than stock configurations, with varying types of steel used based on engine requirements. Athena MLS gaskets provide an even torque load across the sealing surface to compensate for any type of bore distortion. They are ideal for both aluminum heads to cast iron blocks and aluminum heads to aluminum blocks.

Manufacturing Process

Athena New Design MLS Head Gaskets are crafted from high-grade 301 stainless steel full hard material. Each layer is individually formed using state-of-the-art laser cutting and embossed with an optimized formation process. Two head gasket layers undergo a stress-relieving process to significantly reduce embossment forming induced stress. A proprietary two-part polymer coating is applied after the stress-relieving process, ensuring uniform coverage of the outer layers and providing a micro seal for engine coolant and oil fluids. Athena MLS gaskets are tested and analyzed on Engine Dynos and for endurance performance.

Gas Stopper Technology

Gas stopper technology is a key design factor of racing MLS head gaskets. The stainless-steel stopper layer features an “active fold” that delivers a high-pressure seal around the cylinder bore when tightening the cylinder head. The gas stopper is located around the combustion chamber, allowing the cylinder head and engine block to clamp tighter and preventing gases from leaking out of the combustion chamber. This also avoids component distortion by quickly equalizing the temperature of various components.

Benefits

• Superior sealing properties under high-pressure conditions
• Higher elasticity and constant load resistance
• Optimized load balance
• Improved engine performance
• Longer durability

Proprietary Coating Technology

The two-part polymer coating ensures uniform coverage of the outer layers, providing a micro seal for engine coolant and oil fluids, and meets the demands of various harsh environments. The first layer is a high-temperature compound that conforms to fill engine block deck surface and cylinder head surface irregularities. The second layer releases easily and will not stick to mating surfaces when disassembling the engine.

Fits to:

• FORD FOCUS III 2.0 ST 1999cc 184kw
• FORD FOCUS III Turnier 2.0 ST 1999cc 184kw
• FORD GALAXY III (CK) 2.0 EcoBoost 1999cc 176kw
• FORD MONDEO V Hatchback (CE) | FUSION 2.0 EcoBoost 1999cc 176kw
• FORD MONDEO V Hatchback (CE) | FUSION 2.0 EcoBoost 1999cc 149kw
• FORD MONDEO V Saloon (CD) | FUSION 2.0 EcoBoost 1999cc 149kw
• FORD MONDEO V Saloon (CD) | FUSION 2.0 EcoBoost 1999cc 176kw
• FORD MONDEO V Saloon (CD) | FUSION 2.0 EcoBoost 1999cc 146kw
• FORD MONDEO V Turnier (CF) 2.0 EcoBoost 1999cc 149kw
• FORD MONDEO V Turnier (CF) 2.0 EcoBoost 1999cc 176kw
• FORD R9CB 1999cc 176kw
• FORD R9CD 1999cc 176kw
• FORD R9CF 1999cc 176kw
• FORD R9CH 1999cc 176kw
• FORD R9CI 1999cc 176kw
• FORD R9DA 1999cc 184kw
• FORD R9DB 1999cc 184kw
• FORD R9DC 1999cc 184kw
• FORD R9DD 1999cc 184kw
• FORD S-MAX (CJ, WA6) 2.0 EcoBoost 1999cc 176kw
• FORD TNCA 1999cc 149kw
• FORD TNCB 1999cc 149kw
• FORD TNCC 1999cc 146kw
• FORD TNCD 1999cc 149kw
• FORD TNCF 1999cc 149kw
• FORDUSA EDGE (U387) 2.0 AWD 1999cc 179kw
• FORDUSA T20HDTX 1999cc 179kw
