Application

• Compatible for Honda Accord F22 SOHC 2.2 90-97

Specification

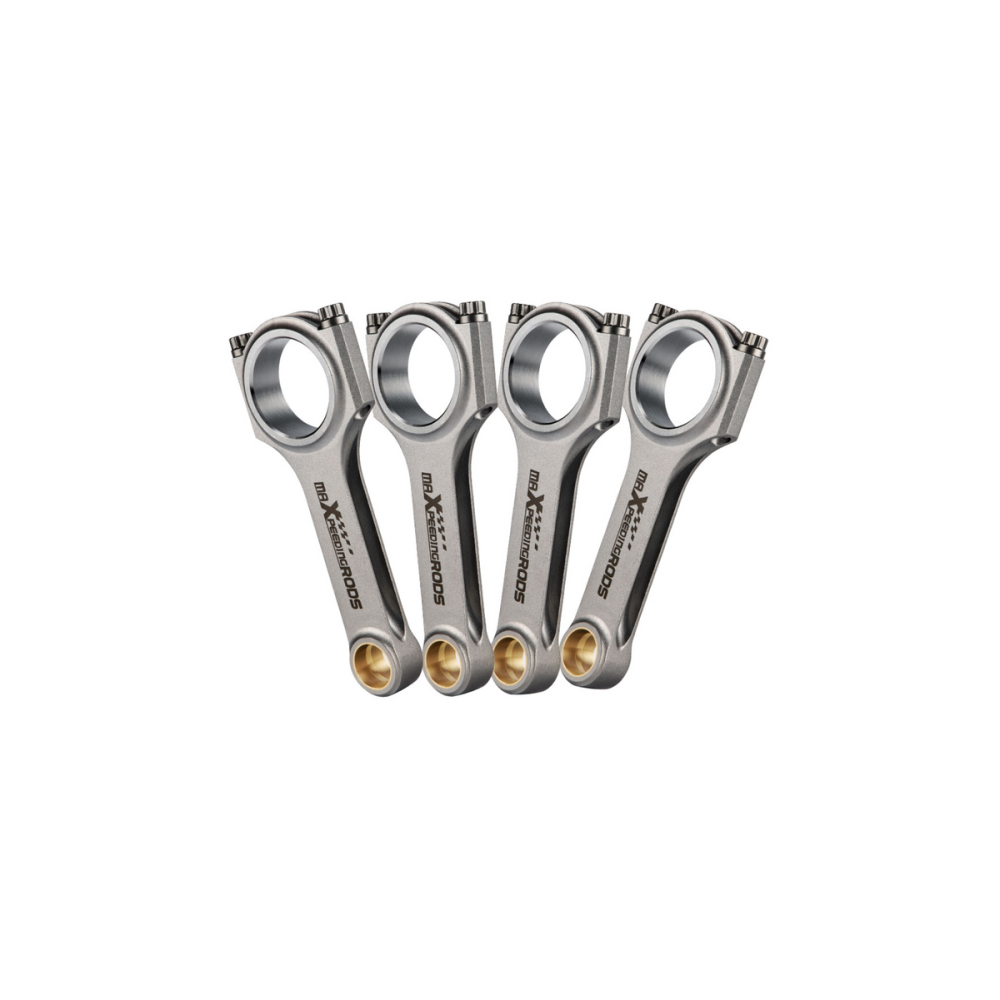

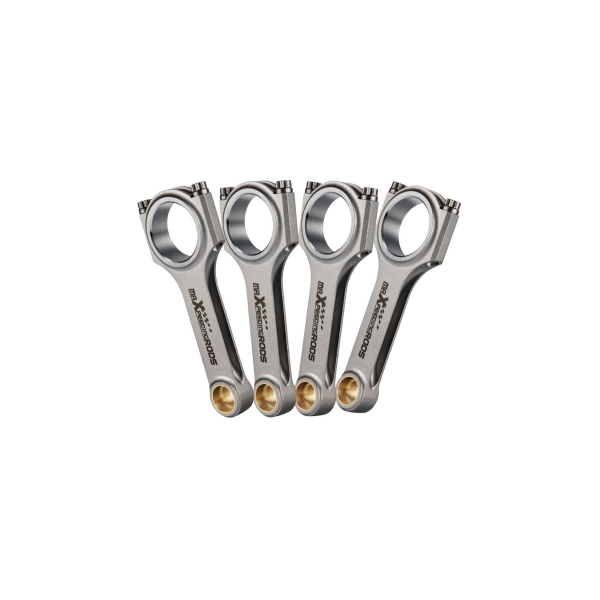

- Performance Con Rods
- Type: Forged 4340 aircraft chrome moly quality steel for racing

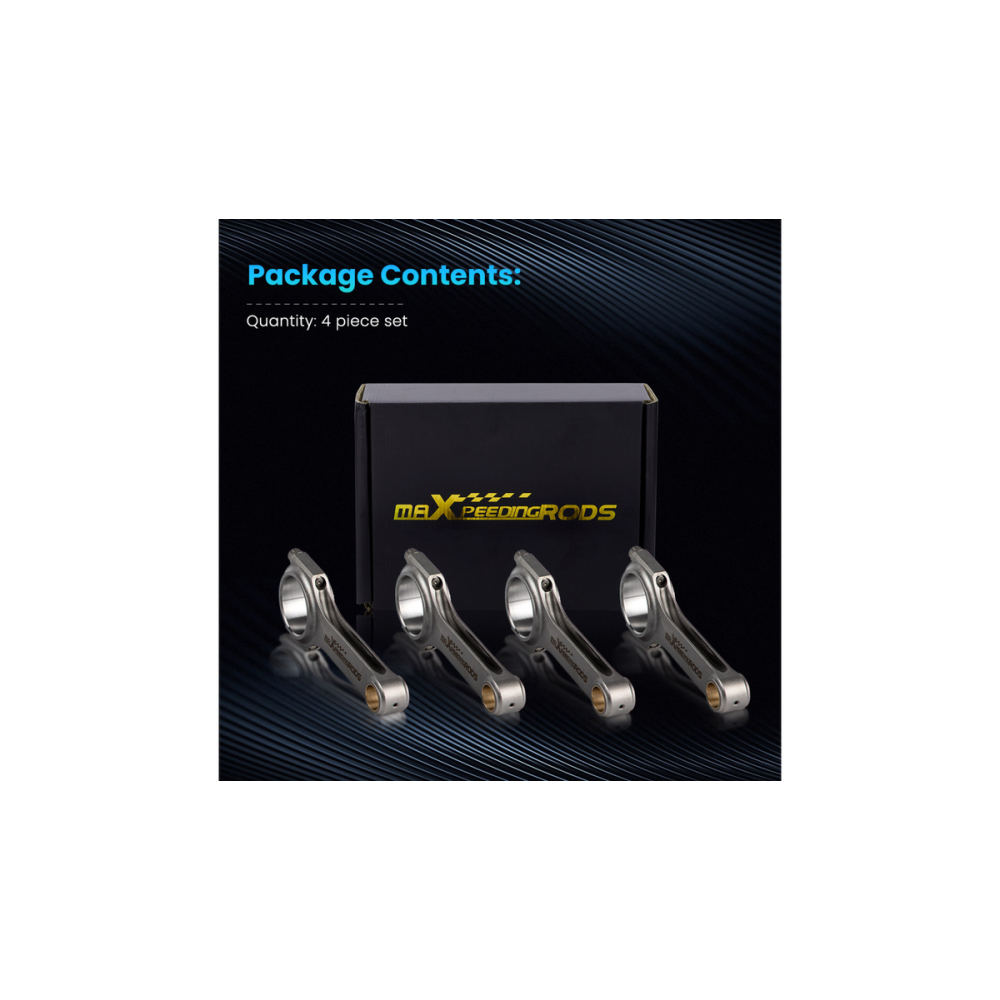

- H-beam Conrods Quantity: 4 Pieces a set
- Bolts: Including Genuine 3/8" ARP 2000 bolts
- Note: Extra cost for upgrading to ARP L19 bolts
- Bolts Size: 3/8"
- Tolerance: Balanced to +/- 1 gram in set
- Piston Bolt Hole: +-4/1000mm
- Power: 600 ~ 800PS per set
- Strength of the fastening (PSI): 200,000/230,000 PSI Torque: 48ft ≈ 65 NM
- Top acceleration: 9000rpm

Dimensions

• Center to center length: 142mm
• Big end diameter: 51mm
• Small end diameter: 22mm
• Big end width: 23.75mm
• Small end width: 23.75mm

Feature

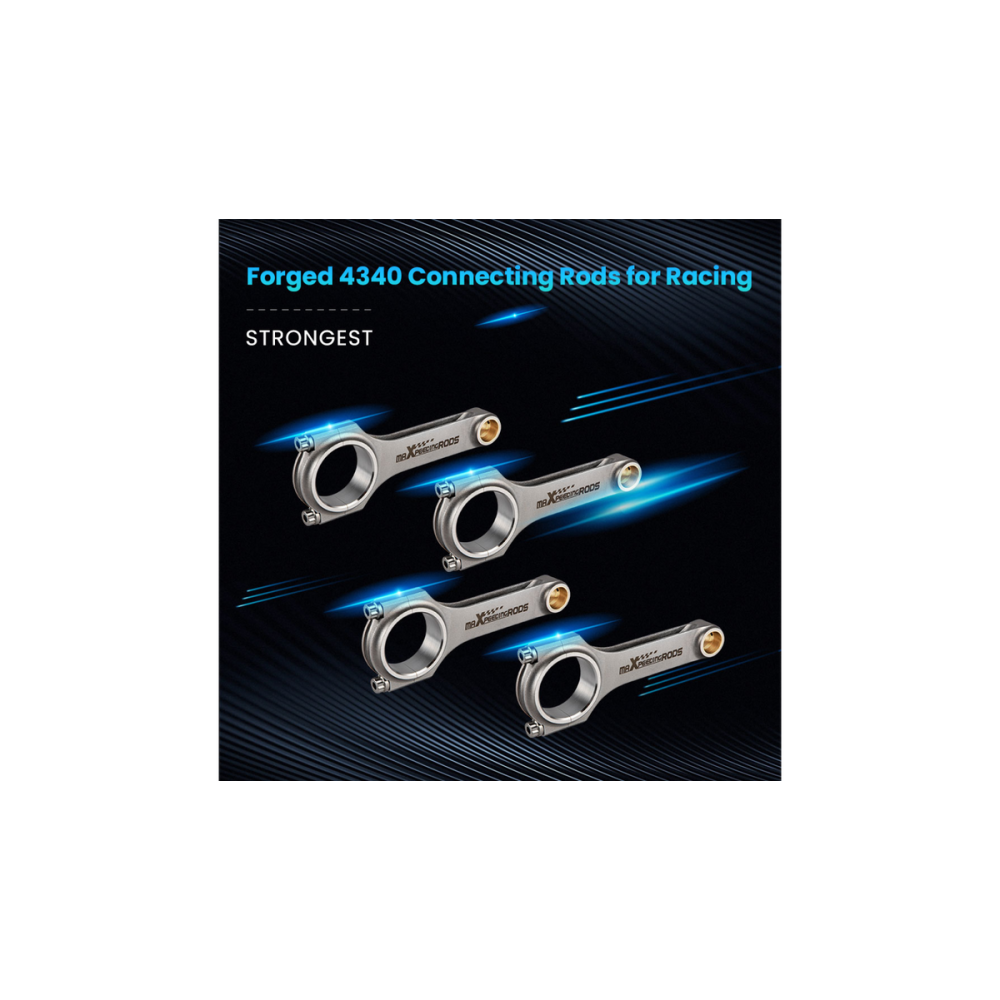

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

- Professional installation is highly recommended (No Instruction Included)
