Application

• Compatible for BMW M50 M52 B25 TU 24V M52TUB25
• Compatible for BMW E46 323i, 323Ci M52TUB25 1998 - 2000
• Compatible for BMW E39 523i M52TUB25 1998 - 2000
• Compatible for BMW E36/7 Z3 2.3i M52TUB25 1998 - 2000

Specification

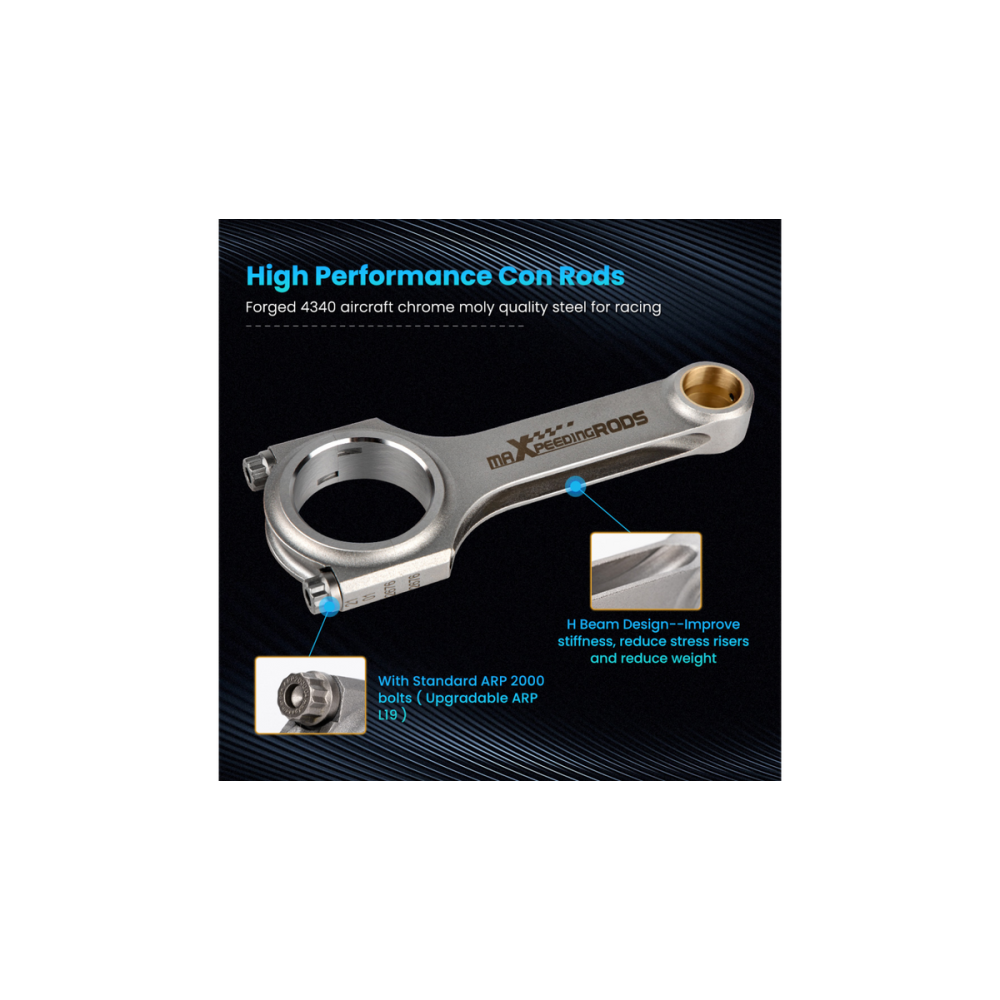

- Performance Con Rods
- Type: Forged 4340 aircraft chrome moly quality steel for racing

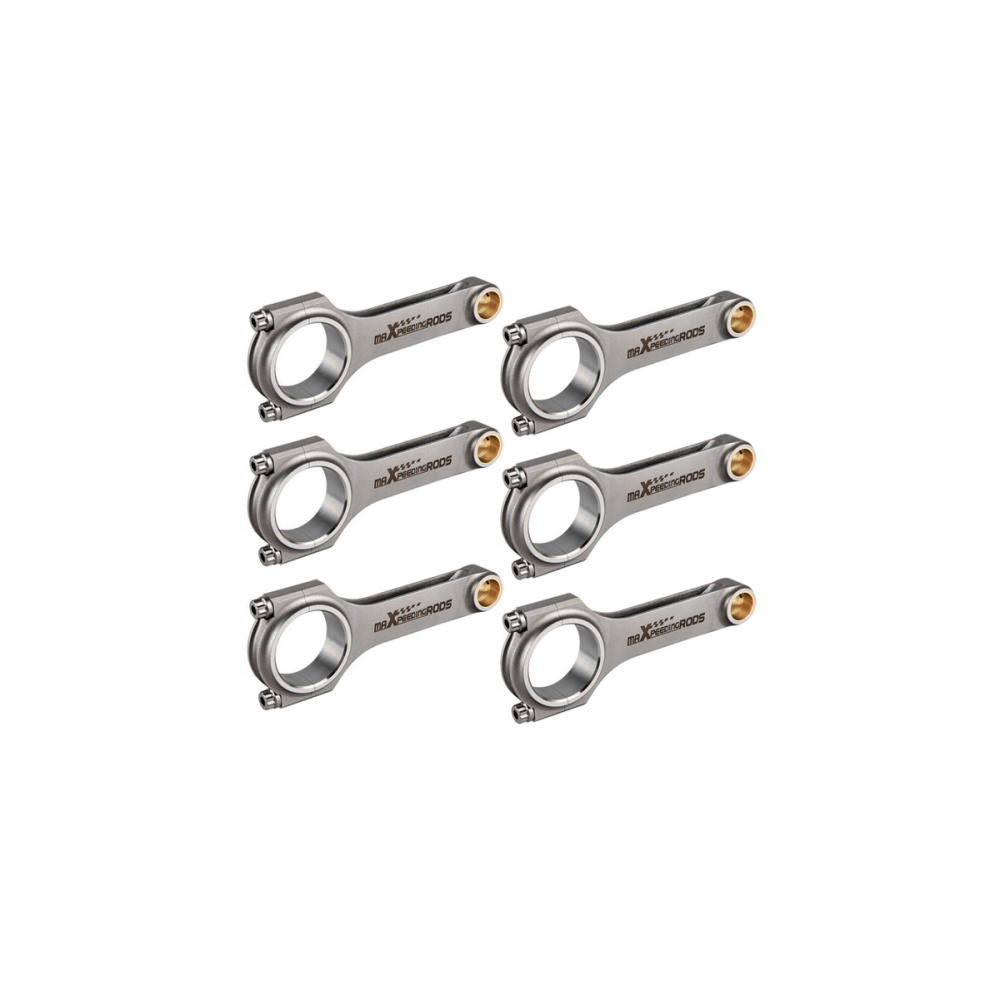

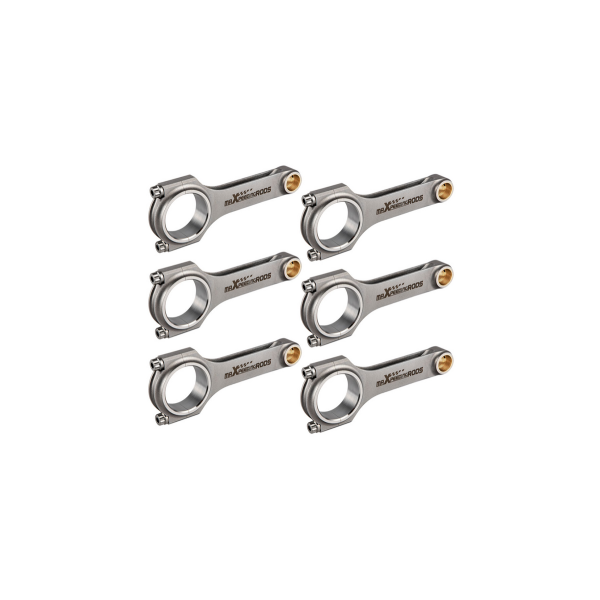

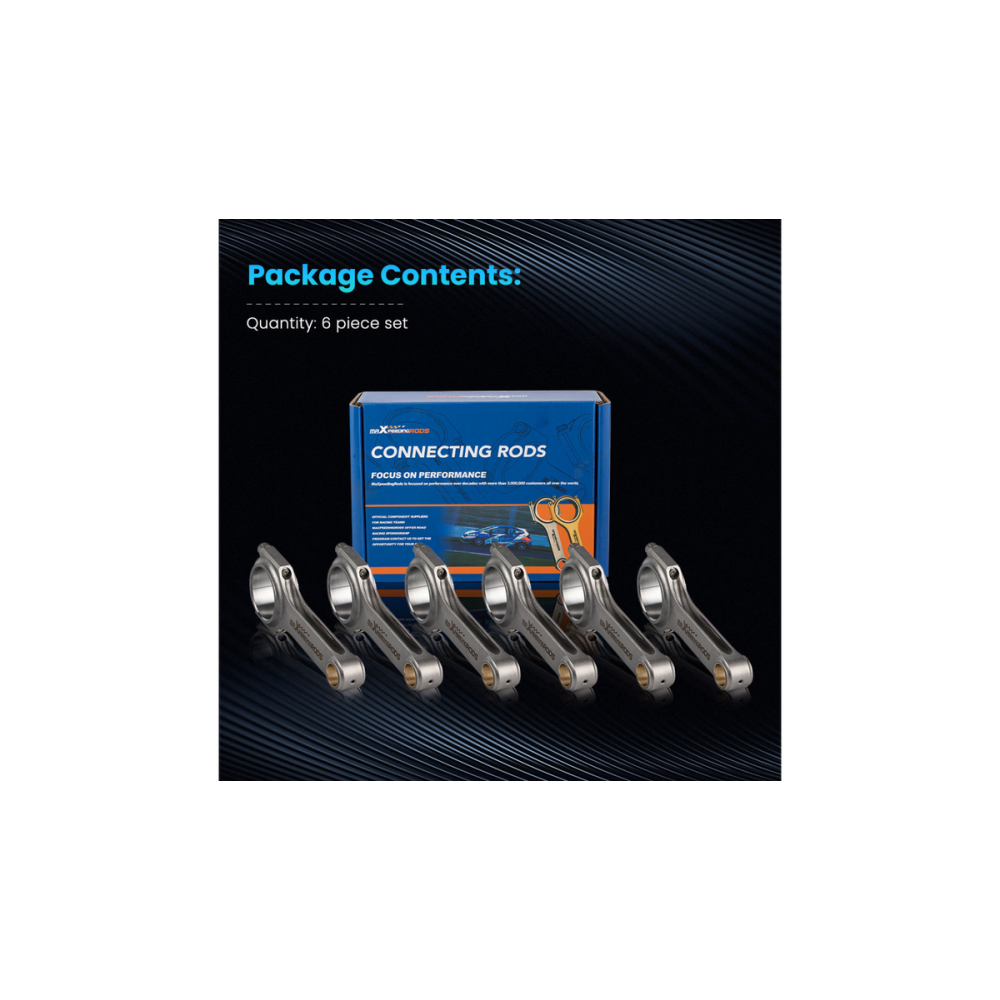

- H-beam Conrods Quantity: 6 Pieces as showing in picture
- Bolts: Including ARP 2000 bolts
- Note: Extra cost for upgrading to ARP L19 bolts
- Bolts Size: ARP 2000 3/8" bolts
- Tolerance: Balanced to +/- 1 gram in set
- Piston Bolt Hole: +-4/1000mm
- Power: 600hp ~ 800hp per set
- Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
- Top acceleration: 9000rpm

Dimensions

• Center to center length: 140mm
• Big end diameter: 48mm
• Small end diameter: 22mm
• Big end width: 21.9mm
• Small end width: 21.9mm

Feature

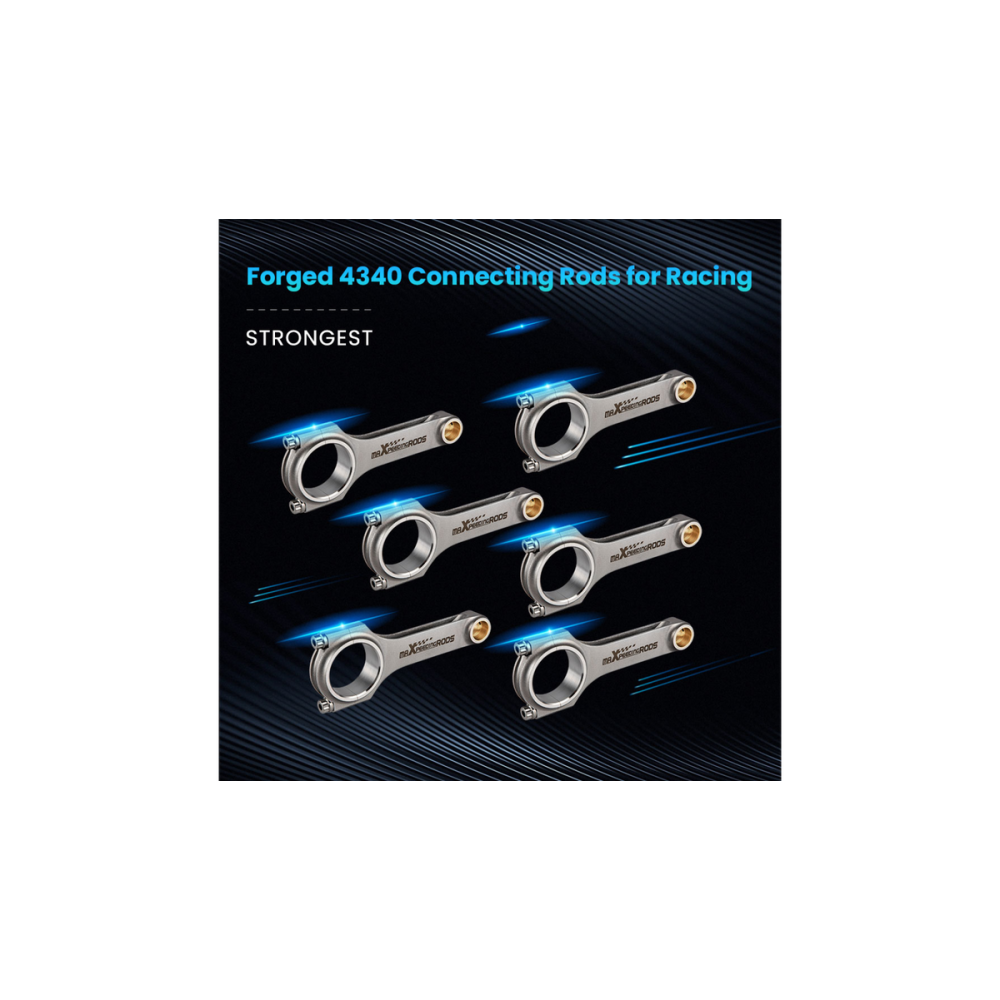

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

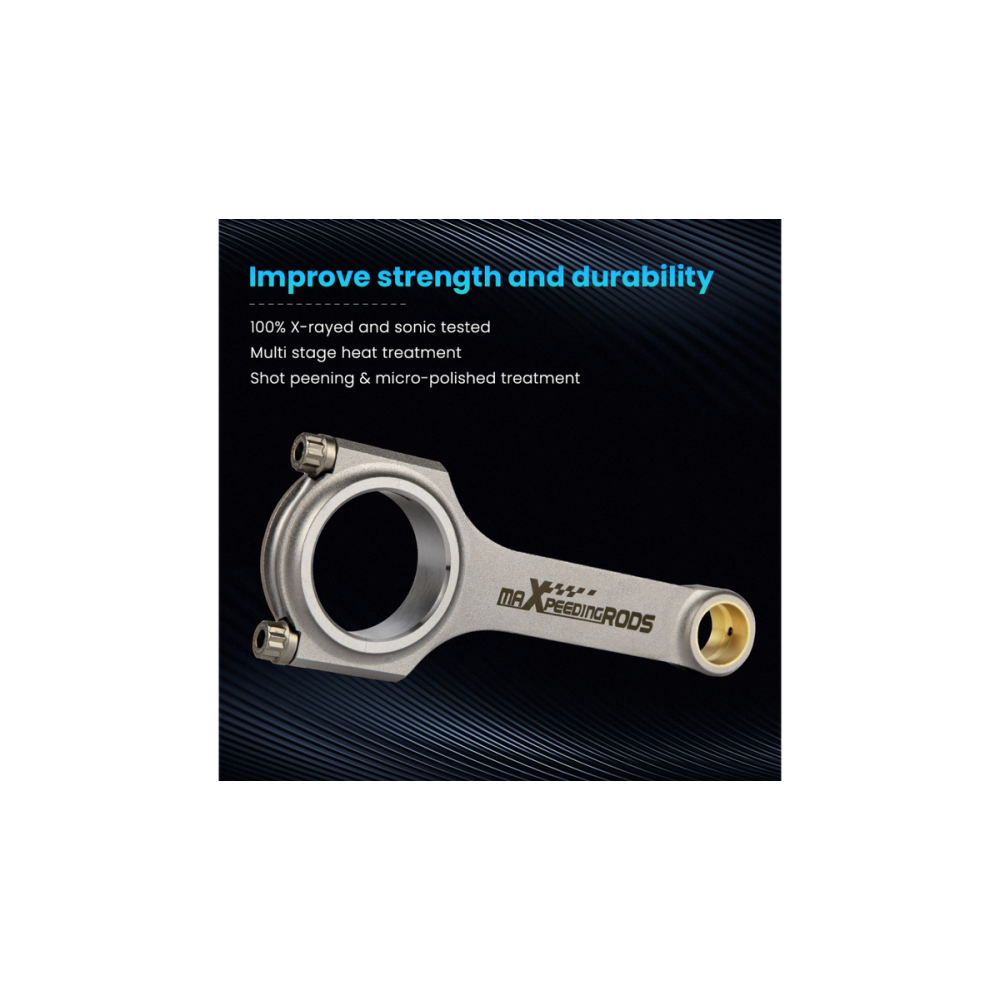

- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

- Professional installation is highly recommended (No Instruction Included)
