Application

• Compatible for BMW 328i 528i E36 E46 M52B28
• Compatible for BMW 3 Series E36 1990-2000 325i 328i
• Compatible for BMW 3 Series E46 1998-2007 325i 328i 330i 325 Ci 328 Ci 330 Ci 325 xi 328 xi 330 xi
• Compatible for BMW 5 Series E12 1972-1981 Saloon 528i
• Compatible for BMW 7 Series E38 1994-2001 Saloon 728i X 728i, iL
• Compatible for BMW Z3 E36 1997-2003 Coupe 2.8i
• Compatible for BMW Z3 Roadster E36 1995-2003 Convertible 2.8i

Specification

• Performance Con Rods
• Type: Forged 4340 aircraft chrome moly quality steel for racing

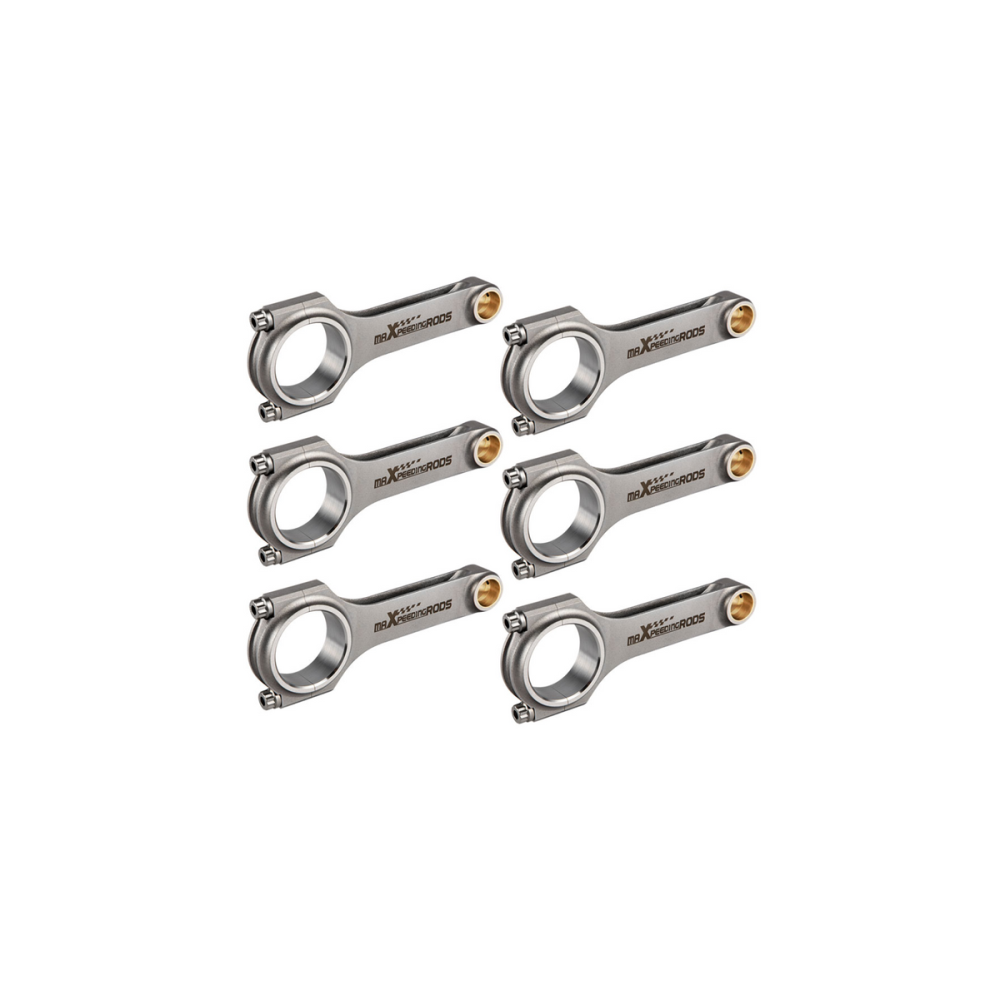

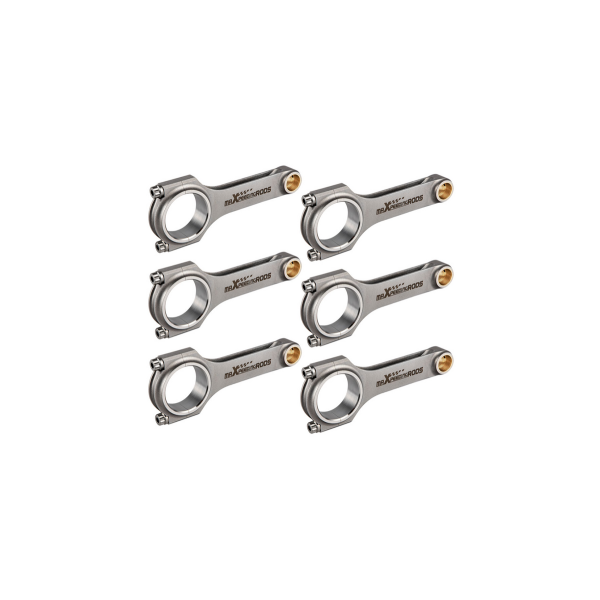

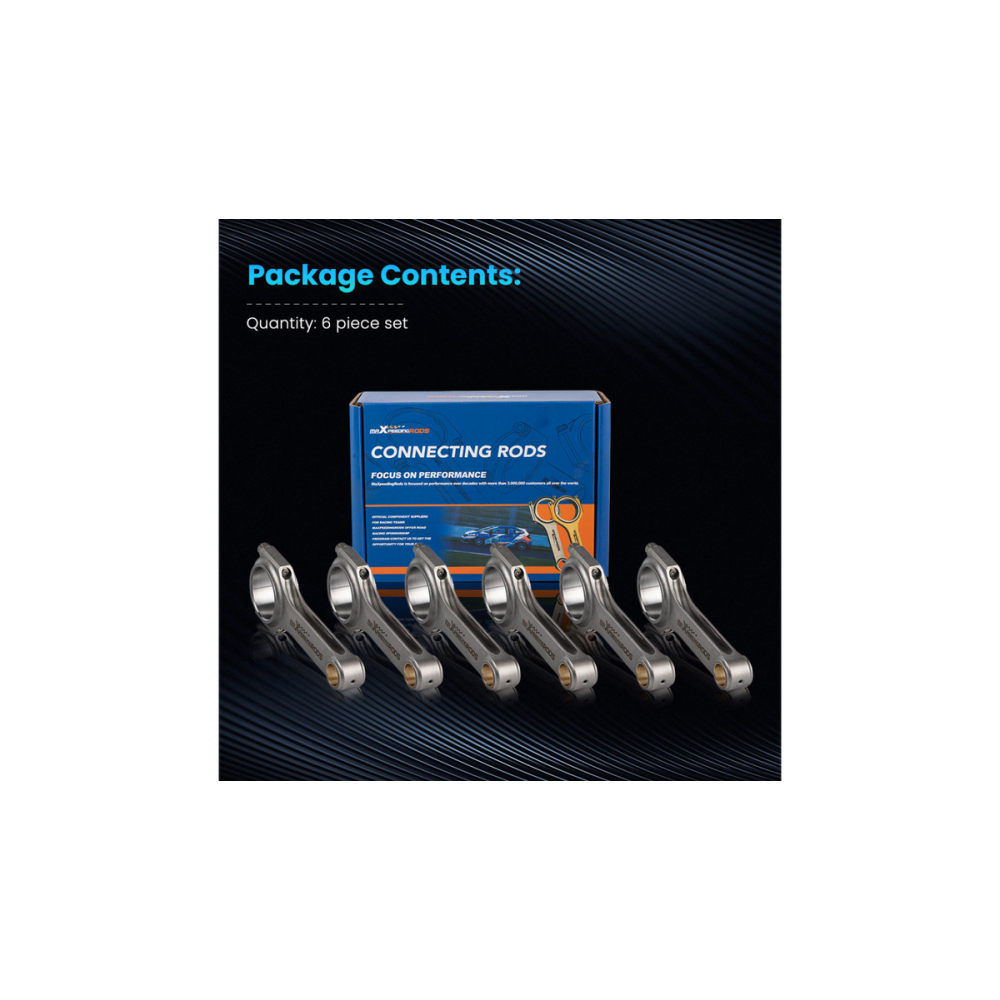

• H-beam Conrods Quantity: 6 Pieces as showing in picture
• Bolts: Including Genuine ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
• Tolerance: Balanced to +/- 1 gram in set
• Piston Bolt Hole: +-4/1000mm
• Power: 600hp ~ 800PS per set
• Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
• Top acceleration: 9000rpm

Dimensions

• Center to center length: 135mm
• Big end diameter: 48mm
• Small end diameter: 22mm
• Big end width: 21.9mm
• Small end width: 21.9mm

Feature

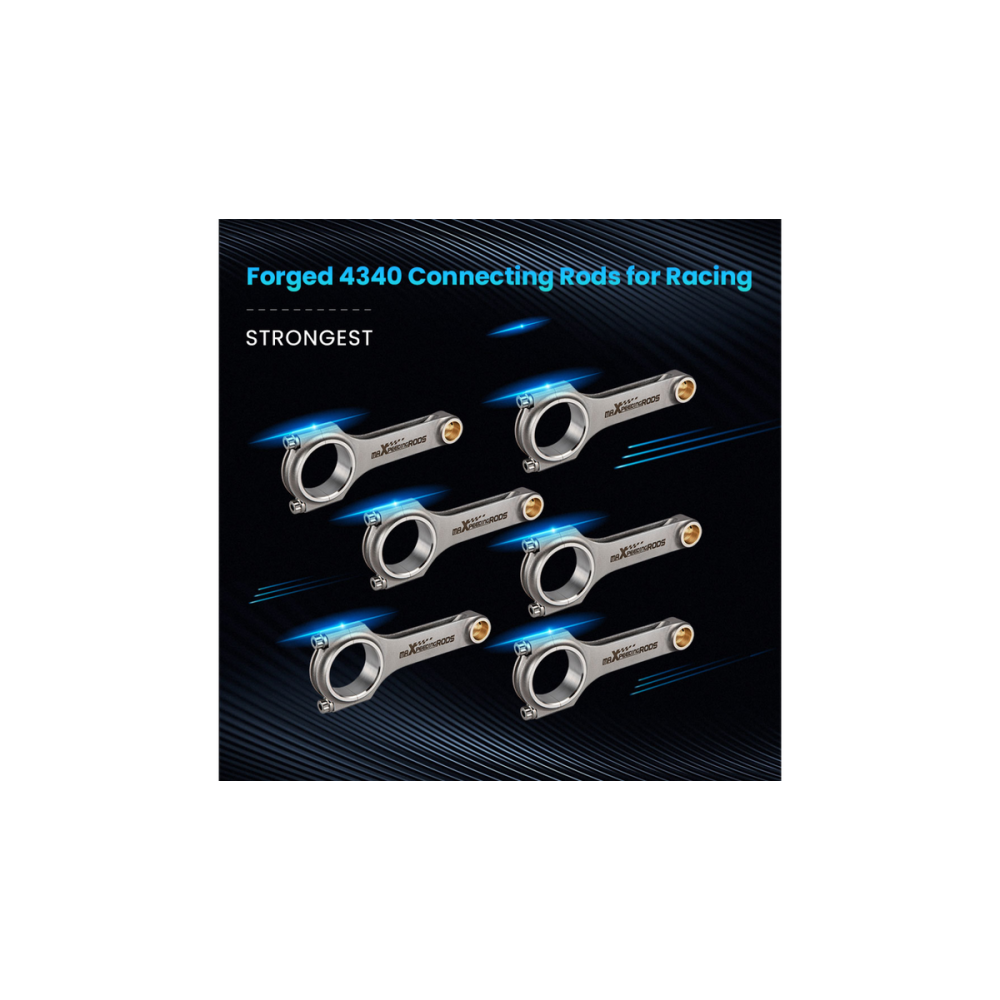

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

Professional installation is highly recommended (No Instruction Included)
