Application

• Compatible for Audi TT 8N3 2003 - 2006 Coupe 3.2 VR6 quattro
• Compatible for Audi TT Roadster 8N9 2003 - 2006 Convertible 3.2 VR6 quattro
• Compatible for VW Bora 1J6 2000 Estate 2.8 VR6
• Compatible for VW Corrado 53I 1991 - 1995 Coupe 2.9 VR6
• Compatible for VW Corrado 1991-1995 2.8 12V VR6
• Compatible for VW Golf MK III 1992 Hatchback 2.8 VR6
• Compatible for VW Golf MK III 1998 - 1999 Estate 2.9 VR6 Syncro
• Compatible for VW - Golf 1999-2005 (MK4) 2.8L 12V VR6 & 2.8L 24V VR6 engines
• Compatible for VW Passat 3A2, 35I 1991 - 1996 Saloon 2.8 VR6
• Compatible for VW Passat 3A5, 35I 1991 - 1997 Estate 2.8 VR6, 2.9 VR6 Syncro
• Compatible for VW Sharan 7M8, 7M9, 7M6 1995 - 2000 MPV 2.8 VR6, 2.8 VR6 Syncro
• Compatible for VW Transporter MK IV 1996 - 2003 Box 2.8 VR6
• Compatible for VW Transporter MK IV 2000 - 2003 Platform/Chassis 2792ccm 204HP 150KW (Petrol)
• Compatible for VW Transporter/Caravelle MK IV 1996 - 2003 Bus 2.8 VR 6
• Compatible for VW Vento 1H2 1992 - 1998 Saloon 2.8 VR6

Specification

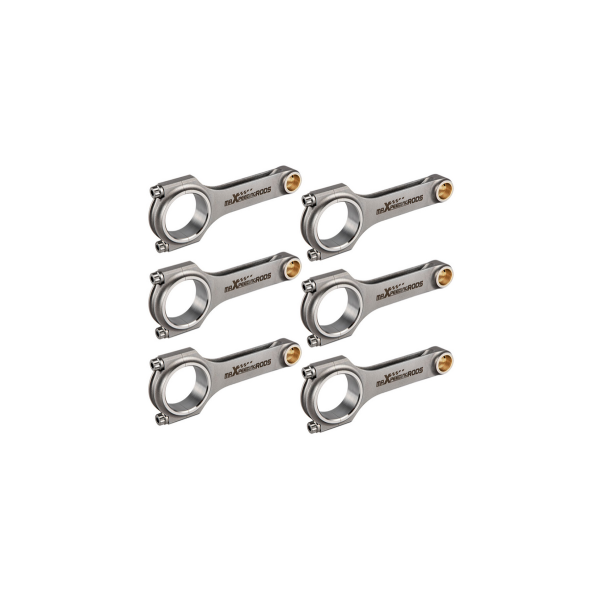

- Performance Con Rods
- Type: Forged 4340 aircraft chrome moly quality steel for racing

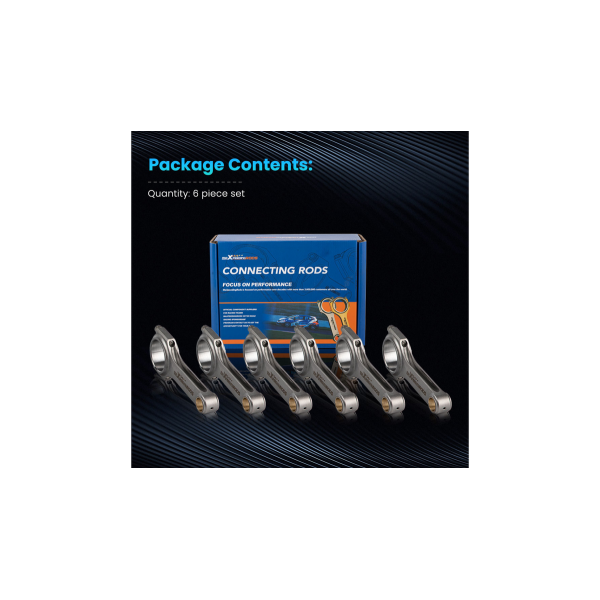

- H-beam Conrods Quantity: 6 Pieces as showing in picture
- Bolts Size: Genuine ARP 2000 5/16" bolts（Note: Extra cost for upgrading to ARP L19 bolts )
- Tolerance: Balanced to +/- 1 gram in set
- Piston Bolt Hole: +-4/1000mm
- Power: 600hp ~ 800PS per set
- Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
- Top acceleration: 9000rpm
- The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
- Warranty: one year warranty for any manufacturing defect

Dimensions

• Center to center length: 164mm
• Big end diameter: 56.8mm
• Small end diameter: 20mm
• Big end width: 19.9mm
• Small end width: 19.9mm

Feature

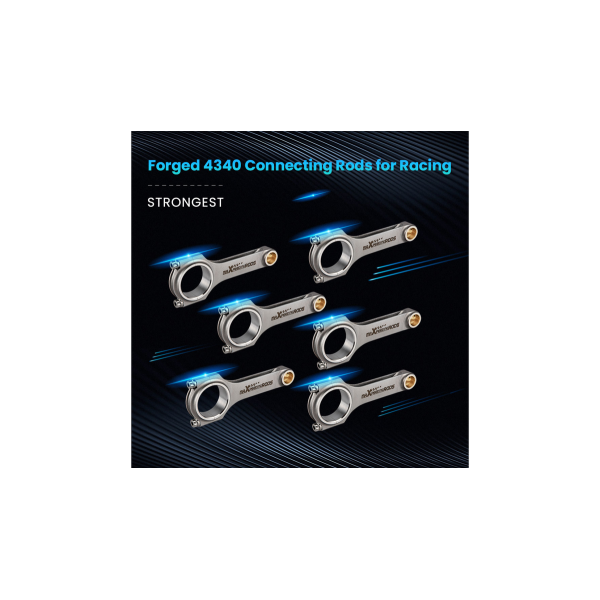

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

- Please Carefully check the Size of the Rods in Specific and Description
- Professional installation is highly recommended (No Instruction Included)
