Application

• Compatible for Subaru Impreza STI EJ20 EJ22 EJ25 Engine
• Compatible for Subaru Legacy EJ20 EJ22 EJ25 Engine
• Compatible for Subaru Impreza STI compatible for Forester Legacy 2.0L Turbo (EJ205 Engine) 2002-2005
• Compatible for Subaru Impreza STi 2.0L Turbo (EJ207 Engine) 1998-present
• Compatible for Subaru Impreza 2.5L Turbo (EJ255 Engine) 2006-2014
• Compatible for Subaru Impreza STI 2.5L Turbo (EJ257 Engine) 2004-2016
• Compatible for Saab 9-2X 2005-2006
• Compatible for Isuzu Aska 1990-1993
• Compatible for Subaru Legacy for JDM 1989-2009
• Compatible for Subaru Forester for JDM SF series (1997 - 2002)
• Compatible for Subaru Impreza 2006-2014
• Compatible for Subaru Forester XT 2004-2013
• Compatible for Subaru Outback XT 2005, 2007-2009
• Compatible for Subaru impreza 95-01
• Compatible for Subaru Outback 95-96

Specification

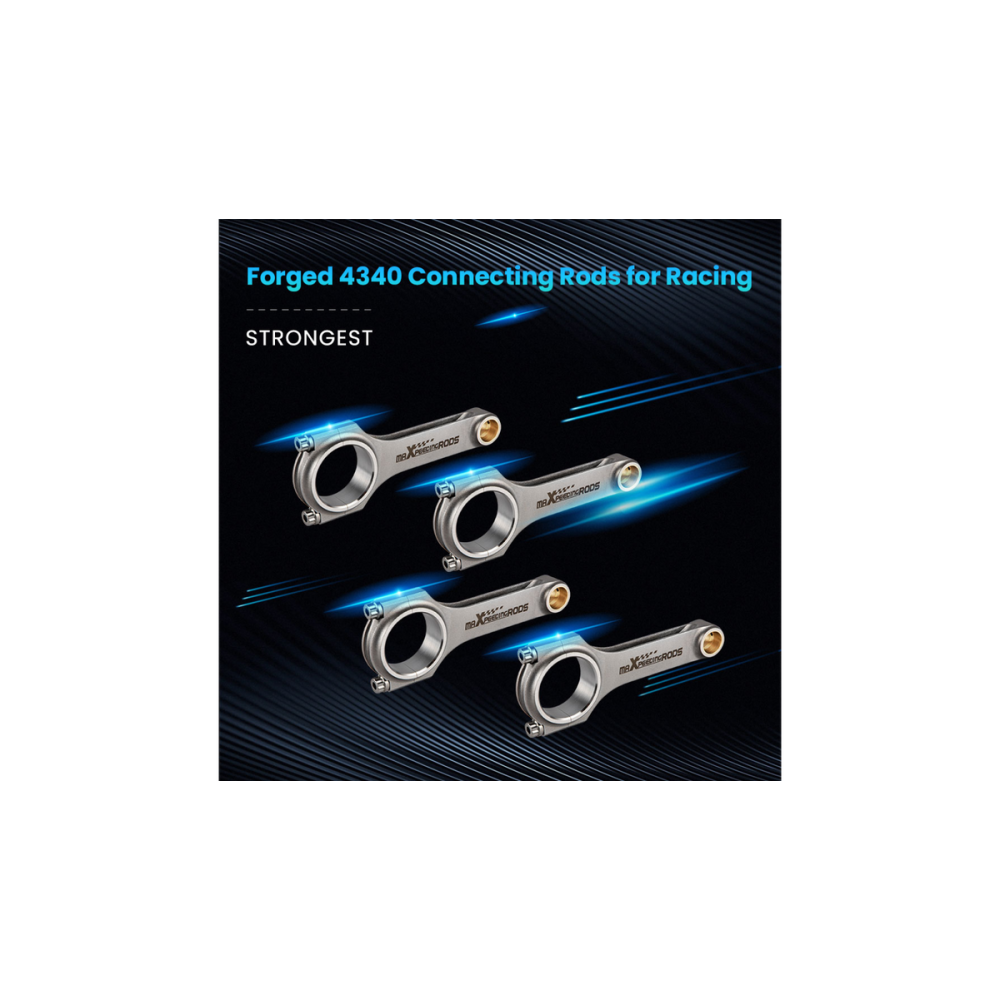

- Performance Con Rods
- Type: Forged 4340 aircraft chrome moly quality steel for racing
- H-beam Conrods Quantity: 4 Pieces as showing in picture
- Bolts: Including Genuine ARP 2000 bolts
- Note: Extra cost for upgrading to ARP L19 bolts
- Bolts Size: ARP 2000 3/8" bolts
- Tolerance: Balanced to +/- 1 gram in set
- Piston Bolt Hole: +-4/1000mm
- Advertised Horsepower Rating： 200HP/piece
- Strength of the fastening (PSI): 200,000/220,000 PSI Torque: 48ft ≈ 65 NM
- The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
- Top acceleration: 9000rpm

Dimensions

• Center to center length: 130.5mm/5.137"
• Big end diameter: 55mm/2.165"
• Small end diameter: 23mm/0.905"
• Big end width: 21.4mm/0.843"
• Small end width: 21.4mm/0.843"

Feature

- Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
- Genuine ARP 2000 bolts ,Optional ARP L9 fasteners available as an upgrade；
- H-Beam design reduces weight without compromising strength；
- Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
- 100% CNC machined,Precision rod cap alignment dowels；
- Each rod is magnetic particle tested to ensure free of flaws；
- 100% X-rayed, sonic tested

Note

- Professional installation is highly recommended (No Instruction Included)
