Application

• Compatible for Nissan S13 Silvia 180SX Bluebird Sunny CA18 CA18DE CA18DET
• Compatible for Nissan Sunny B12 1985 - 1990 CA18DE
• Compatible for Nissan Bluebird U11 series 1983 - 1987 CA18ET/DET turbo
• Compatible for Nissan Bluebird T12/T72 Turbo Violet T12 series 1986 - 1990 1.8 L CA18ET

Specification

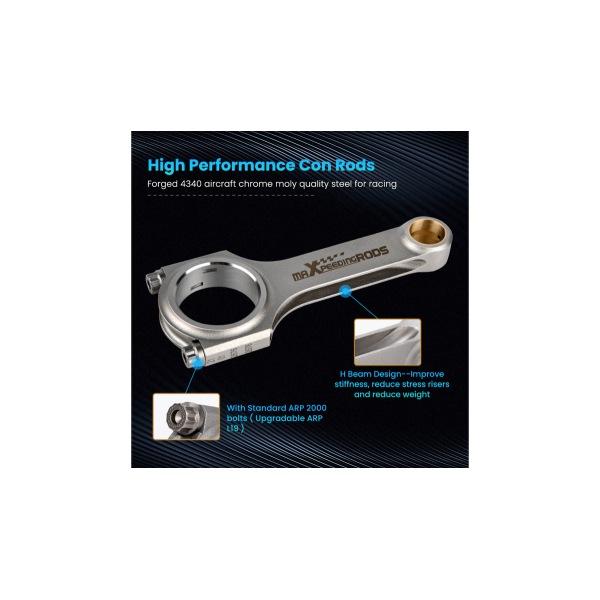

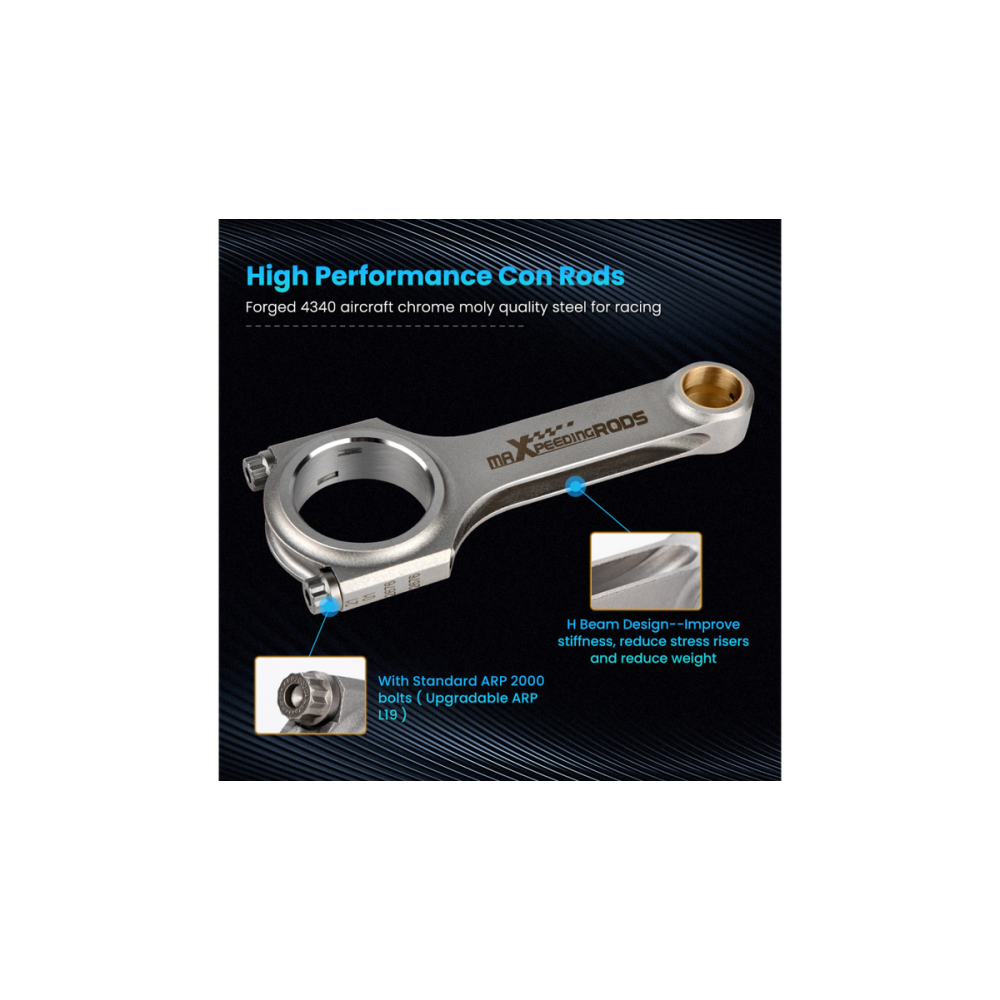

• Performance Con Rods
• Type: Forged 4340 aircraft chrome moly quality steel for racing

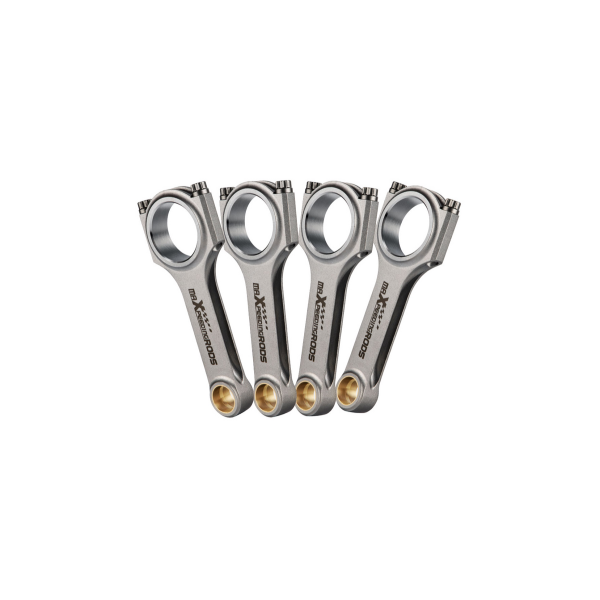

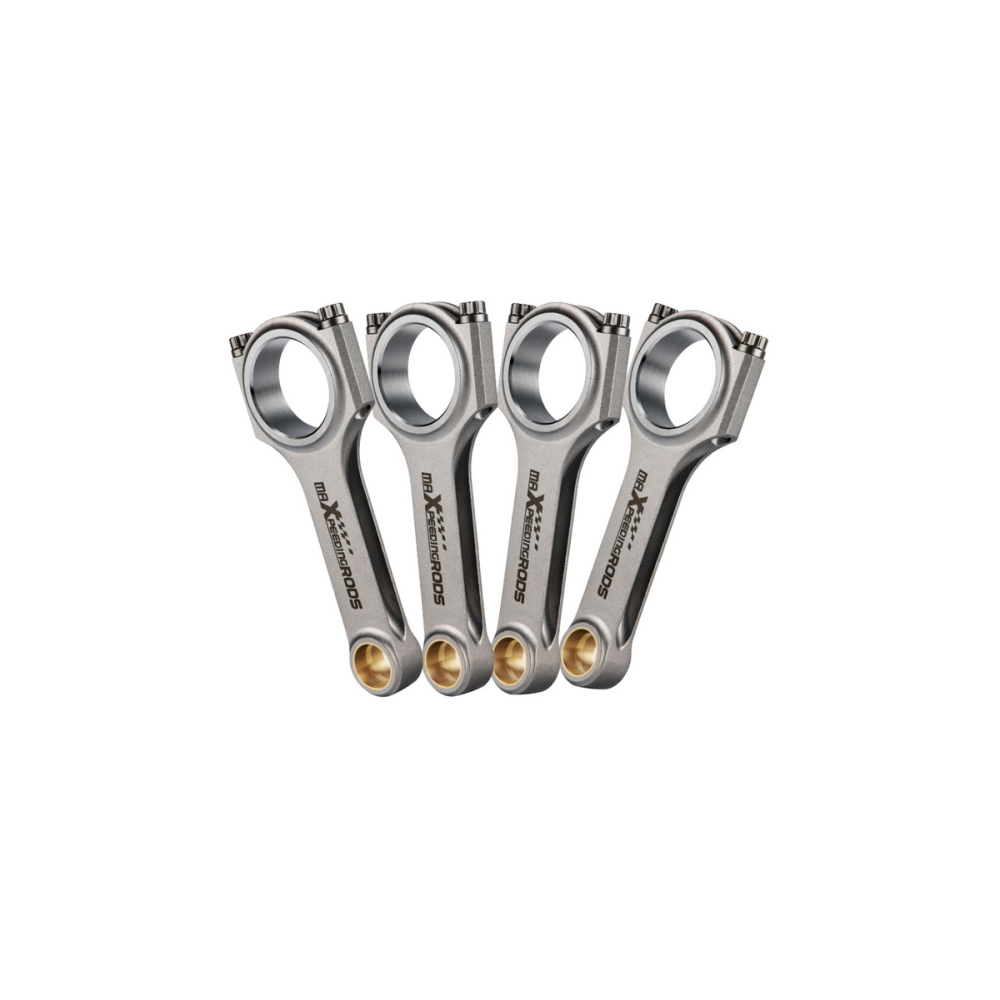

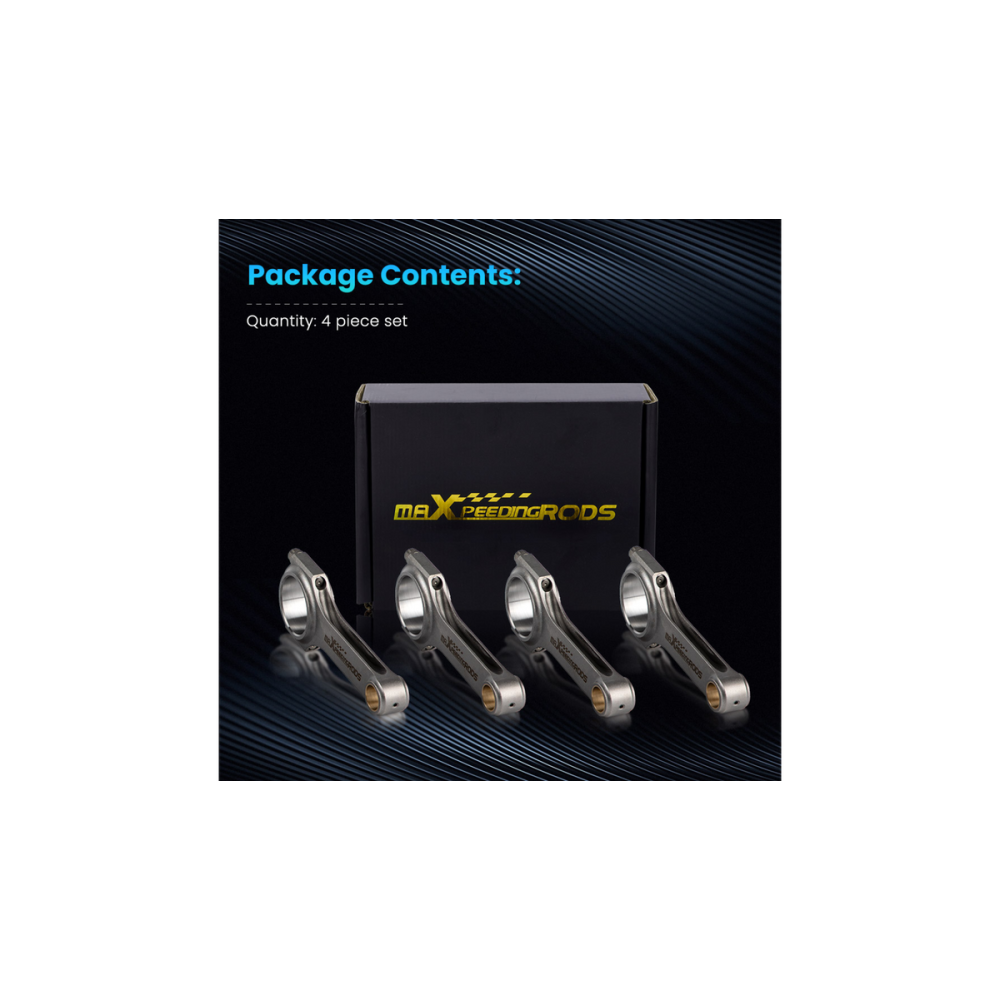

• H-beam Conrods Quantity: 4 Pieces as showing in picture
• Bolts: Including Genuine ARP 2000 bolts
• Note: Extra cost for upgrading to ARP L19 bolts
• Bolts Size: ARP 2000 3/8" bolts
• Tolerance: Balanced to +/- 1 gram in set
• Piston Bolt Hole: +-4/1000mm

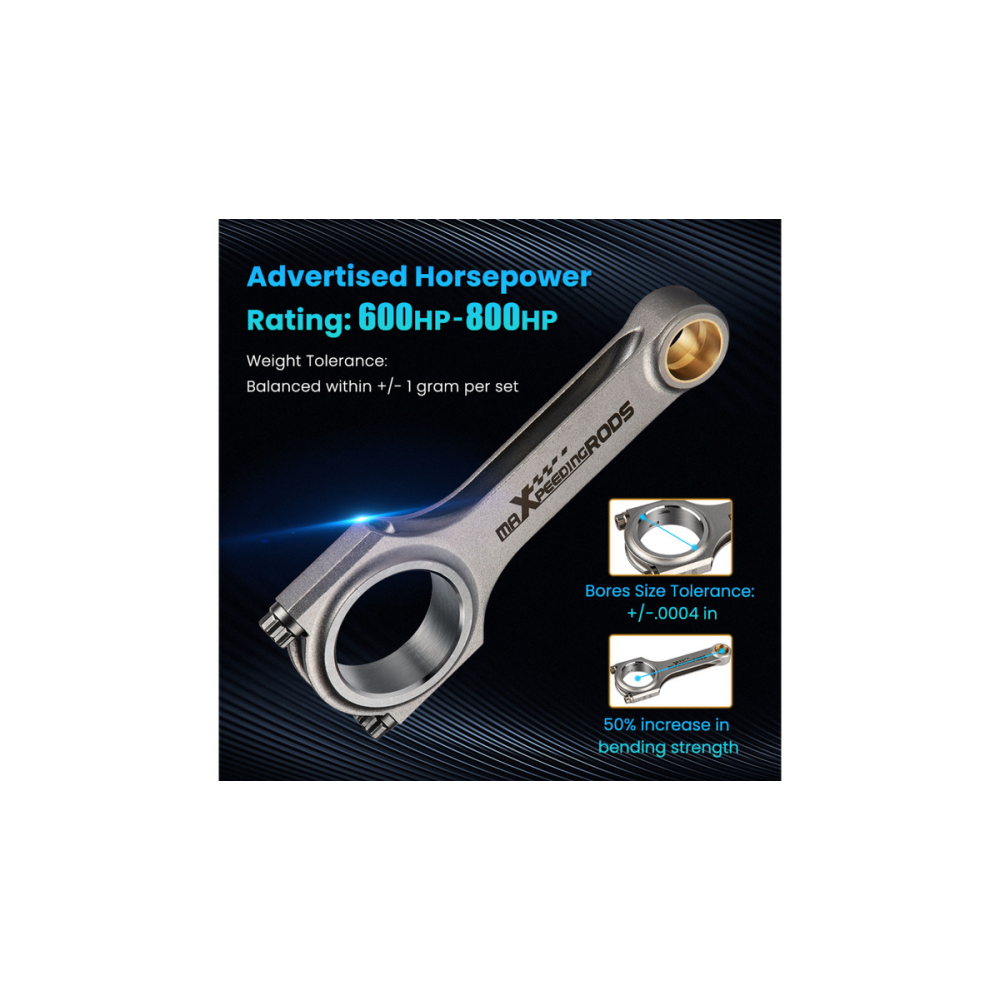

• Power: 600hp ~ 800PS per set
• Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
• Top acceleration: 7000-9000rpm
• Warranty: one year warranty for any manufacturing defect

Dimensions

• Center to center length: 133mm
• Big end diameter: 48mm
• Small end diameter: 20mm
• Big end width: 24.2mm
• Small end width: 21mm

Feature

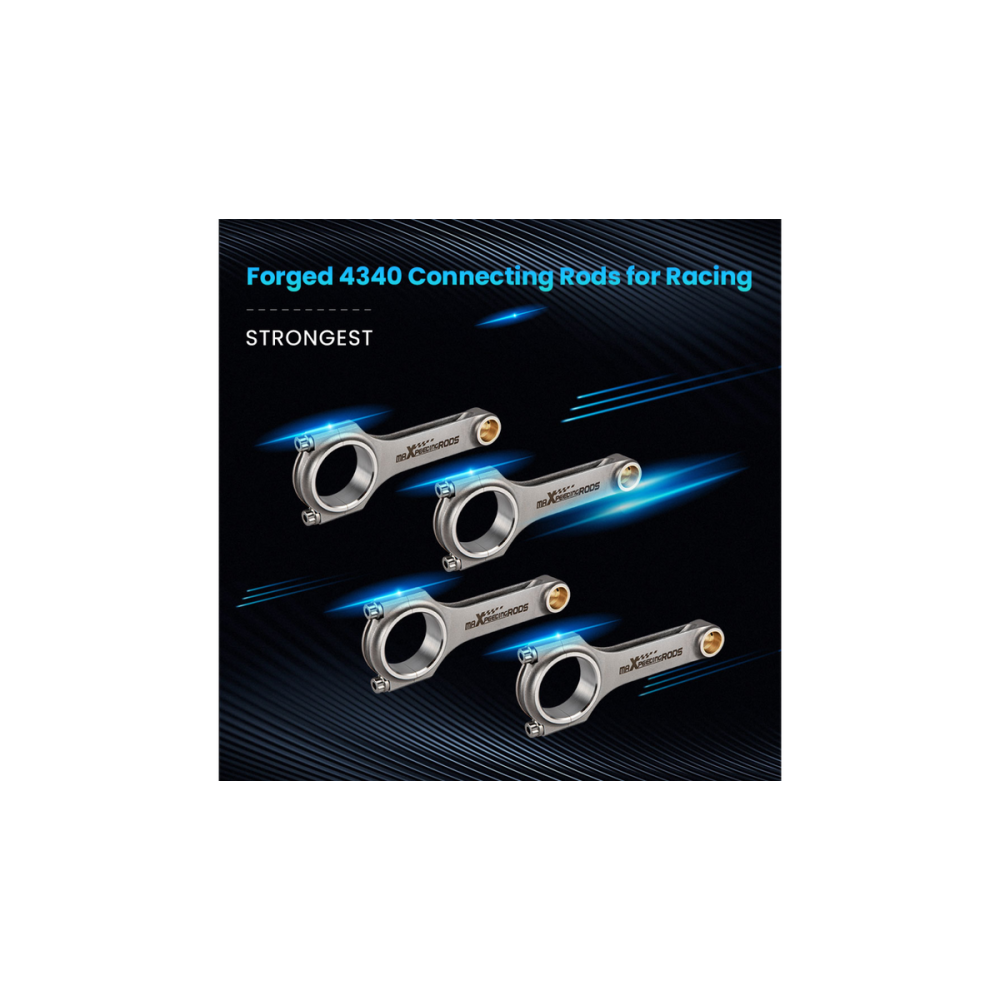

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine

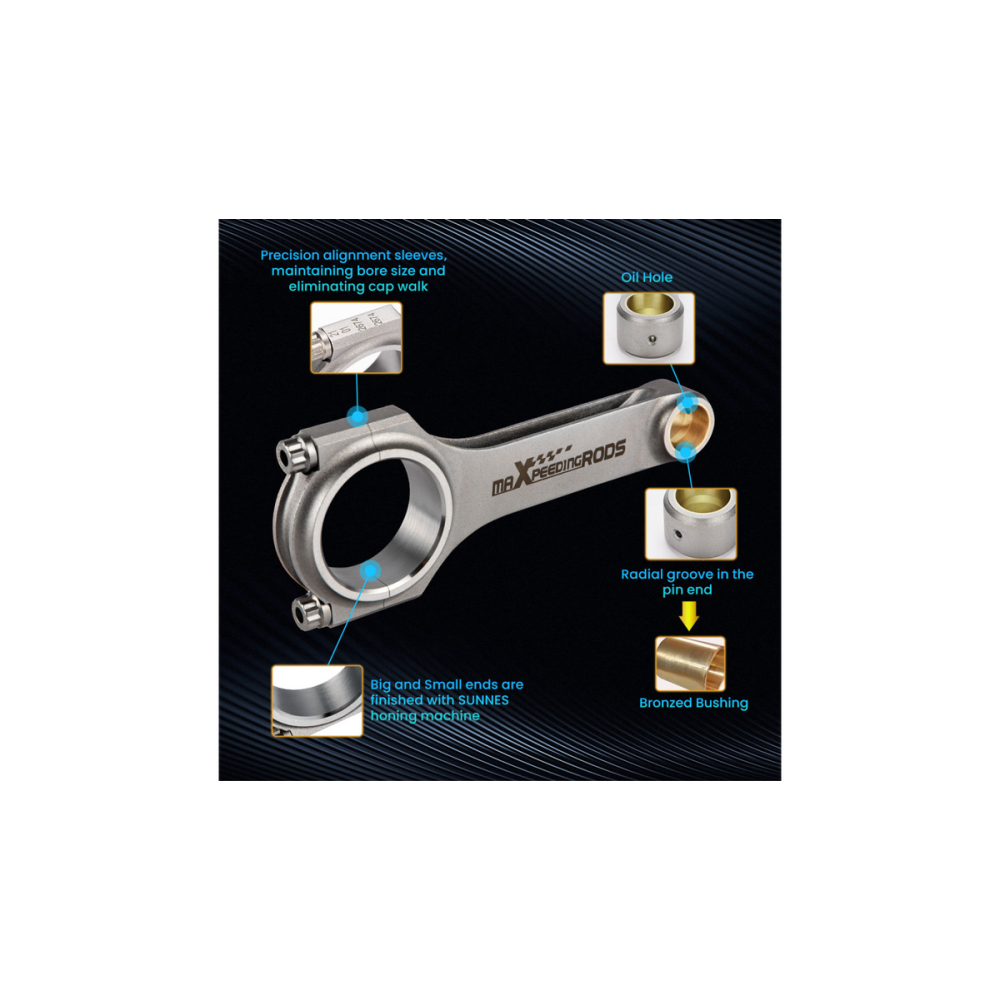

- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

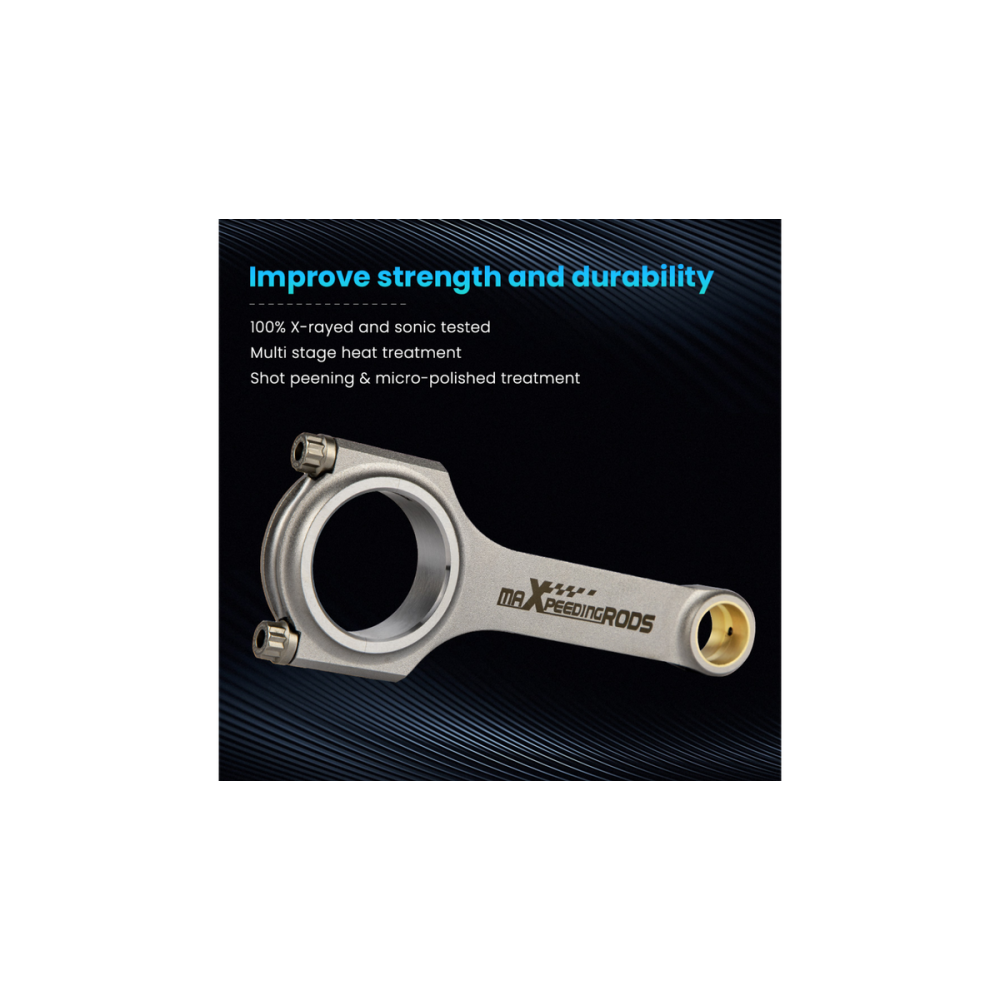

- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

- Professional installation is highly recommended (No Instruction Included)
