Application

• Mazda 626 (GF/GW) – 1997-2002
• Mazda MX-6 – 1997 (some versions)
• Mazda Capella (GF) – 1997-2002 (JDM)
• Mazda Premacy (CP) – 1999-2005
• Mazda MPV (LW) – 1999-2002 (FWD)

Specification

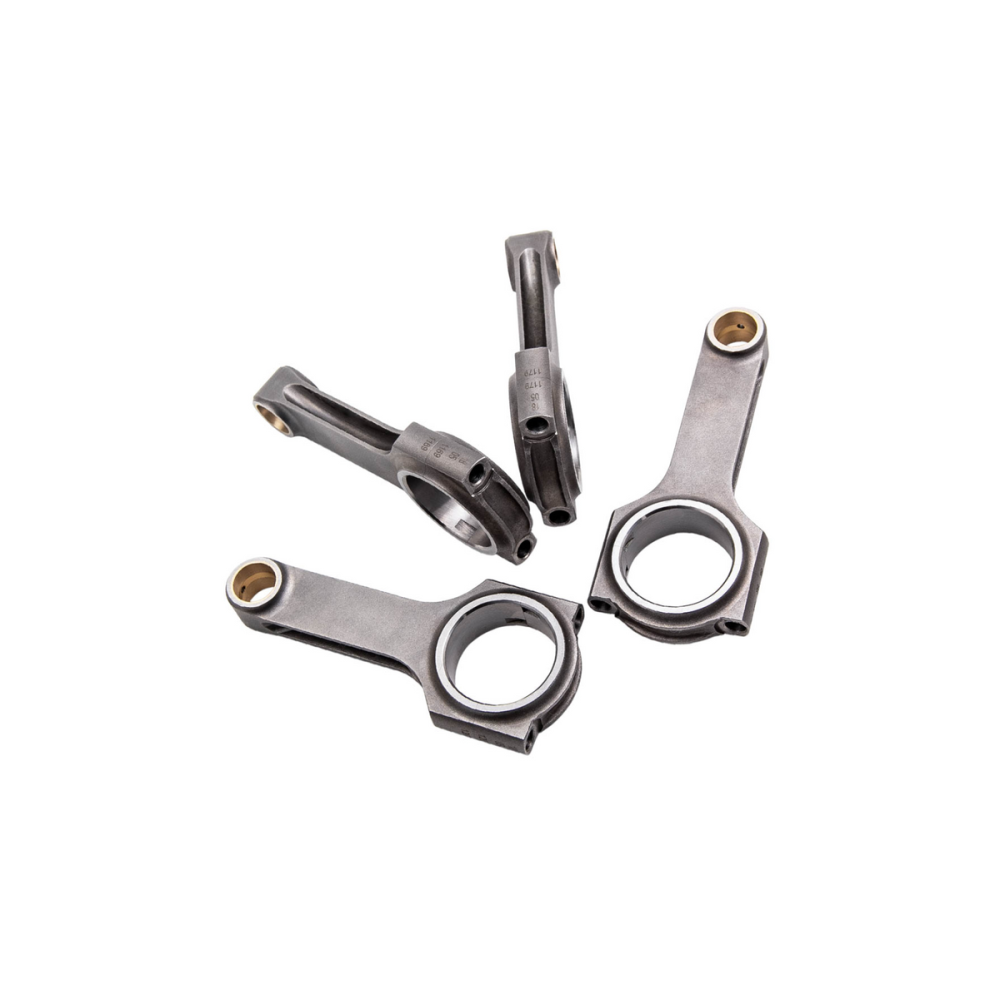

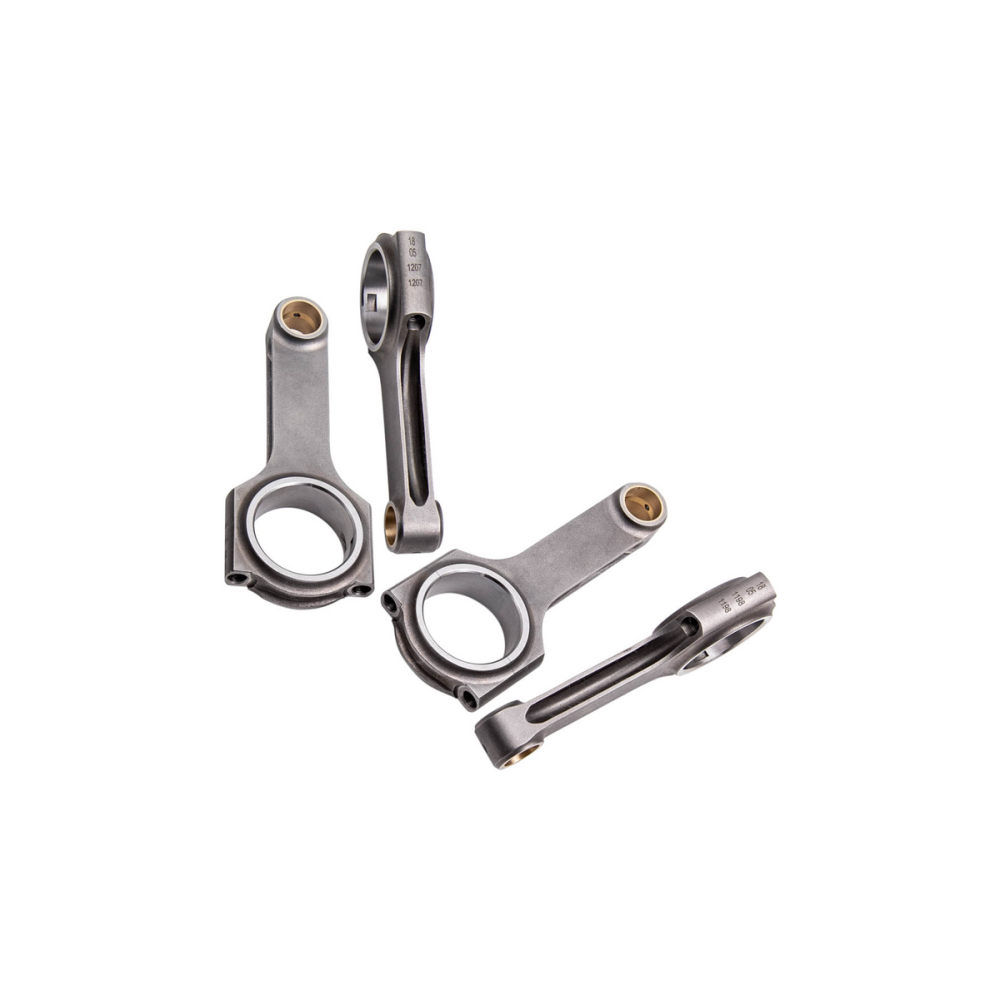

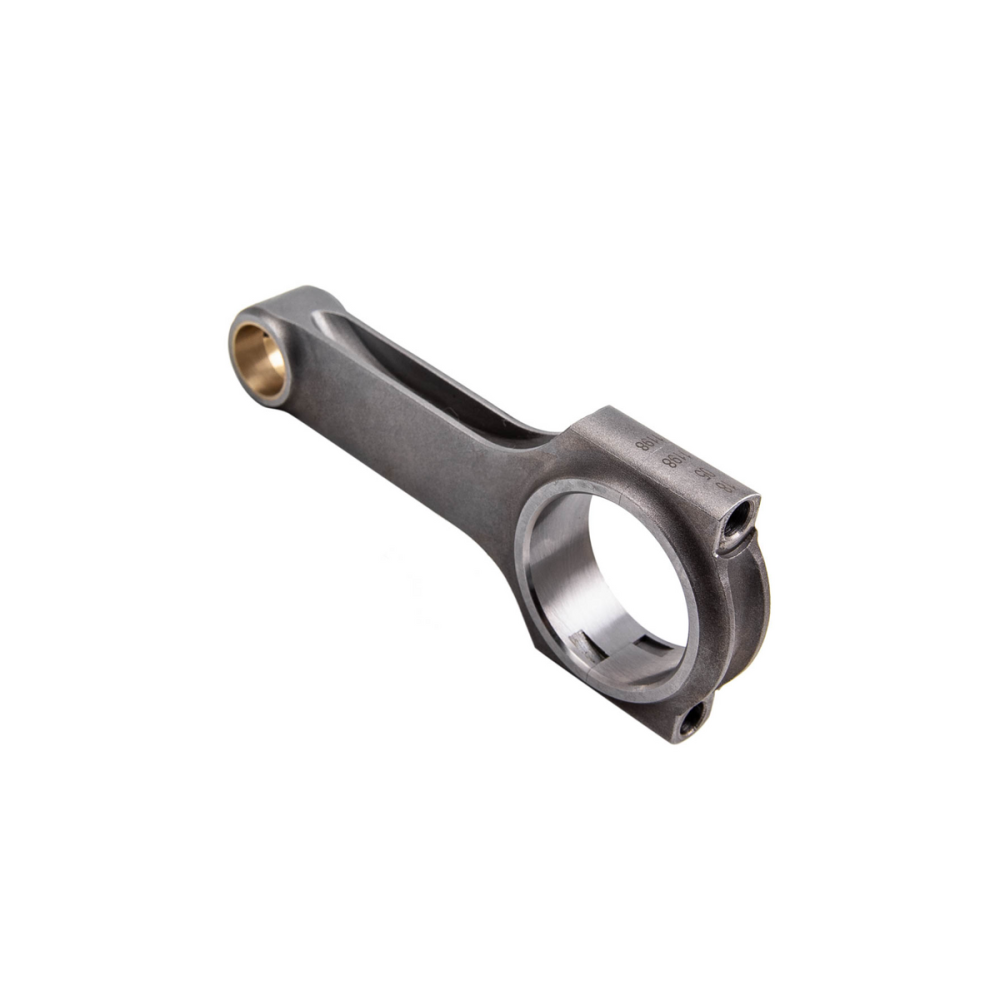

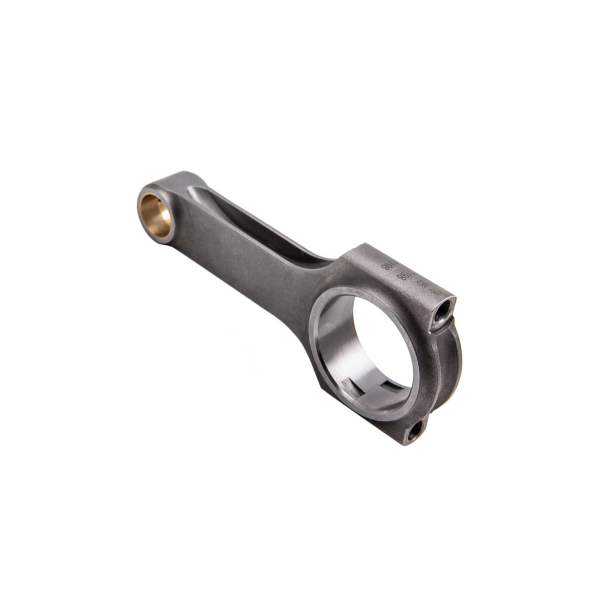

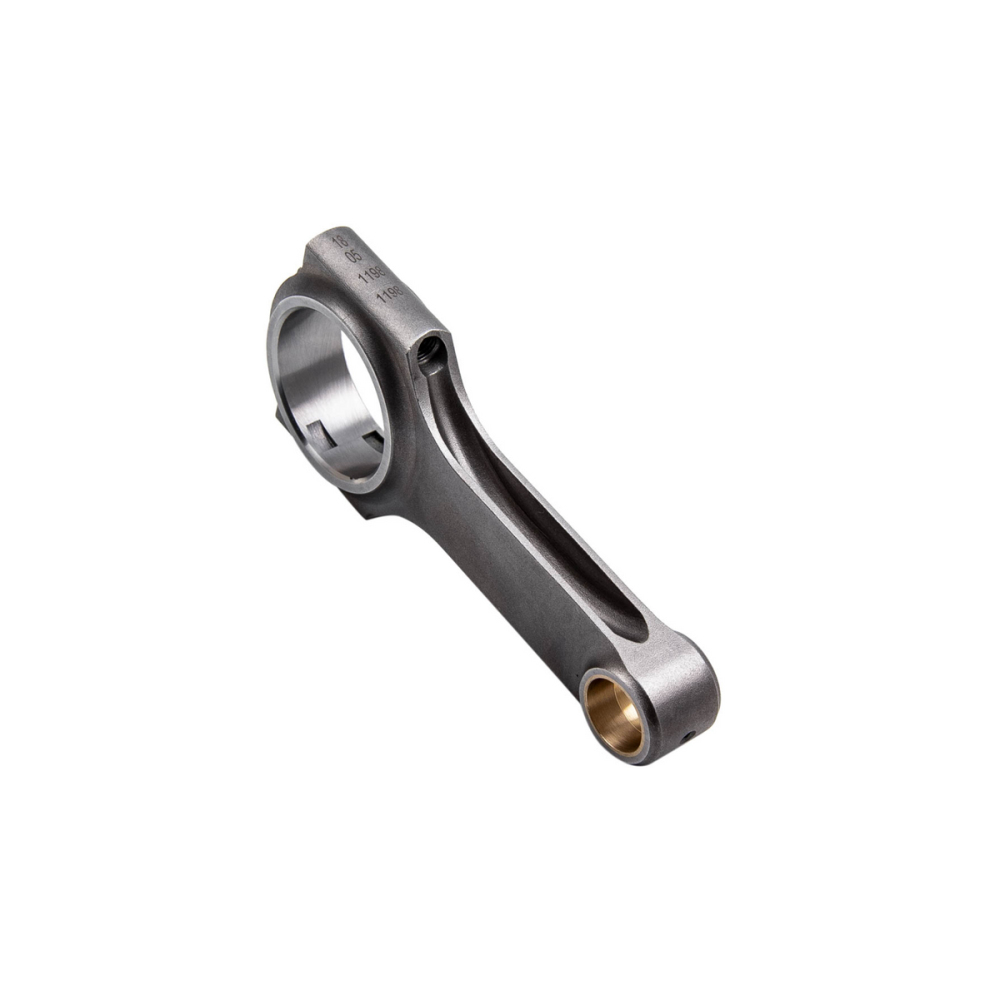

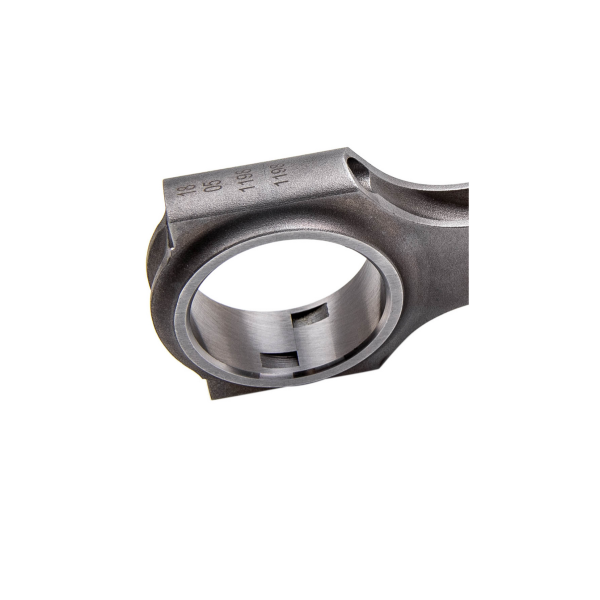

• Performance Con Rods
• Type: Forged 4340 aircraft chrome moly quality steel for racing
• H-beam Conrods Quantity: 4 Pieces a set
• Bolts:Including Genuine ARP 2000 bolts
• Note: Extra cost for upgrading to ARP L19 bolts
• Bolts Size: ARP 2000 3/8" bolts
• Tolerance: Balanced to +/- 1 gram in set
• Piston Bolt Hole: +-4/1000mm
• Power: 600hp ~ 800PS per set
• Strength of the fastening (PSI): 220,000/230,000 PSI
• Torque: 48ft ≈ 65 NM
• Top acceleration: 7000-9000rpm

Dimensions

• Center to center length: 135mm

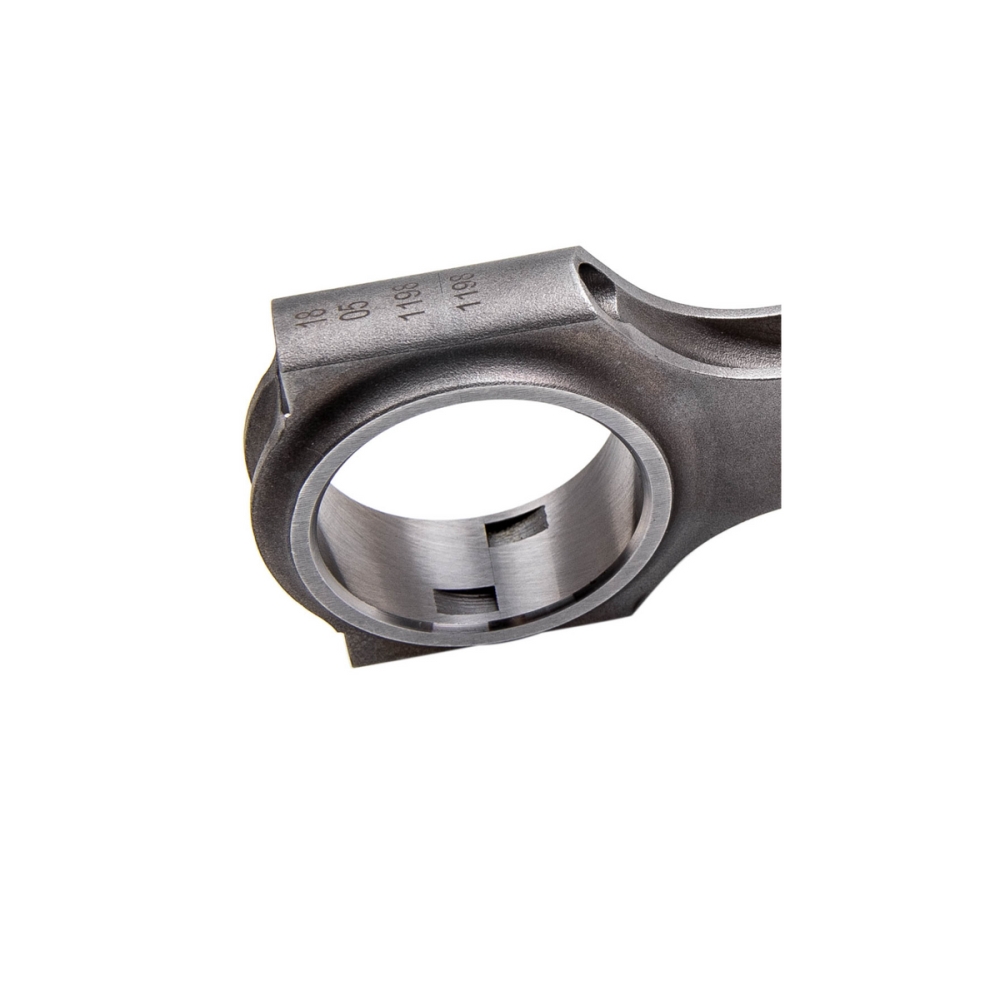

• Big end diameter: 51mm
• Small end diameter: 19mm
• Big end width: 21.79mm
• Small end width: 21.79mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine

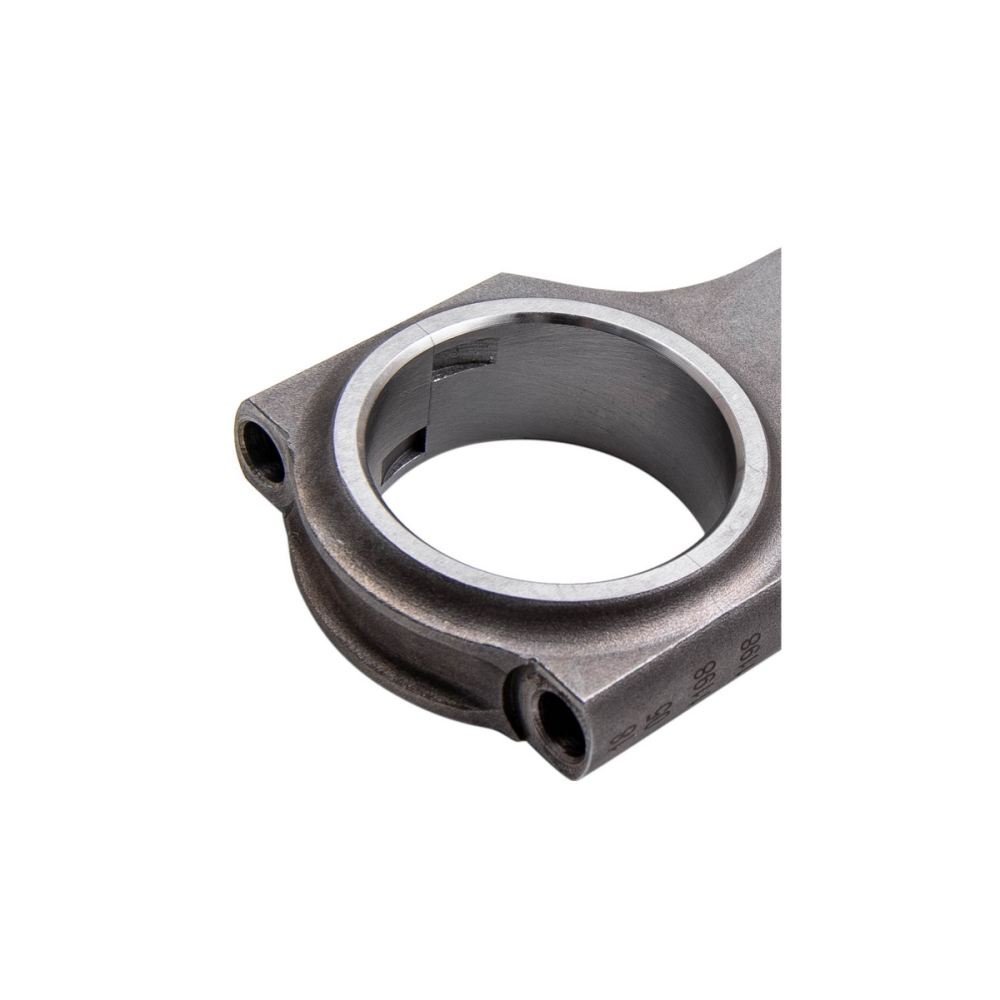

- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress

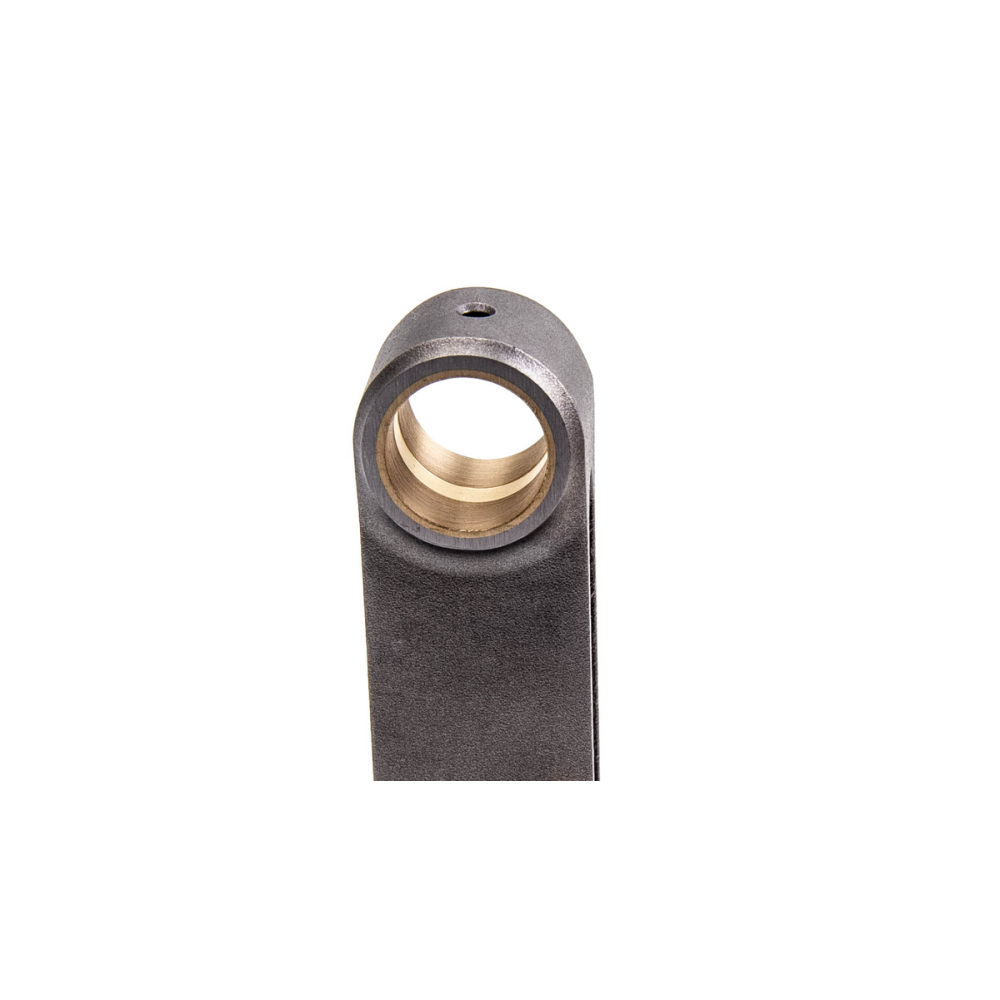

- Come with the bronzed bushing suitable for the floating piston pin

Note

- Professional installation is highly recommended (No Instruction Included)
