Application

• Compatible for VW GTi MK3 2.0L 8V Jetta 2.0L ABA

Specification

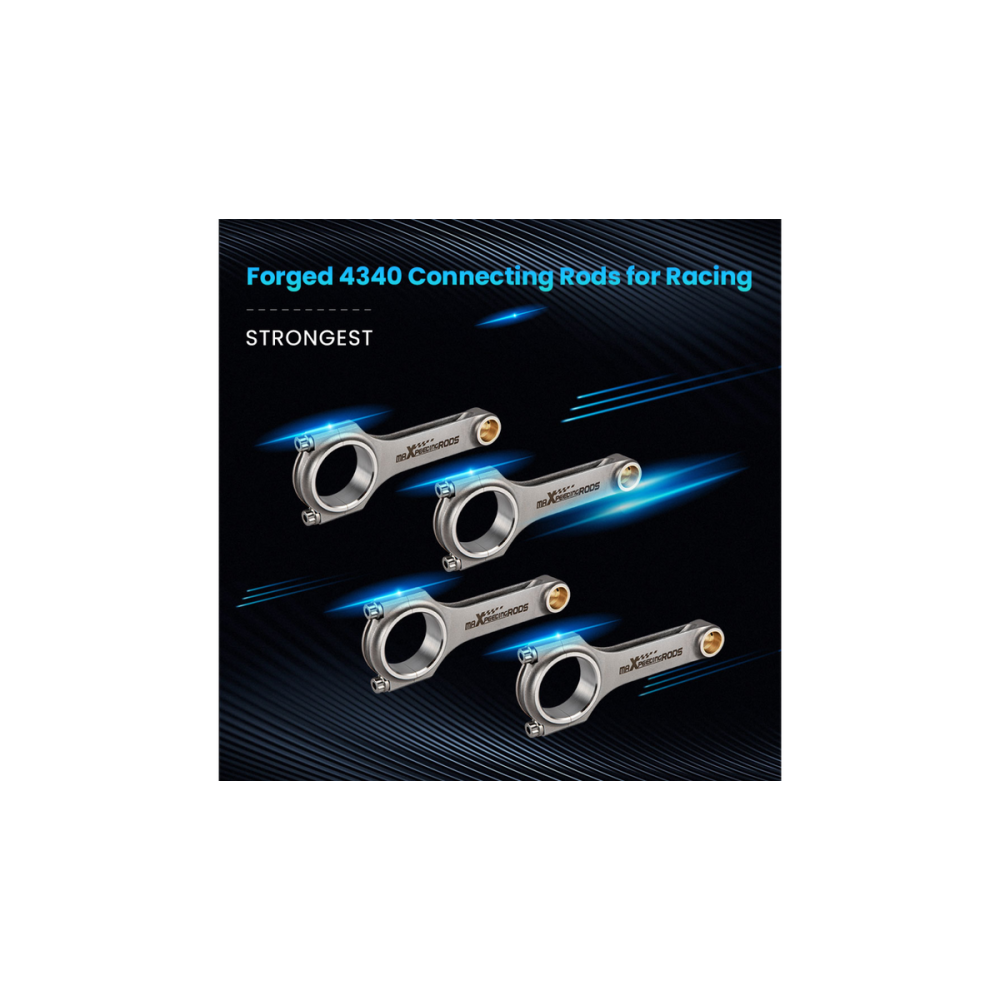

• Performance Con Rods

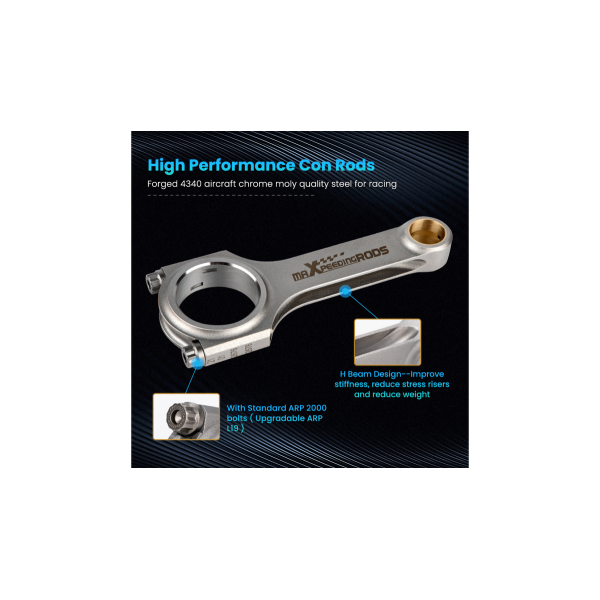

• Type: Forged 4340 aircraft chrome moly quality steel for racing

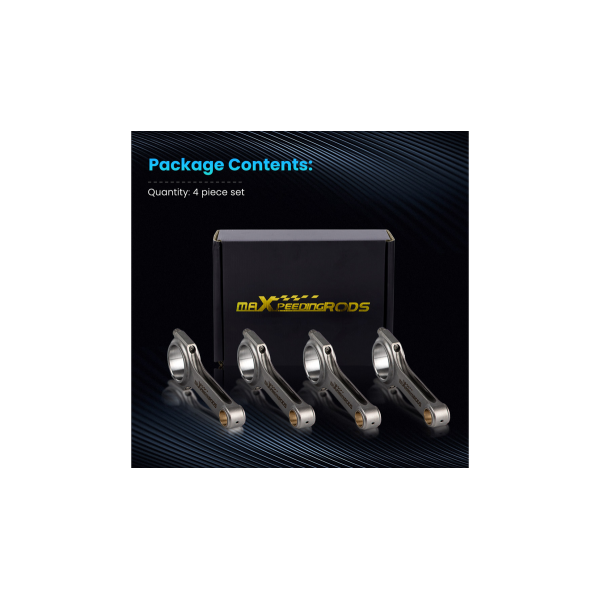

• H-beam Conrods Quantity: 4 Pieces a set
• Bolts:Including Genuine ARP 2000 bolts
• Note: Extra cost for upgrading to ARP L19 bolts
• Bolts Size: ARP 2000 3/8" bolts
• Tolerance: Balanced to +/- 1 gram in set
• Piston Bolt Hole: +-4/1000mm

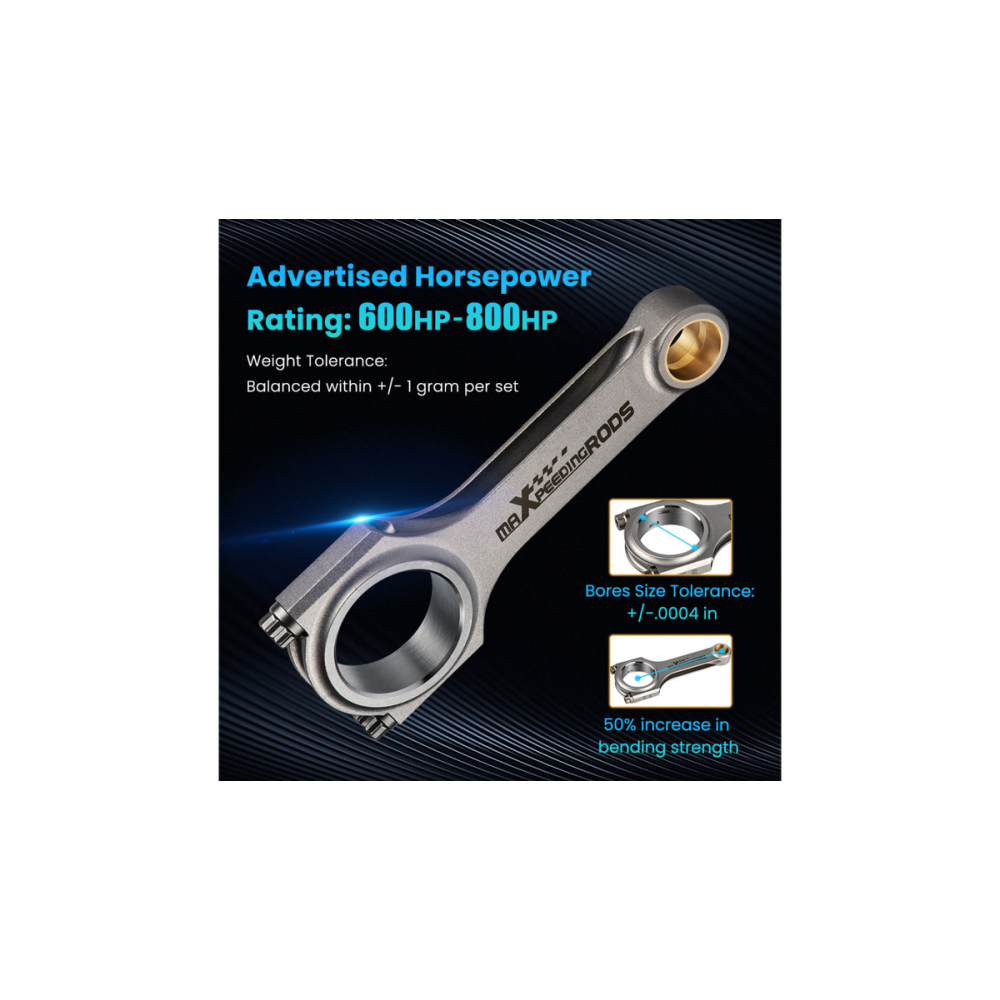

• Power: 600hp ~ 800PS per set
• Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
• Top acceleration: 9000rpm
• warranty: one year warranty for any manufacturing defect

Dimensions

• Center to center length: 159mm
• Big end diameter: 50.6mm
• Small end diameter: 21mm
• Big end width: 24.9mm
• Small end width: 24.9mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine

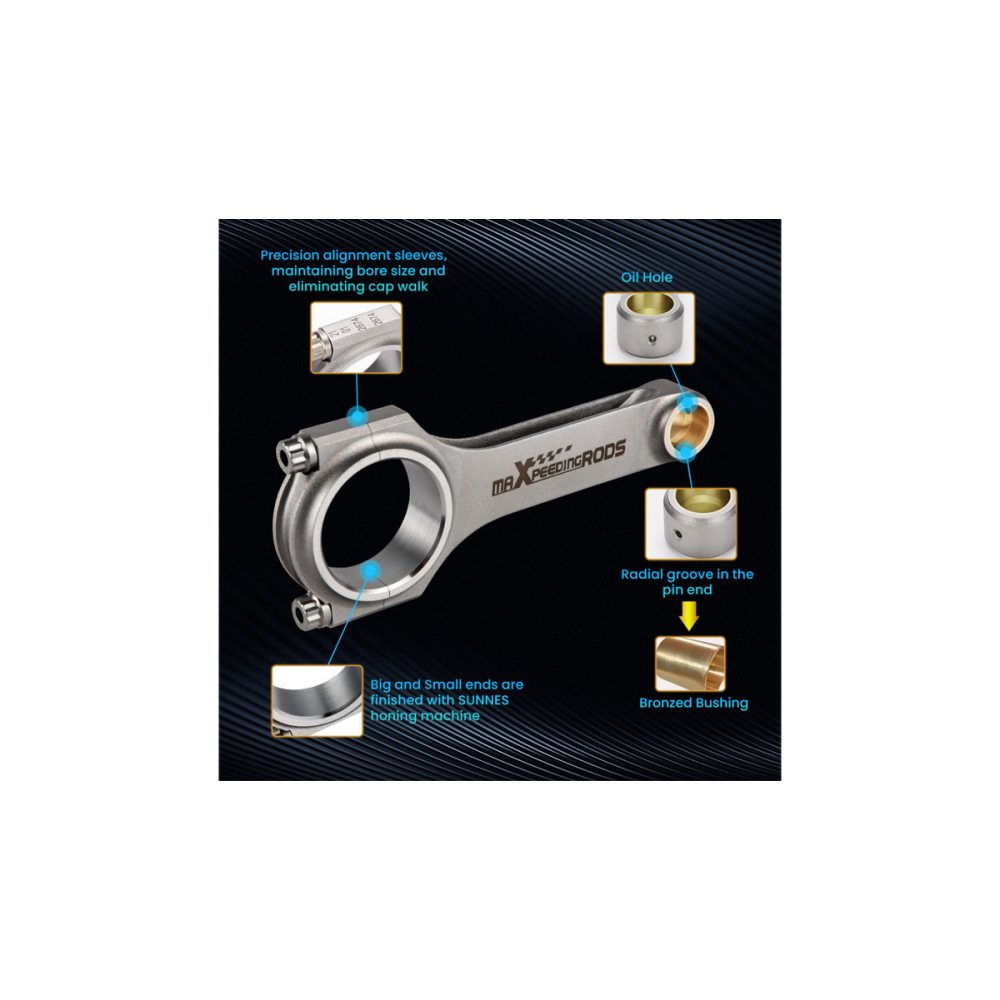

- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

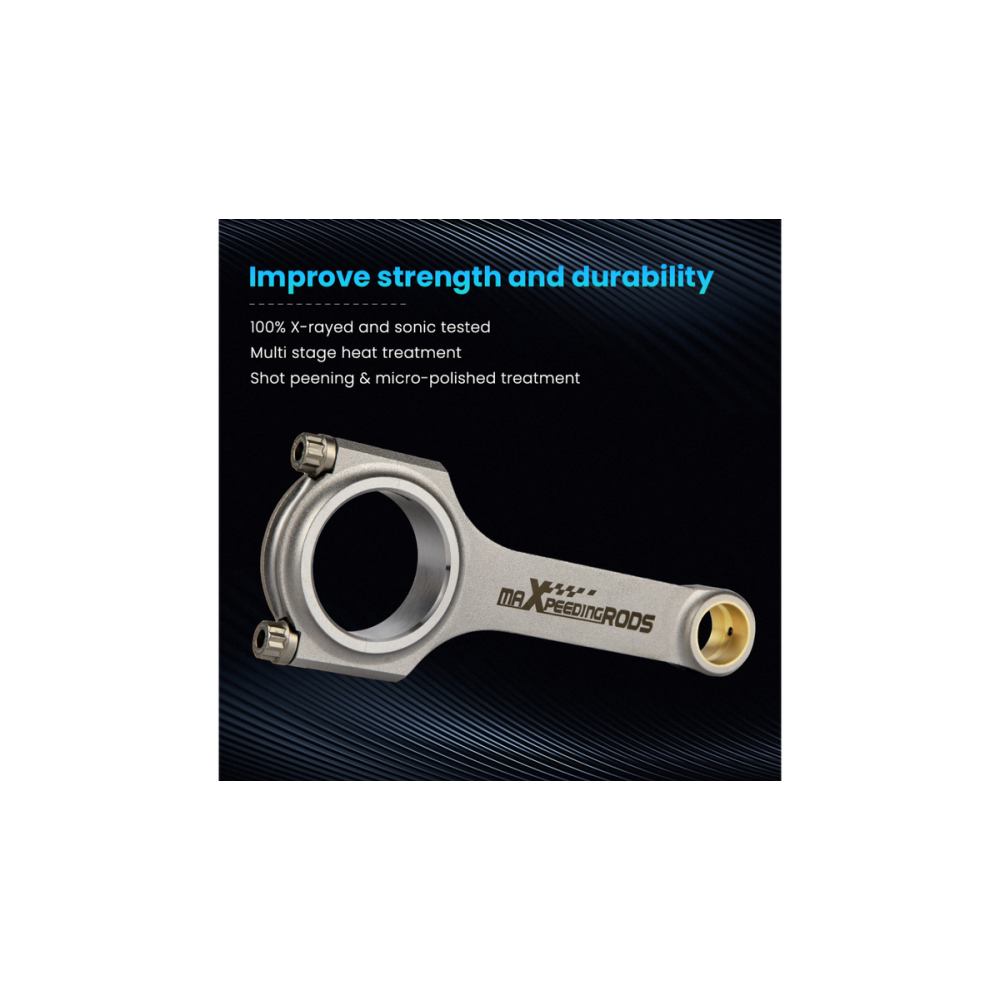

- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

- Please Carefully check the Size of the Rods in Specific and Description
- Professional installation is highly recommended (No Instruction Included)
- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
