Application

• Compatible for Renault Super 5 1.4 Turbo GT
• Compatible for Renault 5 Series 122_ 1972-1985 Hatchback 1.4, 1.4 Turbo
• Compatible for Renault Super 5 B/C40_ 1984-1996 Hatchback 1.4 Turbo GT

Specification

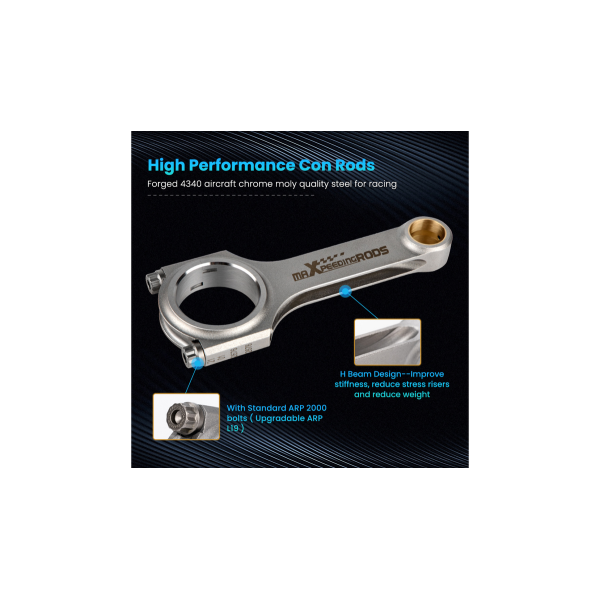

• Performance Con Rods

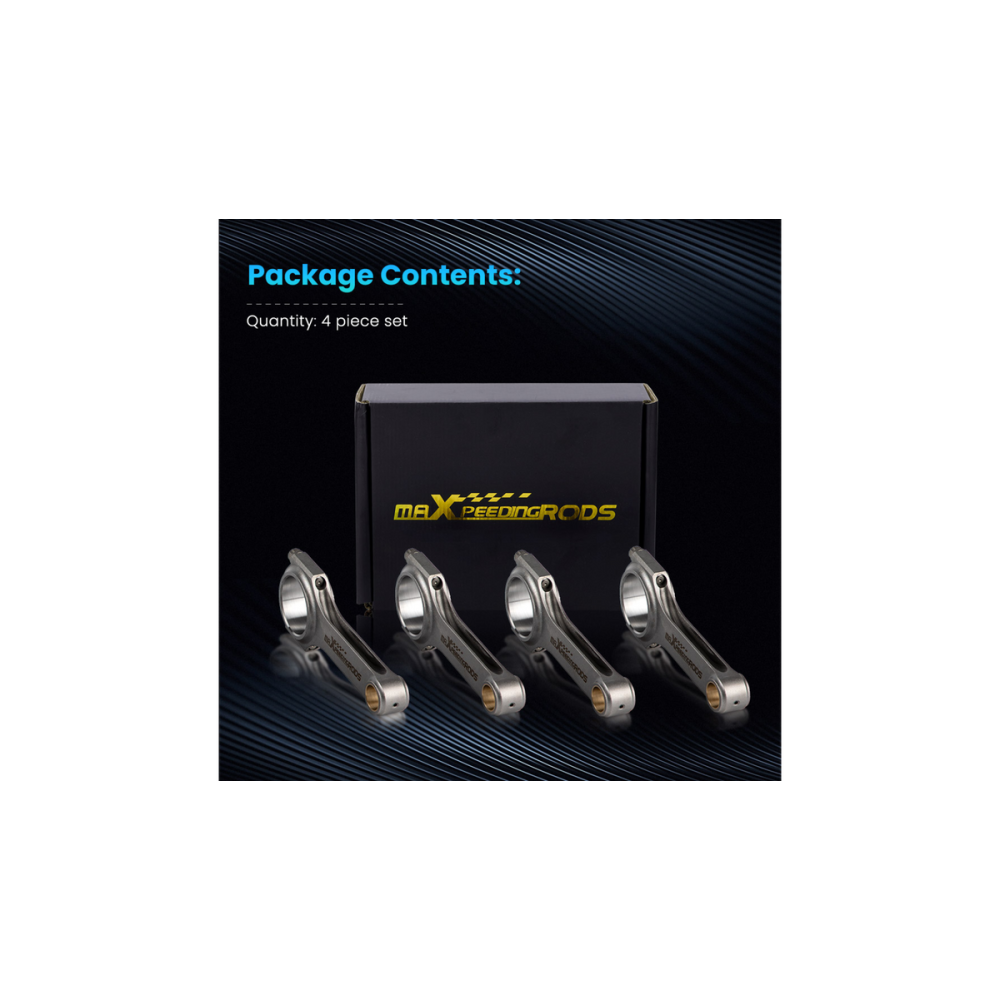

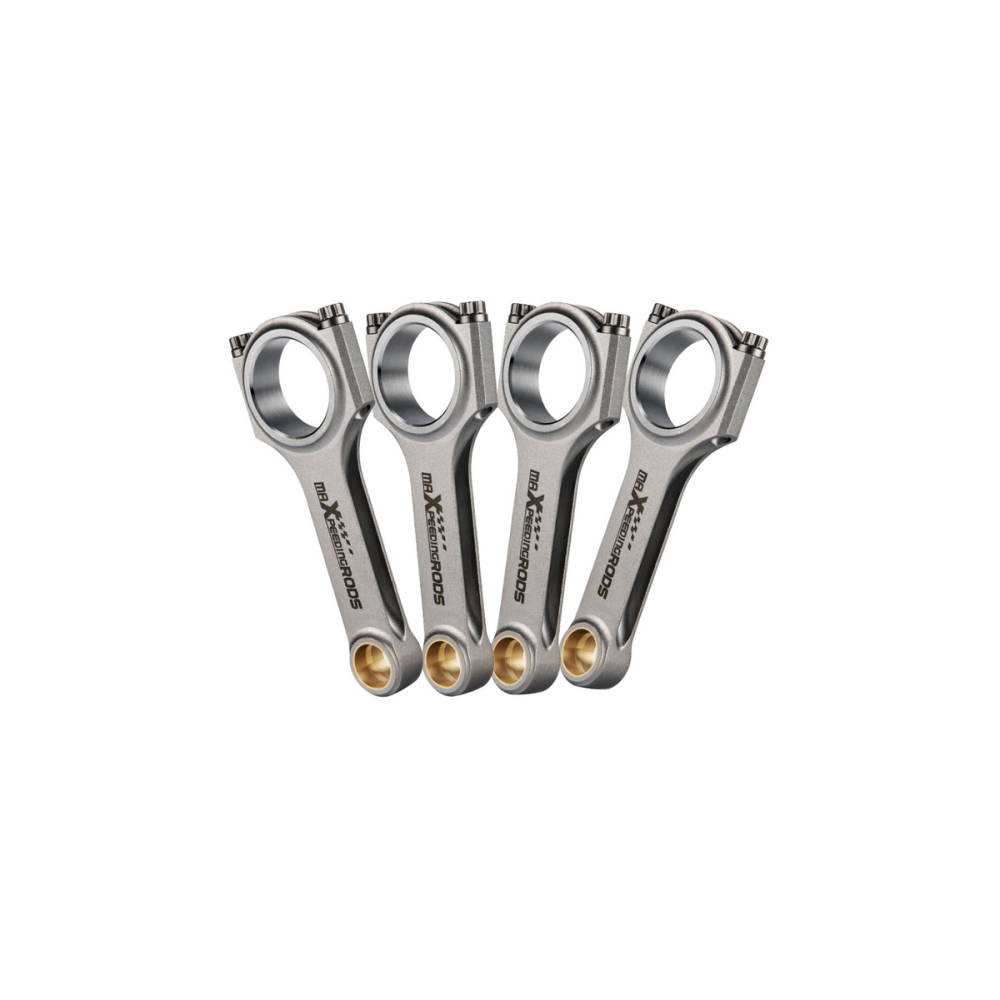

• Quantity:4 Pieces a set as showing in picture
• Bolts:Including Genuine ARP 2000 3/8" bolts (Note Extra cost for upgrading to ARP L19 bolts)
• Type:4340 EN24 H-Beam Connecting Rod

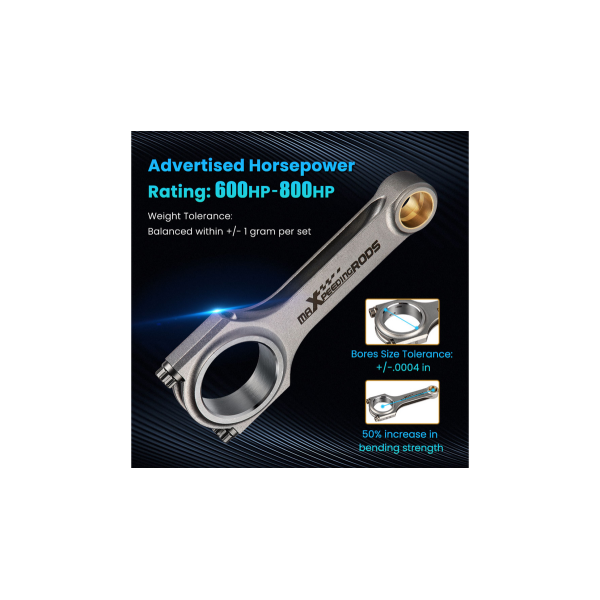

• Weight Tolerance:Balanced to +/- 1 gram in set
• PISTON BOLT HOLE: +-4/1000mm
• Power: 600hp ~ 800PS per set
• Strength of the fastening (PSI): 220.000/230.000 PSI
• Torque: 48ft ≈ 65 NM
• Top speed: 9000rpm

Dimensions

• Center to center length:  128mm
• Big end diameter:  47.61mm
• Small end diameter:  20mm
• Big end width:  21.8mm
• Small end width: 21.8mm

Feature

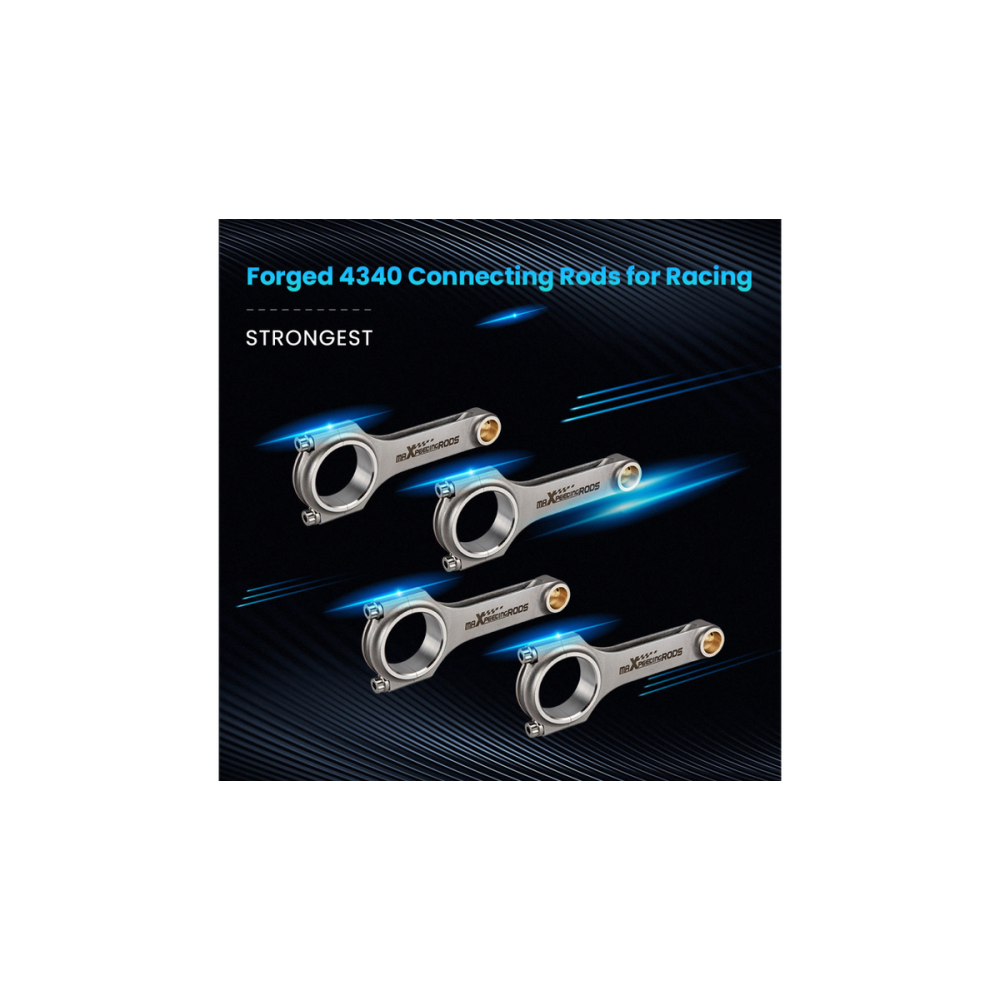

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.

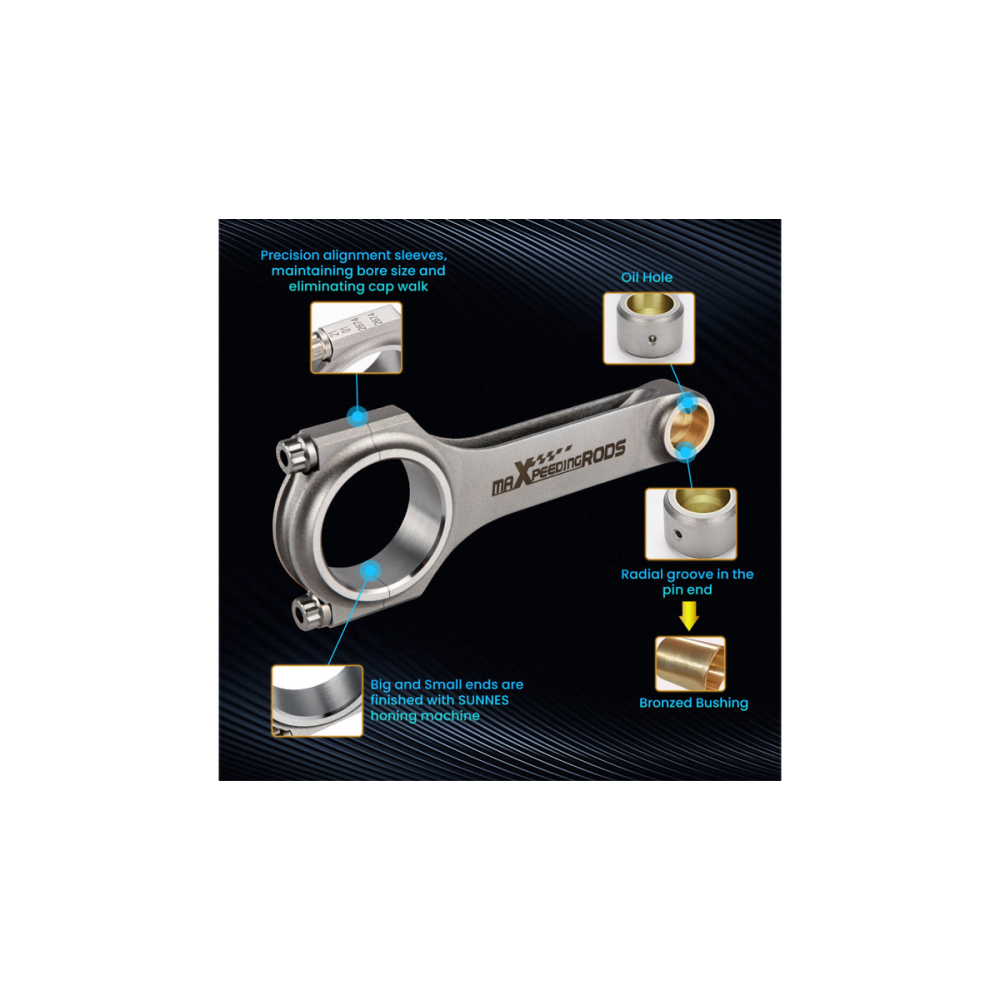

- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

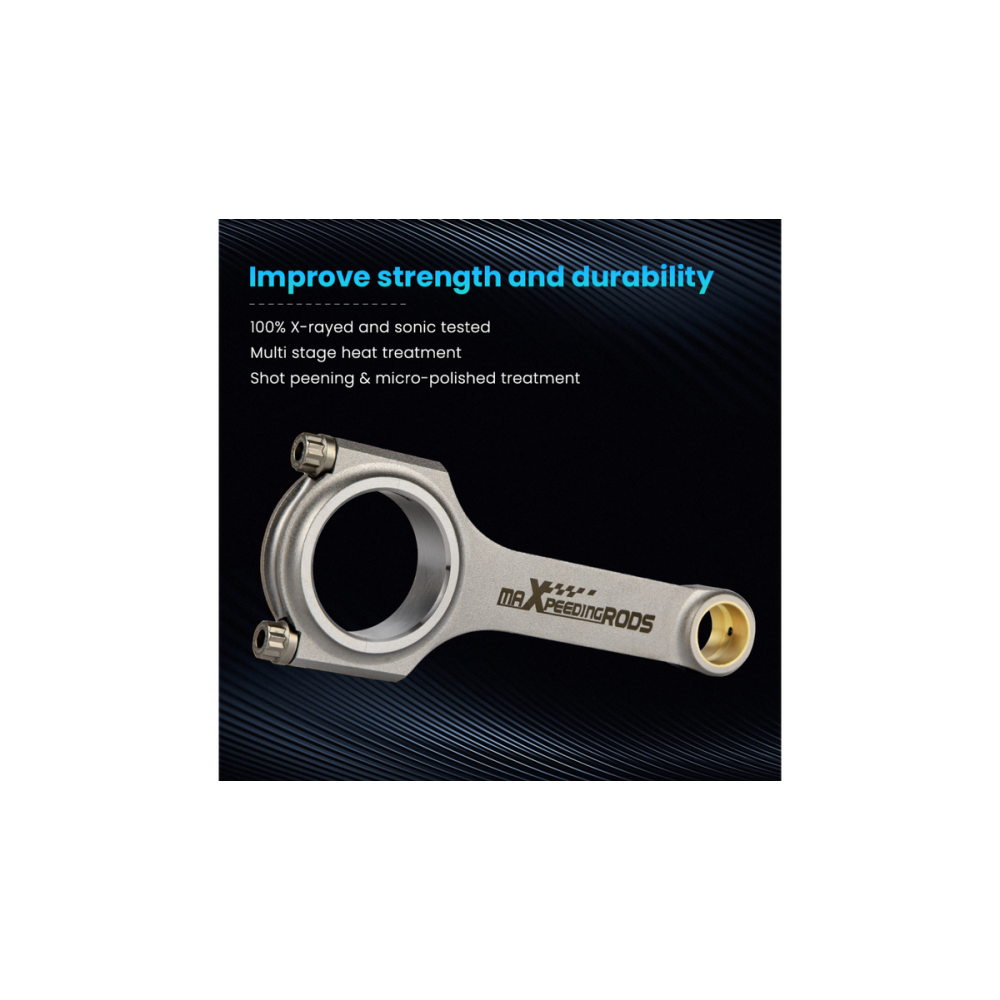

- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

- Professional installation is highly recommended (No Instruction Included)
- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
