Application

• Compatible for VW TDI 1.9L PD90 PD100 PD115 Type 4340 EN24

Fitment Details:

• Compatible for VW Golf MK III 1993-1999 Hatchback 1.9 TDI, 1.9 TDI Syncro
• Compatible for VW Golf MK III 1994-1999 Estate 1.9 TDI, 1.9 TDI Syncro
• Compatible for VW Golf MK V 2003-2009 Hatchback 1.9 TDI, 1.9 TDI 4motion
• Compatible for VW Golf Cabriolet MK III 1995-2002 Convertible 1.9 TDI
• Compatible for VW Jetta MK III 2005-2010 Saloon 1.9 TDI

Specifications

• Type: Forged 4340 aircraft chrome moly quality steel for racing

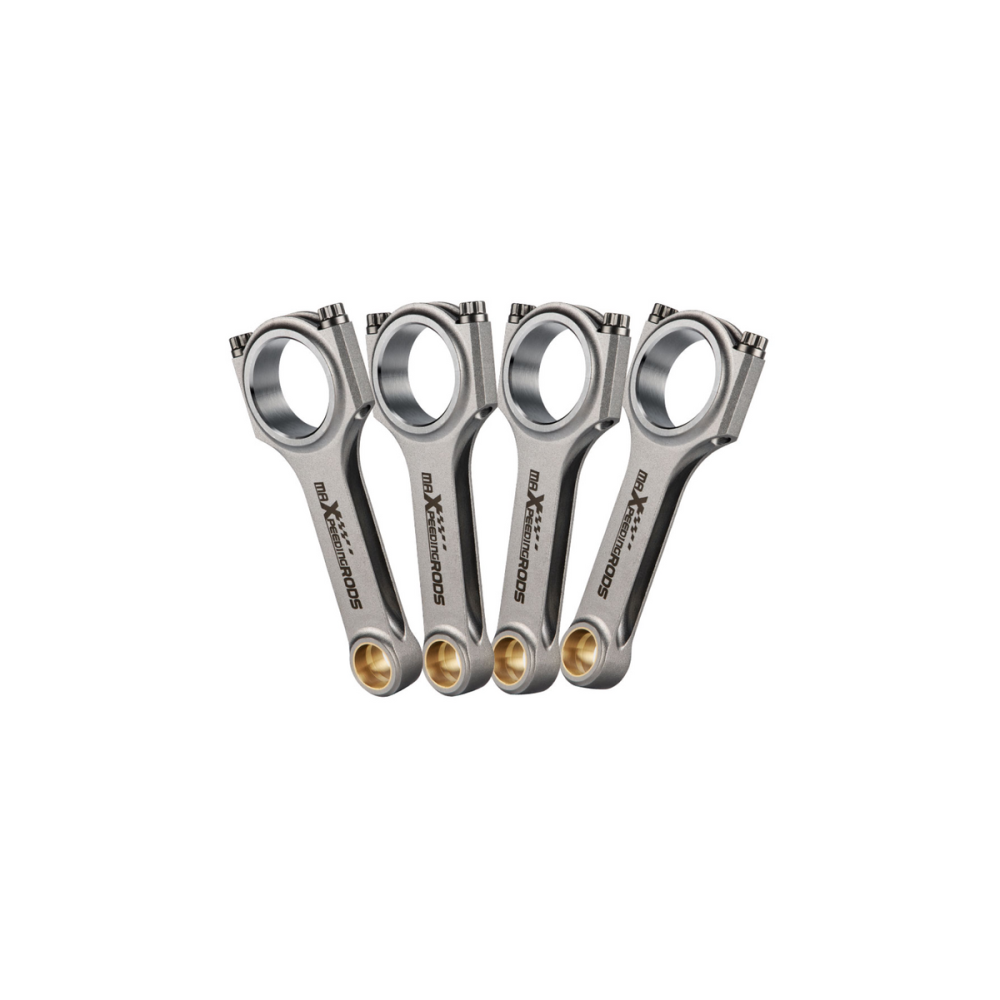

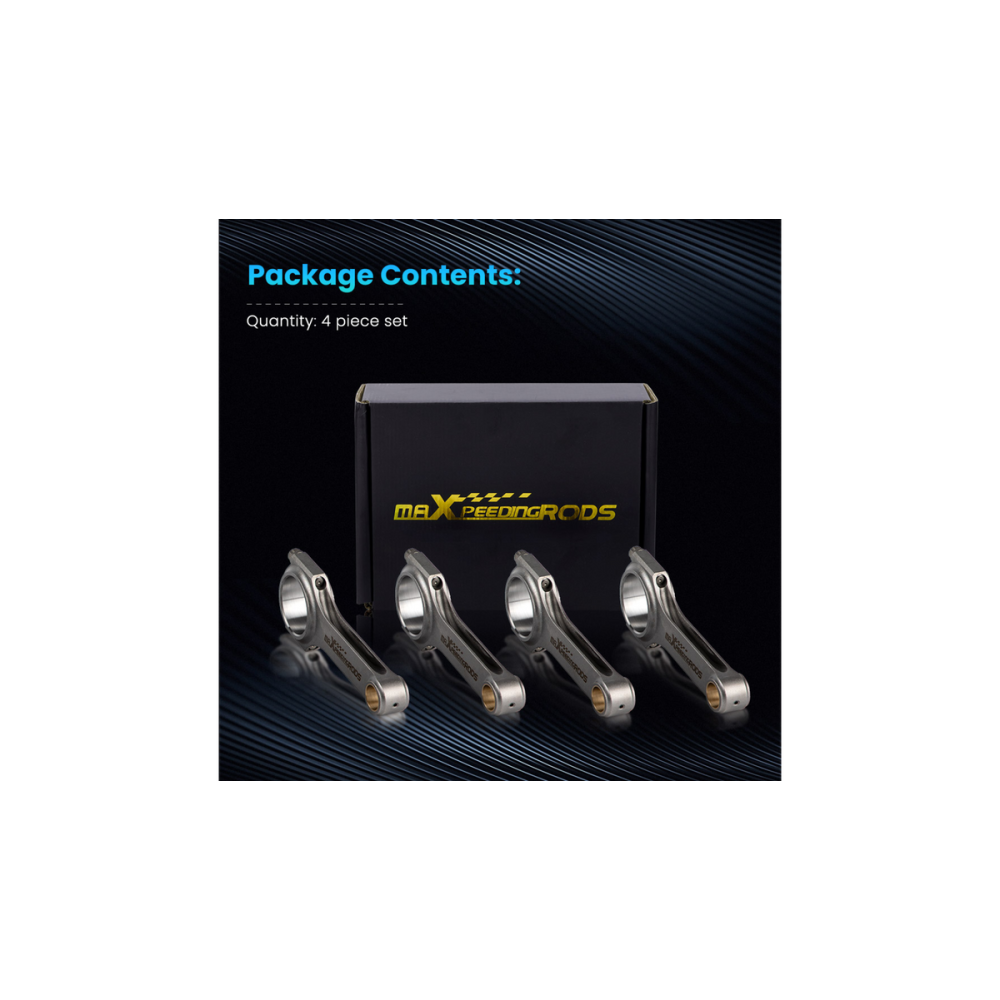

• H-beam Conrods Quantity: 4 Pieces a set
• Bolts: Including Genuine ARP 2000 3/8" bolts
• Note: Extra cost for upgrading to ARP L19 bolts
• Bolts Size:3/8 "
• Tolerance: Balanced to +/- 1 gram in set
• Piston Bolt Hole: +-4/1000mm
• Power: 600hp ~ 800PS per set
• Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
• Top acceleration: 9000rpm

Dimensions

• Center to center length: 144mm
• Big end diameter: 50.6mm
• Small end diameter: 26.01mm taper small end
• Big end width: 25mm
• Small end width: 25mm

Features

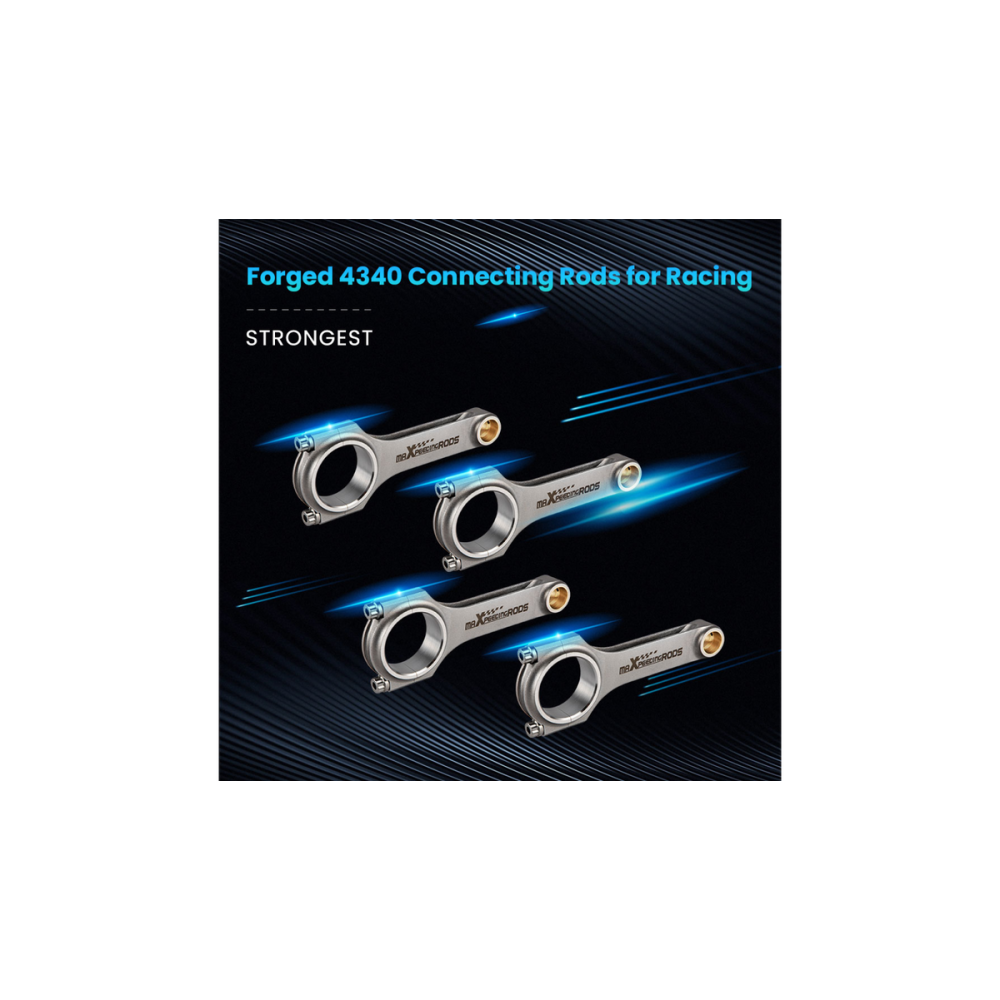

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

- Please Carefully check the Size of the Rods in Specific and Description
- Tapered Small End
- Professional installation is highly recommended (No Instruction Included)
- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
