Application

• Compatible for Honda Acura B18C1 B18C5 GSR Integra R 94-01
• Compatible for Honda Quint Integra compatible for Acura Integra Generation 3: Series DB8, DC2
• Compatible for Acura Integra (GSR/TypeR) 94-01 B18c1/B18c5
• Compatible for Honda B18c1/B18c5 (Dohc Engine) 1997-1998,1999 CDM, 2000-2001 compatible for Acura Integra USDM/CDM Type R

Specification

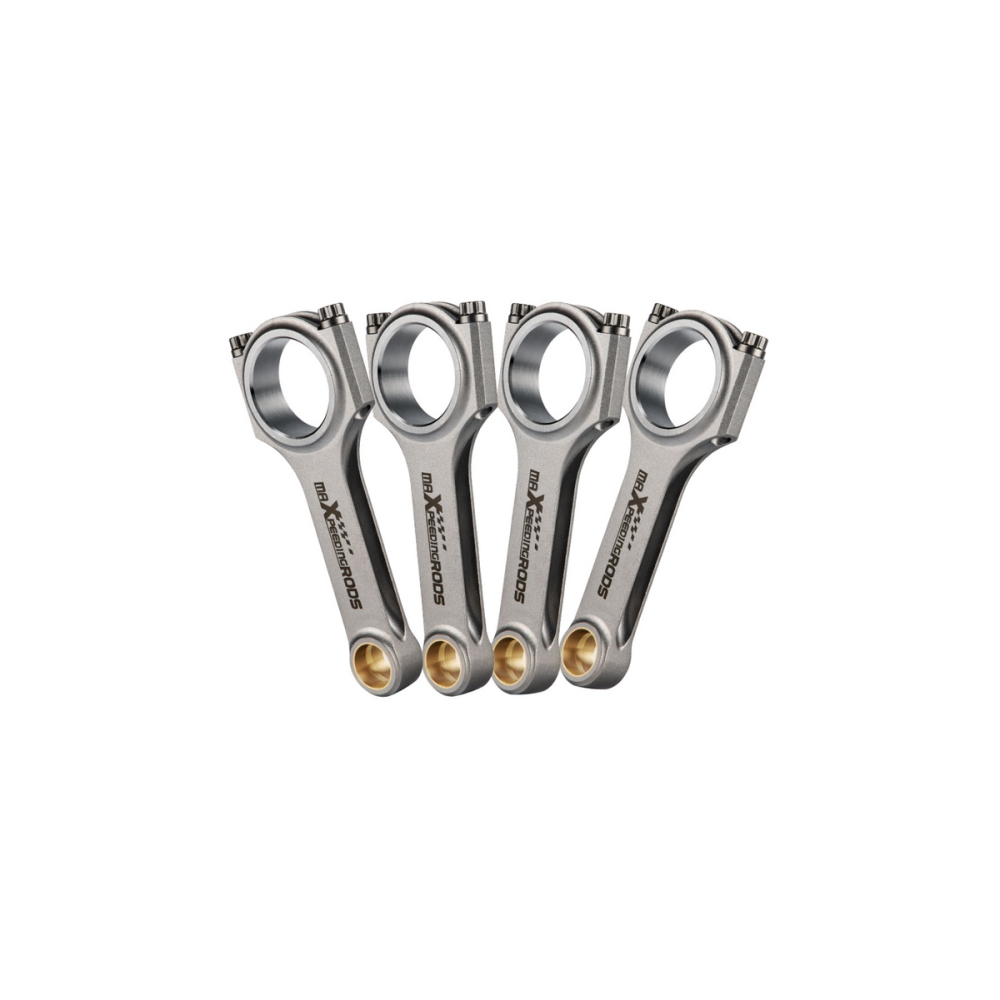

• Performance Con Rods
• Type: Forged 4340 aircraft chrome moly quality steel for racing
• H-beam Conrods Quantity: 4 Pieces a set
• Bolts: Including Genuine 3/8" ARP 2000 bolts
• Note: Extra cost for upgrading to ARP L19 bolts
• Bolts Size: 3/8"
• Tolerance: Balanced to +/- 1 gram in set
• Piston Bolt Hole: +-4/1000mm
• Power: 600hp ~ 800PS per set
• Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
• Top acceleration: 9000rpm

Dimensions

• Center to center length: 5.433" (138mm)
• Big end diameter: 48mm
• Small end diameter: 21mm
• Big end width: 21.77mm
• Small end width: 23.45mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

Professional installation is highly recommended (No Instruction Included)
