Over time, the EGR system in your vehicle can become blocked with tar and sediment, affecting fuel economy and performance. The TAFMET EGR Kit is a direct and simple replacement designed to resolve these issues.

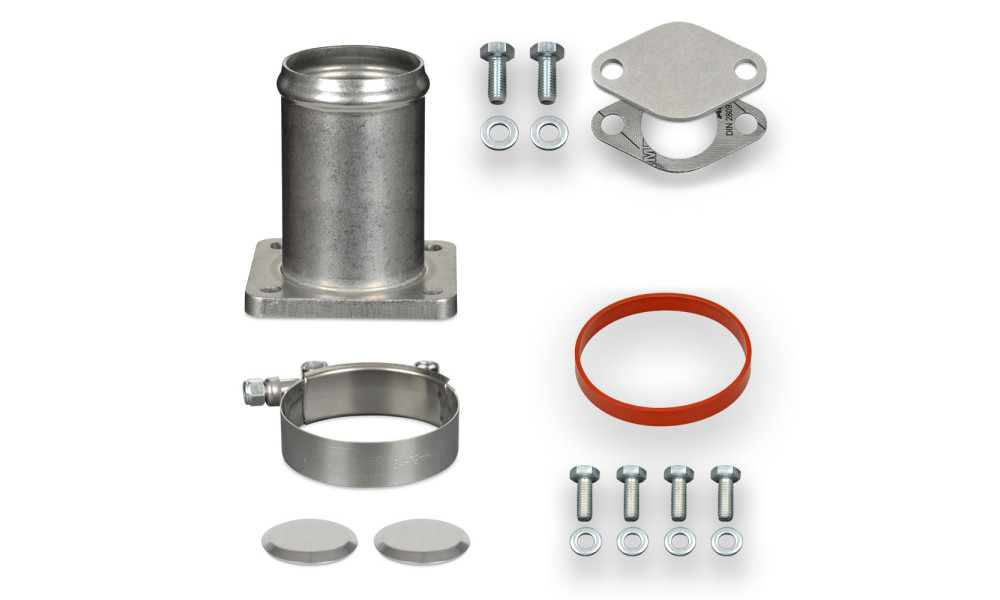

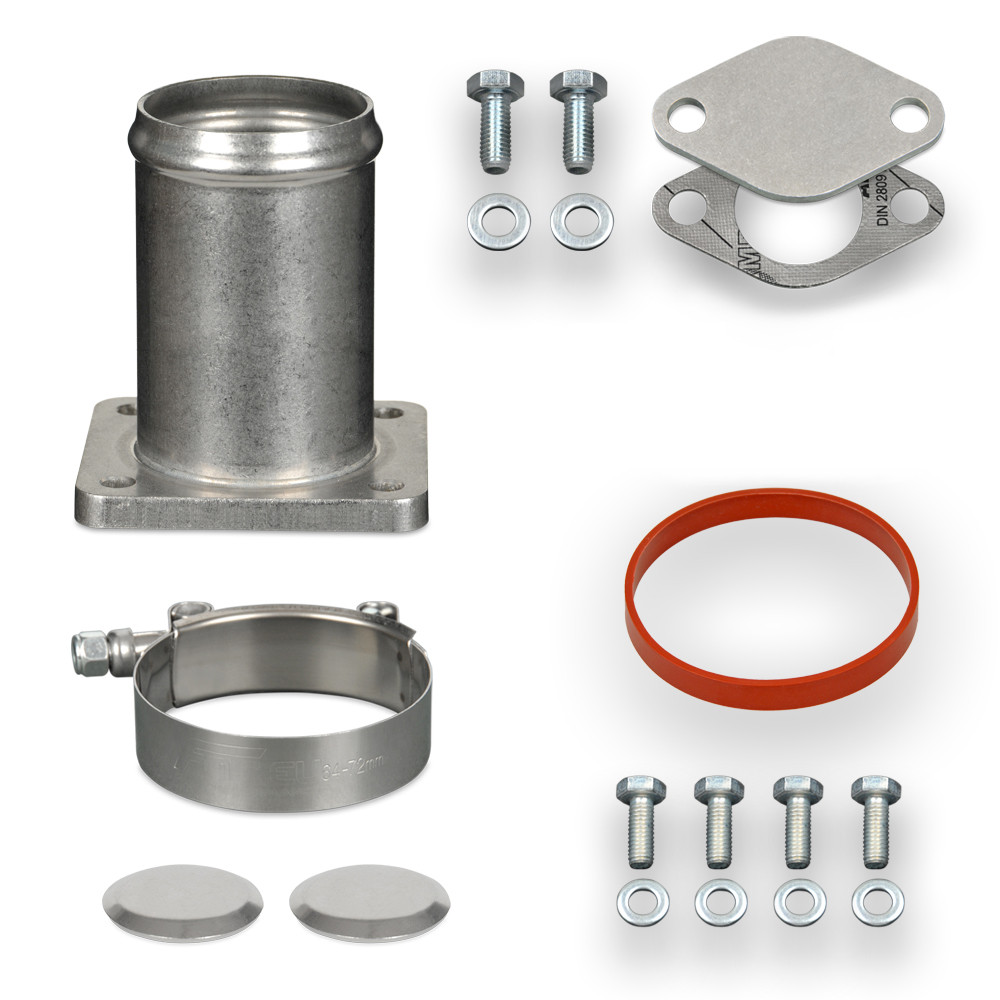

Kit Contents & Specifications
- 1 x EGR Replacement Pipe (54 mm outer diameter, 90 mm length, stainless steel, lifetime warranty)
- 1 x Blanking Plate (stainless steel, lifetime warranty)
- 1 x Blanking Plate Gasket

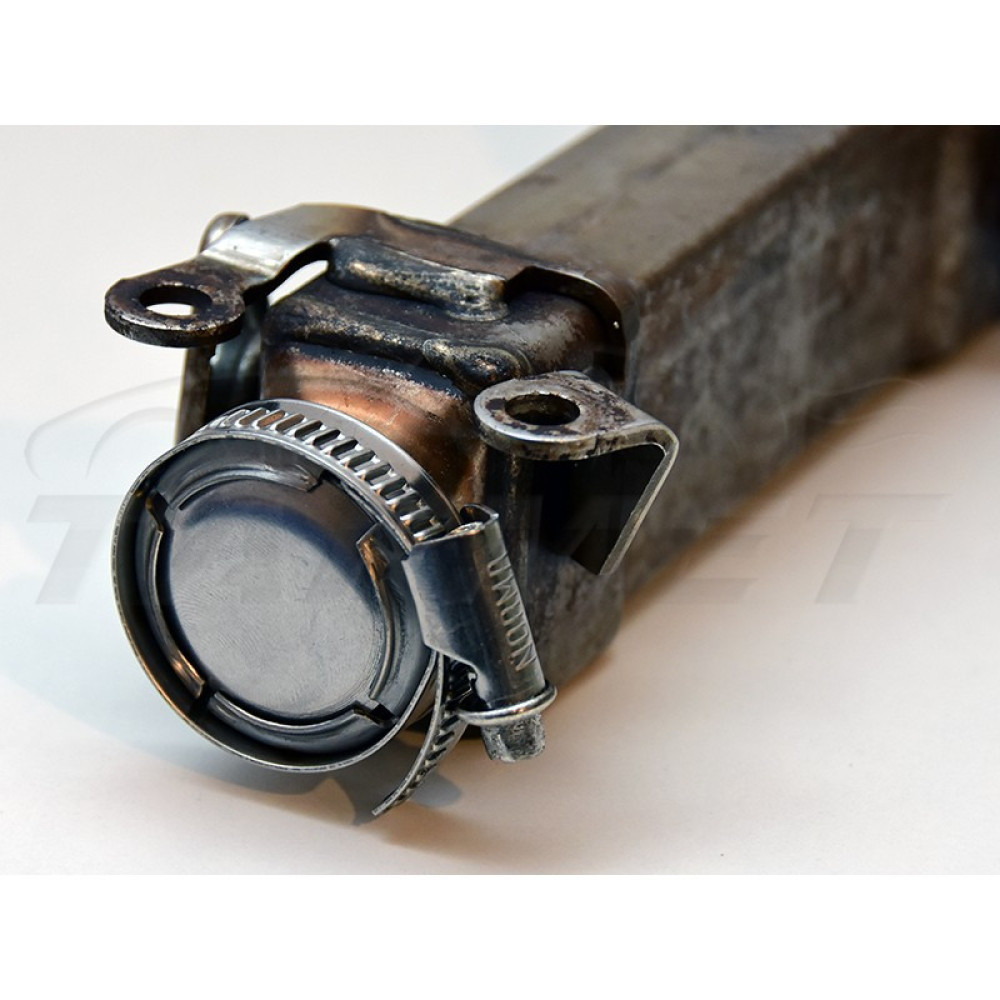

- 2 x Exhaust Cooler Blanking Plates
- 1 x Flange Gasket
- 1 x Hose Clip (from FMIC)
- 2 x Blanking Plate Screws with Washers
- 4 x Flange Screws with Washers
Important Notes
- For vehicles up to model years 2002–2004, no ECU warning light is expected. Later models with pneumatic or electronic EGR valves may trigger an ECU warning light upon installation. For full EGR function removal, an ECU remap by a tuner is recommended.
- Intended for off-road and motorsport use only.
Application
BMW 3 Series E46 (1997–2006)
- 318d Limousine, engine M47
- 318d Touring, engine M47
- 318d Limousine, engine M47N
- 318d Touring, engine M47N
- 318td Compact, engine M47N
- 320Cd Cabrio, engine M47N
- 320Cd Coupé, engine M47N
- 320d Limousine, engine M47N
- 320d Touring, engine M47N
- 320td Compact, engine M47N
- 330Cd Coupé, engine M57N
- 330d Limousine (until 08.2000), engine M57
- 330d Touring, engine M57
- 330d Limousine, engine M57N
- 330d Touring, engine M57N
- 330xd Limousine, engine M57
- 330xd Touring, engine M57
- 330xd Limousine, engine M57N
- 330xd Touring, engine M57N
BMW 5 Series E60 (2003–2005)
- 530d Limousine, engine M57N
BMW 5 Series E61 (2003–2005)
- 530d Touring, engine M57N
BMW 7 Series E65 (2001–2005)
- 730d Limousine, engine M57N
Land Rover Freelander
- 2.0 Td4 4x4, 2000.11–2006.10, engine 204D3
- 2.0 Td4 4x4, 2001.11–2006.10, engine M47
If in doubt, check your engine code. If your engine or vehicle model is not listed, contact us before ordering.
OEM Numbers
EGR Valves
- Pierburg: 7.28264.06.0
- BMW: 11717785452, 11717804378, 11714701242
- Land Rover: LR005791, WAV000040
Exhaust Coolers
- 11717789790
- 11714706801
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| BMW | 3 SERIES E46 | E46 (1997–2006), E60 (2003–2005), E61 (2003–2005), E65 (2001–2005), Freelander (2000.11–2006.10) | M47, M47N, M57, M57N, 204D3 |
| BMW | 5 SERIES E60 | E46 (1997–2006), E60 (2003–2005), E61 (2003–2005), E65 (2001–2005), Freelander (2000.11–2006.10) | M47, M47N, M57, M57N, 204D3 |
| BMW | 5 SERIES E61 | E46 (1997–2006), E60 (2003–2005), E61 (2003–2005), E65 (2001–2005), Freelander (2000.11–2006.10) | M47, M47N, M57, M57N, 204D3 |
| BMW | 7 SERIES E65 | E46 (1997–2006), E60 (2003–2005), E61 (2003–2005), E65 (2001–2005), Freelander (2000.11–2006.10) | M47, M47N, M57, M57N, 204D3 |
| BMW | FREELANDER | E46 (1997–2006), E60 (2003–2005), E61 (2003–2005), E65 (2001–2005), Freelander (2000.11–2006.10) | M47, M47N, M57, M57N, 204D3 |
| Land Rover | 3 SERIES E46 | E46 (1997–2006), E60 (2003–2005), E61 (2003–2005), E65 (2001–2005), Freelander (2000.11–2006.10) | M47, M47N, M57, M57N, 204D3 |
| Land Rover | 5 SERIES E60 | E46 (1997–2006), E60 (2003–2005), E61 (2003–2005), E65 (2001–2005), Freelander (2000.11–2006.10) | M47, M47N, M57, M57N, 204D3 |
| Land Rover | 5 SERIES E61 | E46 (1997–2006), E60 (2003–2005), E61 (2003–2005), E65 (2001–2005), Freelander (2000.11–2006.10) | M47, M47N, M57, M57N, 204D3 |
| Land Rover | 7 SERIES E65 | E46 (1997–2006), E60 (2003–2005), E61 (2003–2005), E65 (2001–2005), Freelander (2000.11–2006.10) | M47, M47N, M57, M57N, 204D3 |
| Land Rover | FREELANDER | E46 (1997–2006), E60 (2003–2005), E61 (2003–2005), E65 (2001–2005), Freelander (2000.11–2006.10) | M47, M47N, M57, M57N, 204D3 |
EGR Delete Kit for Land Rover Freelander BMW with 2.0 2.5 3.0 D M47 M57 engines
35.66€
35.30€
Excl. VAT: 29.18€
EU Shipping — No Import Taxes
