The EGR system in your vehicle can become blocked over time with tar and sediment, negatively impacting fuel economy and engine performance. The TAFMET EGR Kit provides a direct, straightforward replacement to resolve these issues.

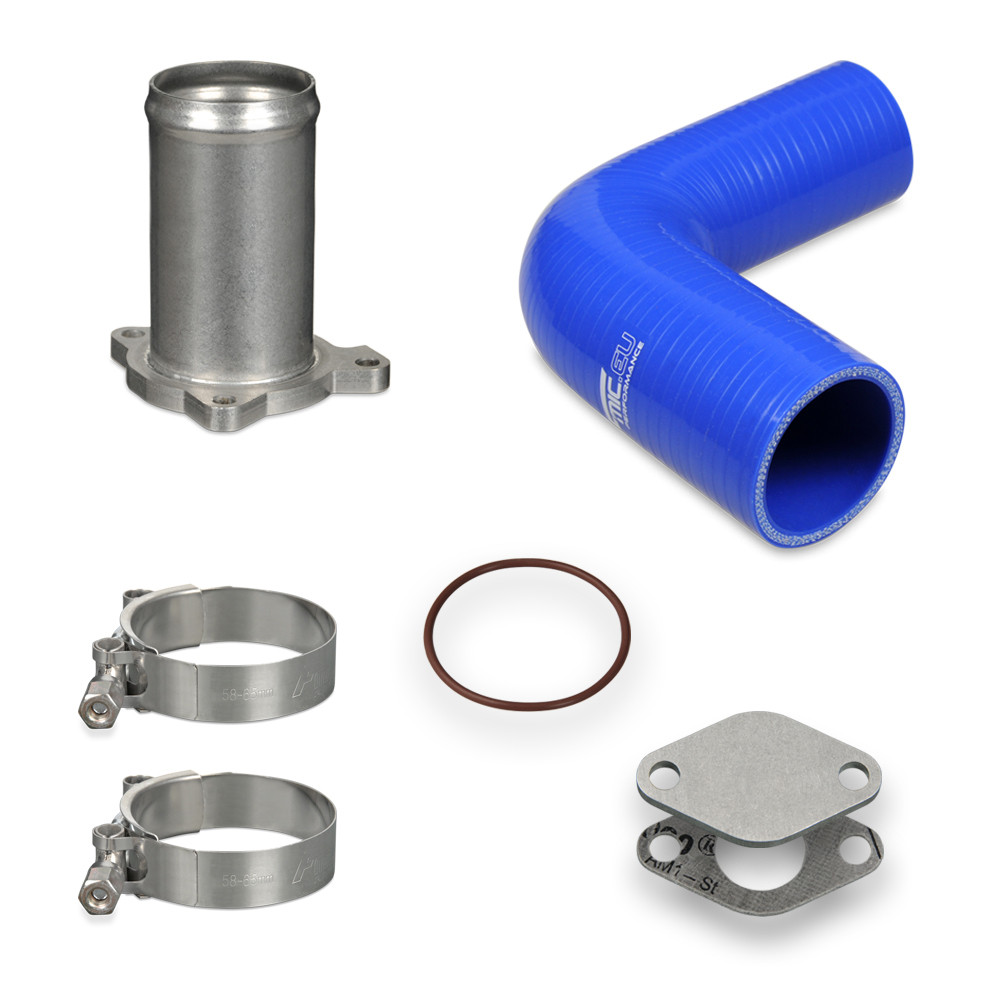

Kit Contents & Specifications

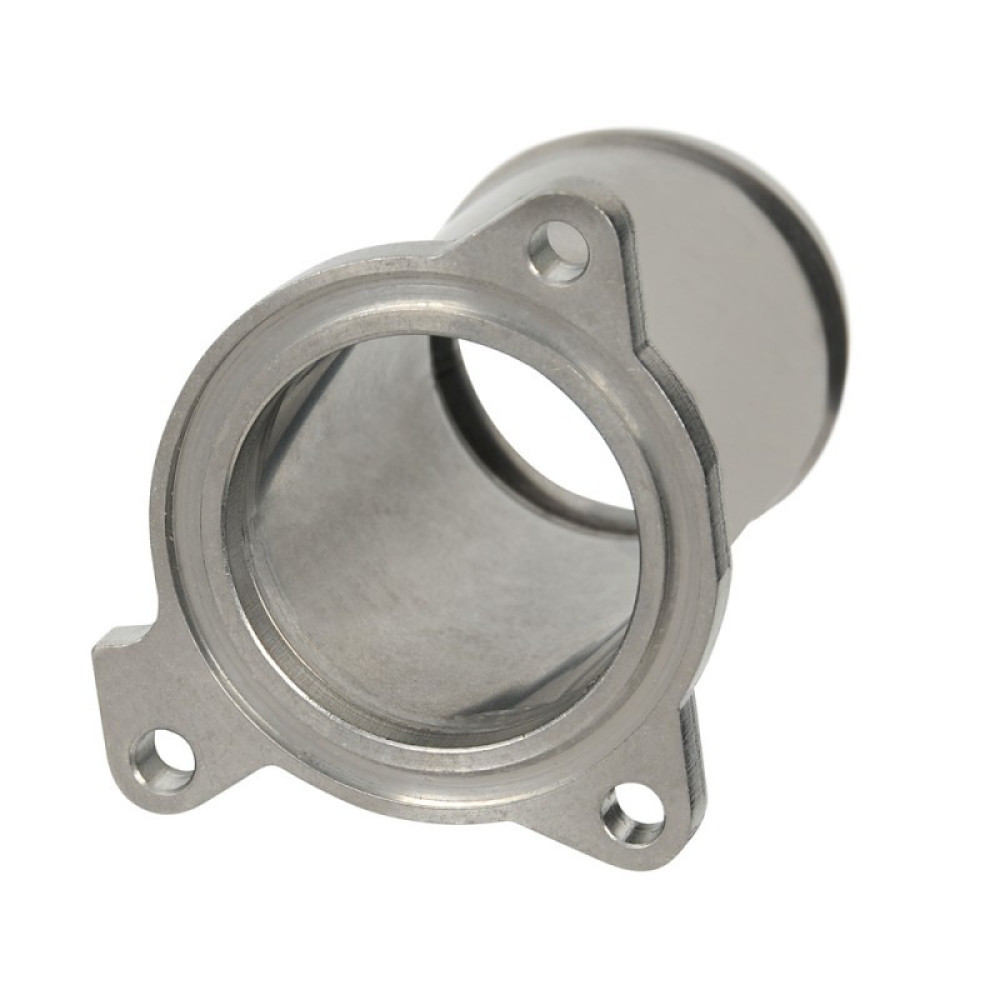

• 1 x EGR Replacement Pipe (51 mm outer diameter, 100 mm length, stainless steel, lifetime warranty)

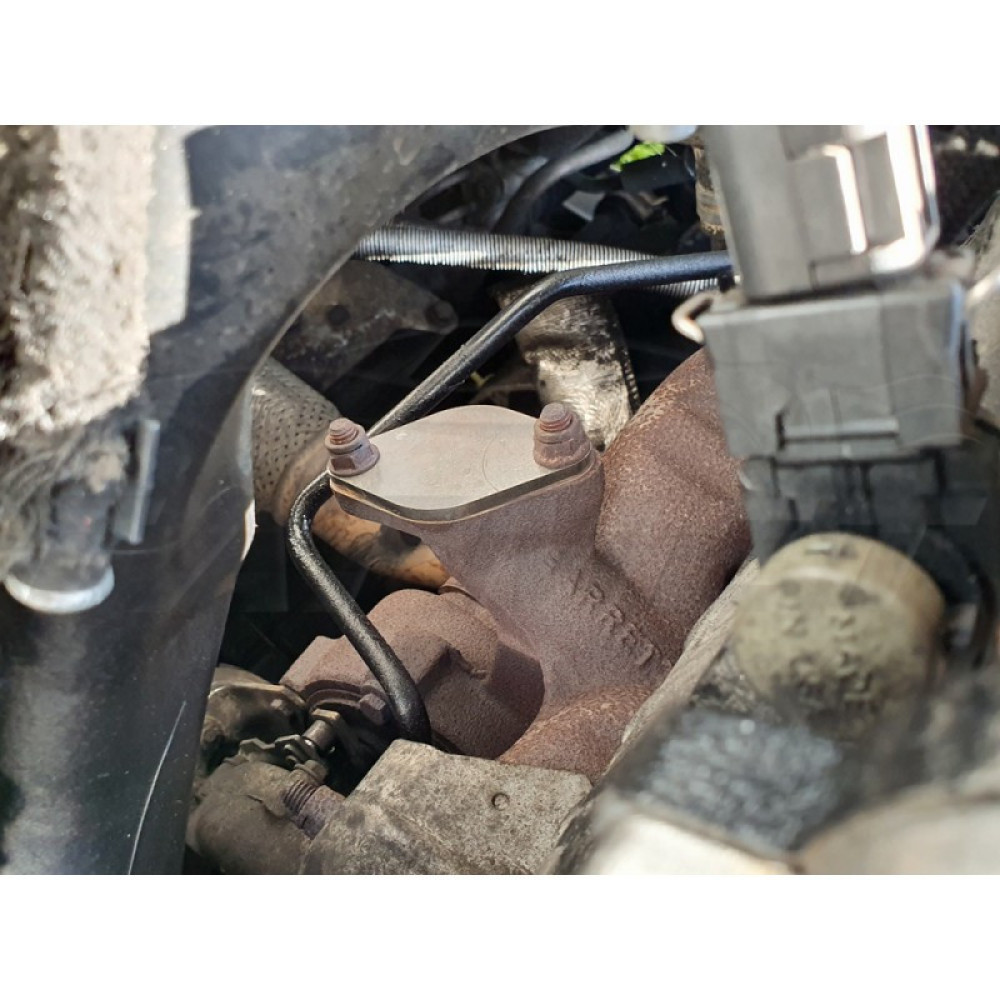

• 1 x Blanking Plate (stainless steel, lifetime warranty)
• 1 x Blanking Plate Gasket
• 1 x O-ring Seal
• 2 x Hose Clips (FMIC)
• 1 x Silicone Hose 90°, 51 mm, blue (FMIC)

Important Notes

• For vehicles up to model year 2002–2004, no ECU warning light is typically triggered.
• Later models with pneumatic or electronic EGR valves may display an ECU warning light after installation. An ECU remap by a qualified tuner is recommended to fully disable the EGR function.
• This kit is intended for off-road and motorsport use only.

Application

Audi

• A2 1.2 TDI (2001–2005, 45 kW, engine ANY)
• A3 1.9 TDI (1996–2001, 66 kW, engines AGR, ALH)
• A3 1.9 TDI (2000–2003, 74 kW, engines ATD, AXR)
• A3 1.9 TDI (1997–2001, 81 kW, engines AHF, ASV)
• A4 B5 1.9 TDI (2000–2001, 85 kW, engines AJM, ATJ)
• A4 B5 Avant 1.9 TDI (2000–2001, 85 kW, engine AJM)
• A4 B5 Avant quattro 1.9 TDI (2000–2001, 85 kW, engines AJM, ATJ)
• A4 B6 1.9 TDI (2001–2004, 74 kW, engine AVB)
• A4 B6 Avant 1.9 TDI (2001–2004, 74 kW, engine AVB)
• A6 C5 1.9 TDI (2000–2005, 85 kW, engine AJM)
• A6 C5 Avant 1.9 TDI (2000–2005, 85 kW, engine AJM)

Seat

• Arosa 1.4 TDI (2000–2004, 55 kW, engine AMF)
• Alhambra 1.9 TDI (1996–2010, 66 kW, engines 1Z, AHU, ANU)
• Cordoba I 1.9 TDI (1999–2002, 66 kW, engines AGR, ALH)
• Cordoba I 1.9 TDI (1999–2002, 81 kW, engines AHF, ASV, ASK)
• Cordoba II 1.4 TDI (2002–2005, 55 kW, engine AMF)
• Ibiza III 1.9 TDI (1999–2002, 66 kW, engines AGR, ALH)
• Ibiza III 1.9 TDI (1999–2002, 81 kW, engines AHF, ASV)
• Ibiza IV 1.4 TDI (2002–2005, 55 kW, engine AMF)
• Leon I 1.9 TDI (1999–2006, 66 kW, engines AGR, ALH)
• Leon I 1.9 TDI (1999–2006, 81 kW, engines AHF, ASV)
• Toledo II 1.9 TDI (1999–2004, 66 kW, engines AGR, ALH)
• Toledo II 1.9 TDI (1998–2004, 81 kW, engines AHF, ASV)

Skoda

• Fabia I 1.4 TDI (2003–2008, 55 kW, engine AMF)
• Octavia I 1.9 TDI (1996–2010, 66 kW, engines AGR, ALH)
• Octavia I 1.9 TDI (2005–2010, 74 kW, engines ATD, AXR)
• Octavia I 1.9 TDI (1997–2006, 81 kW, engines AHF, ASV)
• Superb I 1.9 TDI (2002–2005, 74 kW, engine AVB)

Volkswagen

• Bora 1.9 TDI (1998–2005, 66 kW, engines AGR, ALH)
• Bora 1.9 TDI (2000–2005, 74 kW, engines ATD, AXR)
• Bora 1.9 TDI (1998–2001, 81 kW, engines AHF, ASV)
• Bora 1.9 TDI (1998–2002, 85 kW, engines AJM, AUY)
• Caddy II 1.9 TDI (1996–2004, 66 kW, engines 1Z, AHU, ALH)
• Golf IV 1.9 TDI (1997–2004, 66 kW, engines AGR, ALH)
• Golf IV Van 1.9 TDI (2000–2002, 66 kW, engine AGR)
• Golf IV Variant 1.9 TDI (1999–2006, 66 kW, engines AGR, ALH)
• Golf IV 1.9 TDI (2000–2006, 74 kW, engines ATD, AXR)
• Golf IV Variant 1.9 TDI (2000–2006, 74 kW, engines ATD, AXR)
• Golf IV 1.9 TDI (1997–2004, 81 kW, engines AHF, ASV)
• Golf IV Variant 1.9 TDI (1999–2001, 81 kW, engines AHF, ASV)
• Golf IV 1.9 TDI (1997–2004, 85 kW, engines AJM, AUY)
• Golf IV Variant 1.9 TDI (1999–2001, 85 kW, engines AJM, AUY)
• Lupo 1.2 TDI (1999–2005, 45 kW, engines ANY, AYZ)
• Lupo 1.4 TDI (1999–2005, 55 kW, engine AMF)
• New Beetle 1.9 TDI (1998–2004, 66 kW, engine ALH)
• Polo 1.4 TDI (1999–2001, 55 kW, engine AMF)
• Polo Classic 1.9 TDI (1996–2001, 66 kW, engines AHU, AGR, ALH, ALE)
• Polo Classic 1.9 TDI (1998–2002, 81 kW, engines AFN, ASV)
• Polo 1.4 TDI (2001–2005, 55 kW, engines AMF, BAY)
• Passat B5 1.9 TDI (1999–2000, 74 kW, engine AVB)
• Passat B5 1.9 TDI (1998–2000, 85 kW, engines AJM, ATJ)
• Passat B5 4motion 1.9 TDI (1998–2000, 85 kW, engine ATJ)
• Passat B5 FL 1.9 TDI (2000–2005, 74 kW, engine AVB)
• Sharan I 1.9 TDI (1995–2010, 66 kW, engines 1Z, AHU, ANU)

Ford

• Galaxy 1.9 TDI (1995–2006, 66 kW, engines 1Z, AHU, ANU)

If unsure, check your engine code. If your engine or vehicle model is not listed, please contact us before ordering.
