Engine Oil Cooler Kit for Ford Mustang 2.3T

The oil cooler kit is a complete, high-performance cooling system designed for 2.3 Turbo engines used in the Ford Mustang EcoBoost. It is developed for motorsport, tuning, and track applications where maintaining optimal oil temperature and stable lubrication pressure is crucial under high thermal load.

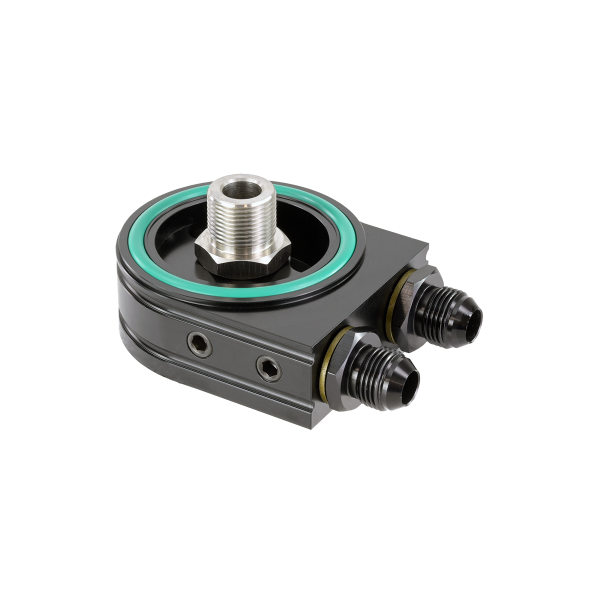

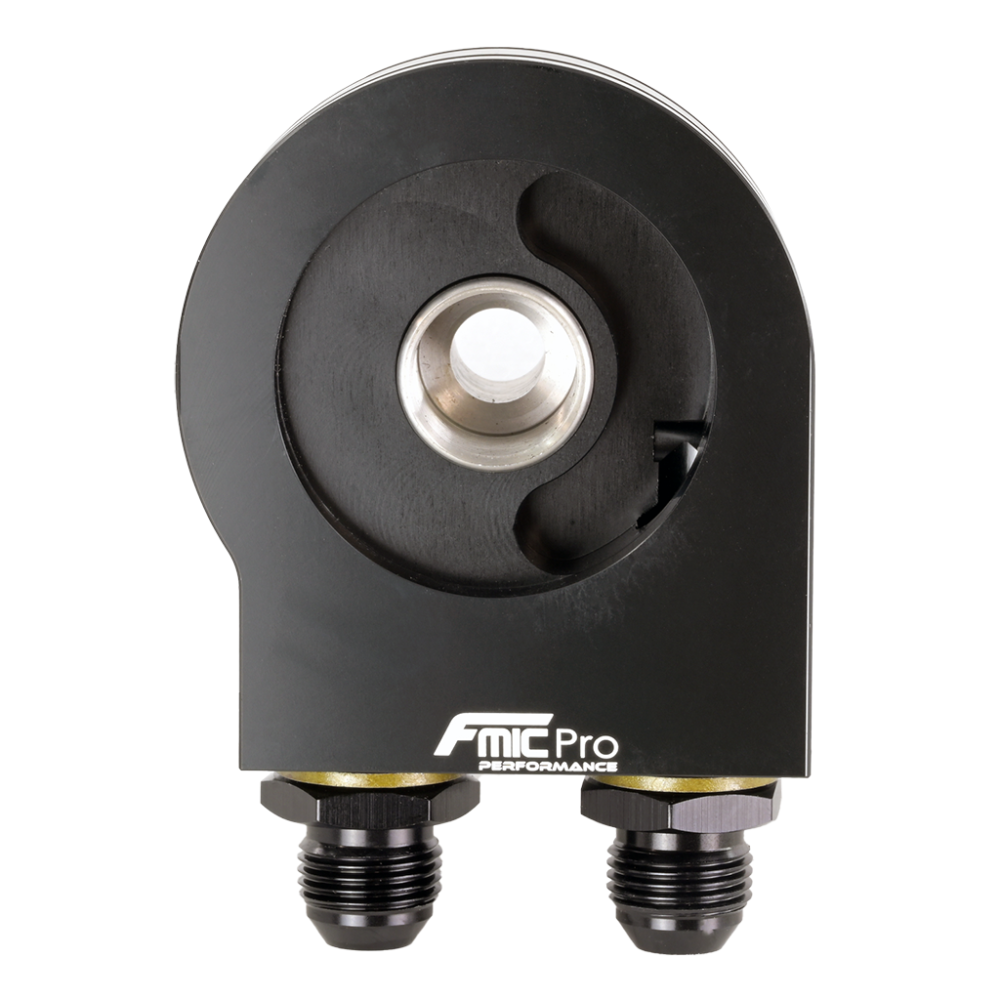

The adapter body is made of 6061-T6 aluminum, precisely CNC machined to ensure perfect fitment, high mechanical strength, and pressure resistance. The surface is coated with a hard anodized layer resistant to oils, fuels, and high temperatures, ensuring long-lasting durability under extreme conditions.

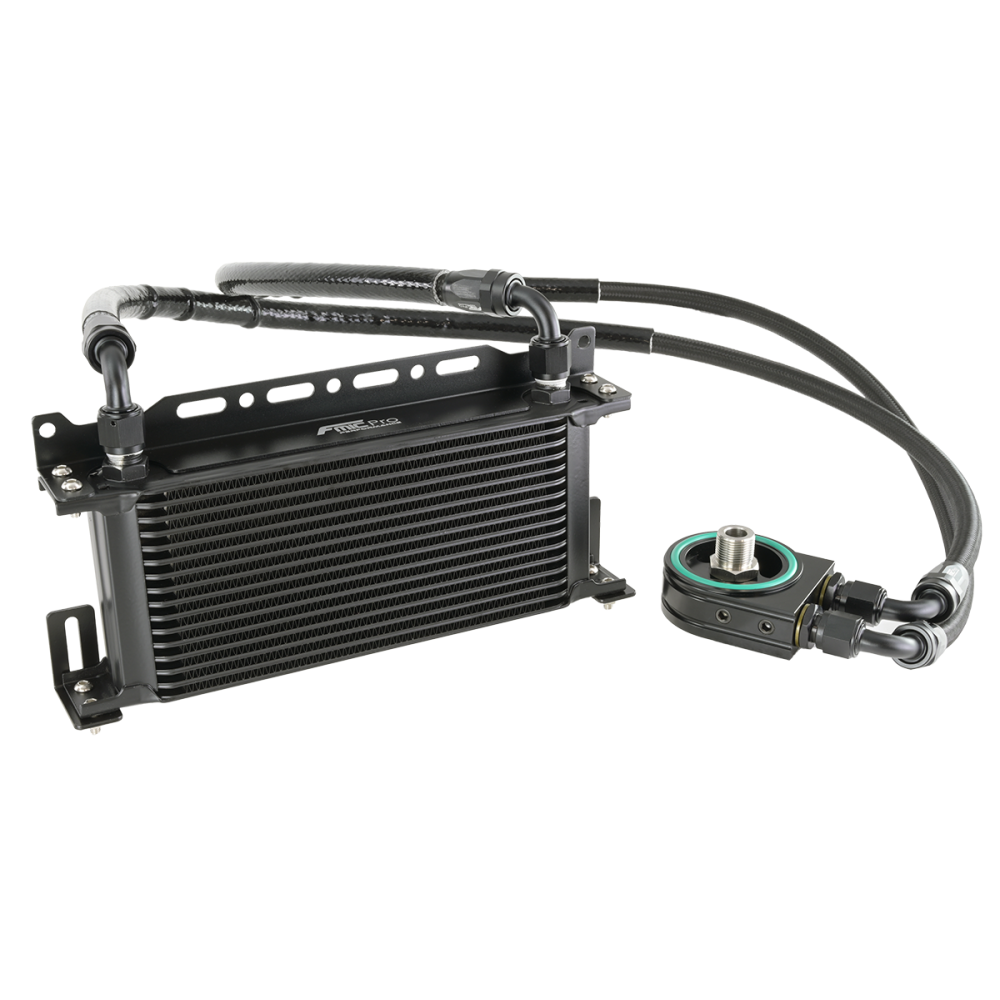

The oil cooler features a large heat exchange surface, effectively reducing operating oil temperature and extending engine life. The adapter is equipped with two AN8 oil outlets for connecting the cooler and two 1/8 NPT ports for installing oil temperature and pressure sensors. The kit includes all necessary components for installation – braided steel hoses, AN8 fittings, mounting brackets, and a complete set of metal-rubber seals.

• Complete oil cooling kit – adapter, cooler, hoses, and mounting accessories
• Two AN8 connections for oil line installation
• Two 1/8 NPT ports for oil temperature and pressure sensors
• Adapter made from precision CNC-machined 6061-T6 aluminum
• Hard anodized coating resistant to oils, fuels, and high temperatures
• High mechanical and thermal resistance under racing conditions
• Large heat exchange surface ensuring high cooling efficiency
• Braided steel hoses resistant to high pressure and temperature
• AN8 fittings and metal-rubber seals included in the kit
• Maximum operating pressure: 12 bar
• Operating temperature range: -40°C to +180°C
• Designed for motorsport, tuning, and high-performance engines

Set contents

• Oil cooler adapter with 1/8 NPT ports
• Oil cooler
• Two AN8 fittings
• Braided steel oil hoses
• Metal-rubber seals
• Mounting brackets for the oil cooler
• Complete set of mounting hardware

Compatible with:

Ford Mustang 2.3 EcoBoost 2015–2024

Cadillac ATS 2.3 Turbo 2013–2019
CT5 2.3 Turbo 2019–2024
XT5 2.3 Turbo 2016–2024
