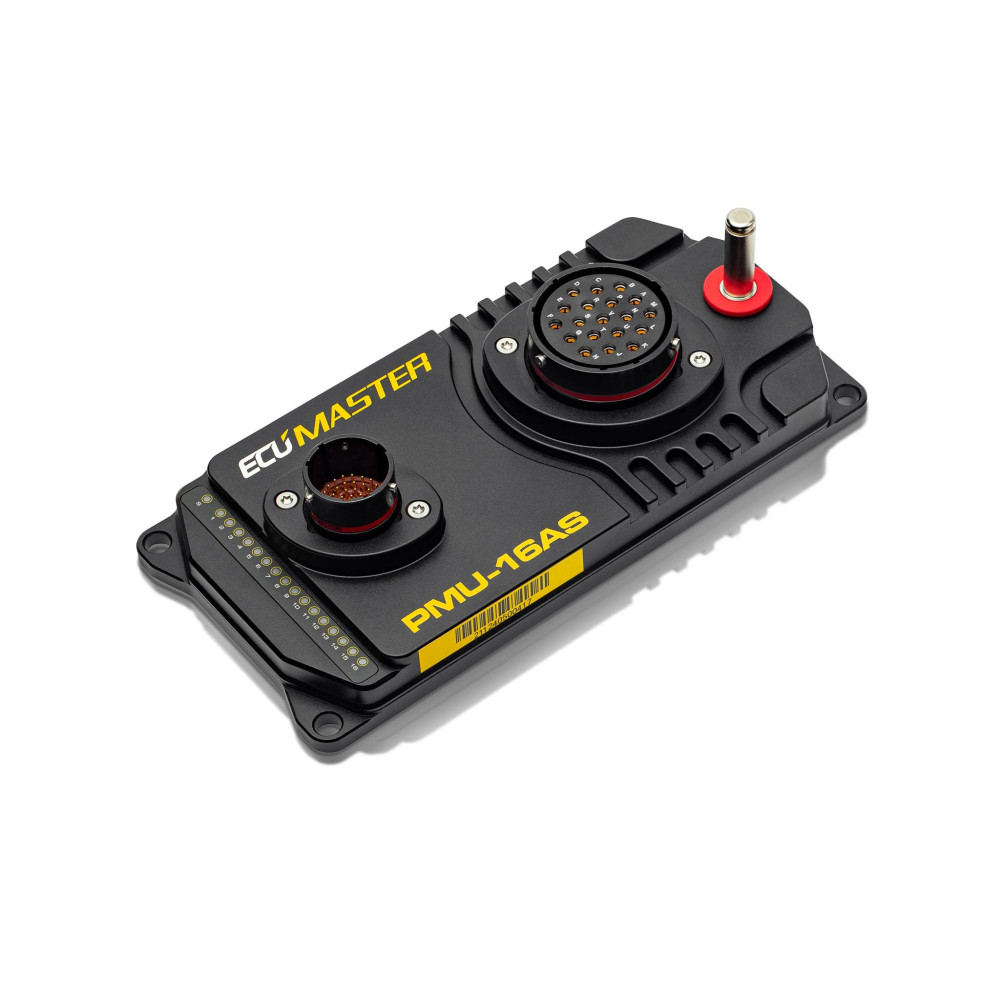

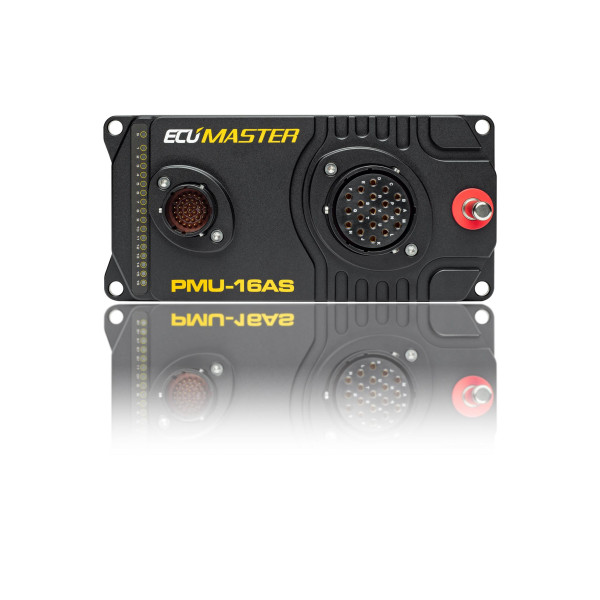

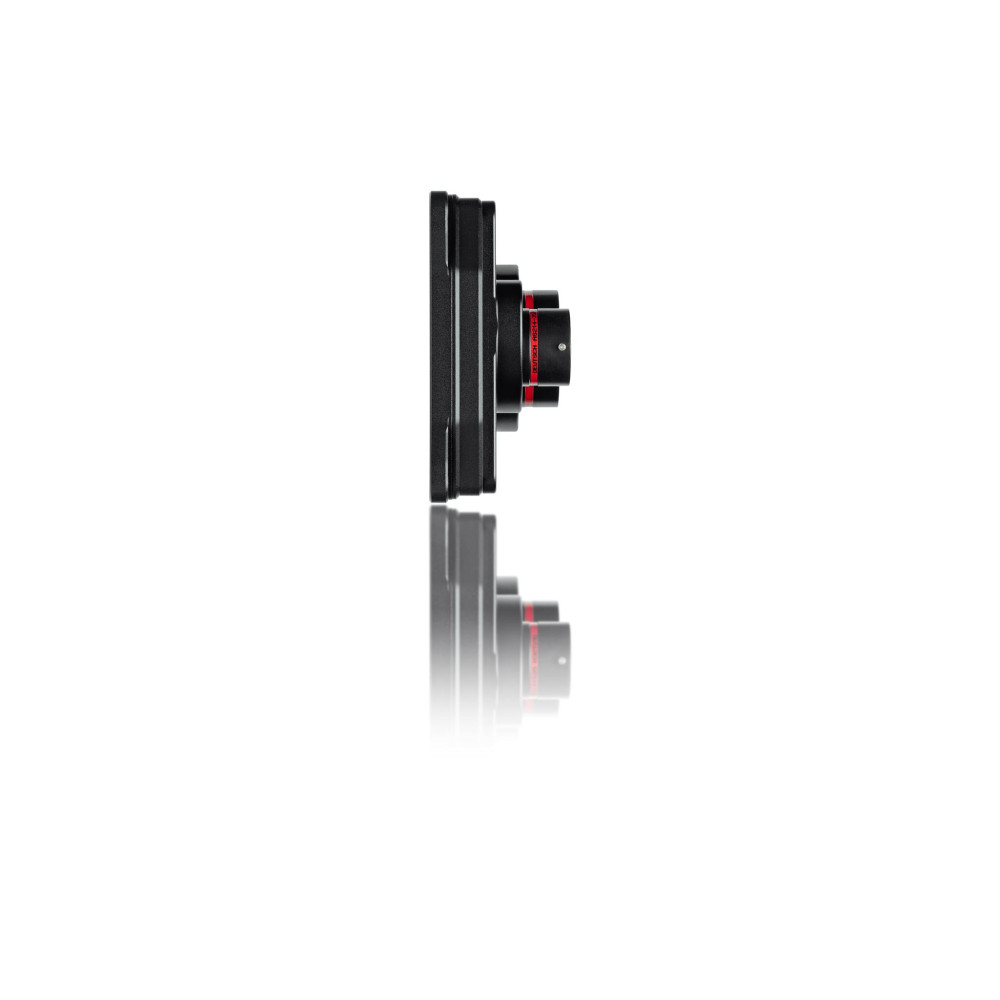

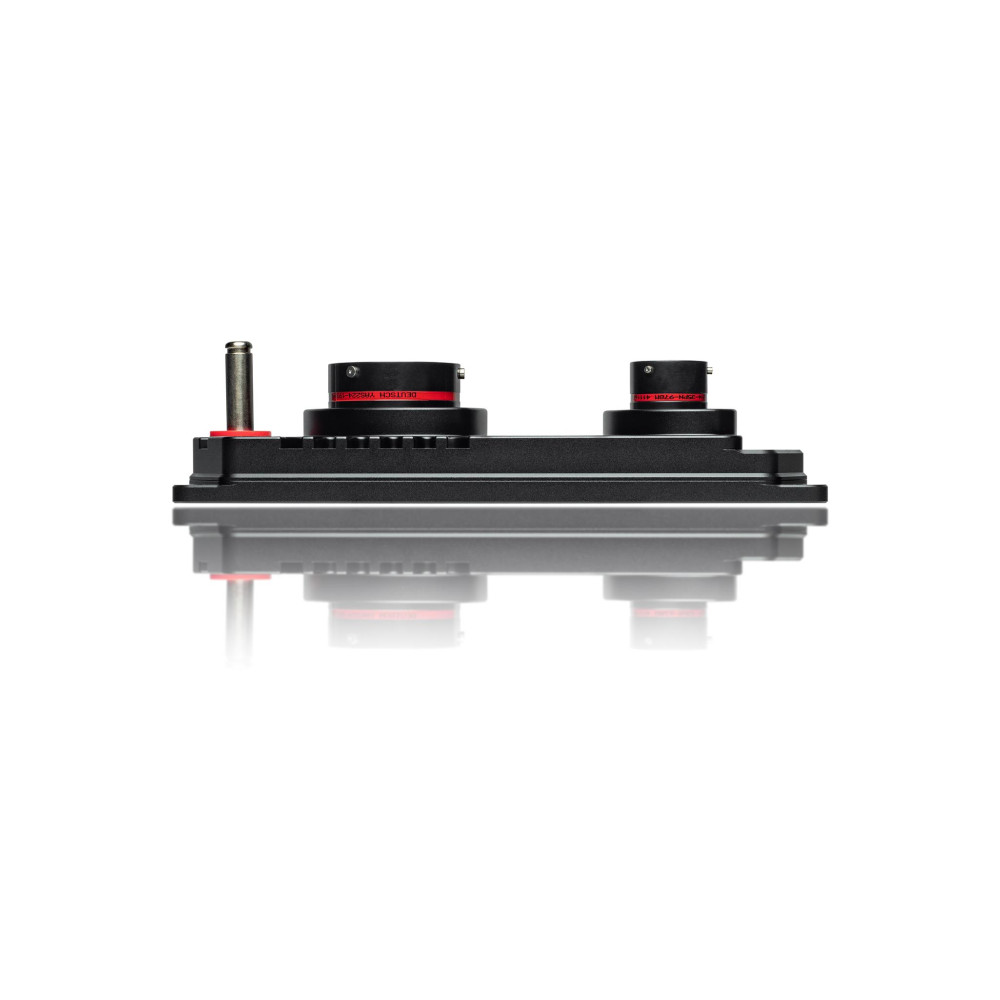

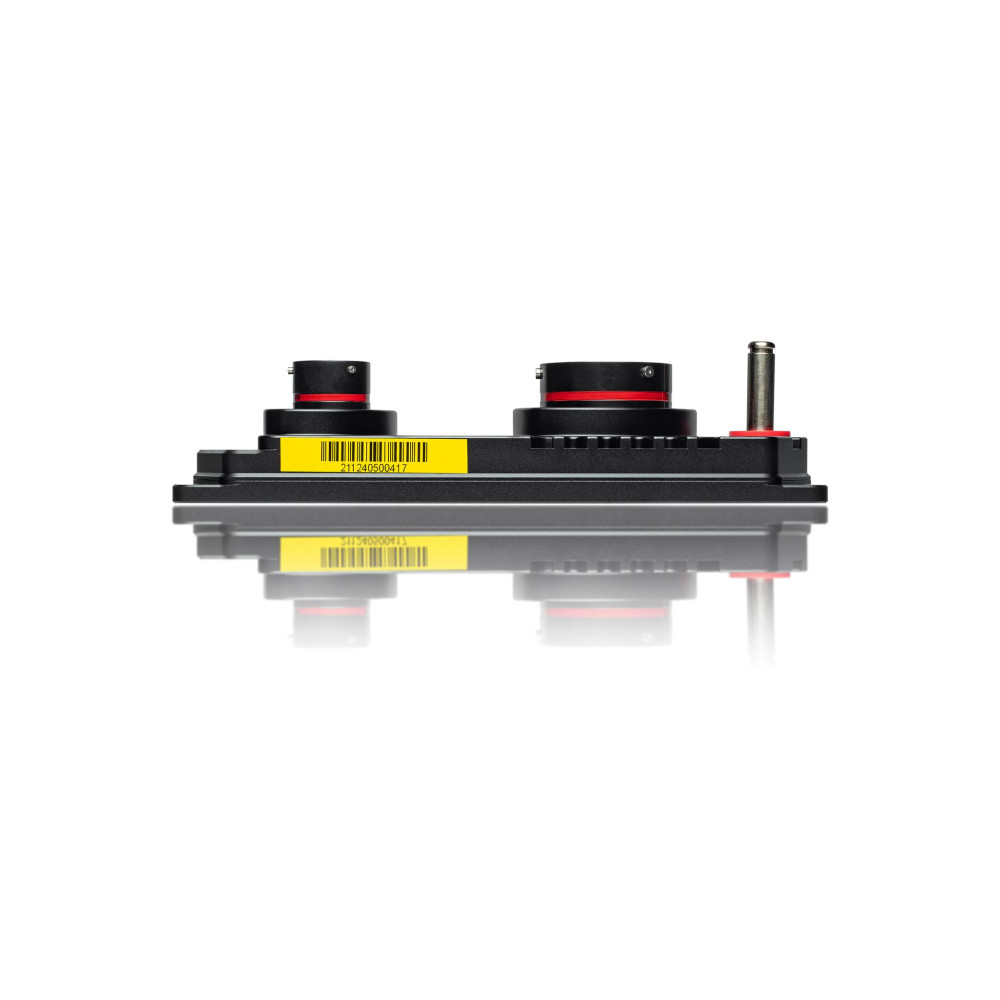

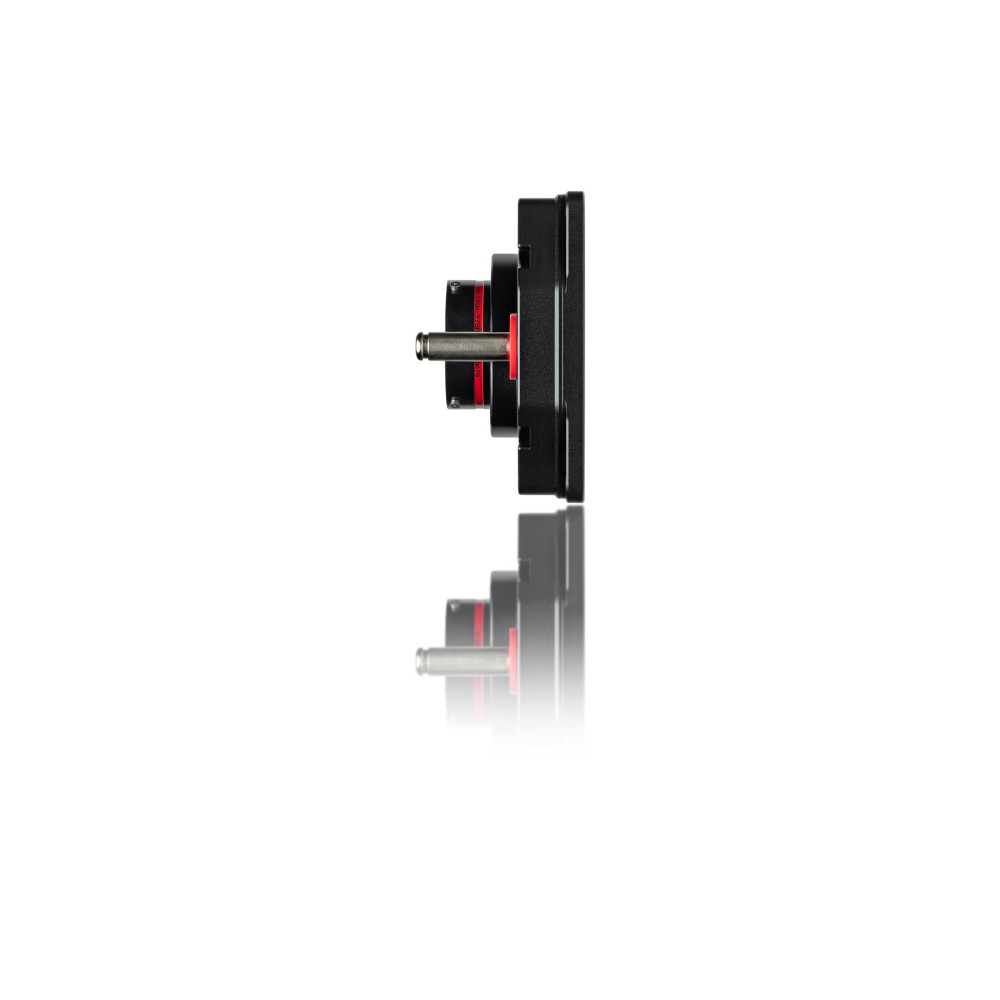

Ecumaster PMU16 Autosport Version

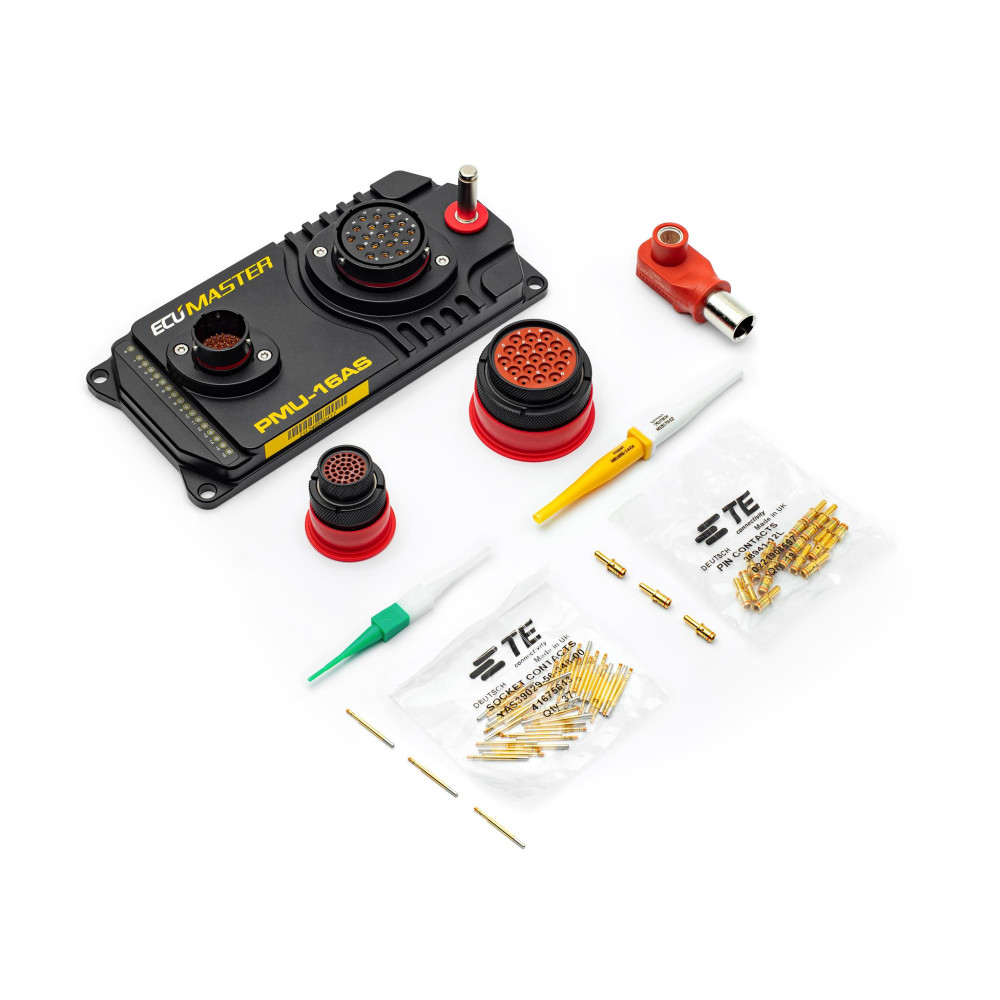

The Ecumaster PMU16 Autosport Version is engineered for demanding motorsport and OEM applications where reliability and robustness are paramount. Featuring premium Autosport connectors, this unit meets the highest standards for professional motorsport and aerospace industries. The battery connection utilizes a Radlok connector rated to 200A, enabling tool-free disconnection. Output is managed via a custom 18-pin, 12AWG connector designed specifically for Ecumaster. The enclosure is CNC machined aluminium with an IP65 rating, ensuring operation in harsh, dusty, or wet environments. Compared to the standard PMU16, this version adds 6 low side outputs (2A/channel), while 14 main outputs are rated at 25A and two at 40A. Mating connectors and terminals are included.

Specifications

• Temperature Range: AECQ100 GRADE1 (-40 to +125°C)
• CPU: 32-bit automotive, 90 MIPS
• Reverse Polarity Protection: Yes, internal
• Operating Voltage: 6–22V, ISO 7637 transient immunity

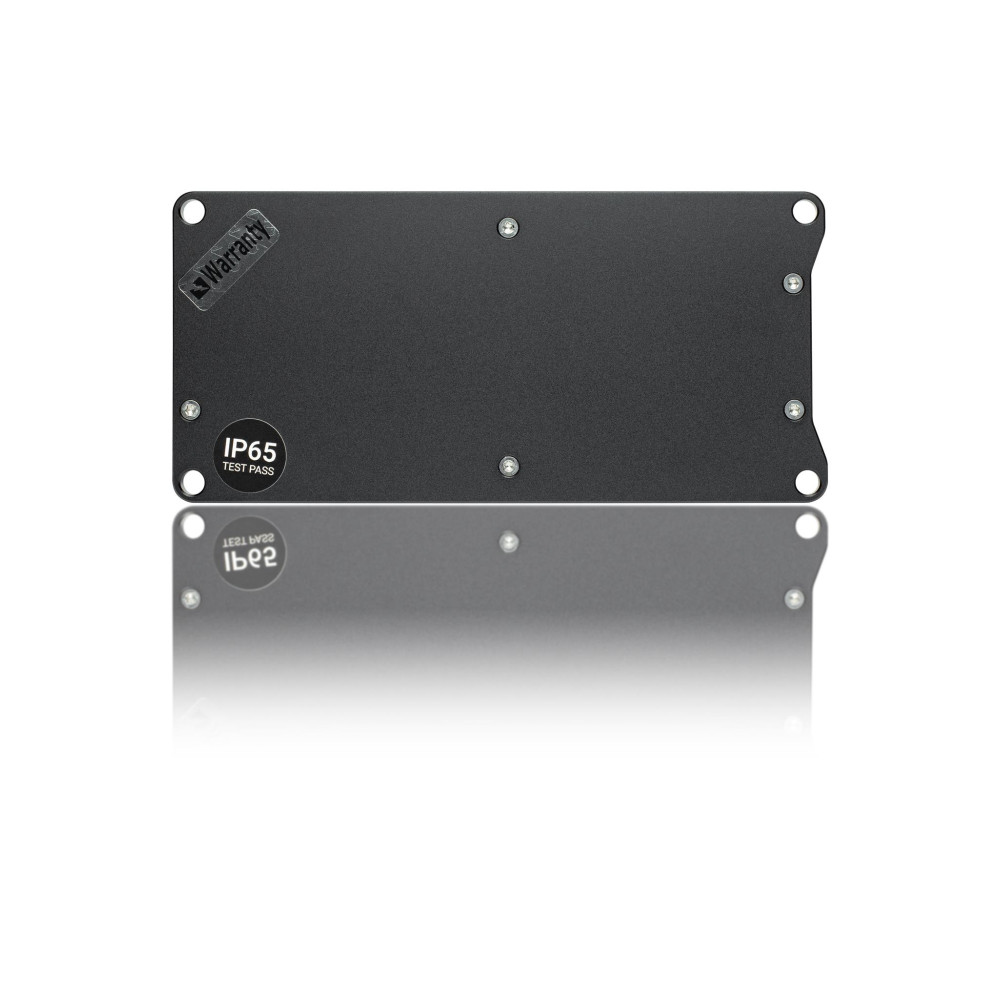

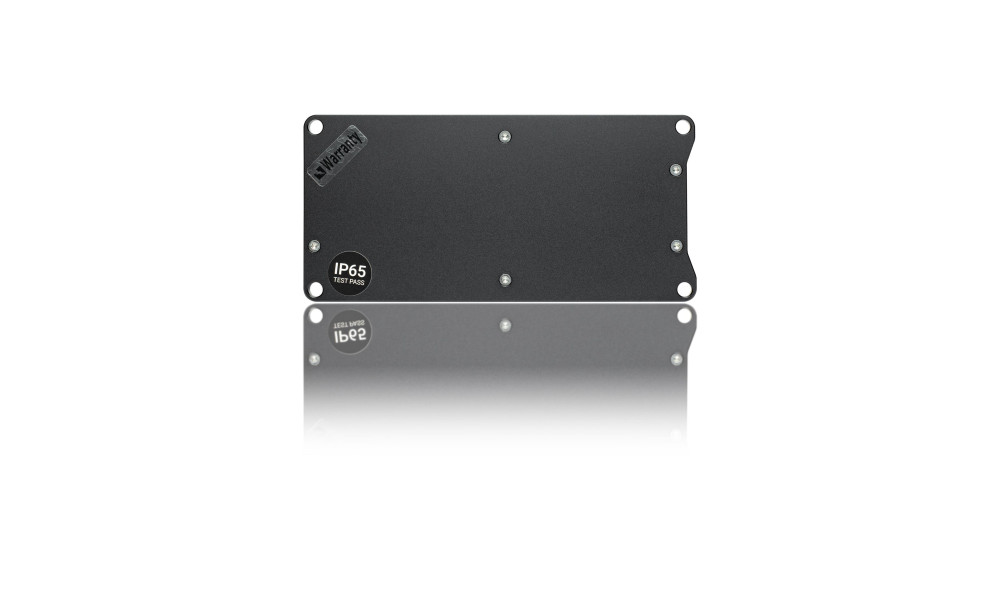

• Enclosure: IP65, bespoke CNC machined aluminium
• Dimensions (mm): 177 x 84 x 46.1
• Weight: 360g
• Connectors: 1 x AS shell size 24 (19 x 12AWG), 1 x AS shell size 14 (37 x 22AWG), 1 x RADLOK 10mm battery terminal
• PC Communication: CAN (ECUMASTER USBtoCAN, PEAK CAN, KVASER)

Outputs

• High Current Outputs: 14 x 25A (continuous), 2 x 40A (continuous) with overcurrent and overheating protection. Outputs can be paired for increased capacity. Current and voltage measured per output.
• Low Side Outputs: 6 x 1A (13A peak) with overload thermal shutdown
• Total Current Output: 200A continuous
• Output Current Control Step: 100mA
• Wipers Output: Dedicated output with wiper braking
• +5V Output: Monitored 5V, 500mA for external sensors

Inputs

• Analog Inputs: 16, 10-bit resolution, 0–5V (protected), software-selectable 10K Ohm pullup/pulldown
• CAN Keypads: 2 x Ecumaster keypads (4, 6, 8, 12 keys), 1 x MoTeC/RaceGrade, 1 x Grayhill

Other Features

• Output State Indication: 16 bicolour LEDs
• Accelerometer/Gyroscope: 3D accelerometer and 3D gyroscope for logging and crash detection
• Real Time Clock: Yes, supercapacitor backup (up to 3 days)

CAN Bus

• CAN Interface: 2 x CAN 2.0 A/B (125, 250, 500, 1000 kbps)
• Input/Output Stream: User-defined, bit masking up to 100 input messages

Logging

• Logging Memory: 256 MB (approx. 3 hours at maximum bandwidth)
• Logging Speed: Variable per channel, up to 500Hz
• Logging to PC: Yes

Functions

• Logical Operators: AND, OR, NOT, XOR, >, <, =, >=, <=, !=, isTrue, isFalse, Toggle, Flash, Pulse
• Number of Functions: 100
• Number of Operations: 250
• Update Frequency: 500Hz
• Special Functions: Wipers, indicators

Note: Ecumaster brand products are not shipped to the USA, Canada, or Mexico.
