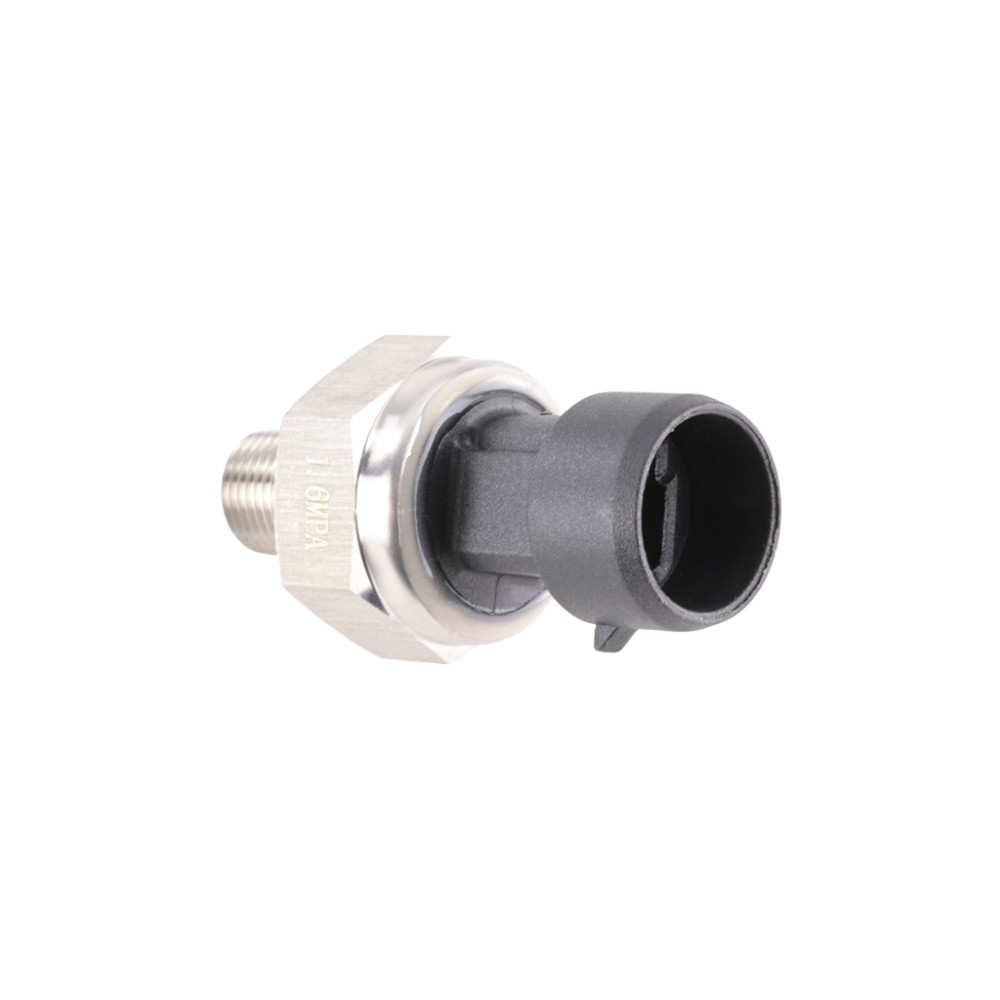

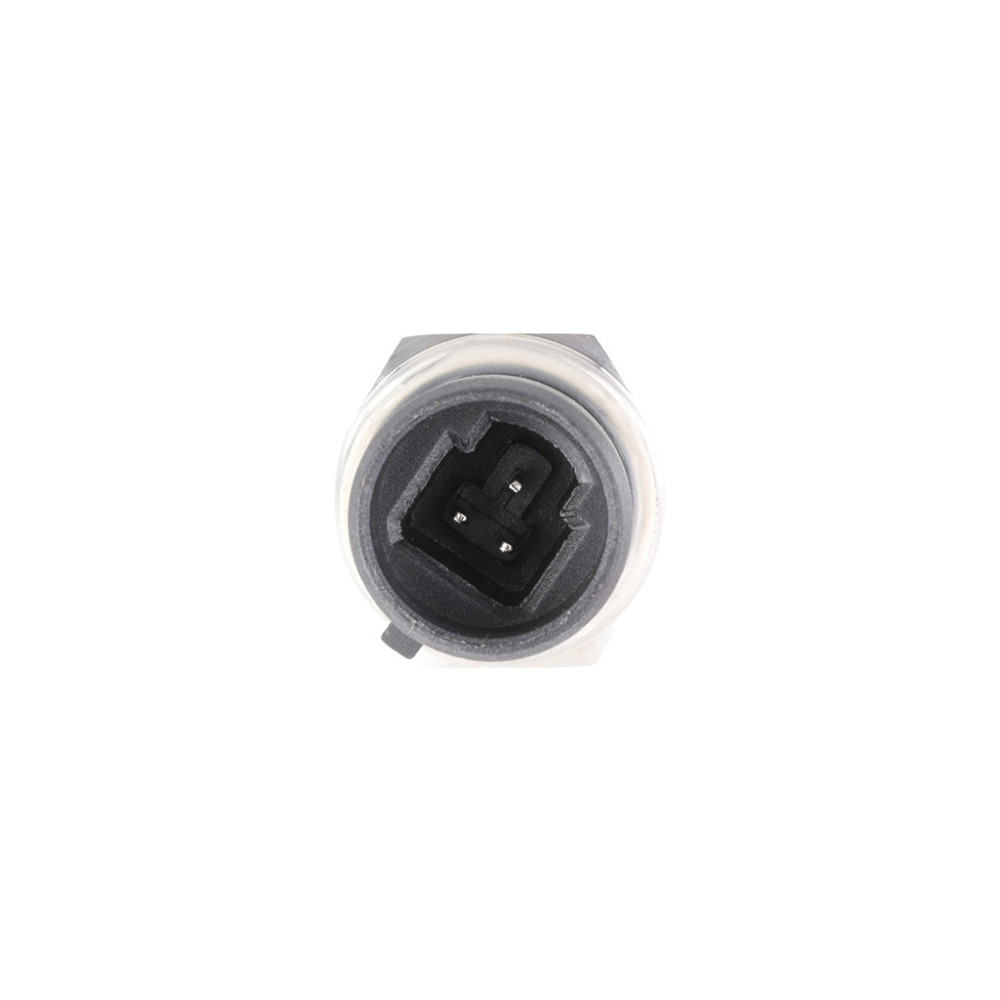

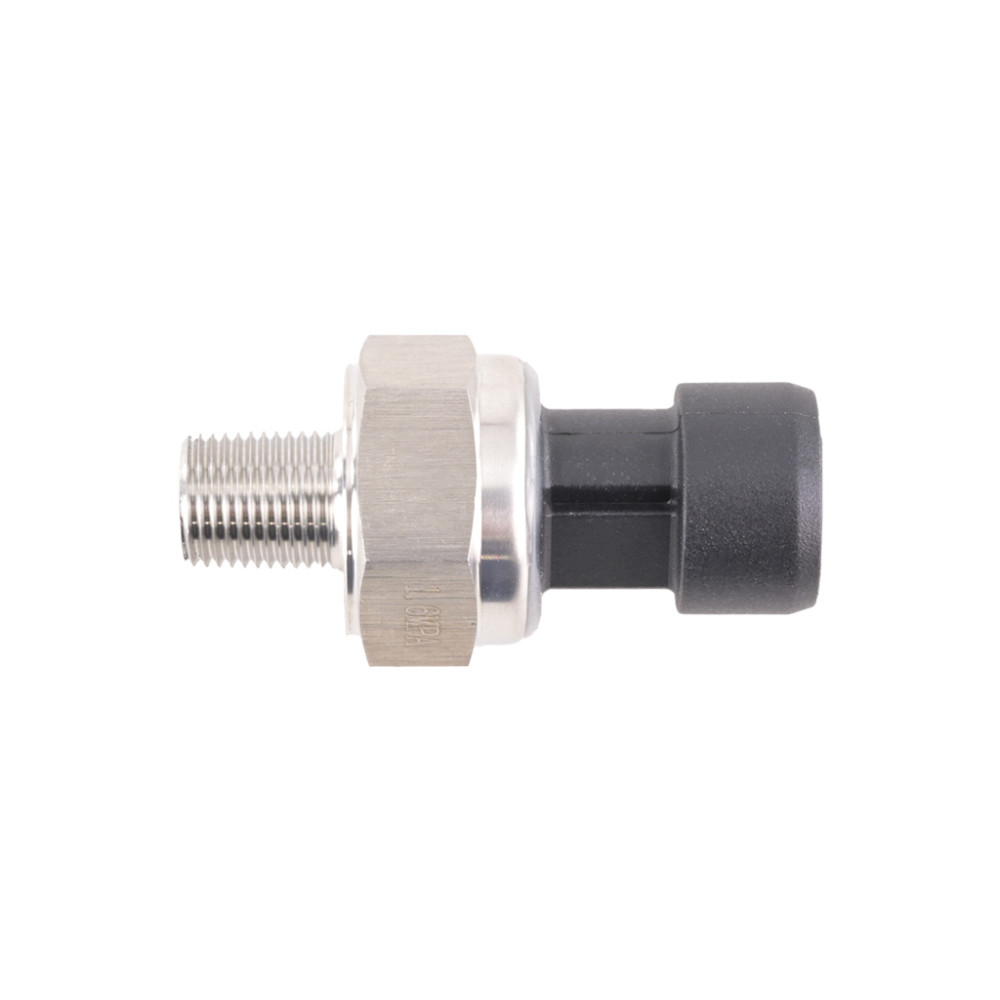

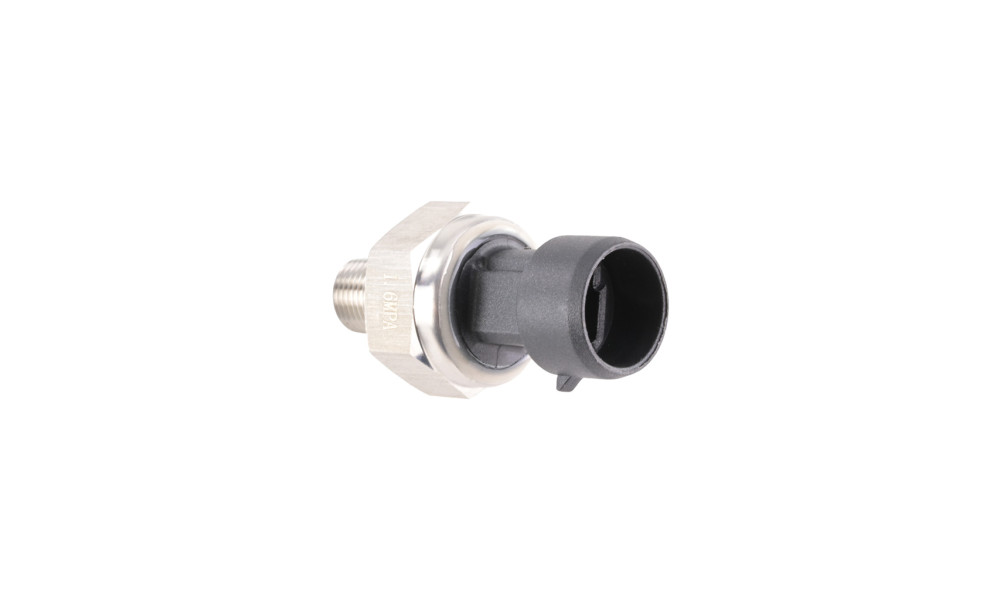

Air and Liquid Pressure Sensor 1/8 NPT 15 Bar

This air/liquid system pressure sensor measures from 0 to 220 PSI (15 bar) and features a linear voltage output of 0.5 to 4.5 V, making it suitable for ECU and gauge applications. It is designed for use with clean, non-corrosive gases and liquids.

The 1/8"-27 NPT thread facilitates straightforward installation in fuel and oil systems. Its high temperature resistance and rapid response time ensure stable and accurate readings.

Specifications:

• Measurement Range (Input): 0–220 PSI
• Output: 0.5–4.5 V linear voltage
• 0 PSI = 0.5 V
• 110 PSI = 2.5 V
• 220 PSI = 4.5 V
• Operating Temperature: -40 to +135°C
• Protection Rating: IP65
• Accuracy: ±1% FS (full scale)
• Thread: 1/8"-27 NPT
• Load Resistance: ≤ (supply voltage − 6.5 V) / 0.02 A [Ω]
• Shock Resistance: 1000 g
• Response Time: ≤ 1 ms
• Insulation Resistance: > 100 MΩ at 500 VDC
