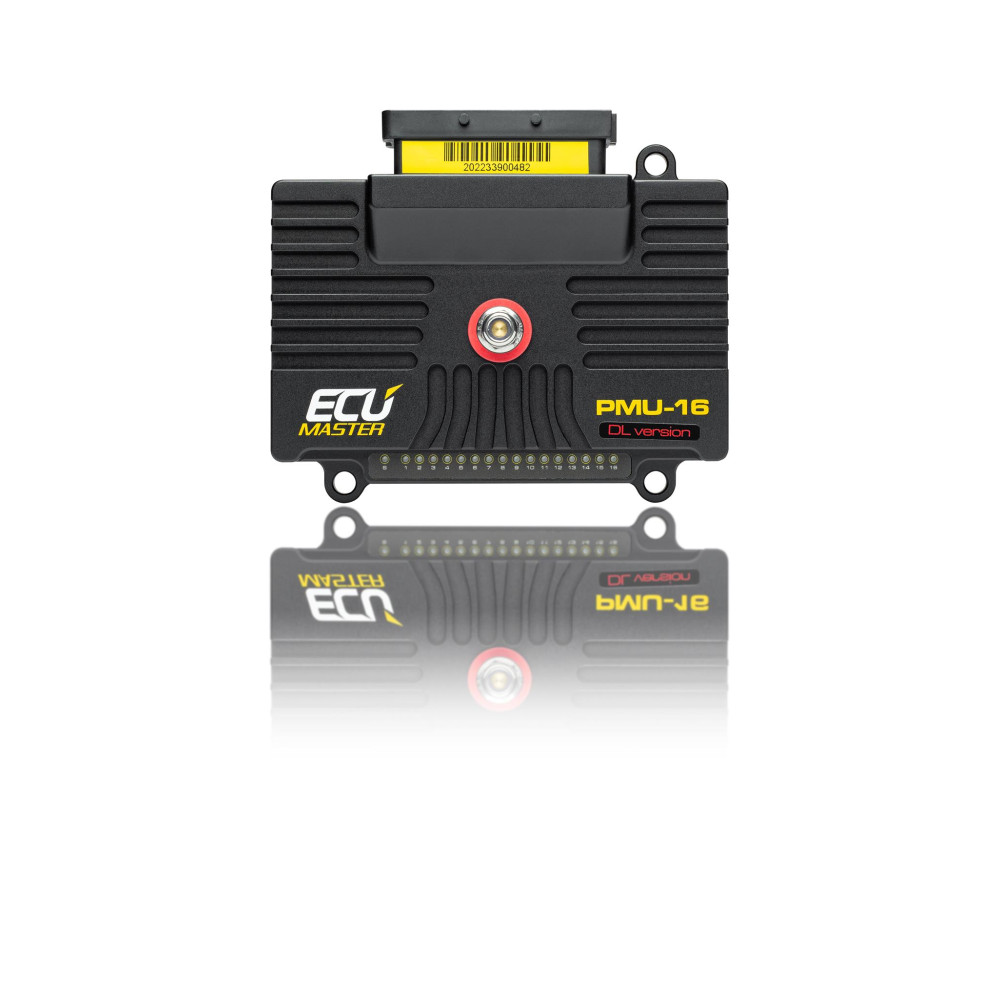

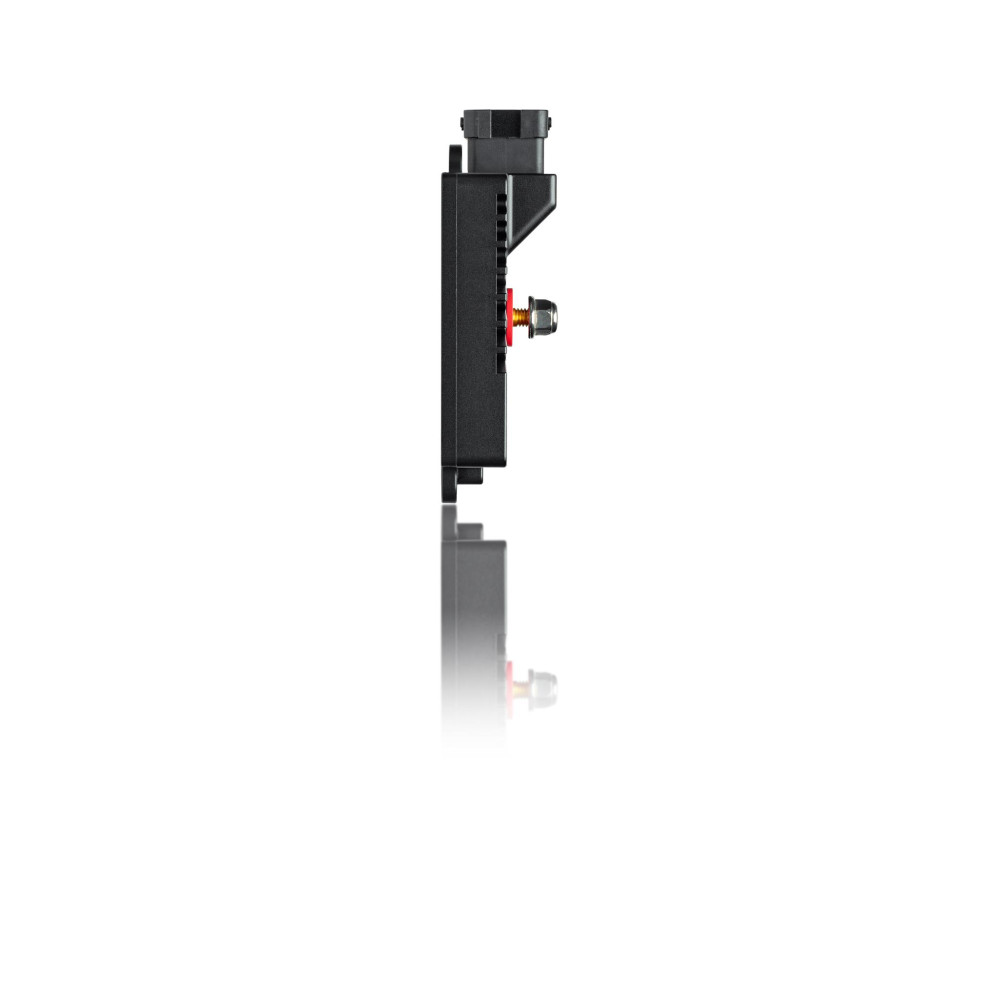

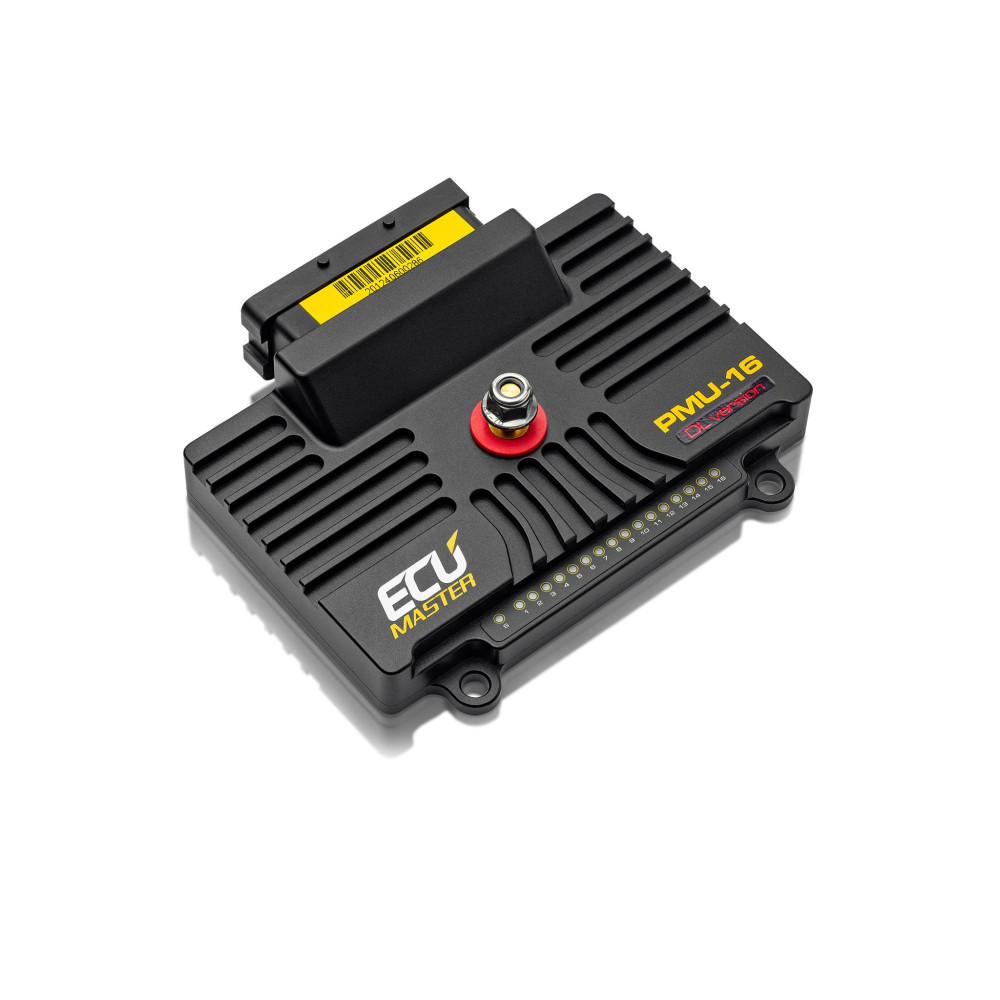

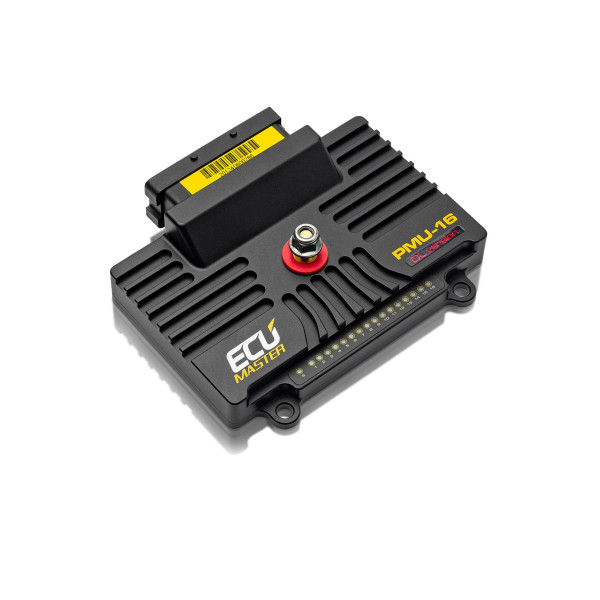

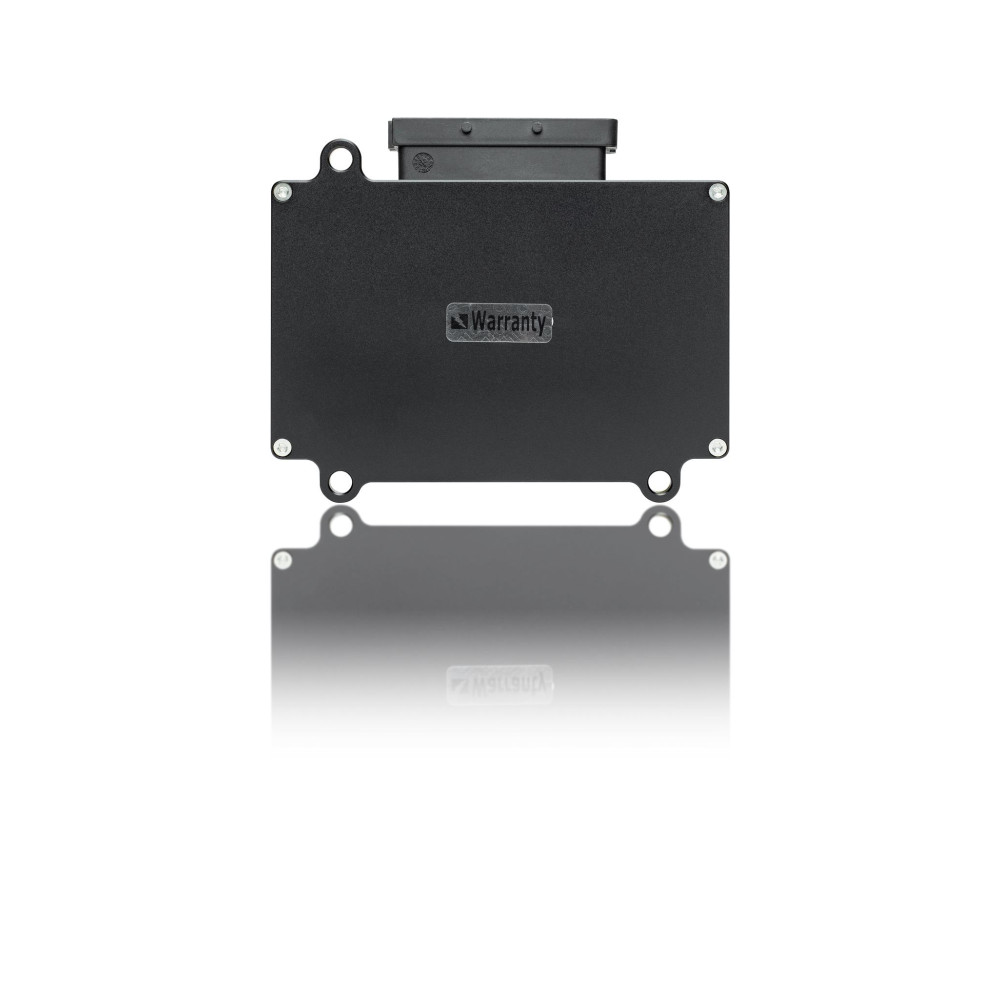

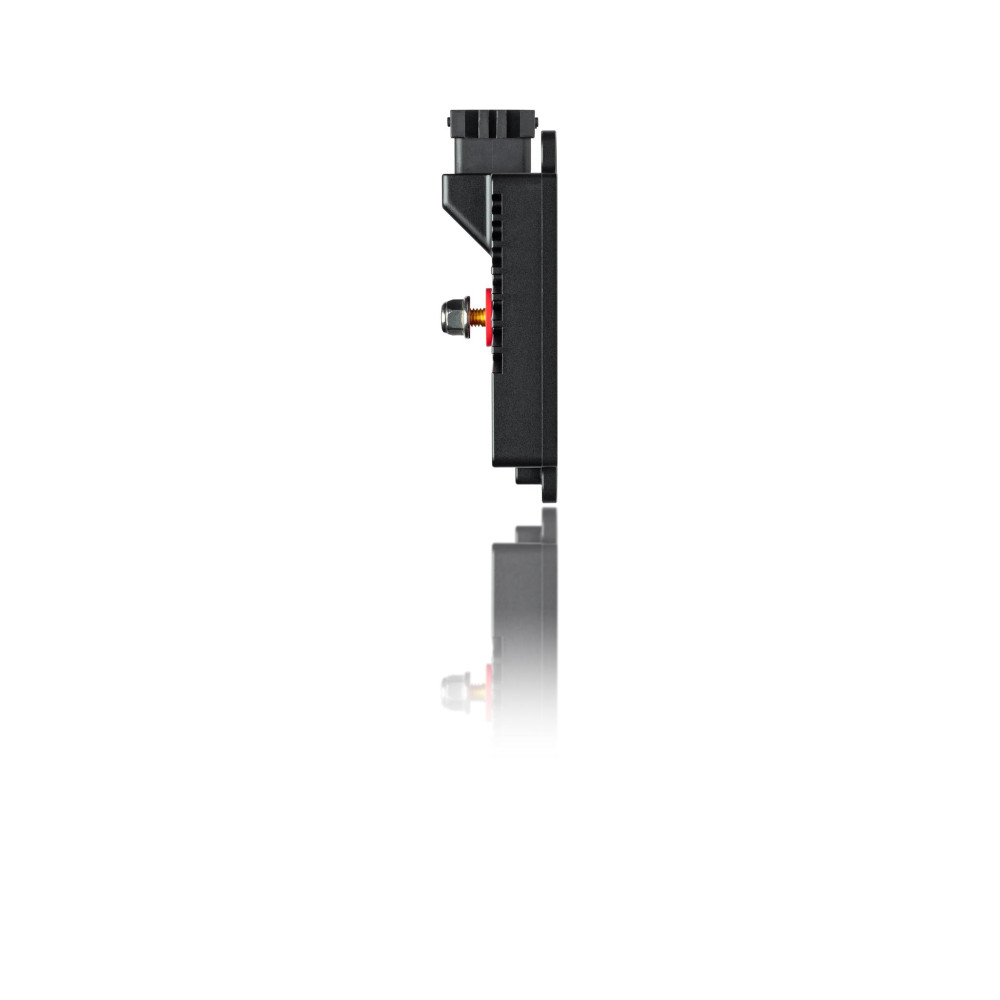

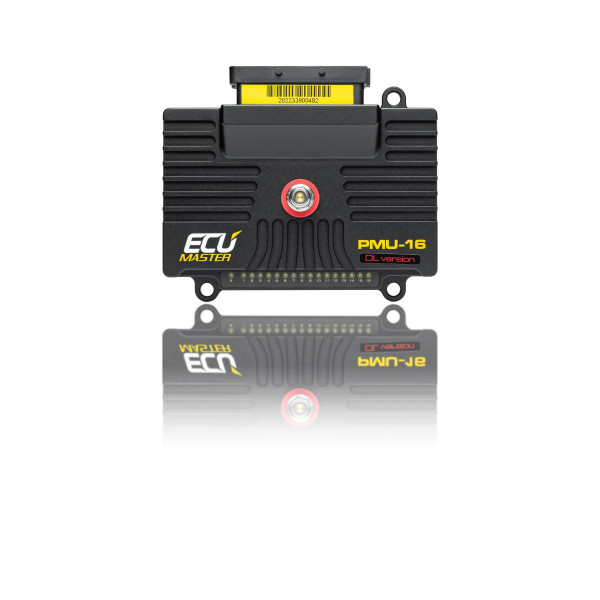

Ecumaster PMU16-DL Power Management Unit

The Ecumaster PMU16-DL is a highly advanced power management solution designed to replace traditional fuse boxes and relays in automotive electrical systems. Compared to the standard PMU16, the PMU16-DL features a robust built-in temperature-resistant memory for high-speed data logging.

• Fully programmable with sequential device switching, automatic restarts in case of failure or overvoltage, and controlled shutdowns during voltage drops.
• LED indicators provide real-time status of individual outputs for clear diagnostics.
• Simplifies vehicle wiring, reduces overall installation weight, and offers enhanced protection against electrical failures.

Technical Specifications

• Outputs: 10 x 25A, 6 x 15A, dedicated wiper output with parking function
• Inputs: 16 x switched
• Communication: 2 x CAN (diagnostics, power consumption, input voltage, errors)
• Other Features: Built-in accelerometers with power-off function during an accident, output status LEDs
• Data Logging: 256MB internal memory (logging up to 500Hz, only on datalogger version)

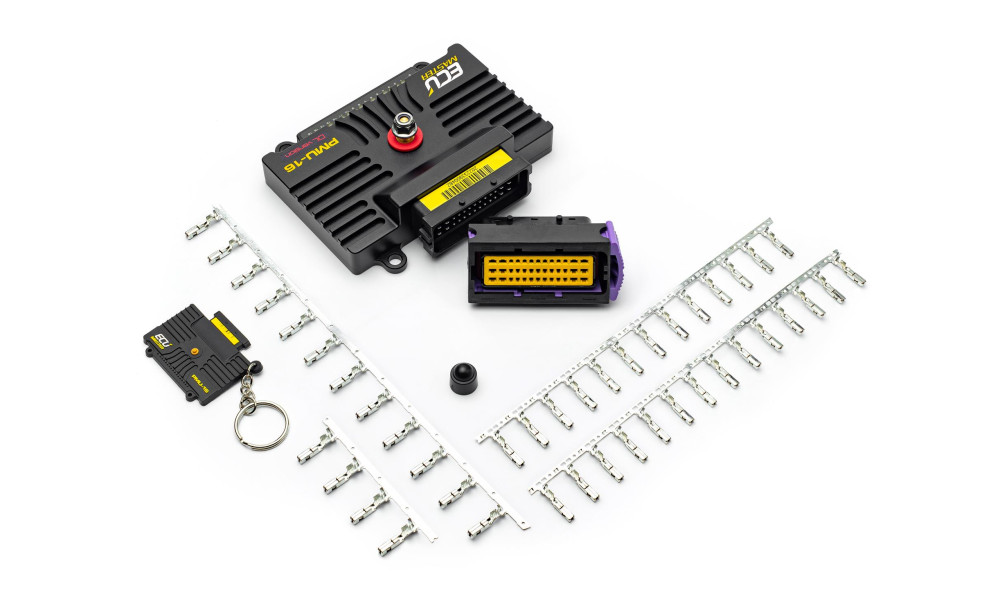

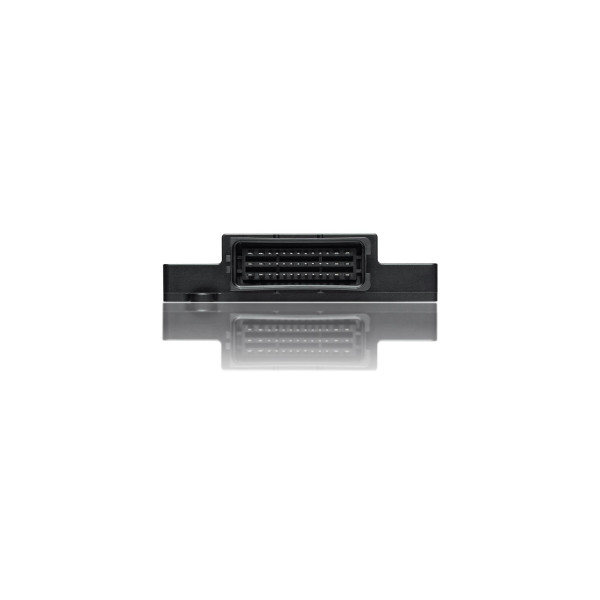

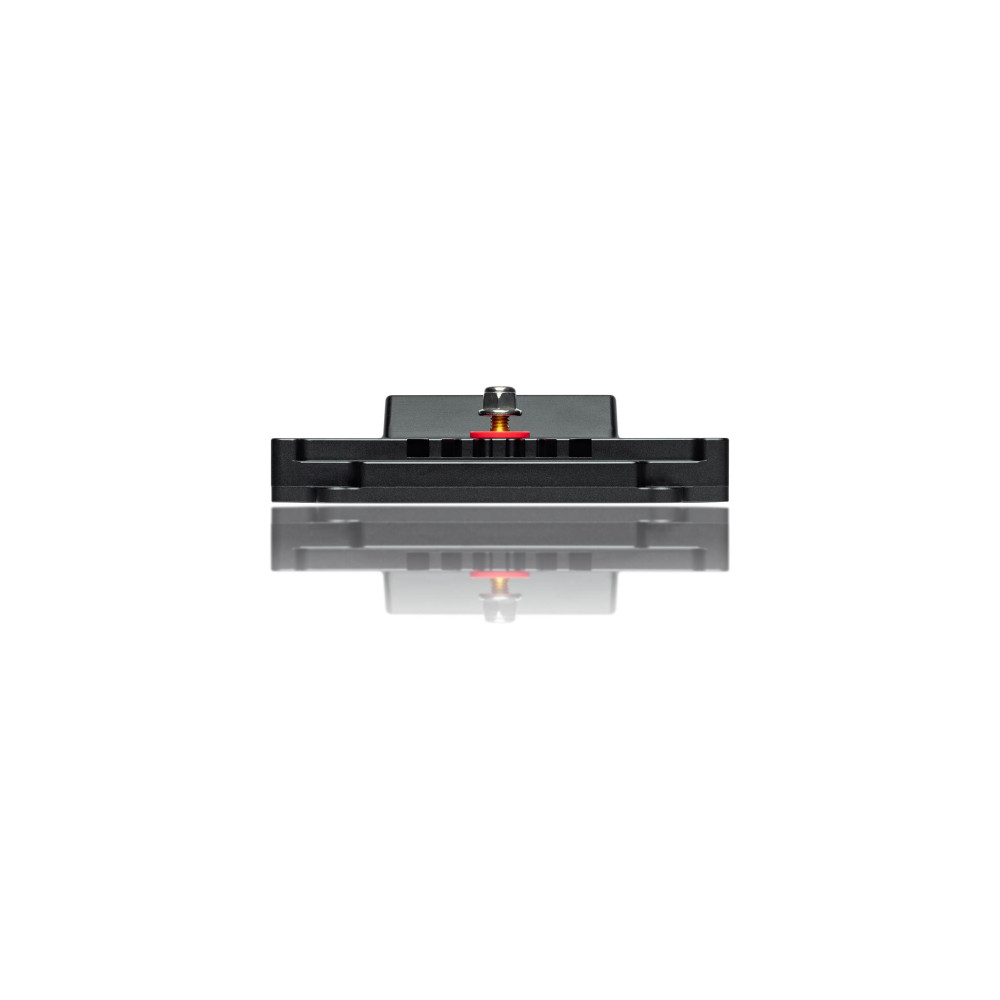

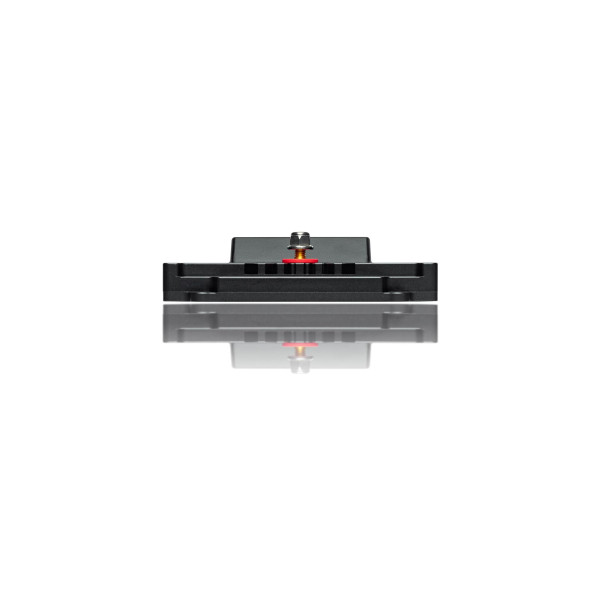

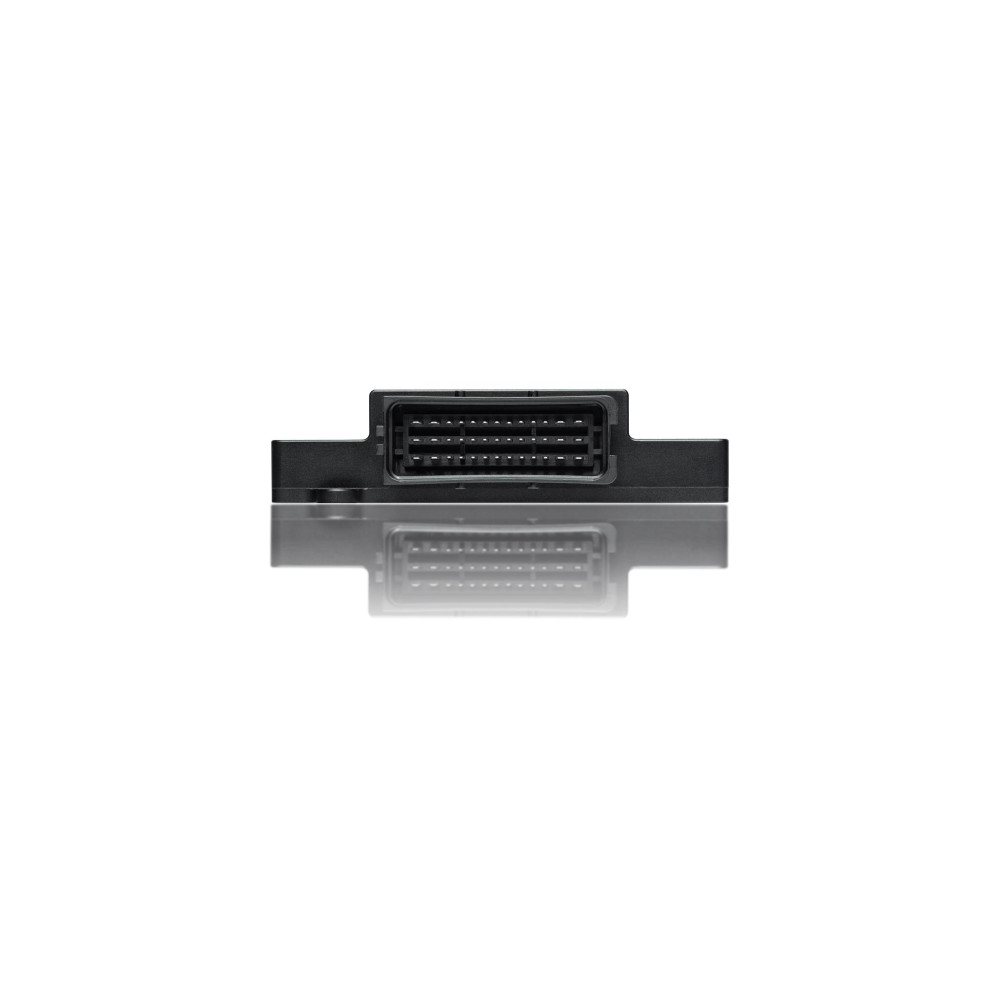

• Connectors: 1 x 39-pin, 1 x M6 stud
• Dimensions: 131 x 112 x 32 mm
• Weight: 345g

Note: Ecumaster brand products are not shipped to the USA, Canada, or Mexico.
