Digital ECU Tuner 3 is the successor of the popular digital pigtop ECU Tuner 2.

Thanks to the use of a more powerful processor and 8Mb DataFlash, it was possible to significantly extend the capabilities of the device.

The main changes include USB port support, two switchable sets of 4 maps with dimensions 16x16, advanced adaptive ignition input, 4 times more accurate DAC converter, off-line logging to DataFlash memory and many, many more.

Features of the device:

• 4 independent 16x16 maps (fuel map, two PWM maps, ignition map),
• 8 correction maps 16x1,
• 2 independent, switchable sets of maps,
• possibility of modifying a single analog signal,
• 4 analog inputs,
• built-in DataFlash enabling logging in without a connected laptop,
• power supply measurement,
• the ability to modify the signal of the frequency flow meter (17Hz-4kHz),
• ignition signal service using inductive, Hall and optical sensors as well as signals controlling the ignition module. The device supports both single ended and balanced signals (differential),
• support for many types of ignition: 60-2, 36-2, 36-1, Multitooth, Ignition Modules,
• operation of turbocharger supercharger control valve,
• support for 4 high-resistance injectors (work in the "full group" system),
• parametric ON / OFF output,
• automatic conversion from MAP to MAF with the use of a learning algorithm,
• starting procedure,
• road dyno,
• calibration capability of any analog sensor, so that analog values ​​can be displayed in their real values ​​(eg signal from the MAP of the sensor in bars, signal from the broadband probe as AFR, etc.),
• the possibility of free firmware upgrade as the device develops (eg new modes of ignition, additional functions),
• communication with the device is carried out using the USB connector
• 24 months warranty for the device

Hardware requirements:

The following minimum configuration is required for correct cooperation with the device.

• Windows 2000, XP, Vista, Windows 7
• Screen resolution of at least 1024x768 16bit,
• A processor with a clock of at least 600MHz,
• USB port

The composition of the set:

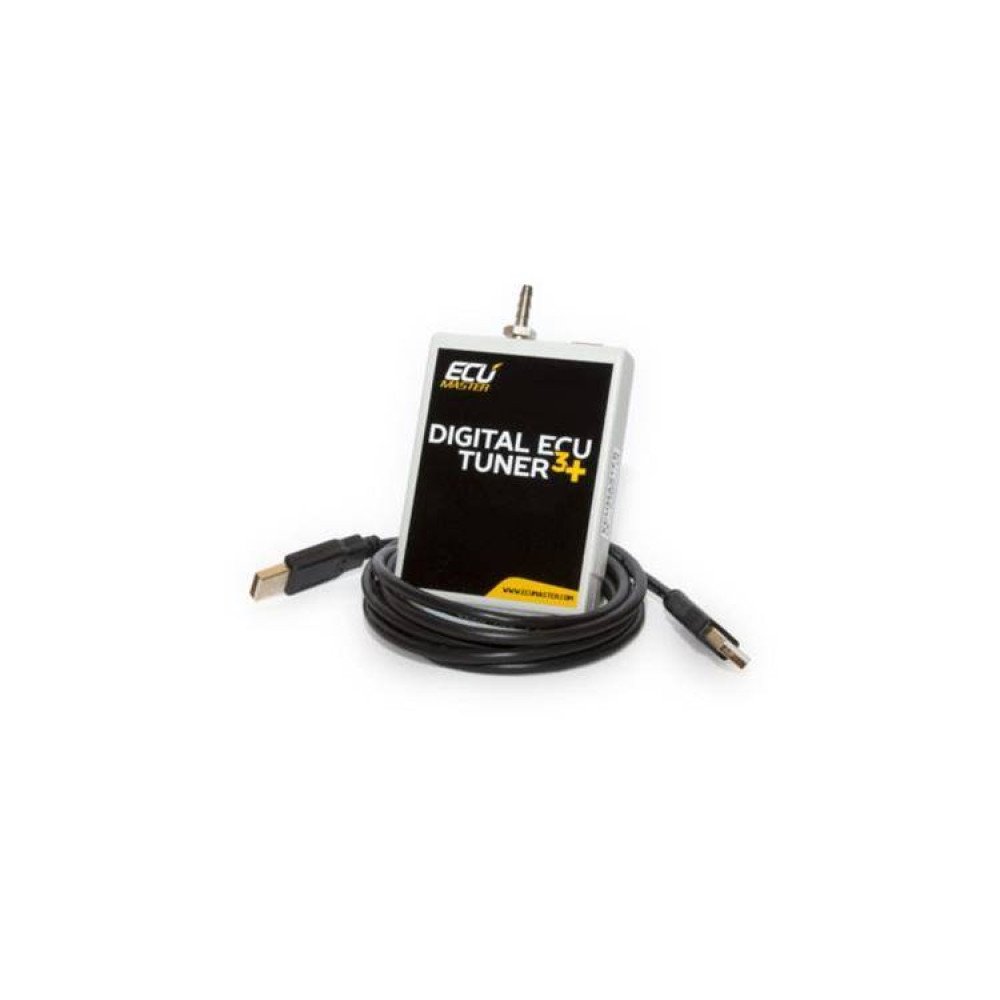

• Digital Ecu Tuner 3 device,
• AA USB cable,
• Plug,
• A set of pins for the plug,
• CD with software, drivers and user's instructions in Polish,
• An additional set of resistors and a rectifying diode useful when installing the device.
