KEY FEATURES
100 pct. Digital Wideband Air/Fuel Ratio Technology
Built-In RPM Converter [Direct Freq. or w/Opt. Inductive Clamp]
Large High-Contrast Graphics LCD
Log Directly To SD Card
OBDII Scan Tool-Read/Clear DTCs and Log Up to 16 Channels
Patented DirectDigital™ Wideband Sensor Control
Playback Log Data On Screen And/Or w/Powerful LogWorks Software
Single or Dual Channel A/F Version Available
Wideband O2 Compatible w/All Fuel Types

DESCRIPTION
Weight 7.0 lbs
SKU 38070

The LM-2 combines an air/fuel ratio meter, a full-function 32-channel datalogger, and powerful software to deliver a complete tuning workshop for less than the cost of one dyno day. Whether you have a piggy-back fuel controller, race carb, aftermarket ECU, ODB-II tuning software, or a flash/chip programmer, an LM-2 is the tool you need to dial in maximum HP. The meter’s award-winning digital signal processing technology provides data on exactly how rich or lean an engine is running at any load. The LM-2’s self-calibrating circuitry also compensates for changes in temperature, altitude, and sensor condition. The LM-2 also features two fully programmable linear analog outputs to connect to analog gauges, dyno computers, ECUs, piggyback controllers, and other devices with analog inputs. With the provided LM Programmer software these analog outputs may also be defined by the user.

KIT INCLUDES

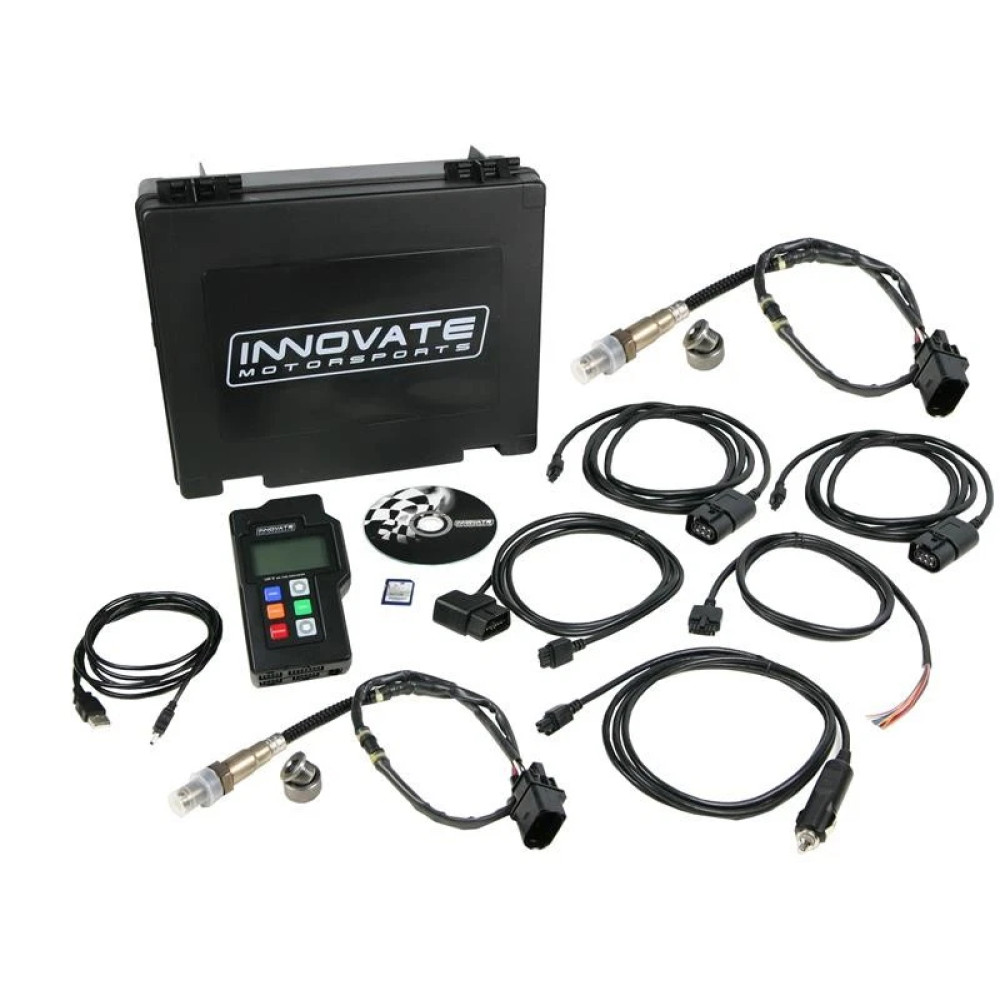

LM-2 Meter, (2) Bosch LSU4.9 O2 Sensors, (2) 8 ft sensor cables, cigarette-lighter power adapter, analog in/out cable, ODB-II/CAN interface cable, SD memory card, USB cable, (2) 1" bung and plugs, Carrying Case, and manual.
