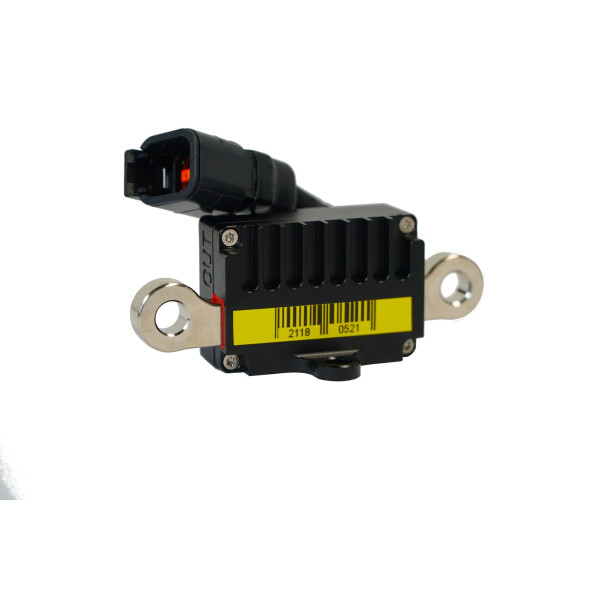

Ecumaster Battery Isolator Club

The Ecumaster Battery Isolator is a motorsport master relay designed for FIA-compliant battery isolation and engine shutdown. Built for harsh motorsport environments, it uses a full solid-state design with no mechanical components for long-term reliability. It includes alternator load dump protection without external components to help prevent damage to sensitive electronics during emergency shutdown.

The isolator is controlled via two external switches and can also be shut down by a CAN-bus message (for example from an Ecumaster PMU16 in the event of an impact). Configuration and diagnostics are available through CAN bus, with built-in protection against overheating and over-current. Status is shown via a multi-color LED indicator.

Key Features

• Weight: 83 g
• Dimensions: 50 mm x 100 mm x 38.5 mm
• Voltage range: 6 V – 19 V (28 V transient) (12 V automotive installations only)
• Operating temperature range: -40 C to +125 C
• Current capability: 300 A continuous, peak up to 1000 A
• Current measurement resolution: 4 A
• Current measurement range: -1000 A to 1000 A
• Current measurement accuracy: ±10%
• Inductive load switching capability: 600 mJ
• Enclosure: anodized aluminium, IP67 rated
• High current terminals: M8 nickel plated terminals or Radlok connectors
• Signal connector: Deutsch ASX202-06PN (mating plug ASX602-06SN included)
• Power save state current consumption: <1 mA
• ON state current consumption: ~20 mA
• Engine kill output: 1.5 A continuous, High (VBat), Low (GND) or Hi-Z

In the Box

• 1x Ecumaster Battery Isolator Club
• 1x DTM06-6S connector
• 6x Terminal AT62-20-0122

Note: Ecumaster brand products are not shipped to the USA, Canada and Mexico.
