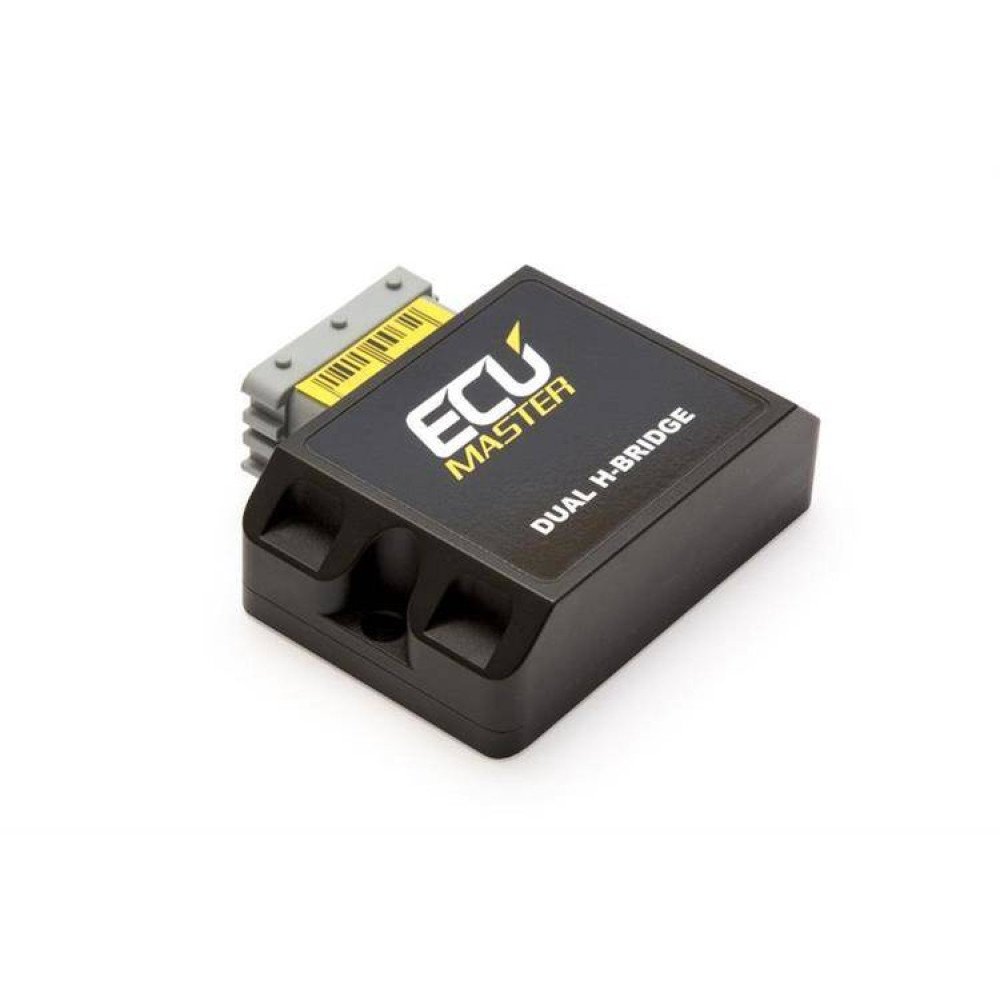

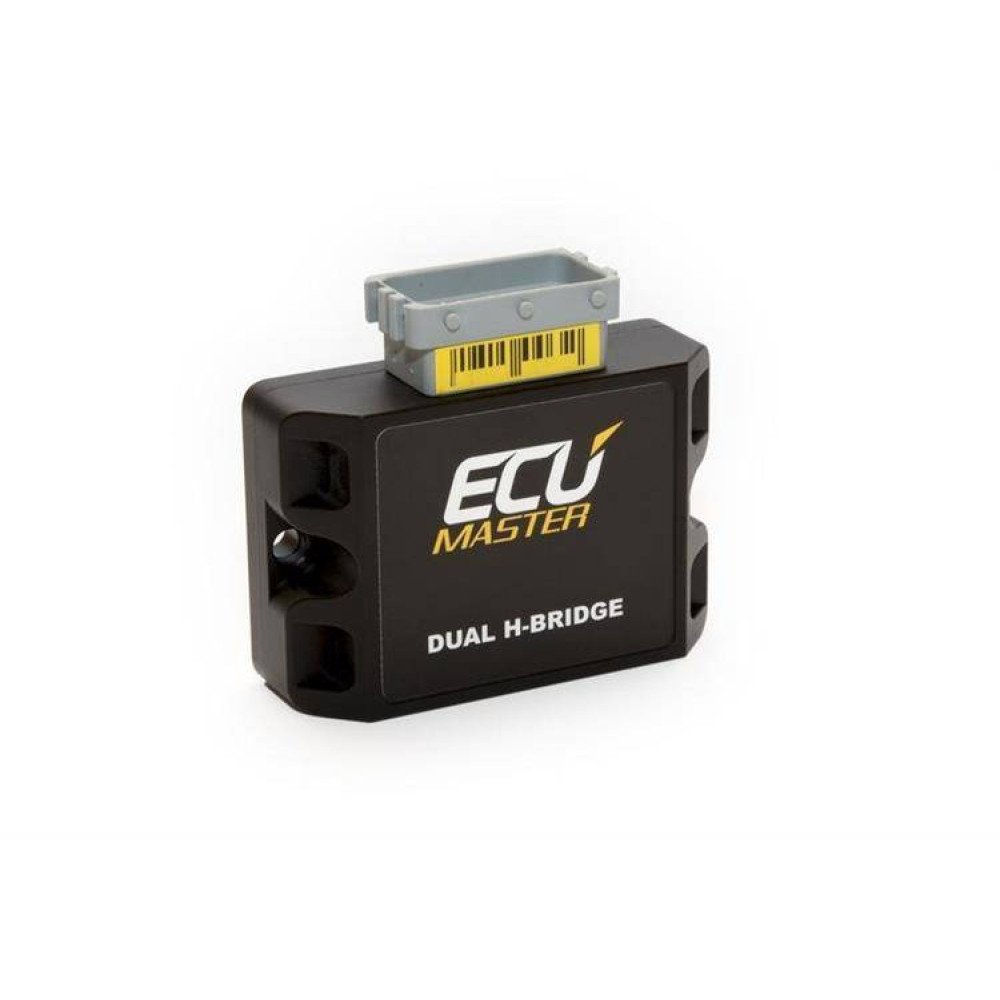

Ecumaster Dual H-Bridge module.

The CAN H-Bridge device contains two independent H bridges with overcurrent and short circuit protection, capable of a continuous 10 A current and a 30 A peak current. H-bridges can be controlled using device inputs or CAN bus messages.

  • Voltage range: 6V - 28V (car installations 12V and 24V)
  • Output current: continuous 10A, peak 30A
  • 4 analogue inputs (0-5 V) / digital (35 Hz - 200 Hz PWM)
  • PWM output: 12 bits 3.9 kHz

The CAN H-Bridge device can be used to provide a secured low voltage (GND) or high (VBat) power supply independent of each of the 4 outputs for bi-directional DC motor control. The low side value outputs can be PWM modulated based on the bridge.

Typical use cases are:

  • Electric windows
  • High-current electronic throttle amplifier

The double H-Bridge device must be programmed via the CAN interface. You can use ECUMaster USB to CAN, Kvaser or Peak PCAN.

What's in the box?

  • Can H-Bridge Module
  • 24 position connectors with terminals

Universal Part: This product fits multiple vehicles (universal application).

Vehicle Compatibility

Brand Model Generation / Chassis Engine
Universal - - -
ECUMASTER

ECUMASTER

ECUMASTER: The Ultimate Engine Management Solution for Car Enthusiasts Unlock the full potential of your vehicle with ECUMASTER, the premier engine management system designed specifically for car enthusiasts. Whether you're tuning for performance or optimizing for efficiency, ECUMASTER provides the advanced features you need to elevate your driving experience. Key Features and Benefits: - Advanced Tuning Capabilities: Tailor your engine's performance with precision tuning options that allow for custom maps and adjustments. - User-Friendly Interface: Navigate effortlessly through the intuitive software, making it easy for both beginners and seasoned tuners to optimize their setups. - Real-Time Data Monitoring: Keep track of critical engine parameters with real-time data logging, ensuring your vehicle runs at peak performance. - Wide Compatibility: ECUMASTER is compatible with a variety of vehicles, making it the perfect choice for any car enthusiast looking to enhance their ride. - Robust Support Community: Gain access to a dedicated community of users and experts, providing valuable insights and assistance for your tuning journey. With ECUMASTER, you can transform your vehicle into a high-performance machine that meets your specific needs. Don’t settle for ordinary; take control of your engine management today. Experience the difference that precision tuning can make—order your ECUMASTER now and start your journey towards automotive excellence!

Ecumaster Dual H-Bridge Module for Advanced Motor Control

  • ECUMASTER
  • Brand: ECUMASTER
  • Product id: 52264
  • MPN: EM-EC-013
  • Availability: In Stock
  • 340.28€

  • Excl. VAT: 281.22€
