CANchecked MFD15 Gen2 CAN Display Kit for Porsche 991.2

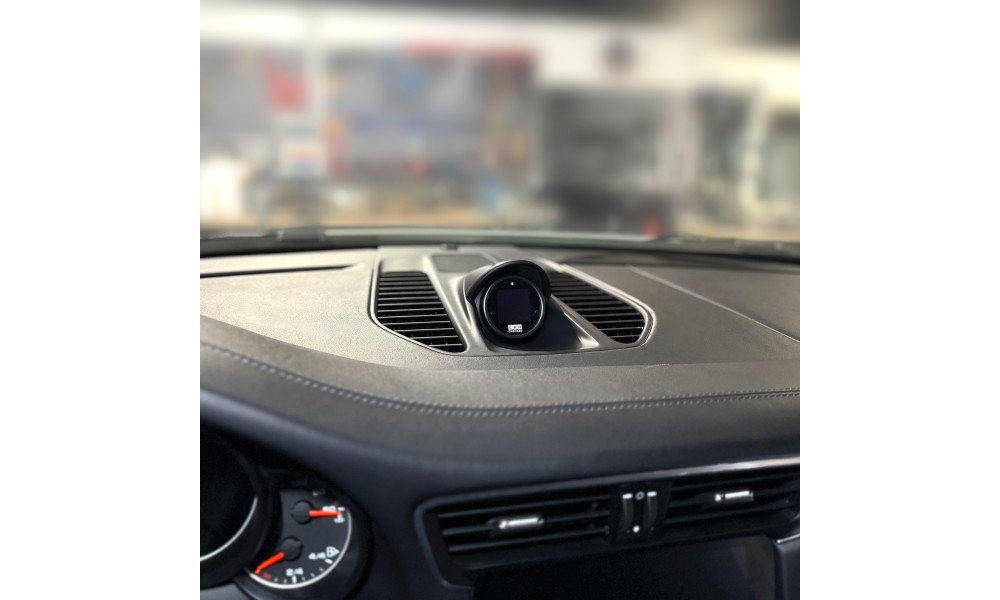

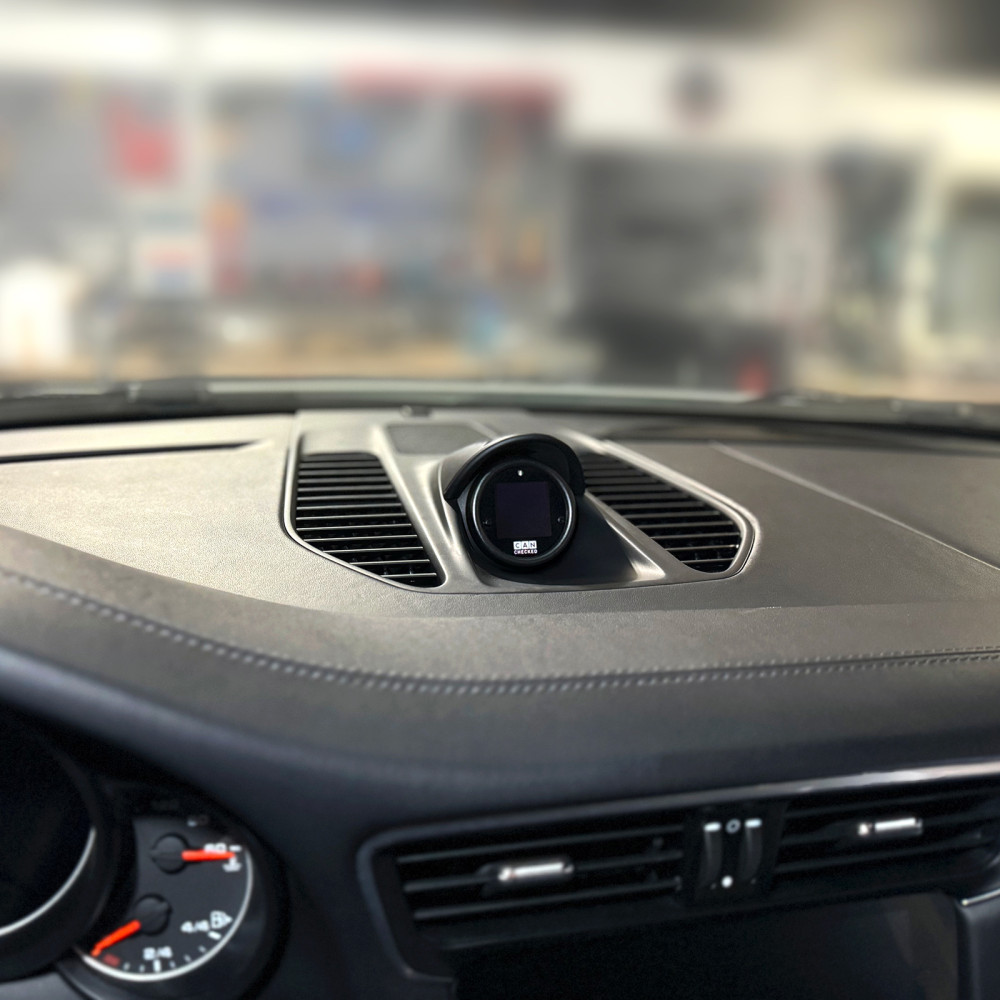

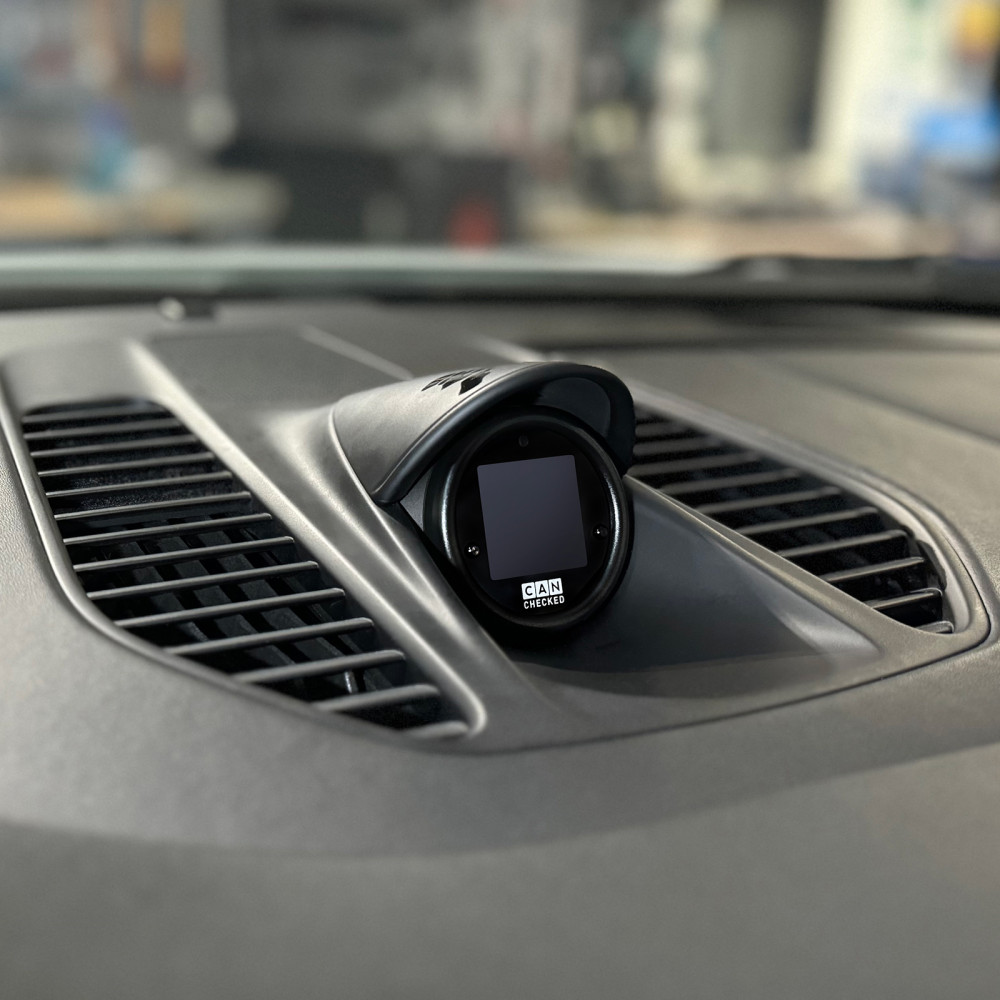

The CANchecked MFD15 Gen2 is a compact, vehicle-specific data display for the Porsche 991.2, supplied with a model-specific bezel and connection kit. The OLED screen remains easy to read even in direct sunlight. Operation is via the two front push buttons, with support for an optional external rotary knob.

Key features

• Compact size: 52 mm diameter, 12.5 mm depth
• Front LED: configurable as shift light and/or warning LED
• CAN support: works with CAN ECUs, custom CAN streams, and OBD2 (from 2008); supports in-depth VAG data queries by protocol where available
• WiFi configuration: set up via smartphone or PC using the web app (oDSS)
• Analog inputs: up to 6 analog sensors (linear 0–5V or NTC); optional direct ethanol sensor connection with license
• Preset alarms: predefined alerts can be enabled and customized (e.g., exhaust gas temperature alert above 900°C)
• Customization: upload a startup logo and set a custom color scheme
• Online logging: logging via smartphone/PC (license required)
• Flex fuel: display ethanol content and temperature (license required)
• CAN switching / AIN forwarding: switch CAN functions via buttons/rotary knob and forward analog input readings to CAN (license required)

Display pages (views)

You can configure up to eight pages and choose from multiple layouts, including:

• Analog pointer
• Double value
• Gear indicator
• 4-fold values
• 6-fold values
• Bar + double display
• Round display
• Bar graph (double across)
• Performance Meter
• Bar chart (1–6-fold upright)
• Single value

WiFi setup with oDSS

The MFD15 Gen2 can be accessed via WiFi for setup on a smartphone or PC. Using oDSS, you can fully configure the display, upload a startup image, update the display, and log values (logging requires a license).

CAN/OBD support and supported ECUs

The display is compatible with ISO 11898-2 and SAE J2284. The values available depend on what your ECU publishes on CAN; DBC documentation may be required and can be imported via DSS. Depending on the manufacturer, up to 64 sensors can be queried.

OBD2 queries over CAN (11-bit/29-bit) are implemented, and vehicle-specific protocols such as UDS or TP2 are also available.

Included by default:

• OBD2 (11-bit and 29-bit)
• Ecumaster (Classic and Black)
• VAG PQ34
• Haltech v2
• LinkECU
• MaxxECU
• Motec M1
• Emtron
• Megasquirt 2 and 3

If your ECU is not listed, the appropriate TRI/TRX can be downloaded or requested from the database.

For VAG vehicles from model year 2008 (in some cases older), in-depth protocol-based queries are offered, including values such as oil temperature, boost pressure, transmission temperature, cylinder-selective ignition angle correction, high/low pressure, wastegate actuation, and more.

Integrated LED (shift light / warning)

The internal LED can be configured as:

• Shift light: up to 8 colors, RPM thresholds, and a configurable flash point
• Warning LED: per-sensor min/max limits; if exceeded, the LED flashes in the configured color and the shift light is disabled during the warning

Included in the kit

• MFD15 Gen2 data display
• Vehicle-specific bezel for LHD and RHD vehicles
• Vehicle-specific connection cable
• Quickstart guide
• Connector B (6-way Molex)
• Connector C (12-way Molex)
• Pre-assembled connection cables (20 cm) for power supply, CAN bus, analog inputs, 5V, and sensor ground
• Crimp pins
• Two 1K resistors (NTC sensor pull-up)

Analog inputs and preconfigured CANchecked sensors

Six analog inputs support linear 0–5V and NTC sensors. CANchecked sensor characteristic curves are stored from the factory for plug-and-play operation:

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K exhaust gas temperature transducer (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost pressure sensor 0–5.5 bar absolute (BST01)
• AIN5: Not preconfigured
• AIN6: Not preconfigured

A pre-assembled 4-way AIN harness can be used for connection. With the appropriate license, an ethanol sensor can be connected directly via a separate pin.

Optional accessories

• CC22501 ETK01: External rotary knob with PnP 50 cm connection cable
• CC22100 CBD08: Eight-way CAN distribution hub
• CC22780 ANC04: Four-way AIN harness
• CC22902 NTC01: Temperature sensor for liquids, 1/8 inch NPT
• CC22903 TCC01: Type K transducer, 0–1250°C
• CC22901 FLP01: Pressure sensor 0–10 bar (145 psi), M10x1
• CC22900 BST01: Pressure sensor 0–5.5 bar absolute (80 psi)

Additional licenses

Live Logging

With the “Live Logging” license, the display logs sensor data into oDSS and can be downloaded to a smartphone or PC. All sensors are logged, but for OBD and UDS only the currently displayed sensors are logged.

Flex Fuel (ethanol sensor directly on the MFD15 Gen2)

With the ethanol sensor license, the sensor connects directly to the display. A 10K pull-up resistor is required between 5V and the signal. Ethanol content and fuel temperature can be displayed and logged.

CAN Switching and AIN forwarding

With the CAN Switching/AIN forwarding license, the display buttons or rotary knob can switch CAN functions and forward analog input voltages to the CAN bus.
