MFD28 VW T6 LHD Display

This MFD28 Gen2 data display integrates into the instrument cluster with a custom frame and reads ECU data directly over the vehicle CAN bus. The manufacturer-specific CAN protocol is tuned for fast sensor querying and is designed to look and fit like an OE-style interior component.

Key features

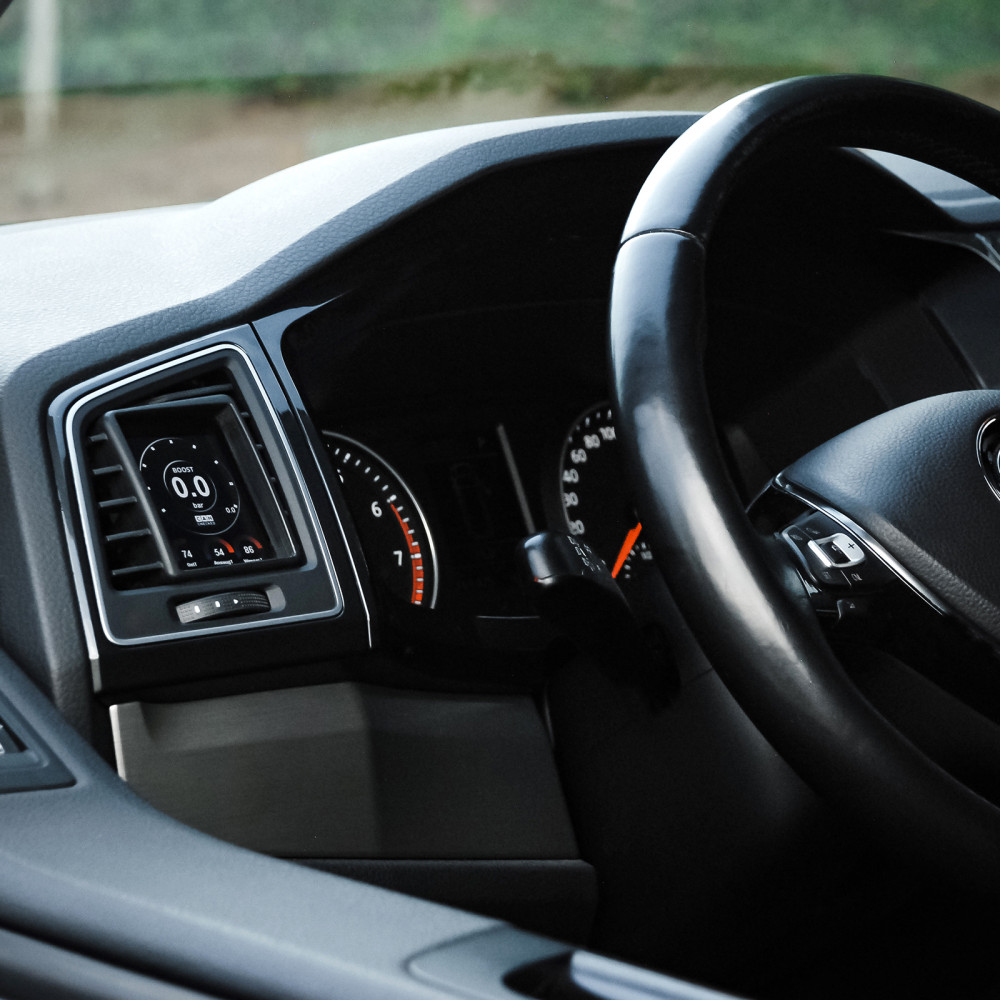

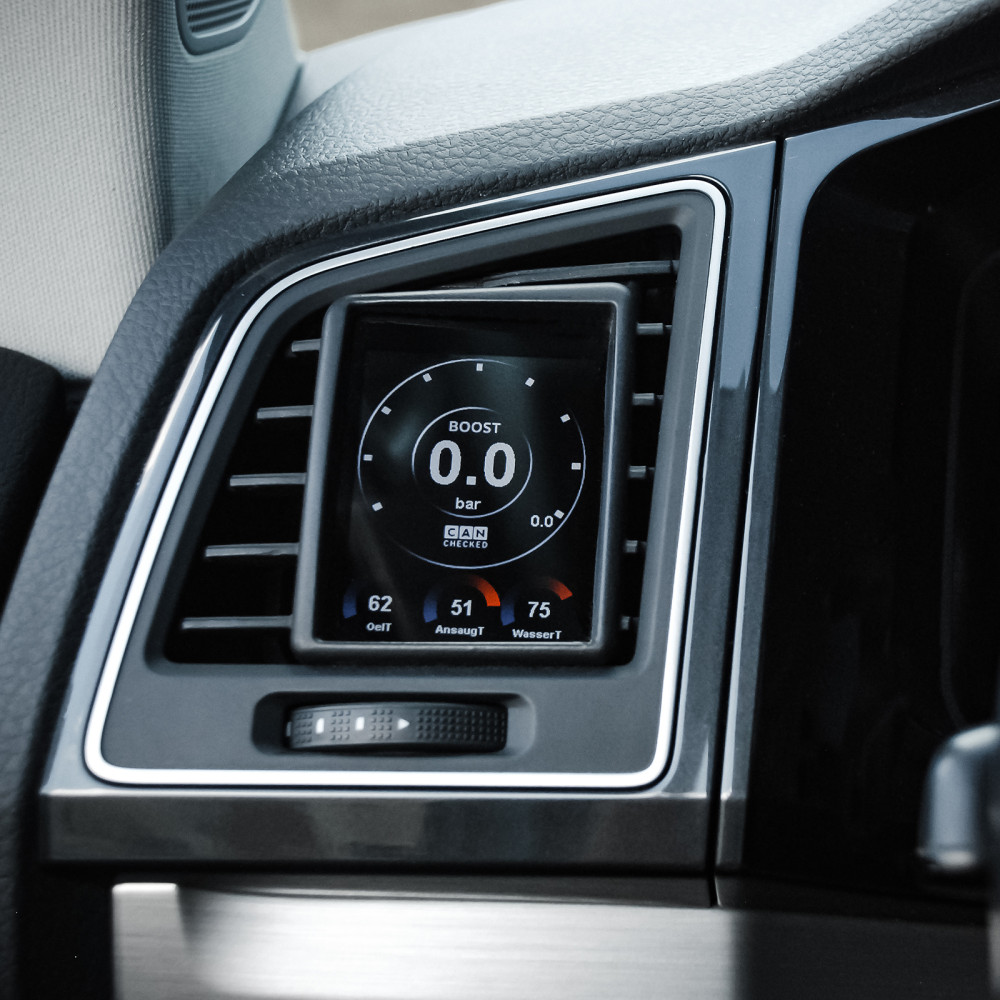

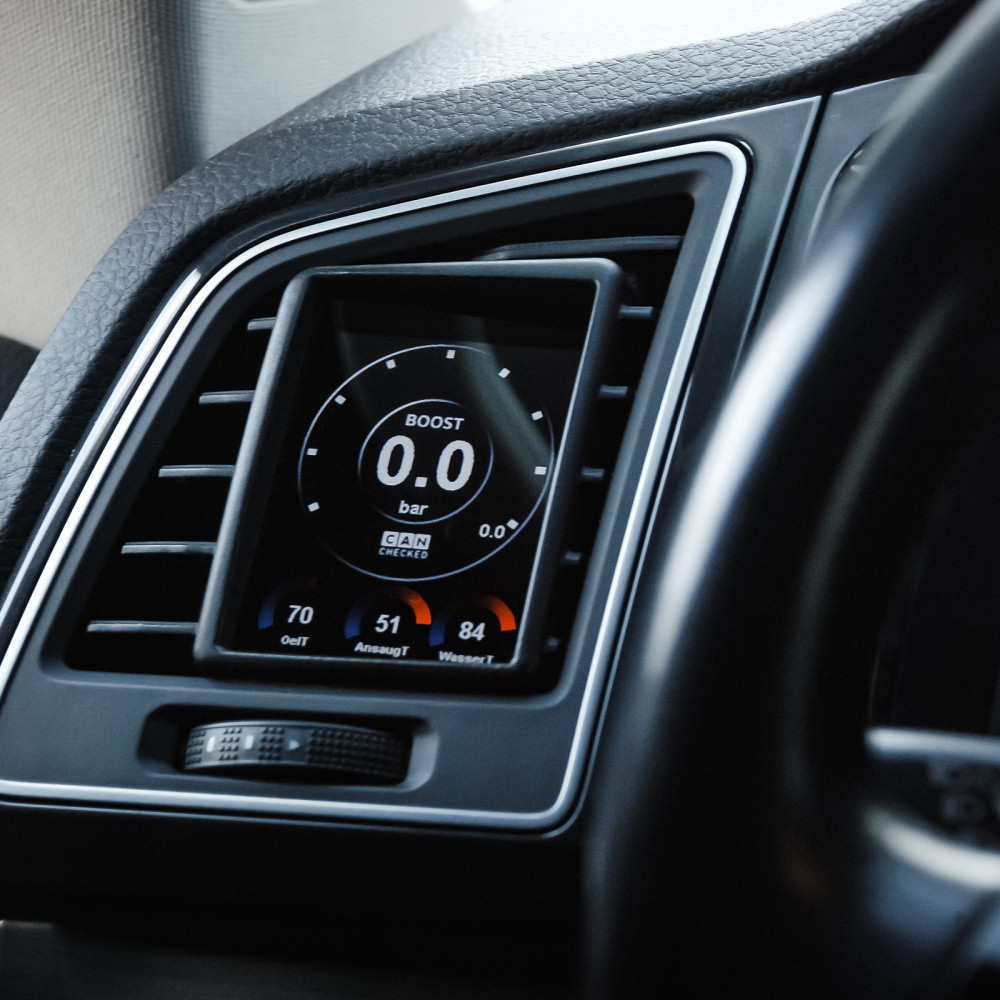

• Cluster-integrated display with vehicle-specific frame for a clean interior fit
• Queries up to 128 sensors via CAN bus
• 10 individually configurable pages using DSS (Display Setup Software)
• Pre-configured views for quick setup
• Plug-and-play connection via OBD port (cable set included)
• 4 analog inputs for additional sensors (e.g., exhaust temperature, oil pressure)
• Direct ethanol sensor integration
• Anti-reflection display foil available (included in delivery)
• Query rate comparable to manufacturer diagnostic tools

Functions

• Performance meter: 0–100, 100–200, 0–200 acceleration times
• Data logging: logs to internal SD card; on-demand or continuous; last drive stored
• Preset alarms: configurable warnings (example: exhaust temperature warning above 900)

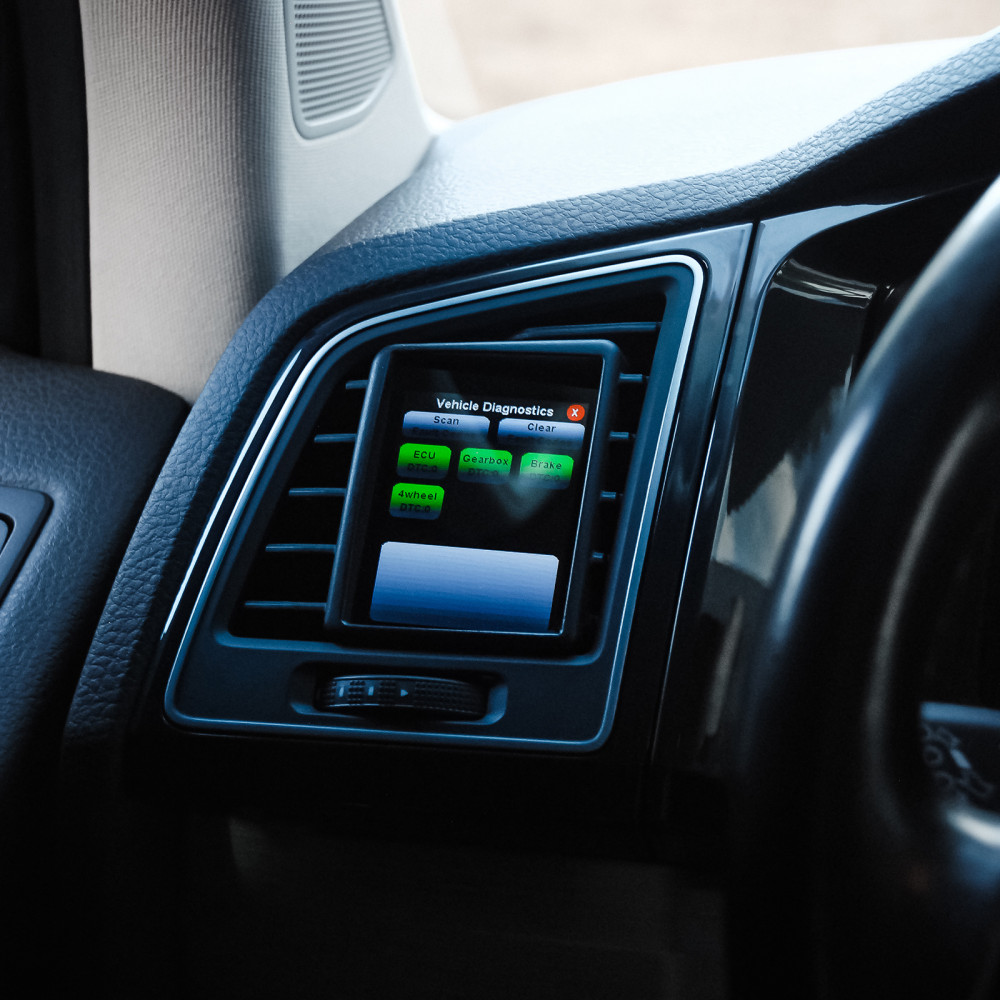

• DTC handling: read ECU faults in plain text and clear them
• Display personalization: startup screen and selectable widgets
• Advanced channels: Math-Channels for calculated values; User-Table for additional sensors via 2D/3D maps

ECU data (examples)

A pre-configured TRI file is supplied as standard, defining supported sensors. Depending on the engine, available values may include:

• Temperatures: coolant, intake air, exhaust, transmission
• Pressures: boost, ambient, oil
• Lambda/mixture: lambda target/actual, short- and long-term lambda adaptation, MAF, engine load, torque
• Driver dynamics: brake pressure, vehicle speed, throttle angle/gas pedal position
• Other: RPM, total ignition angle, gear, battery voltage, ignition correction per cylinder

Note: Not every engine provides every value.

Fitment

• Frame fits left-hand-drive (LHD) MFD28 VW T6
• Also stated: fits all left-hand-drive MFD28 VW Scirocco FL
• Right-hand-drive version available

Connection and expansion

Four analog inputs support linear 0–5 V sensors and NTC sensors. CANchecked display sensors are stored in the TRI/TRX files by default and only need to be connected.

• AIN1: Temperature sensor
• AIN2: Type K exhaust gas temperature transducer
• AIN3: Pressure sensor 0–10 bar
• AIN4: Boost pressure sensor 0–5.5 bar absolute

An external 8-LED shift light can be connected. Flash colors, RPM limits, and colors can be configured directly on the display.

Ethanol sensor connection is direct to the display; a 10 kΩ pull-up resistor is required between 5 V and signal to display and log ethanol content and temperature.

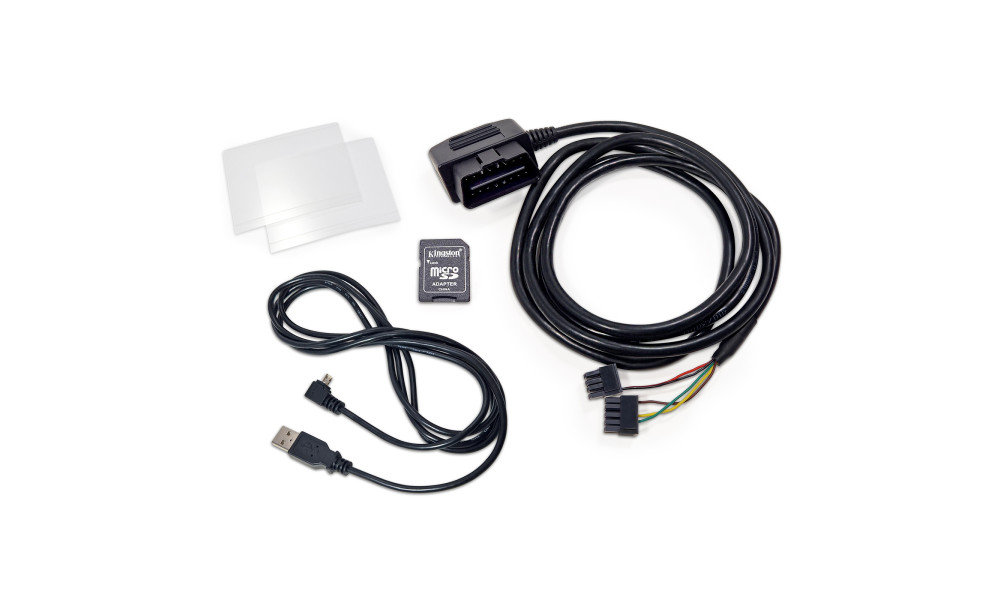

Scope of delivery

• MFD28 Gen2 data display integrated in the cluster
• Quickstart guide
• USB data cable
• SD card (pre-installed in the display)
• SD card adapter
• Display foil (to prevent reflections)
• Plug-and-play connection cable to OBD port

Optional accessories

• CC24000 SLM08 - external switching lightning module
• CC22100 CBD08 - eightfold Can Distribution Hub
• CC22902 NTC01 - temperature sensor for liquids 1/8" NPT
• CC22903 TCC01 - type K converter 0-1250°C
• CC22901 FLP01 - pressure sensor 0-10 bar (145psi) M10x1
• CC22900 BST01 - pressure sensor 0-5.5 bar absolute (80psi)

Installation

An illustrated installation guide is provided.
