CANchecked MFD15 Gen2 Display

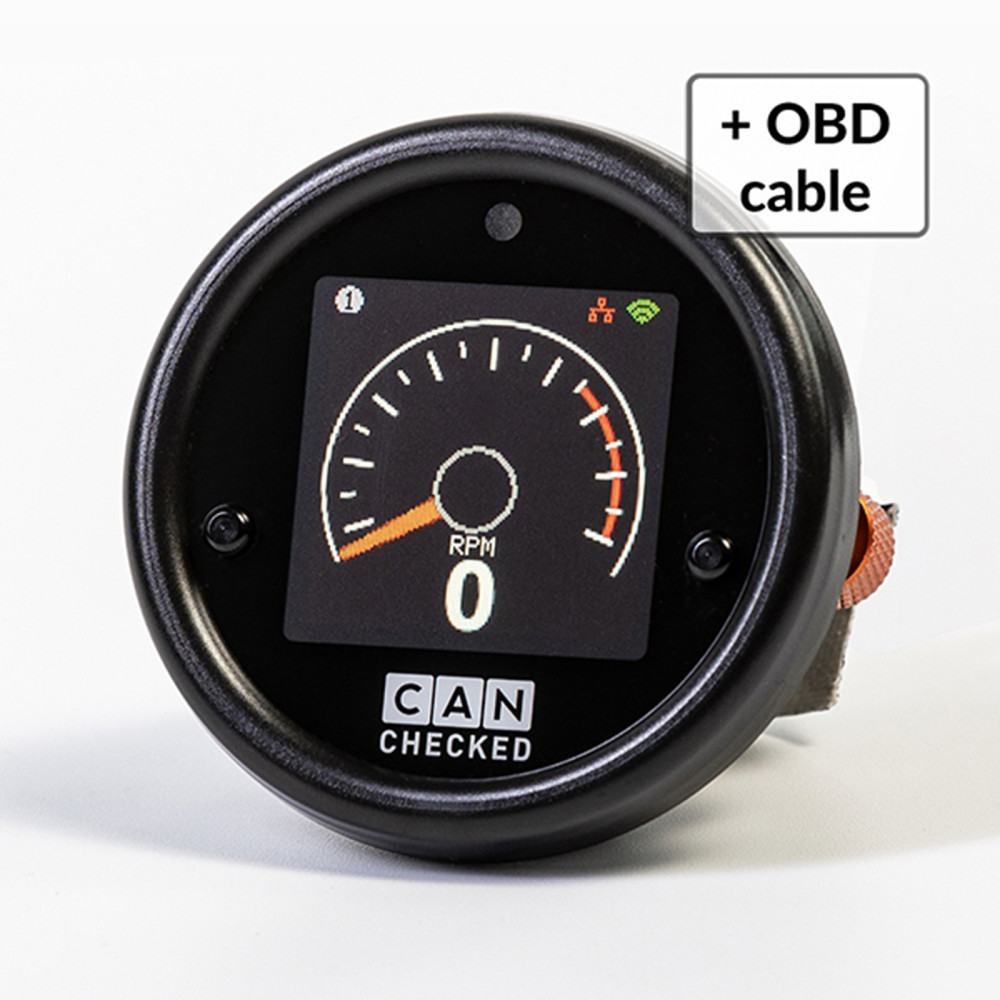

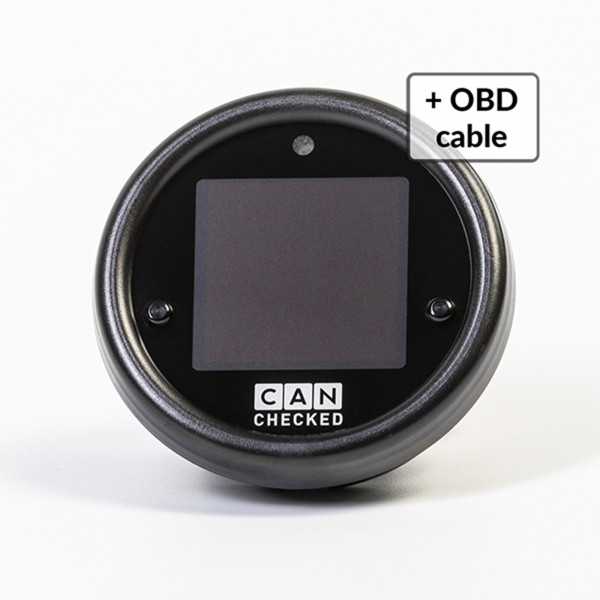

The CANchecked MFD15 Gen2 is a compact 52 mm auxiliary display designed to keep key engine and vehicle data in your line of sight. It uses an OLED screen for clear readability, including in direct sunlight, and fits common 52 mm interior bezels without requiring a vehicle-specific holder.

Control is via two windshield-mounted push buttons, with an optional external rotary knob available.

Key features

• Compact packaging: 52 mm diameter, 12.5 mm depth
• Front LED: configurable as a shift light and/or warning LED
• CAN support: CAN bus ECUs, OBD2 (from 2008), in-depth VW/Audi data (from 2008), or custom CAN streams
• WLAN: connect to a smartphone or PC and configure via the web-based UI (oDSS)
• Analog inputs: up to 6 analog sensors (0–5 V or NTC); optional direct ethanol sensor input (license required)
• Alarms: preset alarms can be enabled and customized (example: EGT alert above 900 °)
• Personalization: custom startup logo or background image
• Online logging: log data via smartphone/PC (license required)
• Flex Fuel: display ethanol content and temperature (license required)
• CAN switching / AIN forwarding: switch CAN outputs and forward analog readings to CAN (license required)

Display layouts (pages)

You can configure up to eight pages and choose from the following views:

• Analog pointer
• Double value
• Gear indicator
• 4-fold values
• 6-fold values
• Bar + double display
• Round display
• Bar graph (double across)
• Performance Meter
• Bar chart (1–6-fold upright)
• Single value

WLAN setup and oDSS

The MFD15 Gen2 can be accessed over WLAN for setup via smartphone or PC. In oDSS you can configure the display, upload a startup image, update firmware, and (with the appropriate license) log values.

ECU data and protocol support

The MFD15 Gen2 is compatible with ISO 11898-2 and SAE J2284. In practice, the available parameters depend on what your ECU transmits on the CAN bus. If available, ECU documentation (for example a DBC file) can be used and imported via DSS/oDSS.

Depending on the manufacturer, up to 64 sensors can be queried. OBD2 queries via CAN (11-bit/29-bit) are supported, and vehicle-specific protocols such as UDS and TP2 are available.

Included ECU definitions (default)

• OBD2 (11-bit and 29-bit)
• Ecumaster (Classic and Black)
• VAG PQ34
• Haltech v2
• LinkECU
• MaxxECU
• Motec M1
• Emtron
• Megasquirt 2 and 3

If your ECU is not listed, the appropriate TRI/TRX can be downloaded or requested from the database.

VW/Audi in-depth data (from model year 2008)

For VW/Audi vehicles from 2008, protocol-based in-depth queries are available, including values such as oil temperature, boost pressure, transmission temperature, cylinder-selective ignition angle return, high/low pressure, wastegate actuation, and more.

Internal LED (shift light and warning)

The internal LED can be used as a shift light and as a warning LED.

• Shift light: assign up to 8 colors and RPM limits, including a configurable RPM where flashing begins.
• Warning LED: set min/max limits per sensor in oDSS (Sensors) and enable LED warnings; when a limit is exceeded, the LED flashes in the configured color. During a warning, shift-light mode is disabled.

Connections and expansion

Analog inputs

Six analog inputs support linear 0–5 V sensors and NTC sensors.

CANchecked sensor presets are stored in TRI/TRX files by default:

• AIN1: Temperature sensor
• AIN2: Transducer for exhaust gas temperature probe type K
• AIN3: Pressure sensor 0–10 bar
• AIN4: Boost pressure sensor 0–5.5 bar absolute
• AIN5: Not preconfigured
• AIN6: Not preconfigured

A pre-assembled 4-way AIN harness can be used for connection.

With the appropriate license, an ethanol sensor can additionally be connected directly to the display via a separate pin.

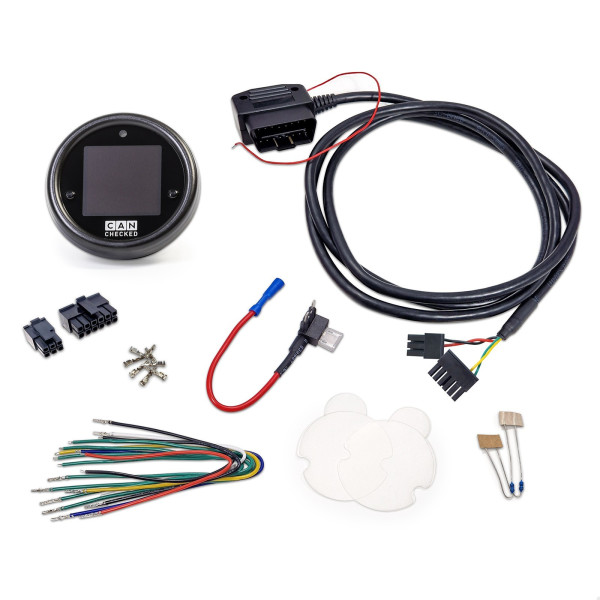

What’s included

• MFD15 Gen2 Display
• Connector B (6-way)
• Connector C (12-way)
• 20 cm pre-crimped connection cables for power supply, CAN bus, analog inputs, 5 V, and sensor ground
• Pins for self-crimping
• Two 1 kΩ resistors (NTC pull-up)

Optional accessories

• CC22501 ETK01: External rotary knob with PnP 50 cm connection cable
• CC22100 CBD08: Eight-way CAN distribution hub
• CC22902 NTC01: Temperature sensor for liquids, 1/8" NPT
• CC22903 TCC01: Type K transducer, 0–1250 °C
• CC22901 FLP01: Pressure sensor, 0–10 bar (145 psi), M10x1
• CC22900 BST01: Boost pressure sensor, 6.5 bar relative (95 psi)

*Additional licenses

Live Logging

With the optional Live Logging license, the display can log sensor data into oDSS and you can download the log file to your smartphone or PC.

Note: For OBD and UDS, only the currently displayed sensors are logged.

Flex Fuel (ethanol sensor directly on the MFD15 Gen2)

With the ethanol sensor license, an ethanol sensor can be connected directly to the display. A 10 kΩ pull-up resistor is required between 5 V and signal. Ethanol content and fuel temperature can be displayed and logged.

CAN Switching and AIN forwarding

With the CAN Switching and AIN forwarding license, the display buttons or rotary knob can be used to switch CAN switches, and analog input voltages can be forwarded onto the CAN bus.
