CANchecked MFD32 Gen2 for Audi A3/S3 8L (pre-FL)

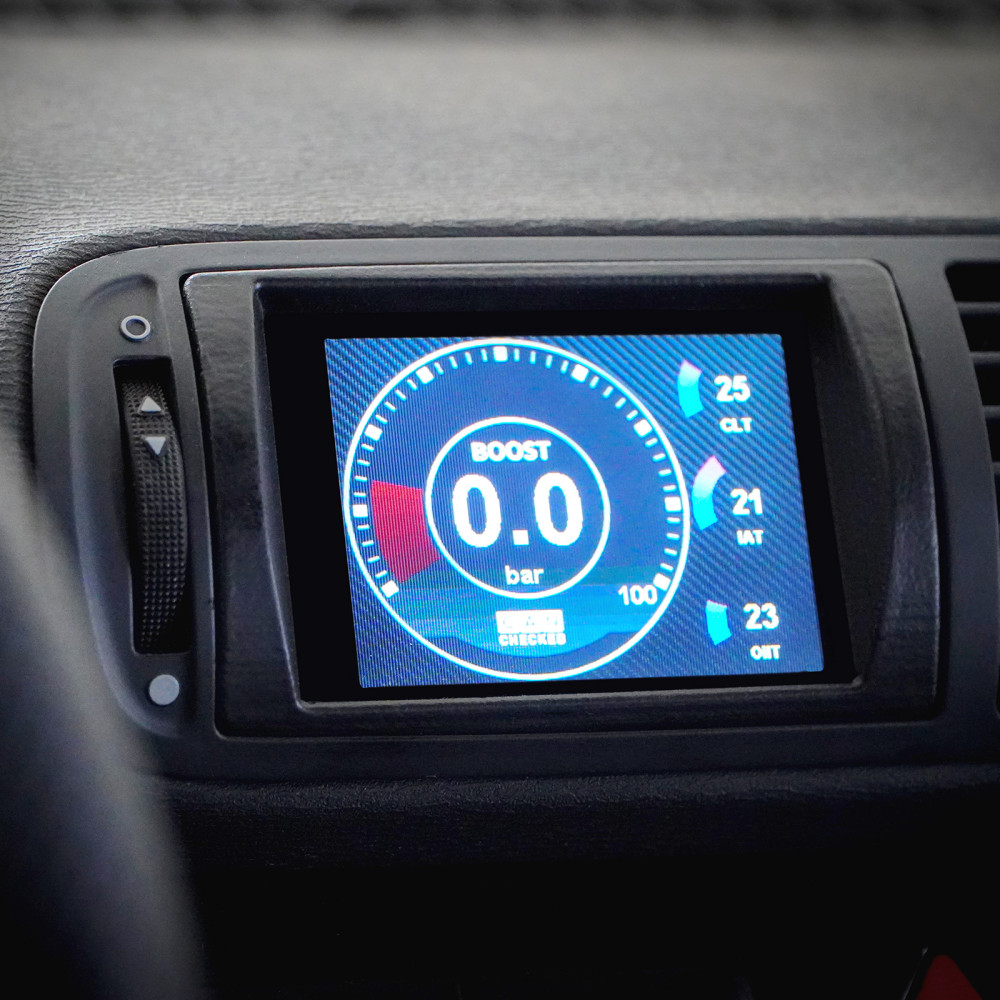

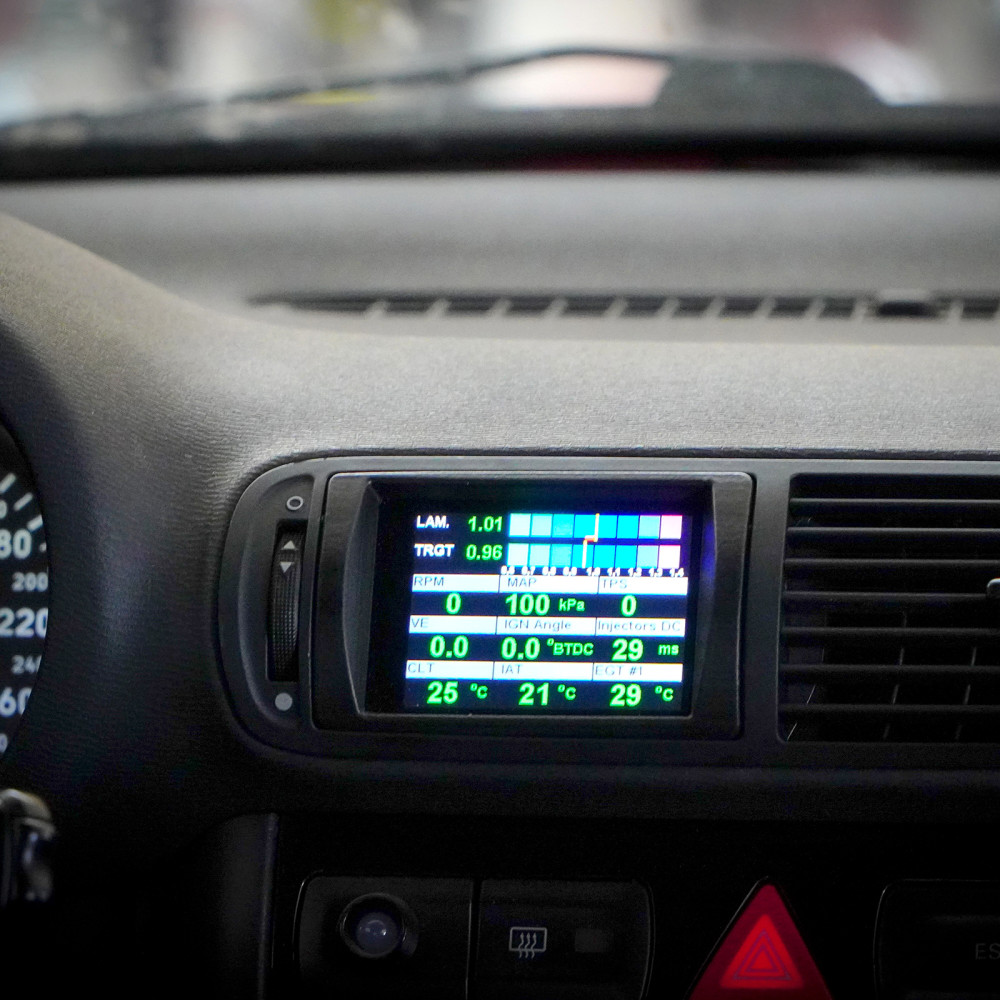

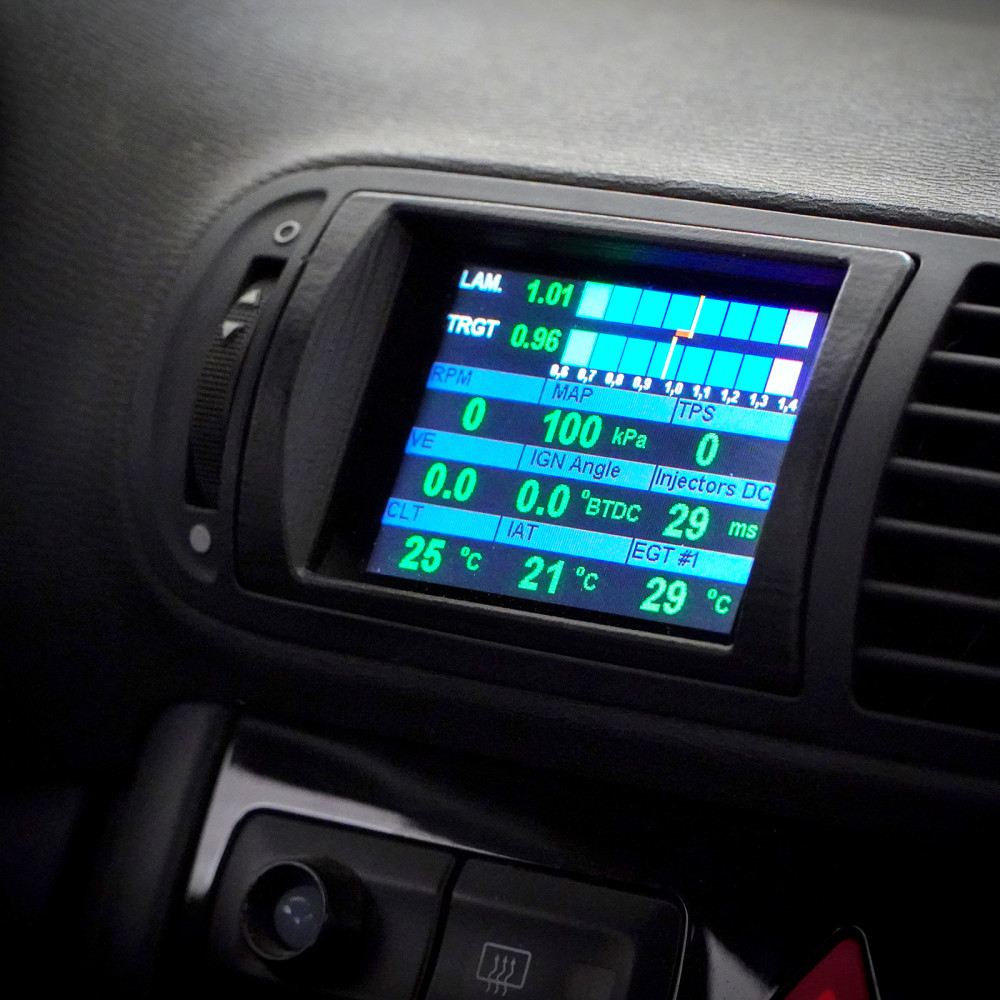

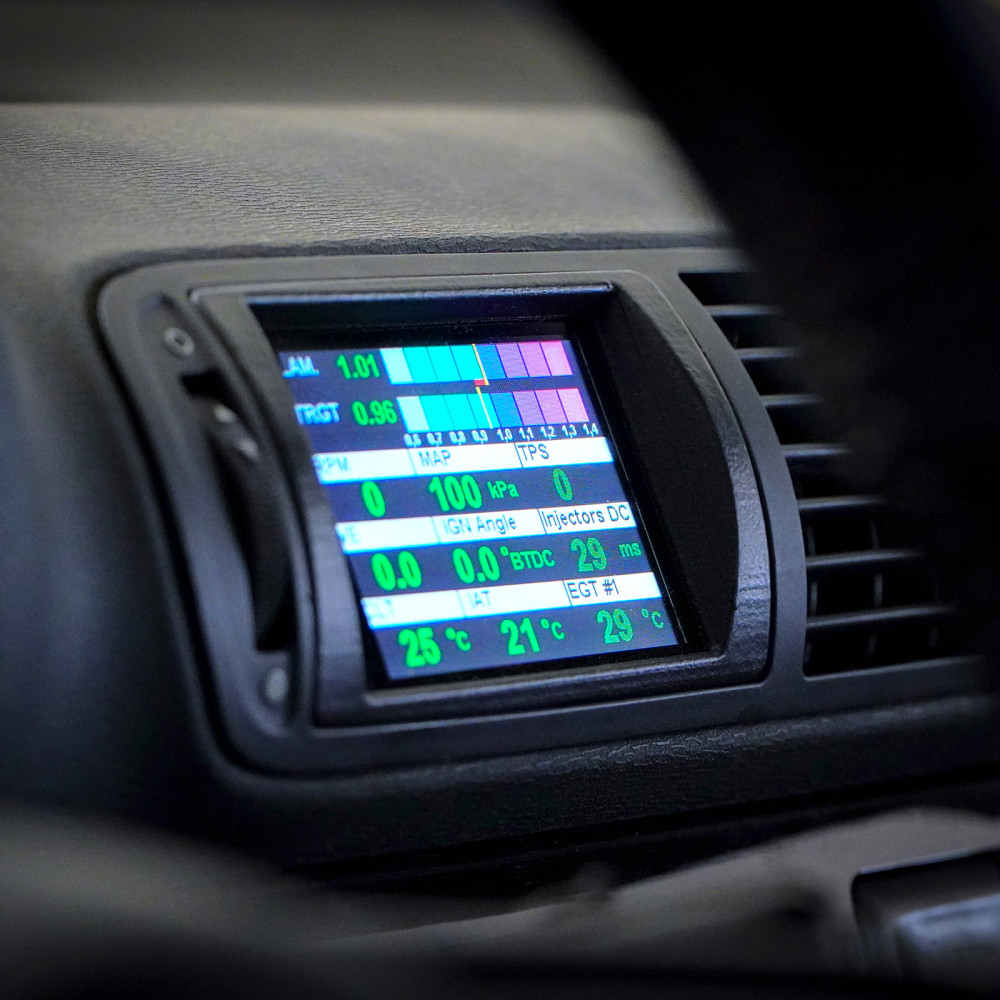

The MFD32 Gen2 replaces the air vent with an integrated data display while still allowing airflow past the unit via the vehicle-specific bezel. It’s designed for straightforward installation, with illustrated instructions available for most displays.

Key features

• Vehicle-specific integration: Bezel design maintains vent airflow.
• CAN Bus readout: Access in-depth vehicle data similar to manufacturer diagnostic tools.

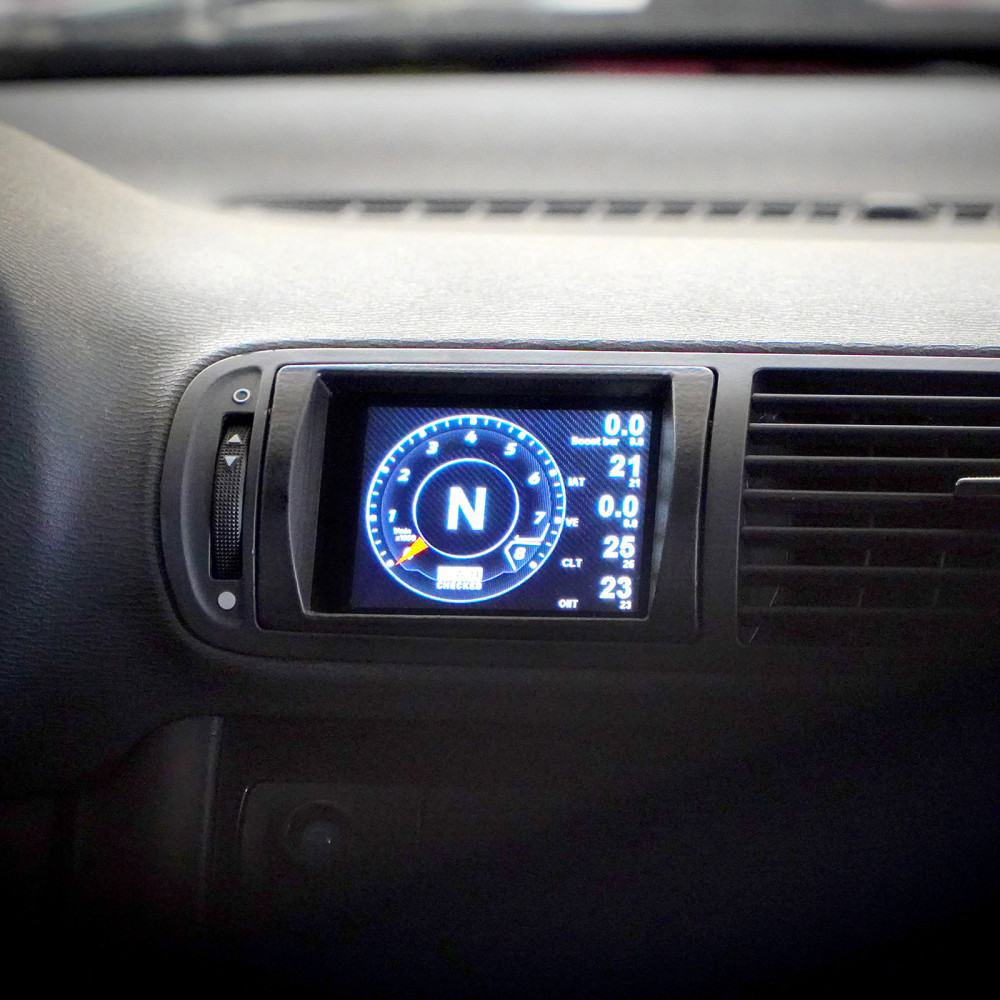

• Gear display: Via CAN Bus or calculated from speed and RPM.
• Touchscreen control: Page navigation using swipe gestures.
• Custom pages: Build your own layouts, add images, or use a start animation.
• Additional inputs: Up to 4 analog inputs plus direct ethanol sensor support.
• CAN switching: Use the display as a keypad and send custom CAN messages.
• Configurable alarms: Set warnings (e.g., an alert above 900°C exhaust gas temperature).
• Logging: Save logs to the internal SD card for later review.
• Performance meter: Measure 0–100, 100–200, and 0–200 times without extra hardware.
• DTC*: Read and clear faults for engine ECU, transmission, ABS, and all-wheel drive.
• Dimming*: Automatic dimming with the instrument panel.

Pages and layouts

• Delivered with predefined sample pages.
• Create and customize your own pages (up to 10).
• 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar).
• Drag-and-drop positioning and scalable widget sizing.
• Fully adjustable widget colours.
• Up to 64 widgets per page.

Display Setup Software (DSS)

DSS is used to customize the display, download and view log files, and use the integrated CAN logger. The integrated TRI Editor allows sensor configuration (CAN Bus or internal), including assigning min/max warning thresholds and renaming sensors.

Supported ECU values (examples)

The display supports CAN Bus data queries using UDS, TP2, and manufacturer-specific protocols. It is supplied with predefined TRI/TRX files that define the sensors to be queried (varies by engine). Missing values can be added later.

Temperatures

• Exhaust, coolant, oil, intake, outside, gasoline, DSG temperature

Pressures

• Boost, ambient, fuel pressure pre-feed pump, rail pressure actual/target

Lambda / mixture

• Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment

Other

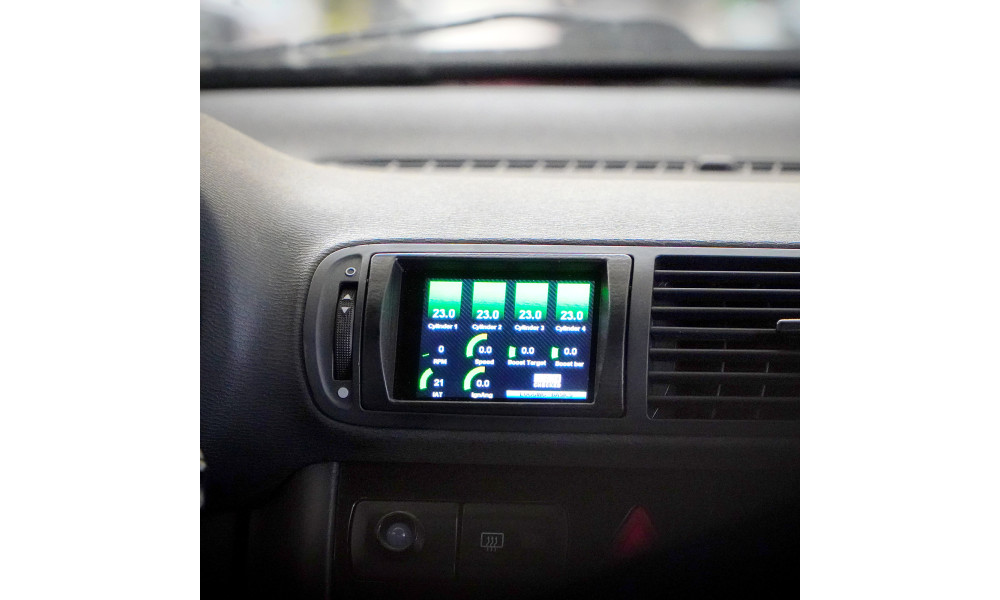

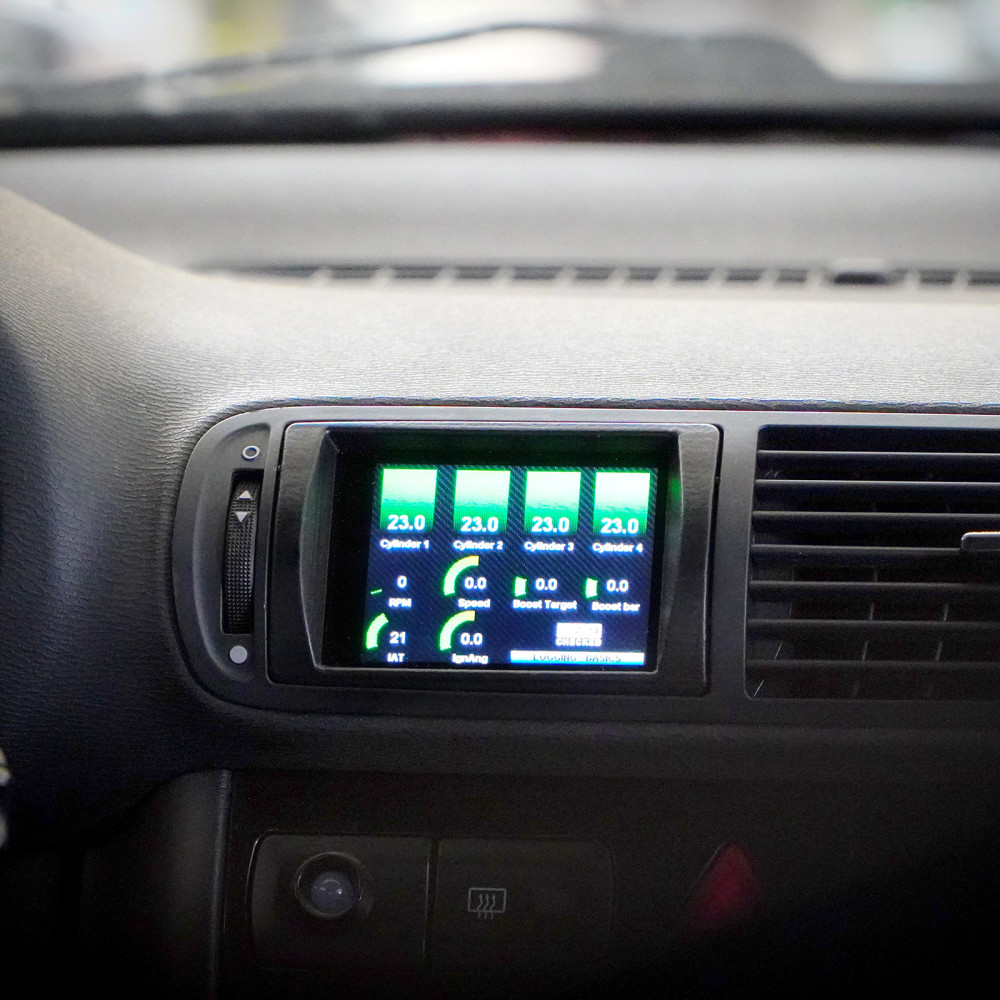

• RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values

Connections and expansion

Four analog inputs support linear 0–5V sensors and NTC sensors. CANchecked in-house sensors are already defined in the TRI/TRX files and only need to be connected.

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K exhaust gas temperature converter (TCC01)
• AIN3: 0–10 bar pressure sensor (FLP01)
• AIN4: 0–5.5 bar absolute boost pressure sensor (BST10)

An optional pre-assembled AIN wiring harness can be used for connection.

An external shift light with eight LEDs can be connected; colours and speed limits are configurable on the display.

An ethanol sensor connects directly to the display; a 10K pull-up resistor is required between 5V and the signal. Ethanol content and temperature can be displayed and logged.

Advanced functions

• Math-Channels: Calculate sensors from other sensor values.
• User-Table: Create additional sensors using 2D or 3D maps.

Scope of delivery

• MFD32 Gen2 data display integrated into the ventilation insert (LHD vehicles)
• Connector A (8-way Molex)
• Connector B (10-way Molex)
• Pre-assembled connection cables (20 cm) for power, CAN Bus, analog inputs, 5V, sensor ground
• Pins for self-crimping
• Two 1K resistors (pull-up for external NTC sensors)
• Quickstart guide
• USB data cable
• SD card (pre-installed)
• SD card adapter
• Display foil (anti-reflection)

Optional accessories

• CC24000 SLM08 – external switching lightning module
• CC22780 ANC04 – four-way AIN harness
• CC22100 CBD08 – eight-way CAN distribution hub
• CC22902 NTC01 – liquid temperature sensor, 1/ inch NPT
• CC22903 TCC01 – type K converter, 0–1250°C
• CC22901 FLP01 – 0–10 bar pressure sensor (145 psi), M10x1
• CC22900 BST10 – pressure sensor, 6.5 bar relative (95 psi)

* Not available on all protocols.
