CANchecked MFD28 Gen2 Vent Display for BMW 3 Series E30

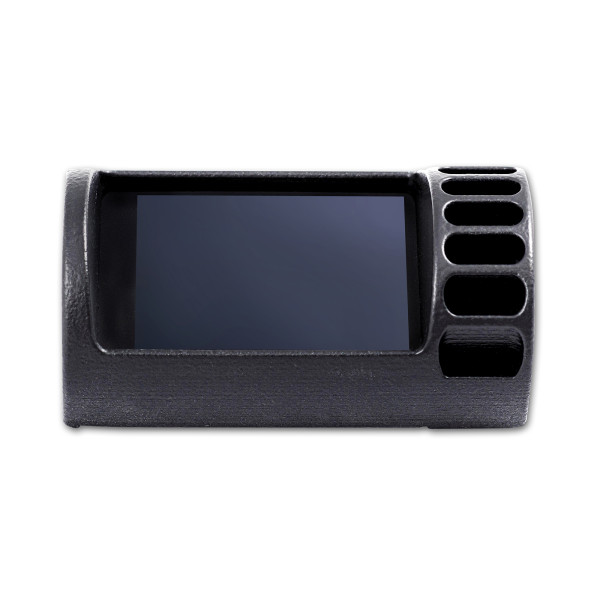

The MFD28 Gen2 replaces the air vent insert with an integrated data display designed specifically for the BMW E30. The vehicle-specific bezel retains airflow past the display, and installation is intended to be achievable without a workshop (illustrated instructions are available for most displays).

Key features

• Vehicle-specific integration: Bezel design still allows airflow.
• CAN Bus data: In-depth ECU data readout comparable to manufacturer-level diagnostics.
• Gear display: Via CAN Bus or calculated from speed and RPM.
• Touchscreen operation: Page navigation with swipe gestures.
• Page customization: Create your own layouts; add pictures or a start animation.
• Inputs: Up to 4 analog inputs plus direct ethanol sensor input.
• CAN switching: Use the display as a keypad to send custom CAN messages.
• Configurable alarms: User-set warnings (e.g., prominent warning at EGT > 900 degrees).
• Data logging: Log to the internal SD card for later analysis.
• Performance meter: 0–100, 100–200, and 0–200 timing without extra hardware.
• DTC*: Read and clear faults for engine control unit, transmission, ABS, and all-wheel drive.
• Dimming*: Automatic dimming with the instrument panel.

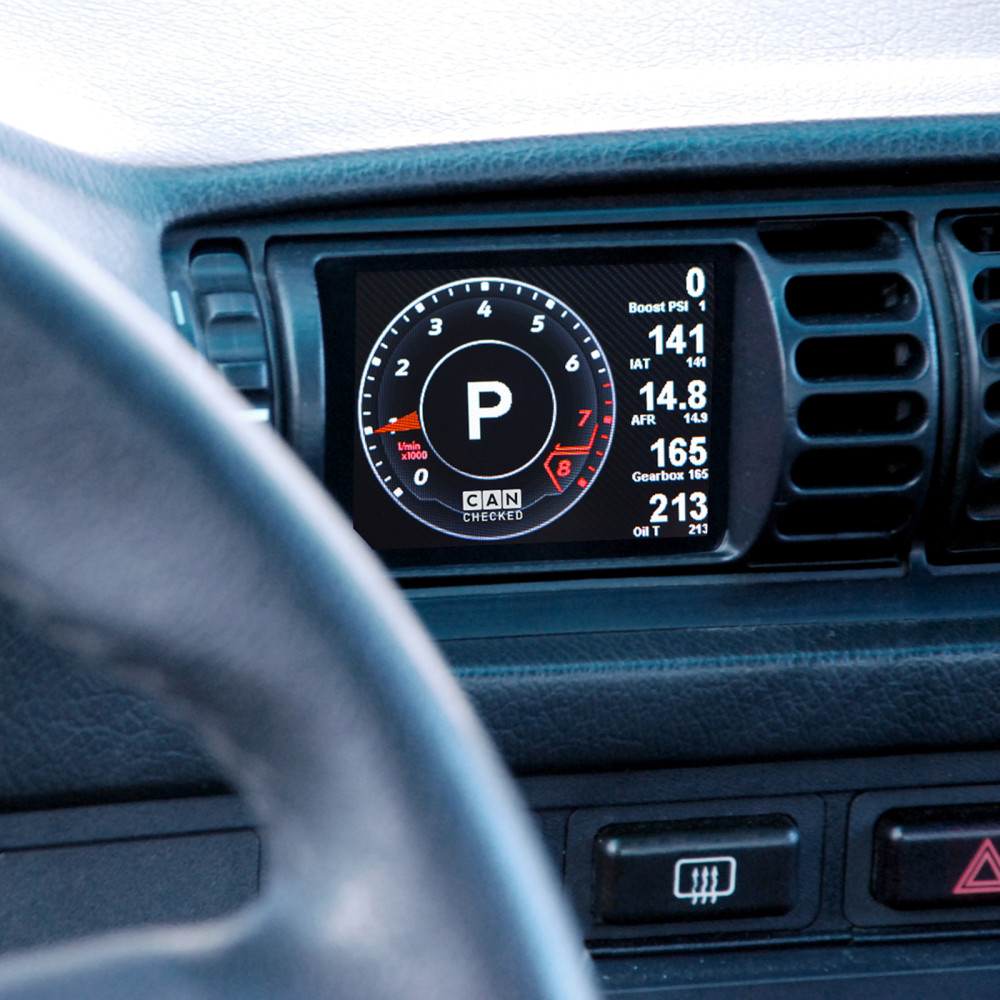

Display pages and layouts

• Delivered with predefined sample pages.
• Create and save your own pages (up to 10 pages).
• 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar).
• Drag-and-drop positioning; scalable widgets; fully adjustable widget colors.
• Up to 64 widgets per page.

Display Setup Software (DSS)

DSS is used to customize pages and manage logs. It includes a log viewer and an integrated CAN logger. The integrated TRI Editor allows sensor configuration (CAN Bus or internal), including min/max warning thresholds and sensor naming.

Supported ECU values

The display supports CAN Bus data query (UDS, TP2, manufacturer-specific protocols) and K-Line (ISO 9141). It is delivered with predefined TRI/TRX files that define which sensors are queried (varies by engine). If values are missing, they can be added later.

Examples of supported channels include:

• Temperatures: Exhaust, coolant, oil, intake, outside, gasoline, DSG temperature.
• Pressures: Boost, ambient, fuel pressure pre-feed pump, rail pressure actual/target.
• Lambda/mixture: Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment.
• Other: RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values.

Connections and expansion

Four analog inputs support linear 0–5V and NTC sensors. CANchecked in-house sensors are stored in the TRI/TRX files by default and only need to be connected:

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K EGT converter (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost pressure sensor 0–5.5 bar absolute (BST01)

An external 8-LED shift light can be connected, with colors and RPM limits configurable on the display.

An ethanol sensor connects directly to the display. A 10K pull-up resistor between 5V and signal is required to view and log ethanol content and temperature.

Advanced functions

• Math Channels: Calculate channels from other sensors.
• User Table: Create additional sensors using 2D or 3D maps.

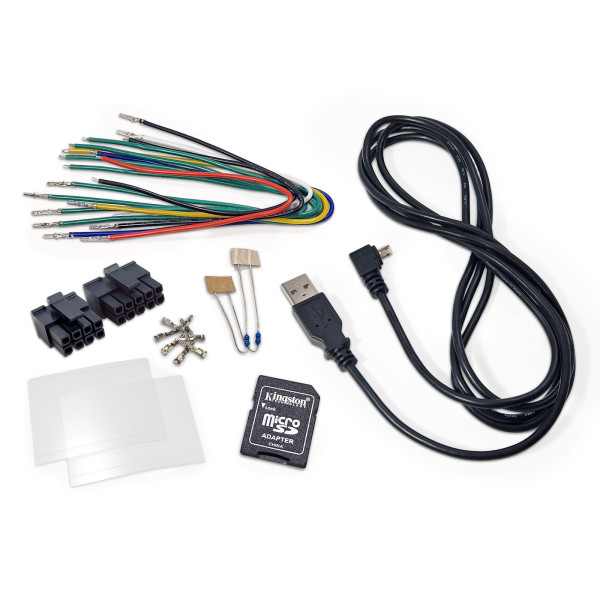

Scope of delivery

• MFD28 Gen2 display integrated into the ventilation insert (LHD & RHD vehicles)

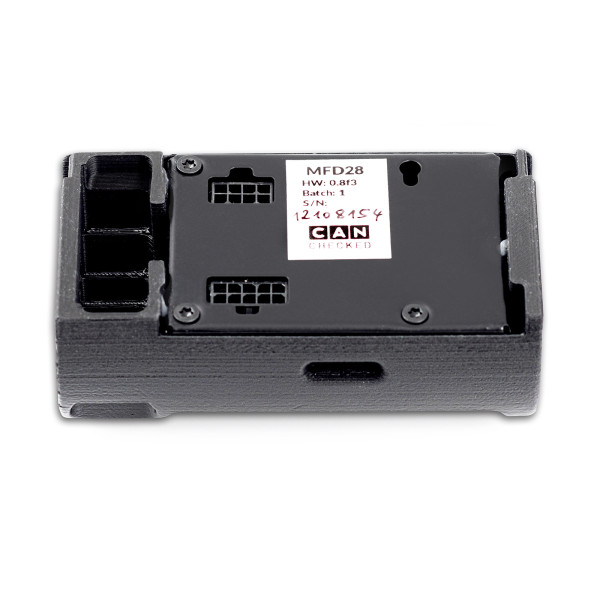

• Connector A (8-way Molex)
• Connector B (10-way Molex)
• Pre-assembled connection cables (20 cm) for power supply, CAN Bus, analogue inputs, 5V, sensor ground
• Pins for self-crimping
• Two 1K resistors (pull-up for external NTC sensors)
• Quickstart guide
• USB data cable
• SD card (pre-installed in the display)
• SD card adapter
• Anti-reflection display foil

Optional accessories

• CC24000 SLM08 – external switching lightning module
• CC22780 ANC04 – four-way AIN harness
• CC22100 CBD08 – eight-way CAN distribution hub
• CC22902 NTC01 – temperature sensor for liquids, 1/ inch" NPT
• CC22903 TCC01 – type K converter, 0–1250°C
• CC22901 FLP01 – pressure sensor 0–10 bar (145 psi), M10x1
• CC22900 BST01 – boost pressure sensor 0–5.5 bar absolute (80 psi)

* Not available on all protocols.
