CANchecked MFD15 Gen2 Data Display Kit for Fiat Punto EVO

The CANchecked MFD15 Gen2 is a compact OLED data display supplied as a vehicle-specific kit for the Fiat Punto EVO, including a dedicated bezel and connection cable. The OLED offers strong readability, even in direct sunlight. Operation is via the two front push buttons, with optional support for an external rotary knob.

Key Features

• Compact size: 52 mm diameter, 12.5 mm depth
• Front LED: configurable as shift light and/or warning LED
• CAN bus support: compatible with CAN ECUs, custom CAN streams; OBD2 support (11-bit/29-bit); vehicle-specific protocols such as UDS and TP2 available
• WiFi configuration: setup via smartphone or PC using the oDSS web-based tools
• Analog inputs: up to 6 analog sensors; supports linear 0–5 V and NTC sensors
• Preset alarms: activate and customize predefined alerts (example given: EGT warning above 900°C)
• Customization: upload your own startup image and choose your color scheme
• Optional features via license: online logging, flex fuel display, CAN switching and analog-input forwarding

Display Pages / Views

Configure up to eight pages and choose from multiple layouts:

• Analog pointer
• Single value
• Double value
• 4-fold values
• 6-fold values
• Gear indicator
• Round display
• Bar + double display
• Bar graph (double across)
• Bar chart (1–6-fold upright)
• Performance meter

WiFi Setup with oDSS

WiFi access allows configuration via smartphone or PC. With oDSS you can fully set up the display, upload a startup image, update the device, and (with the required license) log values.

CAN / ECU Value Support

The MFD15 Gen2 is compatible with ISO 11898-2 and SAE J2284. What your ECU provides depends on the manufacturer and available documentation (including DBC files that can be imported). Depending on manufacturer, up to 64 sensors can be queried.

OBD2 queries via CAN (11-bit/29-bit) are supported. Vehicle-specific protocols such as UDS and TP2 are also available.

Included by default:

• OBD2 (11-bit and 29-bit)
• Ecumaster (Classic and Black)
• VAG PQ34
• Haltech v2
• LinkECU
• MaxxECU
• Motec M1
• Emtron
• Megasquirt 2 and 3

If your ECU is not listed, the appropriate TRI/TRX can be downloaded or requested from the database.

For VAG vehicles from model year 2008 (and in some cases older), protocol-based in-depth queries are available, including values such as oil temperature, boost pressure, transmission temperature, cylinder-selective ignition angle return, high/low pressure, wastegate actuation, and more.

Integrated LED (Shift Light / Warning)

The internal LED can be used as a shift light or as a warning LED.

• Shift light: assign up to 8 colors and RPM thresholds, plus a configurable flash point.
• Warning LED: set minimum and maximum thresholds per sensor; the LED flashes in the configured color when out of range. During a warning event, the shift light is disabled.

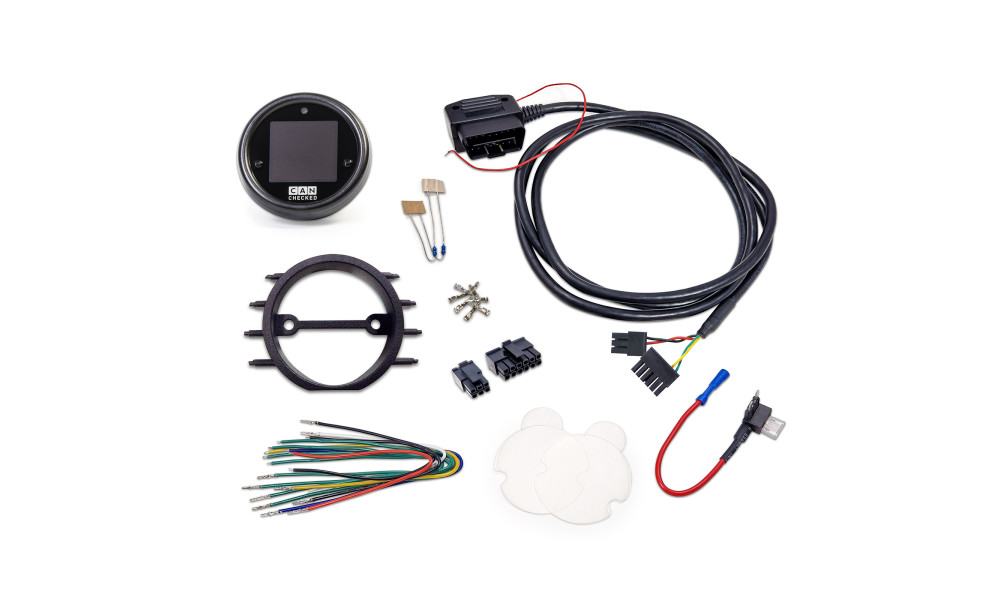

What’s Included

• MFD15 Gen2 data display
• Vehicle-specific bezel for LHD and RHD vehicles
• Vehicle-specific connection cable
• Quickstart guide
• Connector B (6-way Molex)
• Connector C (12-way Molex)
• Pre-assembled connection wires (20 cm) for power, CAN bus, analog inputs, 5 V, and sensor ground
• Crimp pins
• Two 1 kΩ resistors (NTC pull-up)

Analog Inputs and Preconfigured Sensor Curves

Six analog inputs are available. CANchecked in-house sensor characteristic curves are stored from the factory for plug-and-play use on the following channels:

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K EGT transducer (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost pressure sensor 0–5.5 bar absolute (BST01)
• AIN5: Not preconfigured
• AIN6: Not preconfigured

A pre-assembled 4-way AIN harness can be used for connection. With the appropriate license, an ethanol sensor can be connected directly to the display via a separate pin.

Optional Accessories

• CC22501 ETK01: External rotary knob with PnP 50 cm connection cable
• CC22100 CBD08: Eight-way CAN distribution hub
• CC22780 ANC04: Four-way AIN harness
• CC22902 NTC01: Liquid temperature sensor, 1/8" NPT
• CC22903 TCC01: Type K transducer, 0–1250°C
• CC22901 FLP01: Pressure sensor 0–10 bar (145 psi), M10x1
• CC22900 BST01: Pressure sensor 0–5.5 bar absolute (80 psi)

Additional Licenses

Live Logging

With the “Live Logging” license, sensor data can be logged into oDSS and downloaded to a smartphone or PC. Note: for OBD and UDS, only the currently displayed sensors are logged.

Flex Fuel (Ethanol Sensor Direct to MFD15 Gen2)

With the ethanol sensor license, an ethanol sensor can be connected directly to the display. A 10 kΩ pull-up resistor is required between 5 V and the signal. Ethanol content and fuel temperature can be displayed and logged.

CAN Switching and AIN Forwarding

With the CAN Switching/AIN Forwarding license, the display buttons or optional rotary knob can switch CAN switches, and the analog input voltages can be forwarded to the CAN bus.
