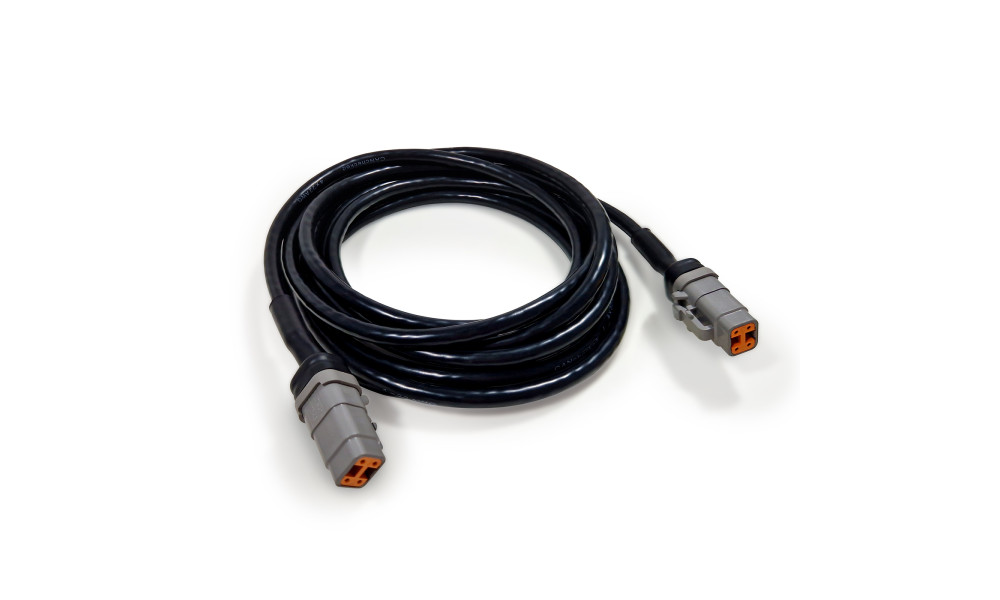

CANchecked DTM-Line Cable

The CANchecked DTM-Line cable is built for demanding automotive and motorsport environments, combining robust connectors with a durable, chemical-resistant sheath for dependable CAN data and power connections.

Key Features

• Available lengths: 0.5 m, 1 m, 2 m, 3.5 m
• Waterproof DTM06-4S-E007 connectors with kink protection on both ends

Cable Construction

• 4×22 AWG conductors arranged as twisted pairs: red/black and yellow/white
• Black PVC outer jacket; flame-retardant and resistant to petrol, diesel, and oil
• Outer diameter: 6.2 mm

Pinout (CANchecked Standard)

• Pin 1: GND
• Pin 2: 12V+
• Pin 3: CAN Low
• Pin 4: CAN High

Compatibility

Compatible with CANchecked CBD08, TCCXX, the tire and brake monitor, and DTM products from other manufacturers.
