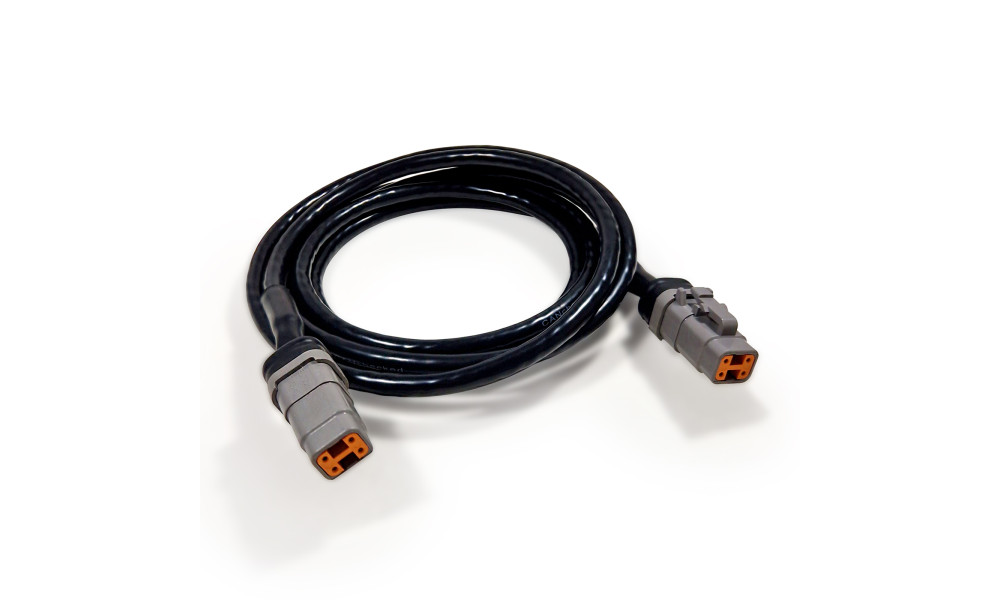

CANchecked DTM-Line Cable

The CANchecked DTM-Line cable is built for demanding automotive and motorsport installs, combining durable materials with a practical connector setup for reliable CAN and power connections.

Key Features

• Available lengths: 0.5 m, 1 m, 2 m, 3.5 m
• Waterproof DTM06-4S-E007 connectors with strain relief on both ends

Cable Construction

• 4x22 AWG twisted pairs (red & black, yellow & white) for stable signal transmission
• Black PVC outer jacket, flame-retardant and resistant to gasoline, diesel, and oil
• Outer diameter: 6.2 mm

Pinout (CANchecked Standard)

• Pin 1: GND
• Pin 2: 12V+
• Pin 3: CAN Low
• Pin 4: CAN High

Compatibility

Compatible with CANchecked CBD08, TCCXX, and Tire and Brake Monitors, and also suitable for DTM products from other manufacturers.
